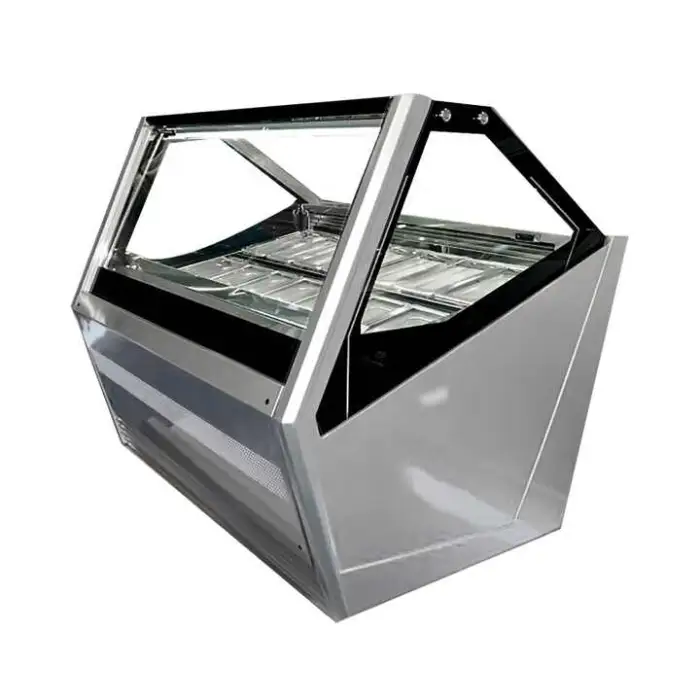

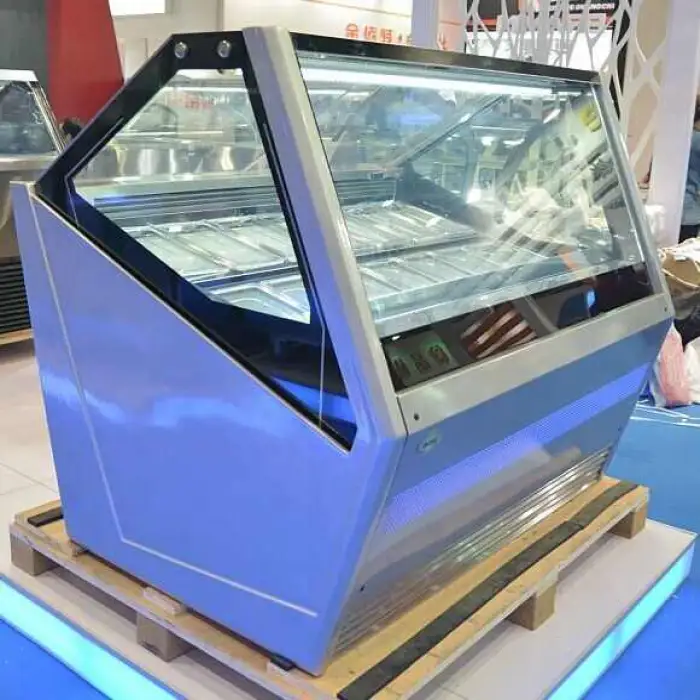

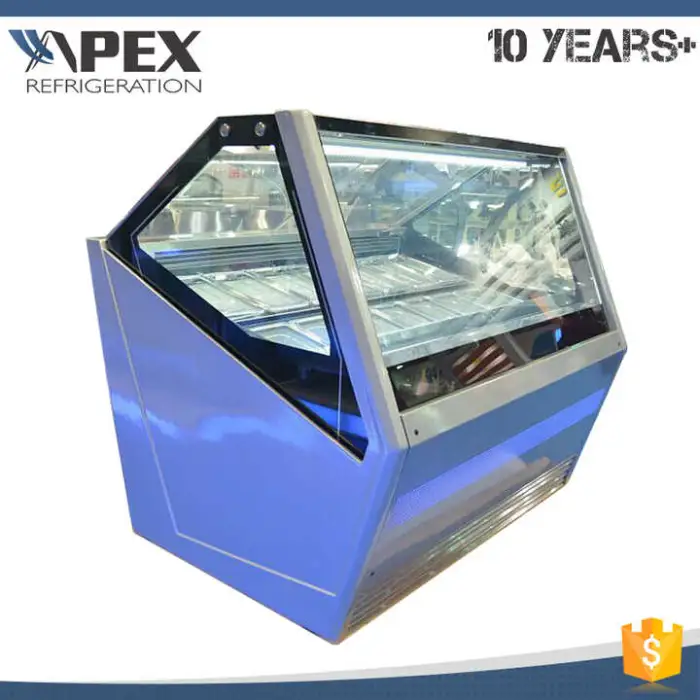

Design N-ST Climate Type Ice Cream Display Freezer

A commercial display freezer designed to showcase and store ice cream, gelato and popsicles. It features a stainless steel and glass design, fan cooling, a 375L capacity and a temperature range of -18 to -22°C to preserve frozen desserts while attracting customers.

Model LF-2100GQ, capacity 375L, temperature range -18 to -22°C, refrigerant R404a, compressors (Embraco or Danfoss), fan cooling, stainless steel and glass construction, glass sliding door, voltage options 220V/50Hz/60Hz or 110V/60Hz, dimensions 1230 × 1200 × 1300 mm, weight 68 kg.

N-ST indicates the unit is built for Normal to Subtropical climate classes, meaning it is engineered to operate reliably across a wider range of ambient temperatures than a standard 'N' class unit. For exact ambient limits, confirm with the supplier or technical datasheet.

Yes — the freezer is designed for a single optimal storage range and allows temperature adjustment within the -18 to -22°C band to maintain product quality. Refer to the user manual for the control procedure.

Two factory voltage configurations are offered: 220V at 50/60Hz and 110V at 60Hz. Confirm the model you order matches your local electrical supply.

Yes. The -18 to -22°C range is ideal for long-term storage of ice cream, gelato and popsicles. Note that gelato is typically served at a warmer ‘service’ temperature, so allow tempering before serving if needed.

Clean the interior and exterior surfaces weekly or as needed. Defrost when frost exceeds ~5 mm or according to the user manual. Clean condenser coils every 2–3 months (more often in dusty environments). Always disconnect power before cleaning.

Regular tasks include cleaning condenser coils, checking and cleaning door seals, ensuring drain lines are clear, verifying proper airflow and fan operation, and scheduling professional service for compressor or refrigerant issues.

R404a is a commonly used commercial refrigerant. It is non-flammable but has a high global warming potential (GWP). Refrigerant handling, leak repairs and disposal must be performed by certified HVAC/R technicians following local regulations.

Install on a level surface and allow clearance around the unit for airflow — typically 10–15 cm at the back and sides. Avoid placing it next to heat sources or in direct sunlight. Consult the installation manual for specific clearance recommendations.

The unit weighs approximately 68 kg and measures 1230 × 1200 × 1300 mm. Use appropriate lifting equipment or at least two people for safe handling. Secure the unit during transport and use a pallet jack or trolley for placement.

Warranty terms vary by seller (Apex or OEM). Compressors are standard Embraco or Danfoss units with widely available parts. Confirm warranty length, coverage and spare-parts availability with your supplier before purchase.

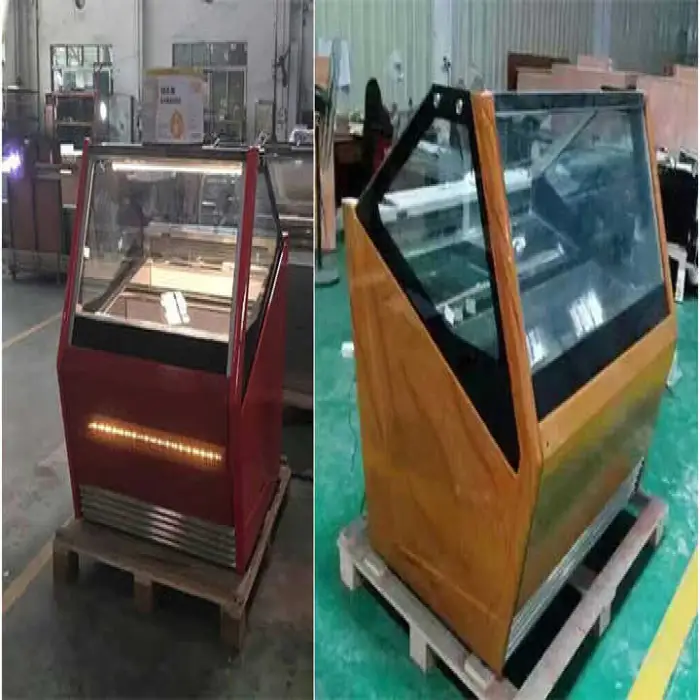

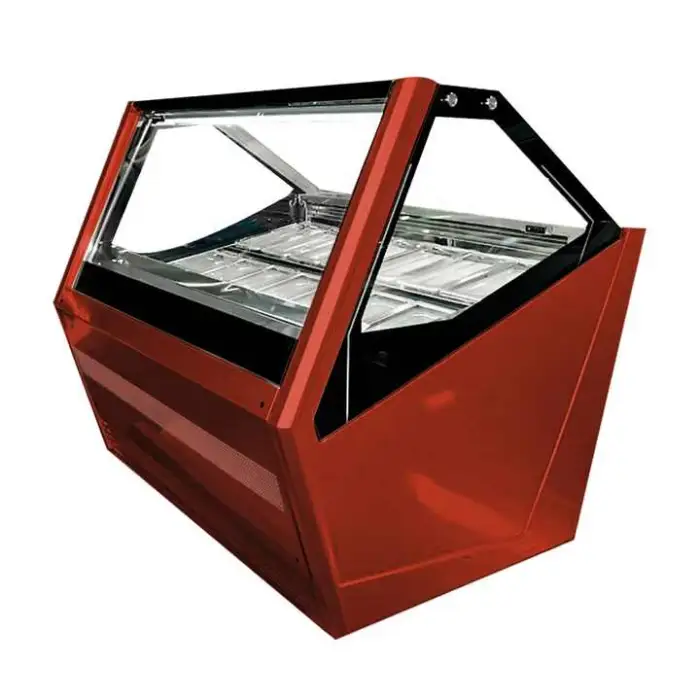

Yes — OEM branding and certain customizations are typically available. Contact the manufacturer or distributor to discuss options such as logo placement, color finishes or interior layout adjustments.

It can be used for events if placed in a sheltered area with a stable power supply and ambient temperatures within the unit’s climate rating. Avoid exposure to rain, direct sunlight, or extreme heat. Ensure safe electrical hookup and supervision.

Noise is in line with commercial display freezers (compressor and fan noise). Exact dB(A) figures depend on configuration; request the acoustic specification sheet from the supplier if decibel levels are critical for your location.
