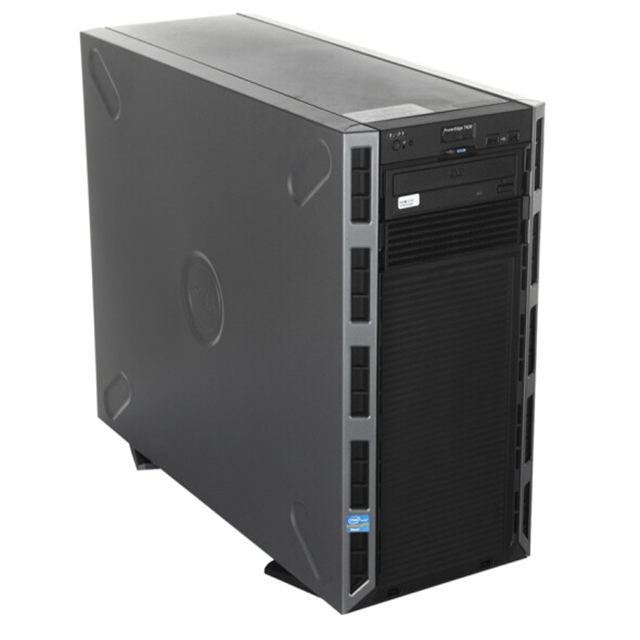

Dell T430 Intel Xeon E5-2660 v3 memory card 32gb tower server

This T430 is configured with an Intel® Xeon® E5-2660 v3 processor (10 cores / 20 threads, 2.6 GHz base, Turbo, 25 MB cache, 9.60 GT/s QPI, 105W).

The listing indicates a 32 GB memory card installed. The T430 uses DDR4 RDIMM modules; the product listing references 32GB RDIMM (2400 MT/s, dual rank, x4 data width).

The T430 supports DDR4 RDIMM modules in multiple capacities (common sizes include 4GB, 8GB, 16GB and 32GB RDIMMs as shown). For exact supported speeds and maximum capacity for your CPU/motherboard combination, refer to the Dell PowerEdge T430 technical manual.

The chassis supports multiple configurations: up to 8 x 3.5" drives, up to 4 x 3.5" drives, or up to 16 x 2.5" drives (SAS, SATA, nearline SAS or SSD). Some configurations offer hot-swap bays and optional flex bays.

The T430 supports PERC RAID controllers including the PERC H730, PERC H730P and PERC H830. It supports one internal controller and one external controller (if required).

Power options include hot-plug PSUs of 495W, 750W and 1100W, as well as a 450W cabled PSU option. Redundant hot-plug PSUs are available depending on the configuration.

The T430 ships with Broadcom 5720 2 x 1GbE LOMs (embedded). Additional or higher-speed NICs can be added via optional add-in network cards.

This server supports common server OS and hypervisors such as Microsoft Windows Server (with Hyper-V), VMware vSphere, and Citrix XenServer. Validate specific OS versions and driver support with Dell's compatibility matrix.

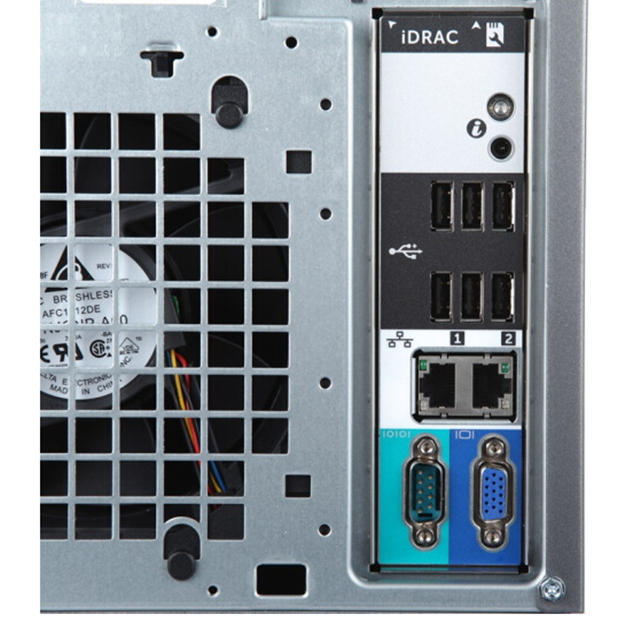

The T430 supports Dell management tools (OpenManage) and can be equipped with iDRAC (integrated Dell Remote Access Controller) functionality. iDRAC Enterprise may be an optional add-on depending on the system configuration.

The listing shows a 3-year basic hardware warranty. Service-level details such as on-site response (for example next business day) or 5x10 coverage vary by region and purchase; Dell support upgrades are available.

This is a 5U tower/server chassis. Approximate dimensions from the listing: height ~430.3 mm (base), width ~218 mm (base), depth ~558.6 mm (front to rear). With feet and bezel these figures are slightly larger. Confirm exact dimensions for rack or office placement.

The T430 supports multiple expansion slots: up to 2 x PCIe 2.0 and 4 x PCIe 3.0 slots (exact available slots depend on motherboard and riser configuration).

Yes. With a dual-socket capable chassis, a 10-core E5-2660 v3 CPU, and support for substantial memory and storage, the T430 is well-suited for virtualization, file/print, messaging, web serving and general workgroup/server roles for small to medium businesses.

The PowerEdge T430 is designed for quieter operation compared with larger datacenter chassis and is intended for office or small business environments, but actual noise will vary with configuration (PSU type, fans, number of drives) and workload.
