Model: WC67K 63T / 2500mm
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
Model: WC67K 63T / 2500mm
The DA53T CNC Electro-Hydraulic Servo Press Brake is a high-precision, reliable metal bending machine designed for efficient sheet metal forming. Built with international-standard electrical components and a robust electro-hydraulic system, this machine delivers stable performance, high accuracy, and long service life, making it suitable for industrial fabrication environments.
Nominal Pressure: 630 kN (63 Tons)
Working Length: 2500 mm
Distance Between Columns: 1975 mm
Throat Depth: 250 mm
Stroke: 120 mm
Maximum Open Height: 320 mm
Main Motor Power: 5.5 kW
Machine Dimensions: 2900 × 1650 × 2180 mm
Machine Weight: Approx. 4350 kg
Control Axes: 4 Axes (X + Y1 + Y2 + R)
Die & Punch Material: 42CrMo

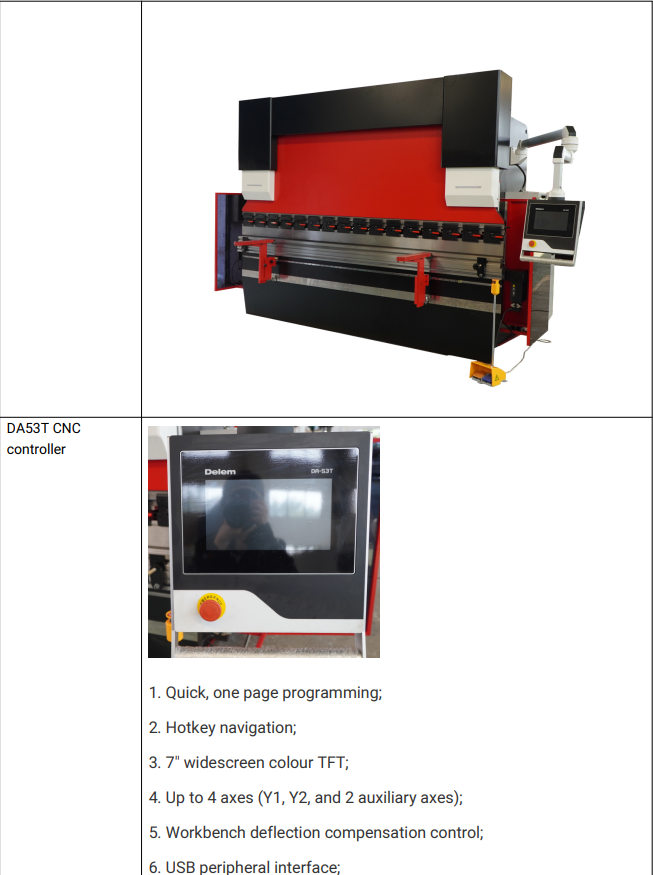

CNC Controller: DA53T
Electrical Components: Schneider / CHINT

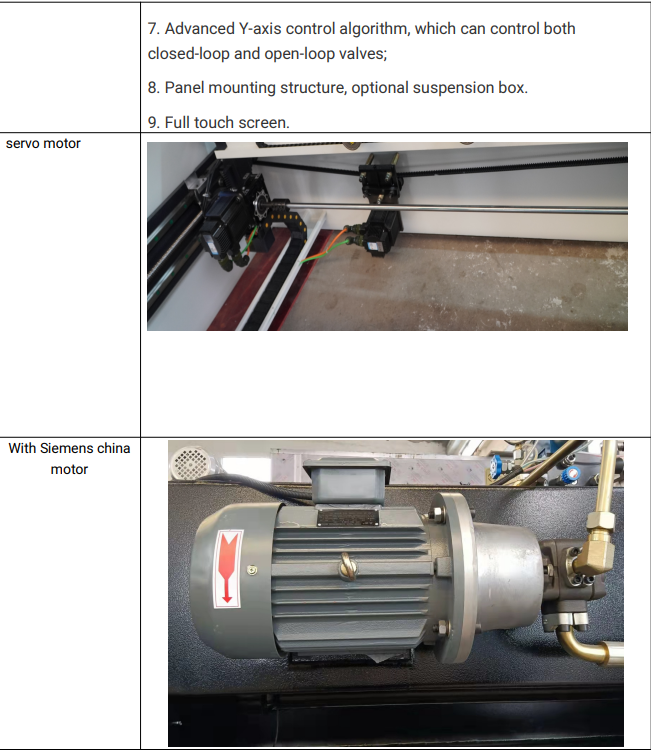

Main Servo Motor: Siemens or equivalent high-quality China brand
Power Supply: 3-Phase AC 380V
Ball Screw & Linear Guide: HIWIN (Taiwan brand)
Foot Switch: Industrial-grade China brand

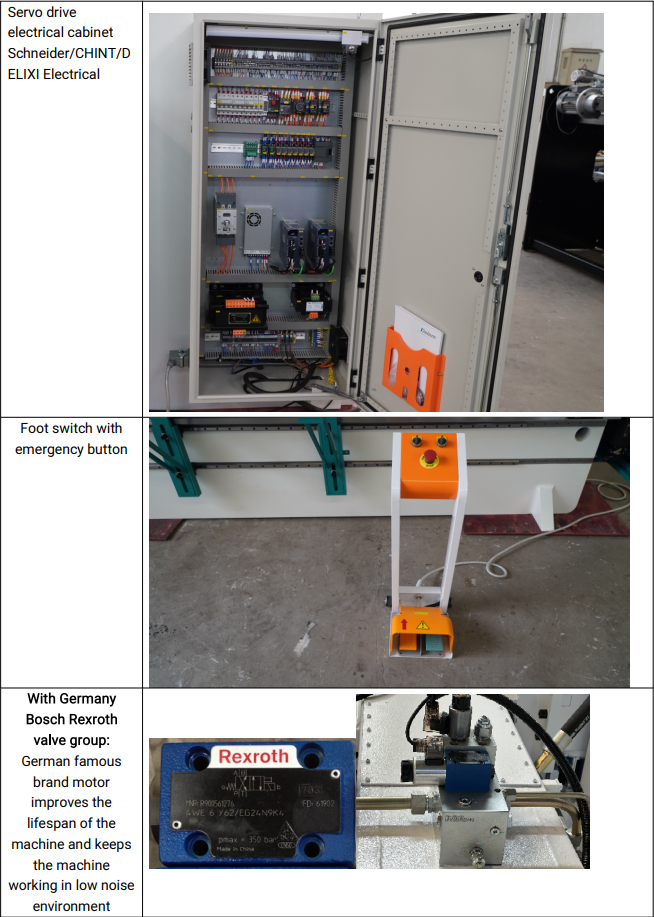

The electrical control system is designed for safety, reliability, and ease of operation. It includes overload protection, phase-loss protection, emergency stop buttons, pilot lamps, and centralized control through the machine button panel. The system ensures smooth operation and reduces maintenance requirements.
Hydraulic System: Bosch-Rexroth

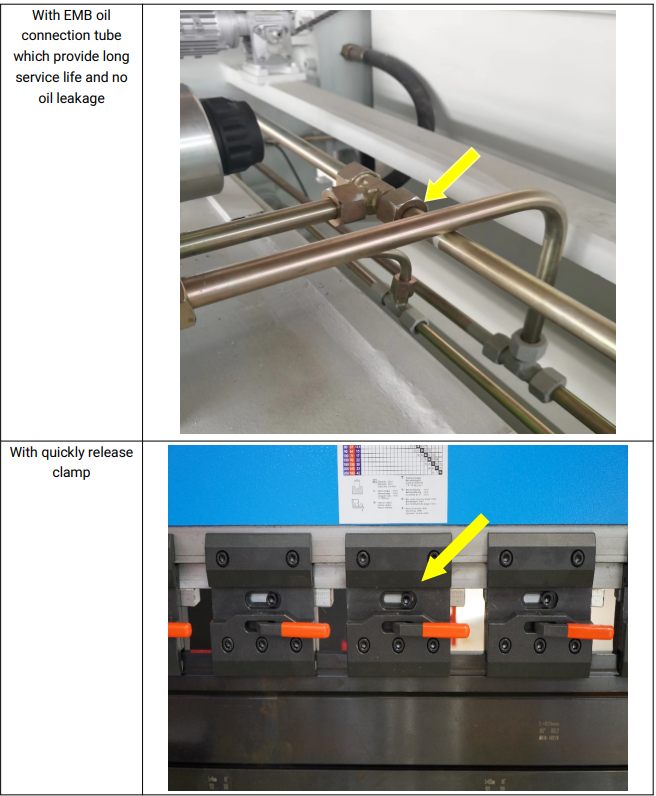

Tubing Connectors: EMB (Germany)
Sealing Rings: NOK (Japan)
Crowning System: Yes

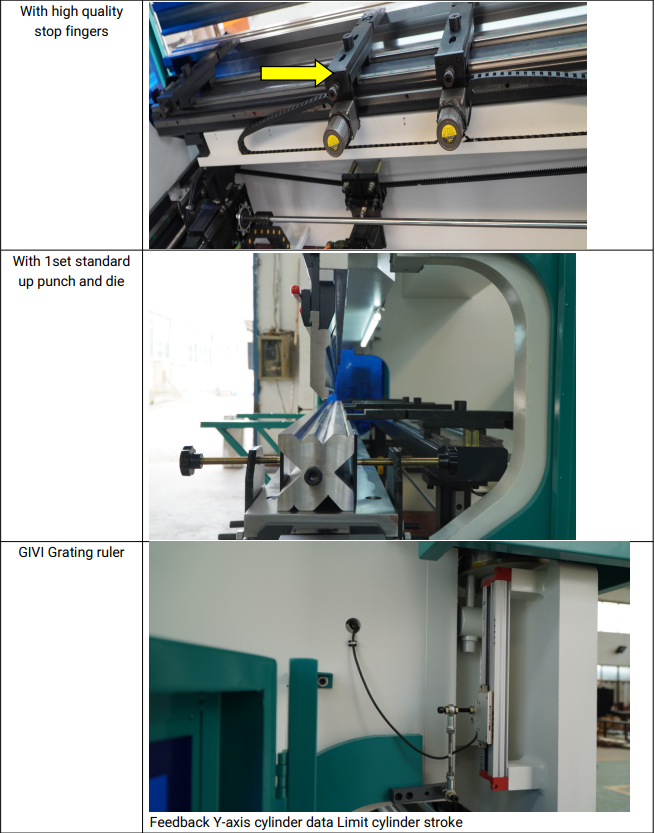

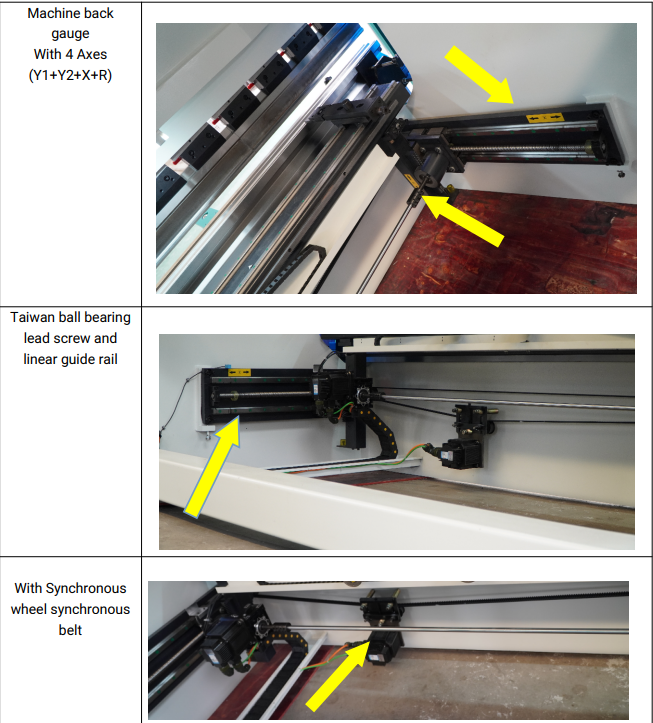

The electro-hydraulic synchronized system ensures precise and stable slider movement. The back gauge is servo-motor driven with a precision ball screw and synchronous belt, providing high positioning accuracy and repeatability.
Motor overload protection
Electricity leakage protection
Emergency stop button
Safety fence
CE safety standard compliance

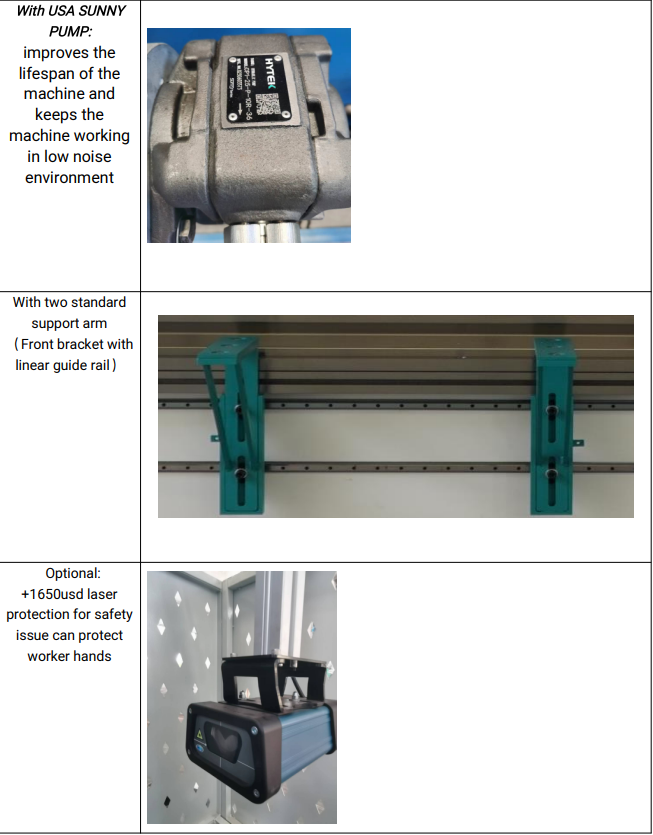

(Laser safety protection not included)
This press brake is ideal for bending stainless steel, carbon steel, aluminum, and other metal sheets. It is widely used in metal fabrication workshops, machinery manufacturing, electrical enclosures, and construction component production.
SHOW THE DETAILS
Bending machine bending effect
| Model | WC67K 63T / 2500mm |
|---|---|
| Nominal Pressure | 630 kN (63 Tons) |
| Working Length | 2500 mm |
| Distance Between Columns | 1975 mm |
| Throat Depth | 250 mm |
| Stroke | 120 mm |
| Maximum Open Height | 320 mm |
| Main Motor Power | 5.5 kW |
| Machine Dimensions | 2900 × 1650 × 2180 mm |
| Machine Weight | Approx. 4350 kg |
| Control Axes | 4 Axes (X + Y1 + Y2 + R) |
| Die & Punch Material | 42CrMo |
| CNC Controller | DA53T |
| Electrical Components | Schneider / CHINT |
| Main Servo Motor | Siemens or equivalent high-quality China brand |
| Power Supply | 3-Phase AC 380V |
| Ball Screw & Linear Guide | HIWIN (Taiwan brand) |
| Foot Switch | Industrial-grade China brand |
| Hydraulic System | Bosch-Rexroth |
| Tubing Connectors | EMB (Germany) |
| Sealing Rings | NOK (Japan) |
| Crowning System | Yes |
| Power | 5.5 kW |
A 4 Axis Hydraulic Press Brake Machine is a machinery tool used for bending metal sheets and plates with high precision. It uses hydraulic systems to control the bending process across four axes.
Key features include a stable structure for higher precision bending, manual crowning for improved accuracy, and the ability to add options and upgrades later.
The nominal pressure of the models ranges from 30 kN to 6000 kN, accommodating various bending needs.
While some basic training is beneficial, the machine is designed to be user-friendly with intuitive controls, making it suitable for operators with varying experience levels.
The maximum worktable length available is up to 6000 mm, depending on the specific model chosen.
This machine can process a variety of materials including steel, aluminum, and other metals suitable for bending.
Yes, the hydraulic system is integrated with high reliability components from Bosch-Rexroth, ensuring efficient operation and minimizing leakage.
The 6 Axis CNC Backgauge allows for precise positioning of the material being bent, improving accuracy with fine adjustments up to ± 0.02 mm.
Mechanical crowning compensates for bending angle variations, ensuring consistent angle and linear accuracy across the entire workpiece length.
Delivery times can vary but typically range from 4 to 8 weeks, depending on the model and customizations.
Yes, the machine typically comes with a manufacturer warranty that covers parts and service for a specified period.
Yes, the machine is designed to allow for upgrades and additional features to be added as needed after the initial purchase.
Safety features include emergency stop buttons, guards, and safety interlocks to protect operators during operation.
Regular maintenance is recommended, including checks on hydraulic fluid levels, lubrication of moving parts, and inspection of electrical components.
The machine requires a specific power supply based on its model, typically ranging from 7.5 kW to 55 kW.
