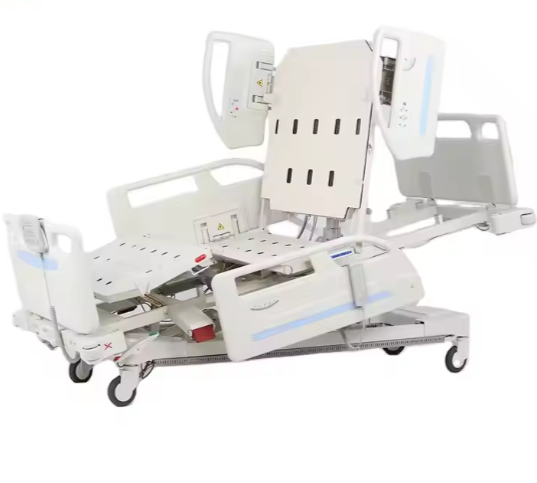

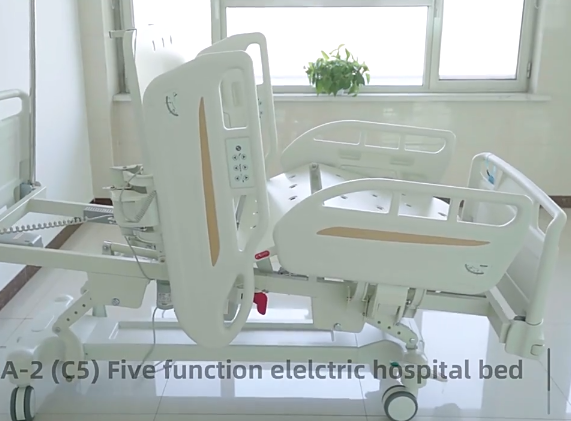

DA-2C5 Five-function electric medical hospital bed , Pukang Medical Electric bed hospital using

The bed footprint is approximately L2110 × W990 mm. The adjustable height range (platform height) is about 400–700 mm.

Electric adjustment of backrest, knee/thigh section, overall bed height, Trendelenburg (TR) and Reverse Trendelenburg (VTR) tilt—covering the five main patient positioning functions.

Backrest: up to 70°. Knee/thigh section: typically up to around 25–30° (spec sheet notes thigh board folding angle ≥30°). Trendelenburg and reverse Trendelenburg: adjustable from 0° to 12°.

The safe working load is ≥200 kg.

The bed offers two control methods: a handheld operation handle and built-in buttons in the side guardrail. The handset has a clear layout, and the guardrail control includes a key lock function to reduce accidental operation.

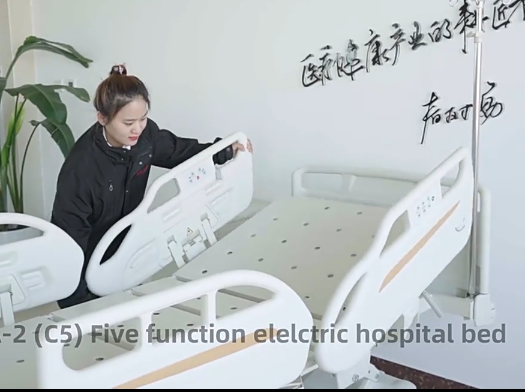

There are two foldable guardrails on each side (four pieces total). They automatically lock when raised, each can bear more than 50 kg, and include a safety switch placed under the guardrail to prevent misuse. Guardrails use gas springs for easy operation and have angle indicators for quick positioning. Steel guardrail bases are welded to the frame for strength. Optional models can include built-in guardrail control buttons.

The bed has four 125 mm polyurethane casters with precision bearings and a synthetic wheel cover. It uses a central control, pedal-type synchronous braking system with all-metal braking arms for reliable, compact braking.

A manual CPR release mechanism is available as an optional feature for rapid flatting of the backboard in emergencies.

The DA-2C5 has a durable metal frame and welded steel structures for the guardrail bases, plus HDPE anti-collision wheels integrated into head/foot boards at the four corners. These features provide long-term strength and impact protection.

Yes — the bed is equipped with one drainage bag/IV hook on each side.

A mattress sized to the bed platform approximately 210–211 cm long by 99 cm wide (roughly 2100–2110 × 990 mm) is suitable. Confirm exact mattress thickness and fastening requirements with the supplier.

Clean frame and surfaces with hospital-grade disinfectants compatible with painted metal and plastic. Avoid aggressive abrasives. Regularly check and lubricate moving parts per the maintenance manual, inspect casters and brakes, and verify guardrail function and electrical connections. Follow the manufacturer's service schedule.

Optional features include built-in guardrail control buttons, manual CPR release (if not standard), and any region-specific electrical or accessory packages. Contact the supplier for the exact options available.

The product description indicates it is manufactured to meet high safety and performance standards for hospital use. For specific certifications (CE, ISO, local regulatory approvals), request documentation from the manufacturer or distributor.

Professional installation and testing by trained personnel are recommended to ensure correct electrical and mechanical setup. Warranty terms and after-sales support vary by supplier and region—check with your vendor for warranty duration, spare parts availability, and service options.
