CW6163 Conventional Taiwan Lathe Machine Heavy Duty Ordinary Lathes for
Asset finance available
Do you want funding for this equipment?
Afrimart can connect you with trusted funding partners who specialise in asset finance for businesses like yours. Compare options and apply in minutes — final approval is subject to provider review.
Check funding options
Secure & no obligation
- Section : Machinery
- Category : Lathe
- SKU : 62095910434

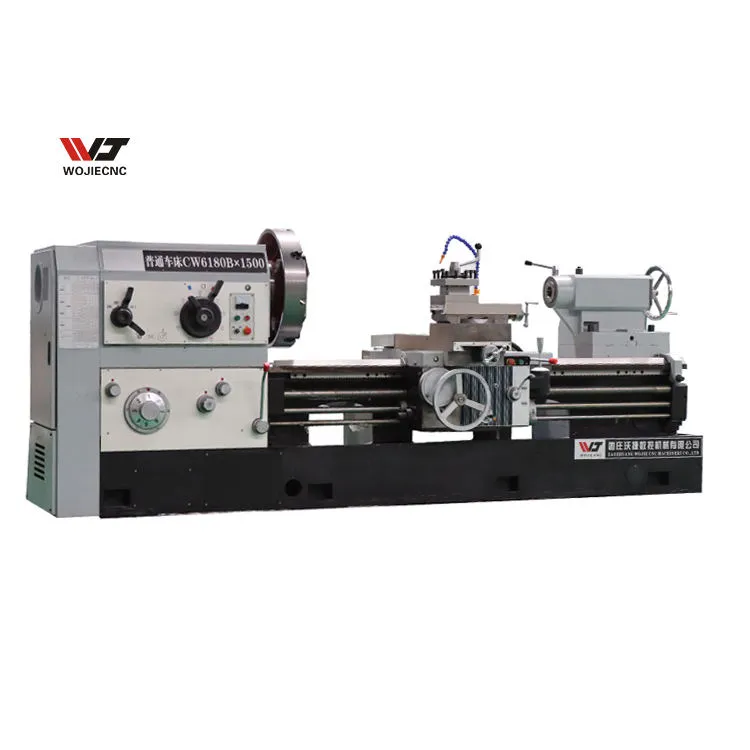

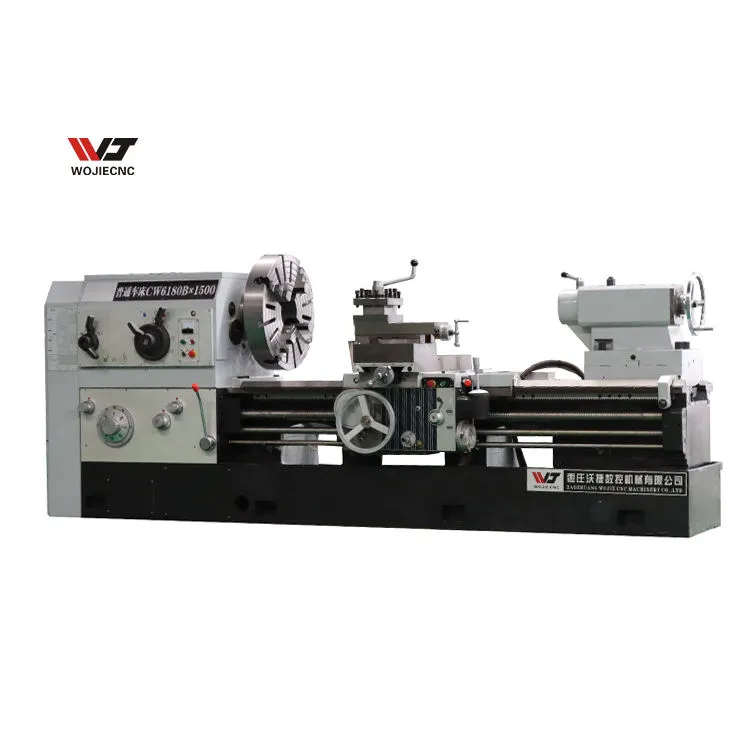

CW6163 Conventional Taiwan Lathe Machine – Heavy Duty Ordinary Lathe for Metal Cutting
The CW6163 Conventional Taiwan Lathe Machine is a strong and reliable tool for cutting metal. It works well in busy shops and factories. This heavy duty ordinary lathe can handle big jobs with ease. It holds workpieces up to 3000 mm long and up to 1000 kg in weight. You can trust this machine for safe and steady performance every day.
The CW6163 Conventional Taiwan Lathe Machine comes with a powerful spindle that spins from 7.5 to 1000 r.p.m. It has a wide bed of 550 mm for extra stability. The machine runs on 220V or 380V power. It also comes with a machinery test report and video outgoing-inspection. This helps you know it works great before you buy it.
Specifications
| Attribute | Details |
|---|---|
| Brand Name | WOJIE |
| Model Number | CW6163 |
| Type | Horizontal |
| Machining Capacity | Heavy Duty |
| Max. Length of Workpiece | 3000 mm |
| Max. Weight of Workpiece | 1000 kg |
| Range of Spindle Speed | 7.5 – 1000 r.p.m |
| Spindle Speed | 7.5–1000 rpm |
| Spindle Bore | 105/130/150 mm |
| Spindle Nose Type | A2-11 |
| Swing over Cross Slide | 350 mm |
| Width of Bed | 550 mm |
| Screw Pitch | 12 mm |
| Size of Tool Section | 30*30 mm |
| Voltage | 220V/380V |
| Dimension (L*W*H) | 3700*1450*1540 mm |
| Weight | 4600 kg |
| CNC or Not | Normal |
| Automatic Grade | Manual |
| Product Type | Metal Cutting |
| Function | Machining Metal |
| Key Selling Points | High Safety Level |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
