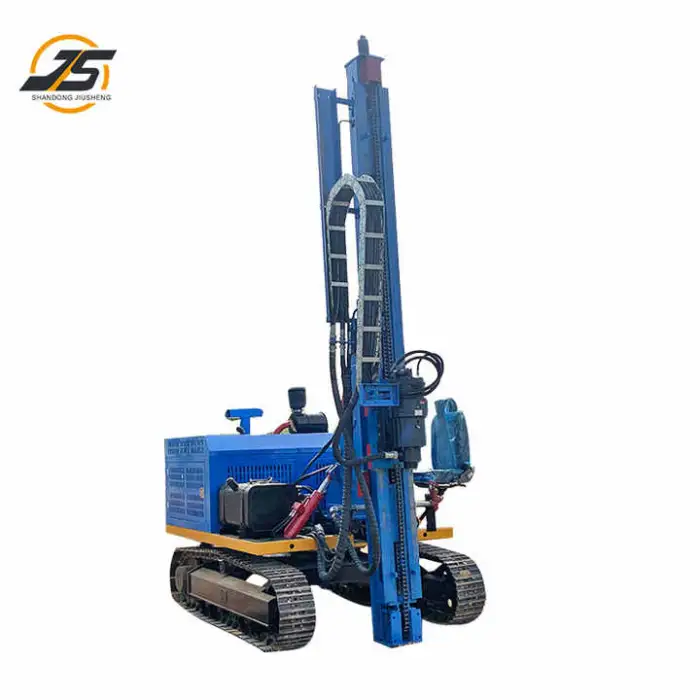

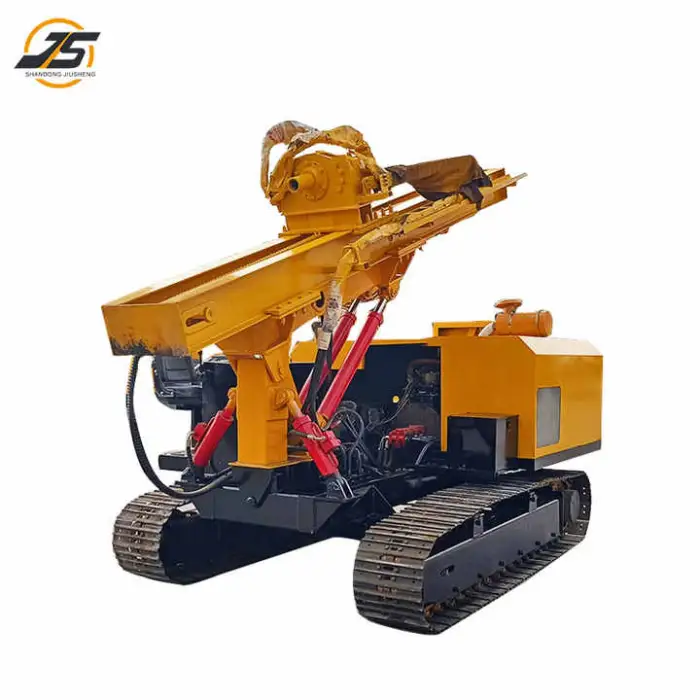

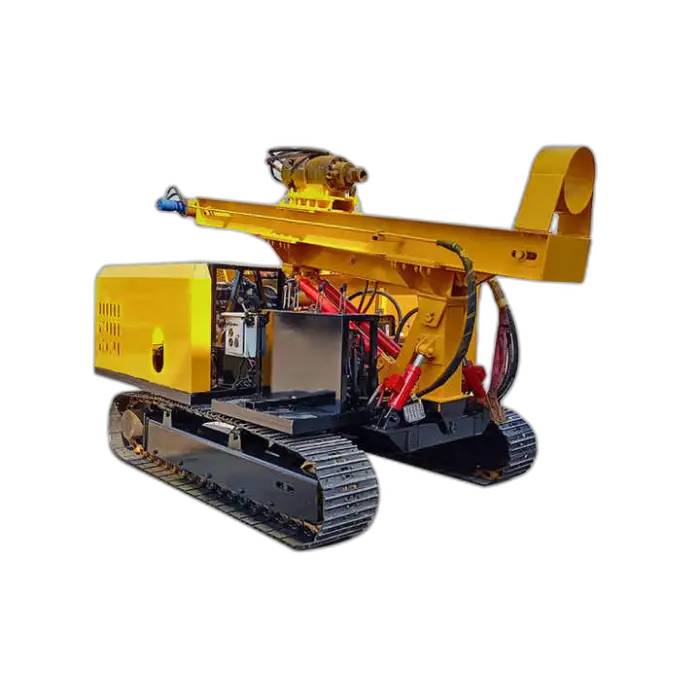

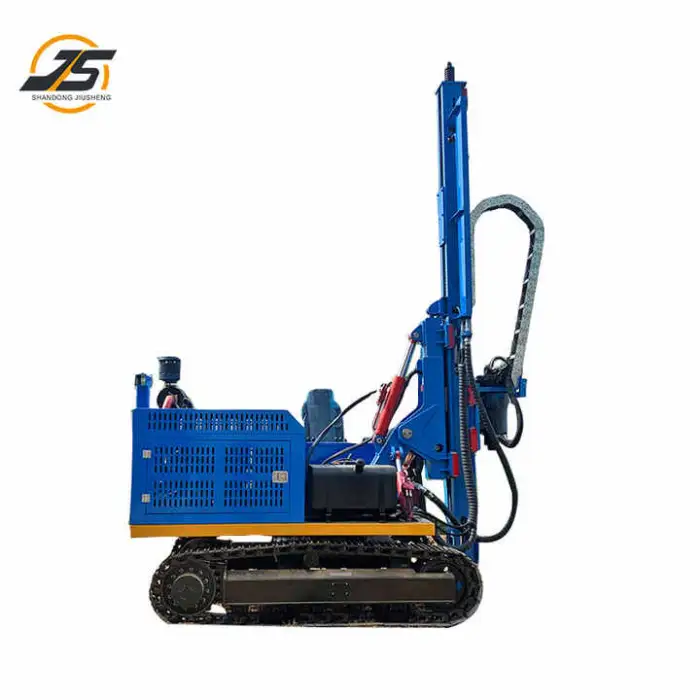

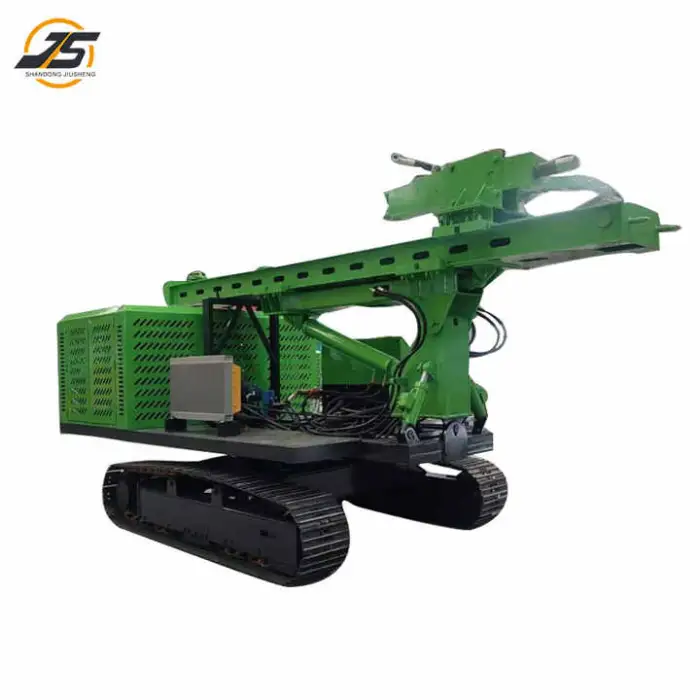

Crawler Type Solar Photovoltaic Power Generation Engineering specialized Equipment - Drilling Rig

A crawler-mounted drilling rig specifically designed for pile driving and foundation work on solar photovoltaic (PV) projects. It combines hydraulic controls, a robust structure and components (engine, bearings, gearbox) for efficient pile installation.

Key specs provided: piling speed 60 m/min, weight 6000 kg, overall dimensions 5 m × 3 m × 6 m, single package size 260 × 150 × 200 cm, single gross weight listed as 3000 kg, brand JS, operation mode: hydraulic pressure, condition: new.

Piling speed 60 m/min refers to the unit's rated rapid pile-driving or drilling travel speed under normal operating conditions, enabling fast cycle times and quicker project completion on PV sites.

Yes. It is designed for pile driving tasks common to solar PV installations, such as installing ground screw or driven piles for mounting structures. For unusual pile types or extreme ground conditions, confirm suitability with the manufacturer.

Core components listed are the engine, bearings and gearbox. Routine maintenance typically includes engine servicing (oil, filters), hydraulic-system checks, gearbox oil changes, bearing inspections, and periodic lubrication. Follow the manufacturer's maintenance schedule.

The product listing indicates an engine as a core component but does not specify model or fuel type. Most crawler drilling rigs use diesel engines; confirm exact engine model, power rating and fuel requirements with the supplier before purchase.

The rig uses hydraulic pressure to control drilling and piling functions (rotation, feed, hammering, travel). Hydraulics provide smooth, high-force control. Specific control interfaces (joysticks, panels or remote) should be confirmed with the manufacturer.

The rig is intended for typical PV site foundations and common soils (soft to medium-dense soils). For very dense soils, boulders or hard rock, additional tooling or a specialist rig may be required—discuss expected ground conditions with the supplier to match tooling and configuration.

The product listing indicates customization is available. Typical customizations include different pile heads/attachments, engine options, auxiliary hydraulics, control systems, transport fixtures and corrosion protection. Contact the manufacturer to specify project requirements.

The listing shows a machine weight of 6000 kg and a single gross weight of 3000 kg, which is inconsistent. Treat 6000 kg as the likely operating weight and verify both net and shipping weights, as well as any disassembled transport weights, directly with the seller before arranging transport.

As a crawler unit it can move short distances on site under its own tracks. For long-distance transport it is typically loaded onto a flatbed truck or lowbed trailer; due to size and weight, professional rigging and possibly partial disassembly are required. Confirm transport dimensions/weights and any shipping preparation with the manufacturer.

Recommended safety features include emergency-stop controls, protective guards, stable leveling/anchoring systems and clear operator controls. Operators should receive manufacturer-provided training on safe operation, maintenance and emergency procedures. Verify available training packages with the supplier.

The listing does not detail after-sales service. Ask the manufacturer or dealer about spare-part availability, lead times, service contracts, warranty terms and local service partners before purchase.

Consider ground bearing capacity for transport and operation, access width and turning space for the rig (dimensions: 5×3×6 m), slope limits for crawler operation, and local emission/noise regulations. Discuss site-specific constraints with the supplier for proper planning.

Contact the manufacturer/dealer (brand JS) to request a formal quotation, detailed technical drawings, available options, delivery lead times and on-site demonstrations. Provide project details (pile type, soil reports, required production rate) to get an accurate recommendation and quote.
