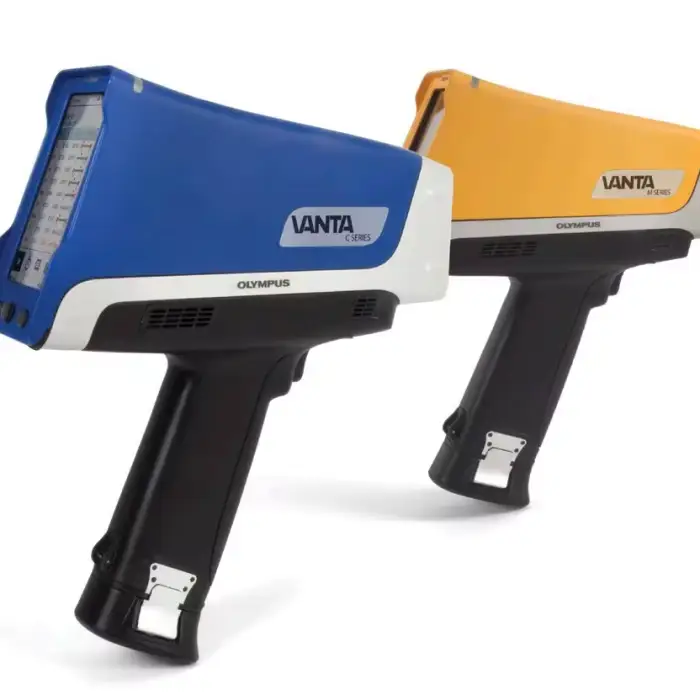

The Vanta Element-S is a portable handheld X-ray fluorescence (XRF) analyzer designed for rapid and accurate alloy identification, metal sorting and light-element analysis. It is particularly suited to scrap recycling, metal manufacturing and applications where fast ide...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The Vanta Element-S is a portable handheld X-ray fluorescence (XRF) analyzer designed for rapid and accurate alloy identification, metal sorting and light-element analysis. It is particularly suited to scrap recycling, metal manufacturing and applications where fast identification of different metal grades is required.
The Element-S provides enhanced detection accuracy and can identify magnesium (Mg), aluminium (Al), silicon (Si), sulfur (S) and phosphorus (P), making it suitable for applications requiring more detailed alloy analysis.
Handheld and portable design
Rapid alloy identification in approximately 5–10 seconds
Detection of light elements including Mg, Al, Si, S and P
Silicon Drift Detector (SDD)
4-position filter wheel
800 × 480 WVGA capacitive touchscreen
Linux operating system
Built-in alloy database with custom grade capability
Wireless data connectivity
USB data export
1 GB industrial microSD card
IP54 protection
Designed for operation in harsh environments
Passed MIL-STD-810G drop testing from 1.22 m
One-year warranty
| Specification | Vanta Element-S |
|---|---|
| Analyzer Type | Handheld XRF Analyzer |
| Dimensions | 8.3 × 28.9 × 24.2 cm |
| Weight | 1.54 kg with battery / 1.32 kg without battery |
| X-ray Tube | 4 W, 50 kV |
| Anode Target | Silver |
| Detector | Silicon Drift Detector (SDD) |
| Filter | Four-position filter wheel |
| Display | 800 × 480 WVGA capacitive LCD touchscreen |
| Operating System | Linux |
| Operating Temperature | -10°C to 45°C |
| Humidity | 10%–90% RH, non-condensing |
| Protection Rating | IP54 |
| Battery | 14.4 V removable lithium-ion battery |
| Power Supply | 18 V power transformer, 100–240 VAC, 50–60 Hz |
| Data Storage | 1 GB industrial microSD card |
| USB | 2 × USB 2.0 Type A + 1 × USB 2.0 Type B |
| Wireless LAN | 802.11 b/g/n, 2.4 GHz via optional USB adapter |
| Bluetooth | Supported via optional USB adapter |
| Warranty | 1 year |
The analyzer's alloy database supports identification of commonly used materials in the scrap recycling and manufacturing industries, with the ability to add customised or additional grades. Applications include:
Low-alloy steel
Stainless steel
Copper alloys
Aluminium alloys
Nickel alloys
High-temperature alloys
Precious metals
Non-ferrous alloys
Test results can be stored on the integrated microSD card, exported directly to a USB drive, or transmitted wirelessly to a network folder when the relevant optional functionality is available. The system can also work with the Olympus Scientific Cloud for cloud-based data storage and remote viewing.
The Vanta Element-S is suitable for:

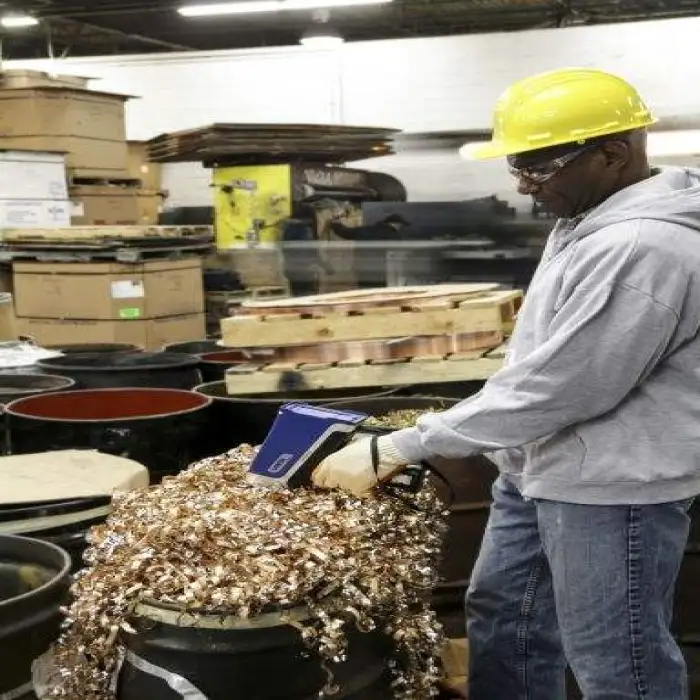

Scrap-metal sorting
Alloy identification
Metal recycling
Metal manufacturing
Incoming material verification
Quality control

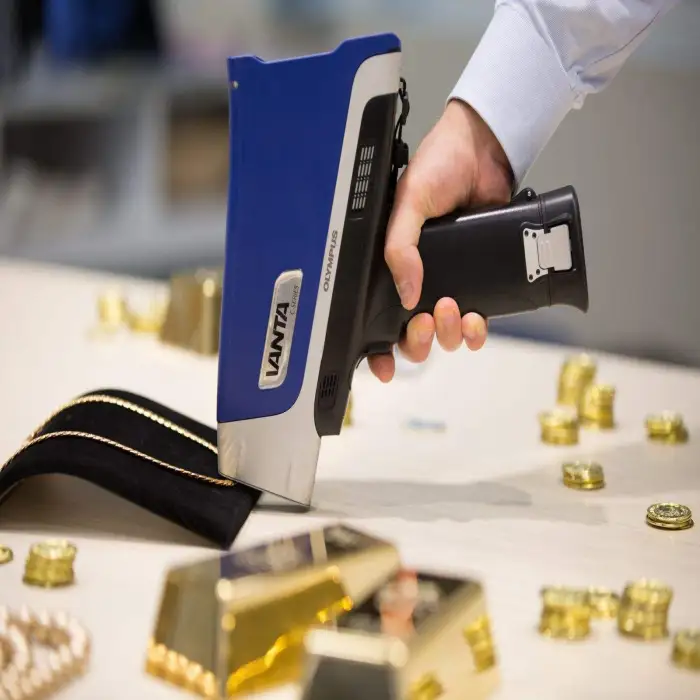

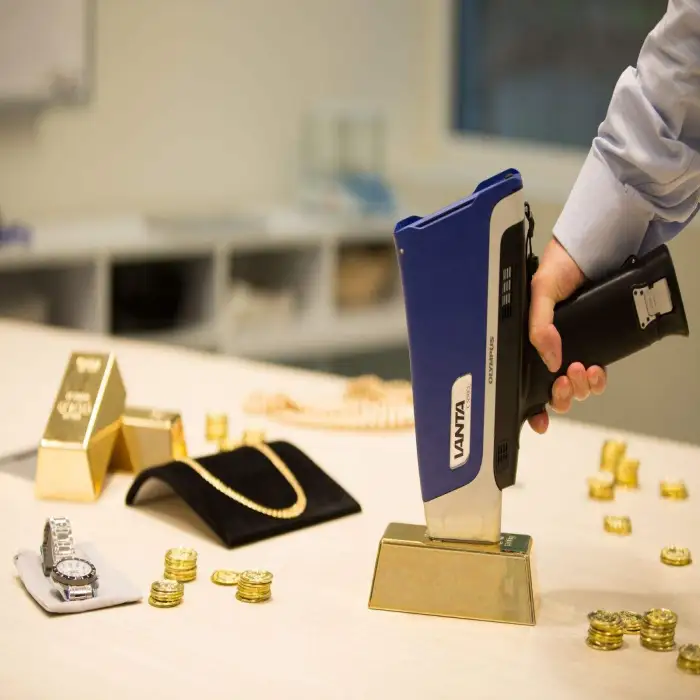

Precious-metal analysis
Non-ferrous metal identification
Identification of contaminants and impurities
The Vanta Element-S Handheld XRF Analyzer provides a portable solution for fast, non-destructive alloy identification and elemental analysis. Its SDD detector, light-element detection capability, touchscreen interface, rugged construction and rapid 5–10 second analysis make it well suited to high-volume scrap sorting, metal manufacturing and material verification applications.
| Analyzer Type | Handheld XRF Analyzer |
|---|---|
| Dimensions | 8.3 × 28.9 × 24.2 cm |
| Weight | 1.54 kg with battery / 1.32 kg without battery |
| X-ray Tube | 4 W, 50 kV |
| Anode Target | Silver |
| Detector | Silicon Drift Detector (SDD) |
| Filter | Four-position filter wheel |
| Display | 800 × 480 WVGA capacitive LCD touchscreen |
| Operating System | Linux |
| Operating Temperature | -10°C to 45°C |
| Humidity | 10%–90% RH, non-condensing |
| Protection Rating | IP54 |
| Battery | 14.4 V removable lithium-ion battery |
| Power Supply | 18 V power transformer, 100–240 VAC, 50–60 Hz |
| Data Storage | 1 GB industrial microSD card |
| USB | 2 × USB 2.0 Type A + 1 × USB 2.0 Type B |
| Wireless LAN | 802.11 b/g/n, 2.4 GHz via optional USB adapter |
| Bluetooth | Supported via optional USB adapter |
| Warranty | 1 year |
The Olympus VANTA Handheld XRF Analyzer is designed for on-site material testing, allowing users to quickly analyze materials without needing a laboratory.
Yes, the VANTA analyzer is lightweight and portable, making it suitable for industrial use and easy to carry to different testing locations.
The VANTA analyzer weighs 1.54 kg with the battery and 1.32 kg without the battery.
Yes, it features an 800 x 480 (WVGA) capacitive LCD touch screen for easy navigation and clear display of results.
The VANTA has an IP54 waterproof rating, ensuring durability in industrial environments.
It uses a 14.4 V detachable lithium-ion battery or can be powered by an 18 V power transformer.
The battery is designed for long-lasting use, allowing for extended testing sessions without frequent recharging.
The VANTA is effective for metal analysis in recycling, quality control in manufacturing, material identification in construction, and environmental testing for hazardous substances.
Yes, it features a hands-free operation mode that simplifies the testing process, making it user-friendly.
It is suitable for applications such as mining and mineral exploration, quality control in manufacturing, and environmental testing.
Data is stored on a microSD card, and the VANTA comes with a provided 1 GB industrial pluggable SD card.
The Olympus VANTA Handheld XRF Analyzer comes with a 1-year warranty.
Yes, the VANTA is capable of environmental testing, particularly for hazardous substances.
The VANTA uses a 2 watt X-ray tube with a 35 kV tungsten anode target as its excitation source.
It utilizes a Si PIN detector for accurate material analysis.
