The Computer Servo Universal Material Testing Machine is designed for accurate testing of materials such as metals, plastics, and composites. This precision tester ensures that you get reliable results every time. With its advanced features, it is perfect for various te...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The Computer Servo Universal Material Testing Machine is designed for accurate testing of materials such as metals, plastics, and composites. This precision tester ensures that you get reliable results every time. With its advanced features, it is perfect for various testing applications, making it a valuable tool for researchers and engineers alike.
| Attribute | Details |
|---|---|
| Accuracy | 100.0% ≤ 2h |
| Displacement Tolerance | ±0.5% |
| Measuring Accuracy | Display the value ±1% / ±0.5% |
| Max Load | 50N, 100N, 200N, 500N, 1KN, 2KN (optional) |
| Effective Tensile Stroke | 500mm |
| Testing Speed | 0.001~200mm/min; 500mm/min (1000mm/min optional) |
| Overload Protection | Overload 10%, automatic protection |
| Power | 200W |
| Voltage | 220V |
| Warranty | 2 Years |
| Model | KR-201A |
| Maximum load | 50N,100N,200N, 500N, 1KN(optional ) |
| Accurate grade | 1grade / 0.5 grade |
| Effective measuring range | Force from 0.2% to 100% / from 0.4% to 100% |
| Measuring accuracy | the value ±1% / the value ±0.5% |
| Tester resolution | Max load: 1/200000, constant the resolution |
| Load sensor | Basic configuration sensor max load: one |
| Effective tensile stoke | 500mm (can be increased the tensile space according to customers requirement ) |
| Testing speed | From 0.001 to 500mm/min |
| Accuracy of displacement measurement | Tolerance:±0.5% / tolerance: ±0.2% |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow( two speeds to control ),can jog |
| Return Back | Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |
| fixture | A set of tensile clamp |
| Machine size | 45x58x135cm (L*W*H) |
| Motor | Delta AC servo motor and drive |
| Power supply | 220V , 50HZ or according to the requirement |
| Power | 0.4KW ( depending on different demand of force,using different motor) |
| weight | About 75KG |
| Unit | KG,N,LB, TON can be exchanged. |
| Accuracy | 100.0% ≤ 2h |
|---|---|
| Displacement Tolerance | ±0.5% |
| Max Load | 50N, 100N, 200N, 500N, 1KN, 2KN (optional) |
| Effective Tensile Stroke | 500mm |
| Overload Protection | Overload 10%, automatic protection |
| Voltage | 220V |
| Warranty | 2 Years |
| Model | KR-201A |
| Maximum load | 50N,100N,200N, 500N, 1KN(optional ) |
| Accurate grade | 1grade / 0.5 grade |
| Effective measuring range | Force from 0.2% to 100% / from 0.4% to 100% |
| Tester resolution | Max load: 1/200000, constant the resolution |
| Load sensor | Basic configuration sensor max load: one |
| Effective tensile stoke | 500mm (can be increased the tensile space according to customers requirement ) |
| Accuracy of displacement measurement | Tolerance:±0.5% / tolerance: ±0.2% |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow( two speeds to control ),can jog |
| Return Back | Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| fixture | A set of tensile clamp |
| Machine size | 45x58x135cm (L*W*H) |
| Motor | Delta AC servo motor and drive |
| Power supply | 220V , 50HZ or according to the requirement |
| weight | About 75KG |
The machine is designed to test a variety of materials including metals, plastics, and composites.
The machine has optional load capacities of 50N, 100N, 200N, 500N, 1KN, and 2KN.
The machine offers an accuracy of 100.0% ≤ 2h, ensuring reliable testing results.
The effective tensile stroke of the Computer Servo Universal Material Testing Machine is 500mm.
The testing speed ranges from 0.001 to 200mm/min, with an optional maximum speed of 1000mm/min.
Yes, it features automatic overload protection that activates at a 10% overload.
The machine operates at 200W and requires a voltage of 220V.
The Computer Servo Universal Material Testing Machine comes with a 2-year warranty.
Yes, it has a user-friendly interface designed for easy operation.
Absolutely, the machine allows for customizable settings to meet various testing requirements.
It is suitable for universal testing of materials, tensile strength analysis, adhesive tape peel strength testing, and research in material science.
The measuring accuracy is displayed as ±1% / ±0.5%, ensuring precise readings.
Yes, it is ideal for research and development in material science due to its high precision and versatility.

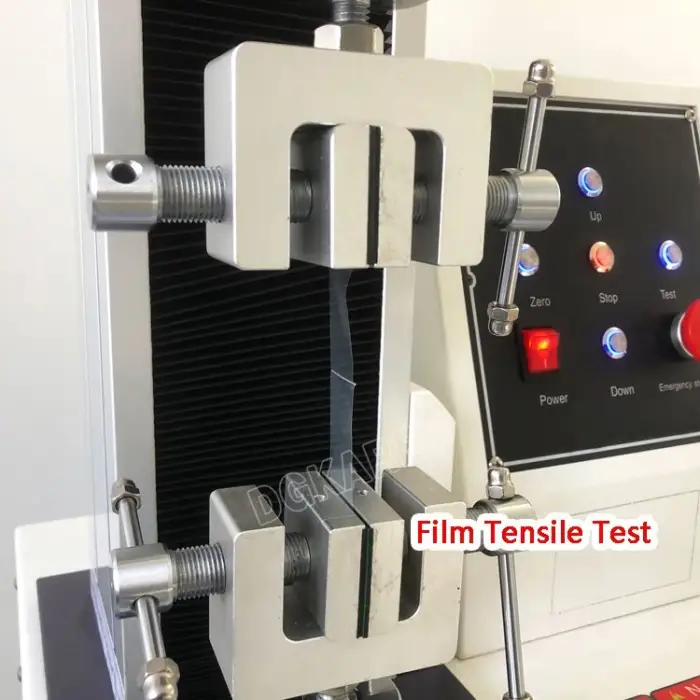

You can perform tensile tests, strength tests, and tests for adhesive tape peel strength, among others.
The product info gallery is typically available on the manufacturer's website or through the product listing.
