Code Printing Machine Ribbon Thermal Heat Transfer TTO Printer

Code Printing Machine Ribbon Thermal Heat Transfer TTO Printer

The Code Printing Machine Ribbon Thermal Heat Transfer TTO Printer is designed to bring versatility, speed, and precision to your packaging and labeling process. Ideal for various industries, including food, pharmaceuticals, cosmetics, and more, this machine helps businesses ensure their products are labeled with batch numbers, manufacturing dates, expiration dates, and more. With its user-friendly features and efficient operation, this thermal transfer overprinter is an essential addition to your production line.

Key Features

• Multifunctional Printing: Supports both continuous and intermittent thermal transfer printing modes, offering flexibility for different packaging needs.
• High Resolution: Prints with a 300 DPI resolution, ensuring crisp and clear print quality for barcodes, text, and logos.
• Variable Print Area: In intermittent mode, prints up to 53mm x 75mm or 32mm x 75mm. In continuous mode, prints up to 53mm x 300mm or 32mm x 300mm.
• Fast Printing Speed: Printing speeds range from 50 to 600mm/s in continuous mode and 50 to 500mm/s in intermittent mode, enabling efficient production.
• Durable and Reliable: Features a 32-bit RSIC processor, 256M running memory, and 512M storage for smooth operation.
• Wide Ribbon Compatibility: Supports ribbon widths from 20mm to 55mm, giving you flexibility in the materials you can print on.
• Smart Coding Capabilities: Perfect for managing manufacturing data such as product information, batch numbers, and expiry dates for easy tracking and logistics.

Why Choose the Code Printing Machine Ribbon Thermal Heat Transfer TTO Printer?

The Code Printing Machine Ribbon Thermal Heat Transfer TTO Printer provides a robust solution for managing your product labeling needs. Its high-speed printing capabilities, combined with precise resolution, ensure that your products are consistently marked with clear, reliable data. Whether you're in food production, pharmaceuticals, or cosmetics, this printer helps streamline your labeling process, reducing errors and improving efficiency.

Upgrade your production line today and ensure your products are always properly labeled with accurate, high-quality prints.

Product Info Gallery

1. Product features
A50 Thermal Transfer Overprinter has the following features:
(1) The all-metal structure of the printer is strong and durable
(2) Automatically identify the ribbon to ensure print quality
(3) Automatically detect ribbon tension and used ribbon length
(4) Head-up ribbon saving design
(5) Easy to install ribbon design
(6) Multiple printing trigger mechanisms
(7) Support both intermittent and continuous printing modes
(8) Support both left-handed and right-handed modes
(9) Automatically detect printer status
(10) Support a variety of ribbon saving modes

2. Appearance and components

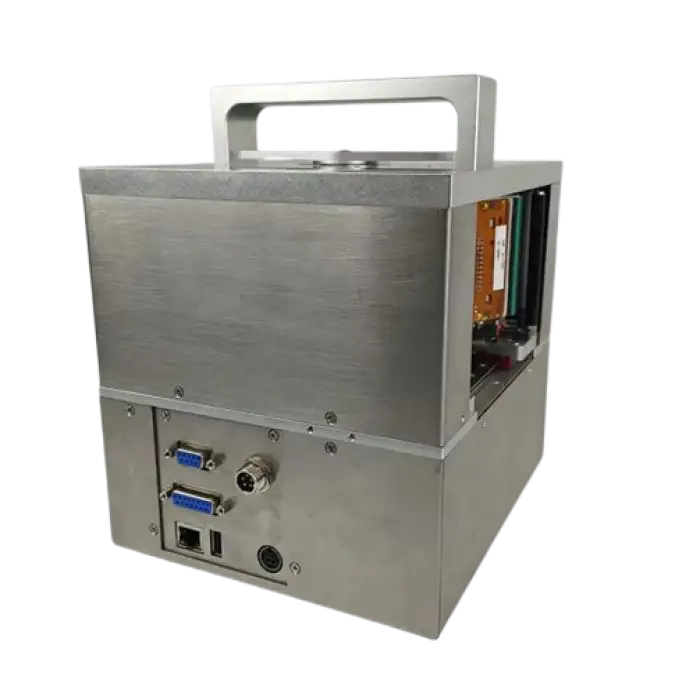

A50 is an all-in-one printer

The main components of A50 thermal transfer printer are as follows
(1) The printer body, including the printed circuit board, drive system, and thermal transfer print head.
(2) The ribbon cassette of the printer body is equipped with a ribbon unwinding spool and a ribbon winding spool.
(3) Connecting cables for the power and control of the print head.
(4) Connecting cables for external input/output signal transmission.
(5) An encoder used to track the speed of the substrate.

We hope to cooperate with you, welcome to contact us

3. Printer type
A50 thermal transfer printer is an intermittent continuous all-in-one machine
(1) Intermittent printing mode
1) In intermittent printing mode, printing will be performed when the material is fixed.
2) The printing area in intermittent printing mode is 53*75mm or 32*75mm, and the printing speed is 50 to
600mm/s.
3) During the static period when the packaging material is in a fixed state, the information can be printed by moving the print head
4) In the discontinuous mode, the printer can print text and bar codes on any position within the printing area of 53mm wide and 75mm long or 32mm wide and 75 mm long.
(2) Continuous printing mode
1) The printing area of the printer in this mode is 53*300mm or 32mm*300mm, and the printing speed is
50 to 600mm/s.
2) When in continuous motion mode, place the print head in a fixed position and accelerate the ribbon to
Bottom speed matching.
3) Use the encoder to determine the speed of the printed material.
4) In this mode, the printer can print an area of 53mm wide and 300mm long or 32mm wide and 300mm long.
Print text, bar codes, etc. on any position within.
5) Use the thermal transfer print head and thermal transfer ribbon to print the information on the substrate tightly attached to the roller.

4. Printing samples

Print the real-time time and date, and automatically update the validity period and bar code.

Support for national languages.
