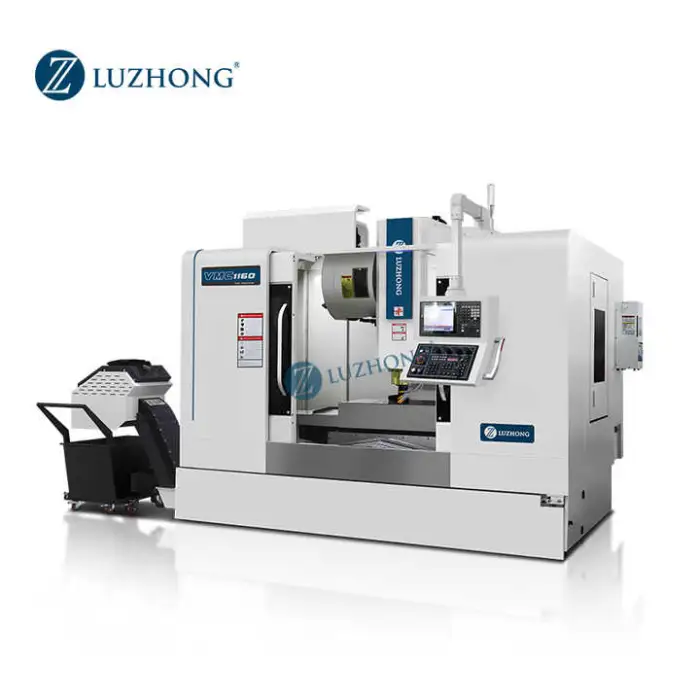

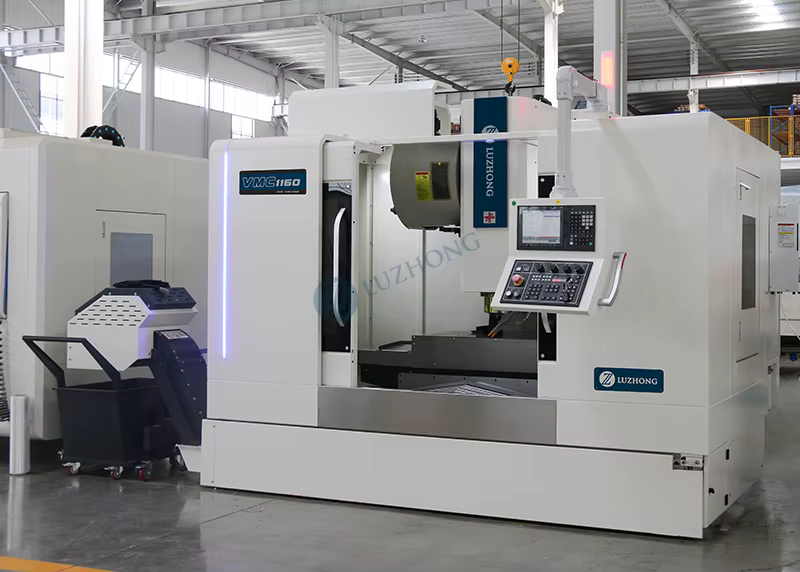

The Cnc Vertical Machining Center VMC1260 has a power output of 11 kW.
The spindle taper size for the VMC1260 is BT40.
The dimensions of the Cnc Vertical Machining Center VMC1260 are 4400 mm (L) x 2480 mm (W) x 2960 mm (H).
The maximum table load capacity of the VMC1260 is 1000 kg.
The VMC1260 has a minimum tool change time of just 2 seconds.

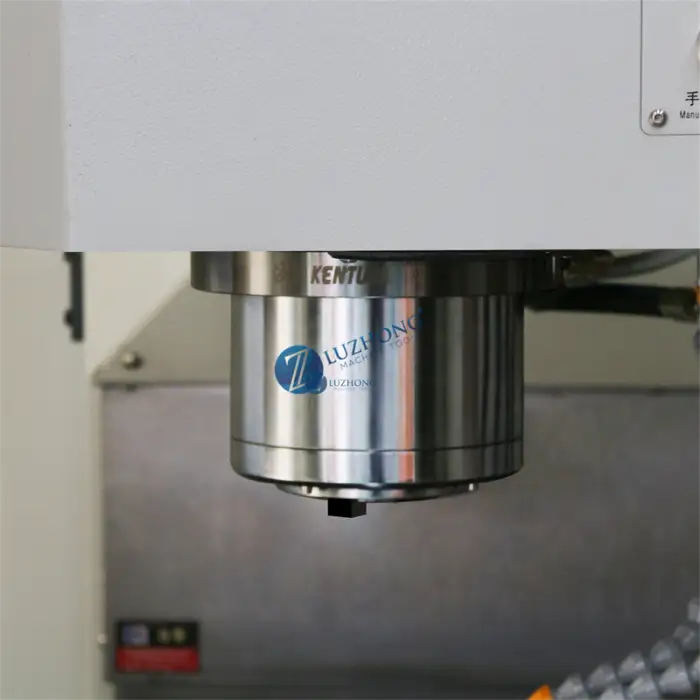

The Cnc Vertical Machining Center VMC1260 is equipped with a single spindle.
The VMC1260 offers a positioning accuracy of 0.01 mm.
The spindle speed range for the VMC1260 is from 1 to 8000 r.p.m.
The rapid feed speed of the Cnc Vertical Machining Center VMC1260 is up to 24000 mm/min.
The repeatability for the X, Y, and Z axes is 0.005 mm.
The table size of the VMC1260 is 1360 mm x 700 mm.
The table travel distances are 1200 mm (X), 600 mm (Y), and 600 mm (Z).

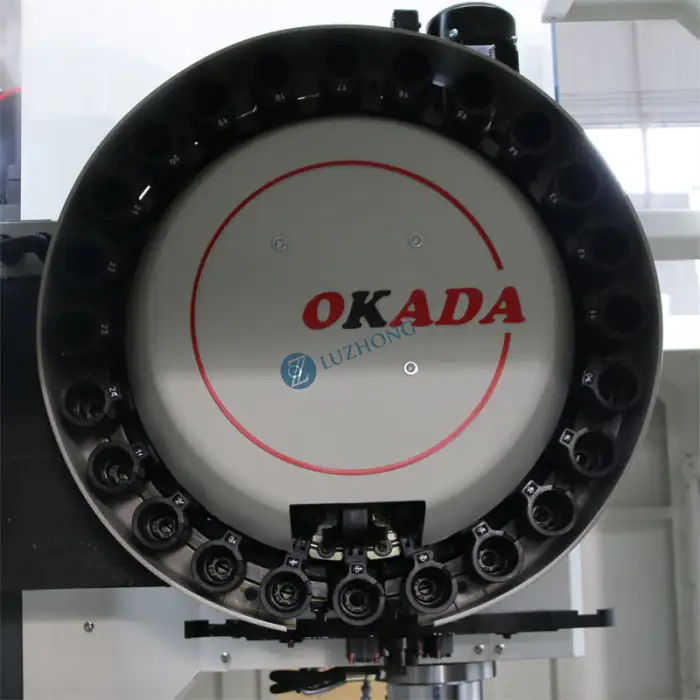

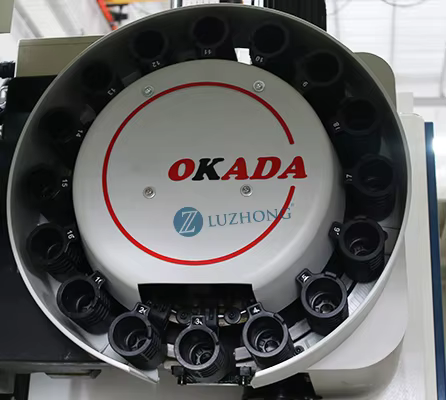

The tool magazine of the VMC1260 can hold up to 24 tools.
The operating voltage for the Cnc Vertical Machining Center VMC1260 is 380V.
The VMC1260 comes with an 18-month warranty.
