CNC Router 3 Axis - ACCTEK

The standard specifications list a working area of 400 mm (X) × 400 mm (Y) × 200 mm (Z). Some configurations and models may offer larger travel (the product description references up to 600 mm on X and Y), so confirm the exact travel with your supplier when ordering.

The machine provides high positioning accuracy of ±0.01 mm and a repositioning resolution of ±0.01 mm, suitable for precision cutting and engraving.

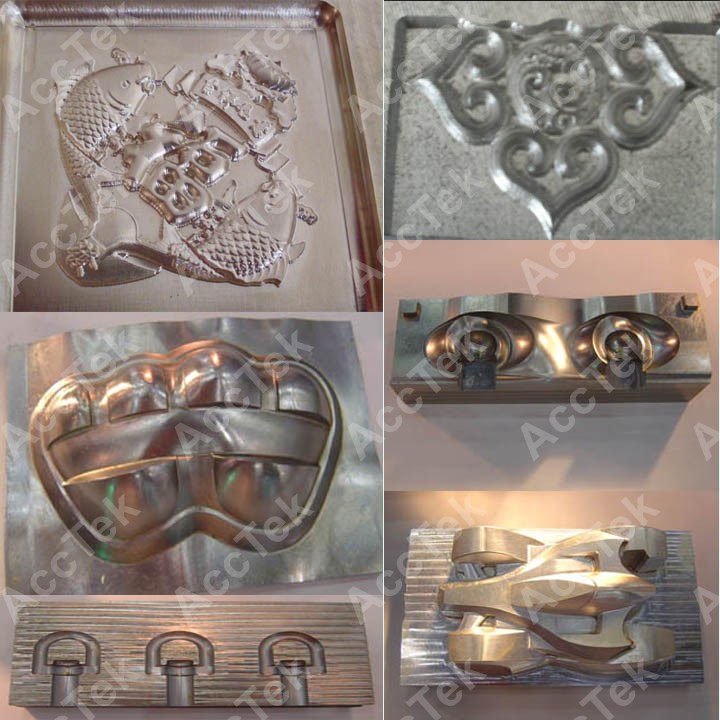

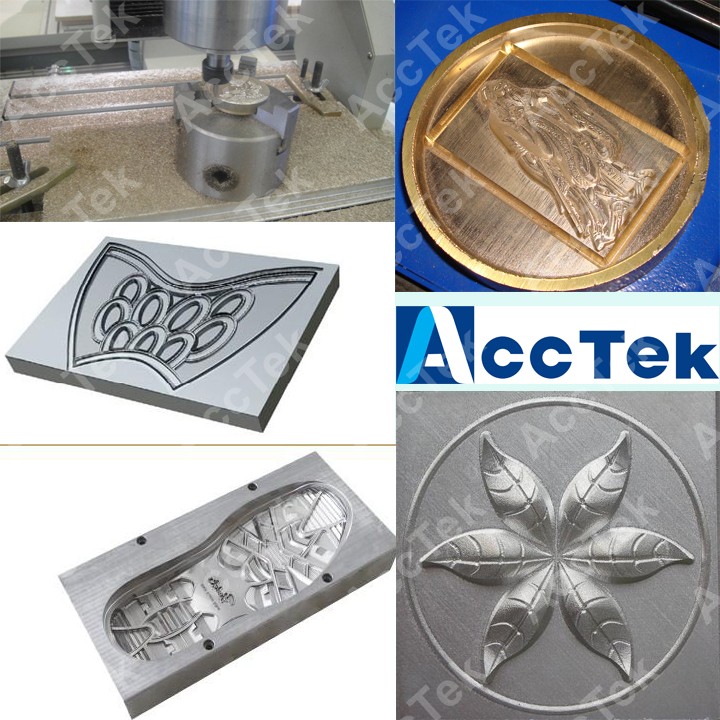

The ACCTEK 3-axis router is designed for both metals and non-metals. Typical materials include wood, MDF, acrylic, plastics, aluminum, brass, composites, foams and similar materials. Cutting thickness and feed rates depend on material and tooling.

Spindle options include professional mould-making spindles around 2.2 kW to 3.2 kW (3.2 kW referenced in some descriptions). Spindle speed ranges up to 24,000 rpm and an inverter of about 3.7 kW is used. Exact spindle power can be confirmed at purchase.

The router can be equipped with stepper motors (Leadshine) as standard; YASKAWA servo motors are available as an upgrade/option for improved dynamics and higher throughput.

X, Y and Z axes use Taiwan HIWIN square rails for smooth motion. The Z axis uses a ball screw for accurate vertical movement. The machine has a heavy-duty cast-iron structure for rigidity.

The ACCTEK router is compatible with common CAD/CAM packages such as Type3, ArtCAM and Ucancam (Type3 noted as an option). It accepts G-code (and optionally HPGL). The standard control system is the original NC Studio with a handwheel; offline DSP controllers are available as an option.

The machine features a T-slot table with a PVC surface, allowing mechanical clamps, fixtures or T-slot bolts. Vacuum tables are not standard but may be offered as an optional accessory—check with the supplier.

Machine dimensions are approximately 1340 mm × 1310 mm × 1760 mm. Net weight is around 600 kg and gross weight (packaged) about 700 kg.

The router typically runs on AC 220 V / 50 Hz. Some components or configurations can support 380 V; confirm the required voltage for your region and chosen configuration with the seller.

The rapid travel rate is up to 15,000 mm/min, and the recommended working speed is around 8,000 mm/min. Actual cutting speeds should be set according to material and tooling.

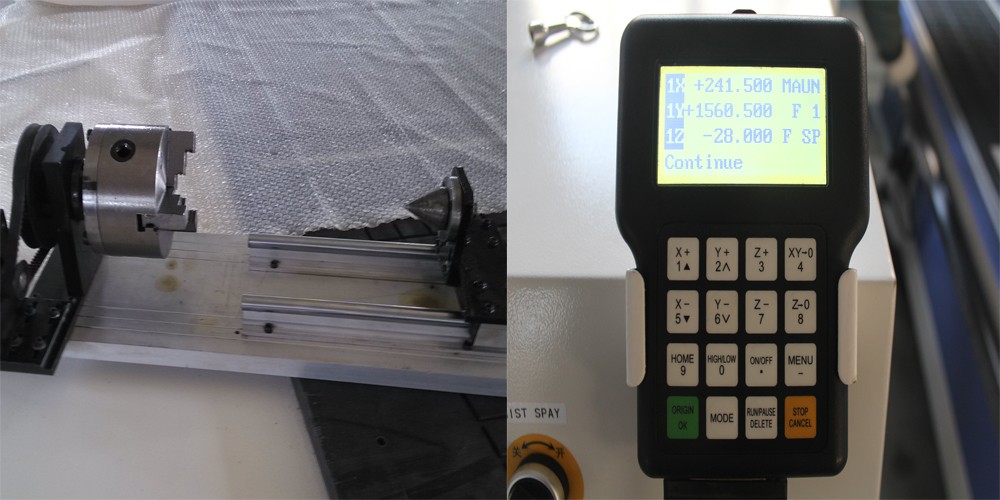

Optional parts listed include an offline DSP controller and a rotary axis for 3D/rotary engraving. Additional accessories (alternate spindles, vacuum tables, tool changers, different motors, etc.) may be available—ask your supplier for options.

Standard packaging includes a protective film and a fumigation-free wooden case. OEM packaging and custom packing options can be arranged per customer requirements.

Regular maintenance includes keeping rails and ball screws clean and lubricated, checking and tightening fasteners, inspecting belts/drive components, ensuring proper tool clamping, and periodically calibrating axis accuracy. Follow the supplier’s maintenance schedule and service recommendations.

Warranty, installation and training policies vary by seller and region and are not specified in the general product description. Contact your ACCTEK dealer or supplier to confirm warranty terms, onsite installation, commissioning, and operator training or remote support options.
