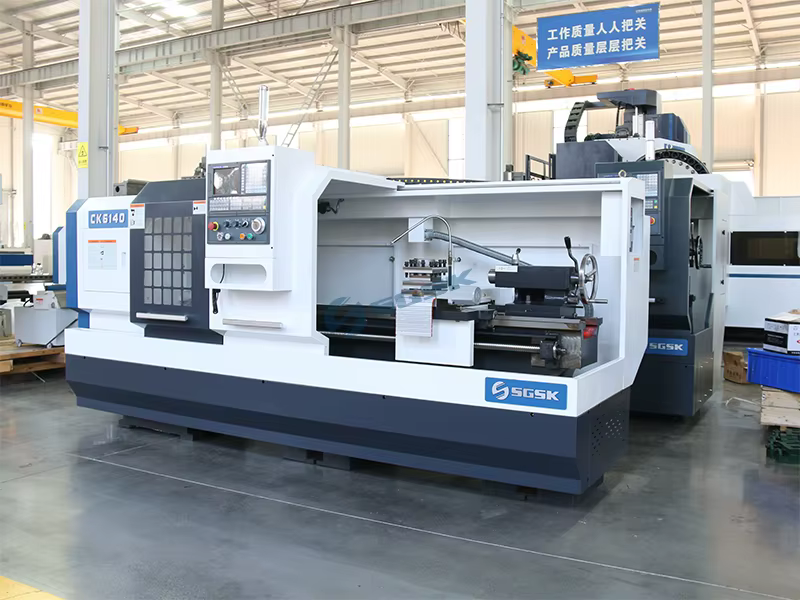

The CNC Machine for Metal CK6140 is a high-precision lathe that offers automatic operation and stepless speed changes. This versatile machine is designed for medium-duty machining tasks, making it ideal for various metalworking applications. With its advanced features a...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The CNC Machine for Metal CK6140 is a high-precision lathe that offers automatic operation and stepless speed changes. This versatile machine is designed for medium-duty machining tasks, making it ideal for various metalworking applications. With its advanced features and robust construction, this CNC lathe ensures accuracy and efficiency in every project.
| Attribute | Details |
|---|---|
| Certification | CE, ISO9001 |
| Max. Processing Length | 1000 mm |
| Spindle Bore | 52 or 82 |
| Spindle Motor | 4/5.5 kW |
| Spindle Speed | L: 100-500, H: 500-1800 RPM |
| Swing Over Cross Slide | 210 mm |
| X/Z Travel | 230/1000 mm |
| Positioning Accuracy | 0.01 mm |
| Repeatability (X/Y/Z) | ±0.002 mm |
| Weight | 1900 kg |
| SPECIFICATIONS | Units | CK6136 | CK6140 | CK6150 | CK6160 |
| Swing over bed | mm | 360 | 400 | 500 | 600 |
| Swing over cross slide | mm | 190 | 210 | 260 | 350 |
| Distance between centers | mm | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 |
| Spindle bore | mm | 52(Optional 80) | 52(Optional 80) | 52(Optional 80) | 52(Optional 80) |
| Spindle bore taper | - | MT6 | MT6 | MT6 | MT6 |
| Spindle nose type | - | A2-6(A2-8) | A2-6(A2-8) | A2-6(A2-8) | A2-6(A2-8) |
| Spindle speed steps | rpm | Stepless | Stepless | Stepless | Stepless |
| Spindle speed range | 1800 | 1800 | 1800 | 1800 | |
| Turret/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position | Electric 4 position |
| Tool size | mm | 20*20 | 20*20 | 25*25 | 25*25 |
| X axis travel | mm | 180 | 200 | 250 | 300 |
| Z axis travel | mm | 500/750/1250/1750 | 500/750/1250/1750 | 500/750/1250/1750 | 500/750/1250/1750 |
| X axis rapid traverse | mm/min | 6000 | 6000 | 6000 | 6000 |
| Z axis rapid traverse | mm/min | 8000 | 8000 | 8000 | 8000 |
| Tailstock quill diameter | mm | 65 | 65 | 65 | 65 |
| Tailstock quill taper | - | MT4 | MT4 | MT5 | MT5 |
| Tailstock quill travel | mm | 140 | 140 | 140 | 140 |
| Main spindle motor | kw | 5.5 | 5.5 | 5.5 | 5.5 |
| Coolant pump motor | kw | 0.125 | 0.125 | 0.125 | 0.125 |
| Weight for 750 | kg | 1500 | 1550 | 1600 | 1700 |
| Weight for 1000 | kg | 1600 | 1650 | 1700 | 1800 |
| Weight for 1500 | kg | 1800 | 1850 | 1900 | 2000 |
| Weight for 2000 | kg | 2000 | 2050 | 2100 | 2200 |
| Dimension for 750 | mm | 2200*1600*1650 | 2200*1650*1700 | 2200*1700*1750 | 2200*1750*1800 |
| Dimension for 1000 | mm | 2500*1600*1650 | 2500*1650*1700 | 2500*1700*1750 | 2500*1750*1800 |
| Dimension for 1500 | mm | 3000*1600*1650 | 3000*1650*1700 | 3000*1700*1750 | 3000*1750*1800 |
| Dimension for 2000 | mm | 3500*1600*1650 | 3500*1650*1700 | 3500*1700*1750 | 3500*1750*1800 |
| Certification | CE, ISO9001 |
|---|---|
| Max. Processing Length | 1000 mm |
| Spindle Bore | 52 or 82 |
| Spindle Motor | 4/5.5 kW |
| Spindle Speed | L: 100-500, H: 500-1800 RPM |
| Swing Over Cross Slide | 210 mm |
| X/Z Travel | 230/1000 mm |
| Positioning Accuracy | 0.01 mm |
| Repeatability (X/Y/Z) | ±0.002 mm |
| Weight | 1900 kg |
The maximum processing length of the CK6140 CNC lathe is 1000 mm.
The spindle motor power of the CK6140 CNC lathe is either 4 kW or 5.5 kW depending on the configuration.
The spindle speed range for the CK6140 is low speed (100-500 RPM) and high speed (500-1800 RPM).
The positioning accuracy of the CK6140 CNC lathe is 0.01 mm.
The weight of the CK6140 CNC lathe is 1900 kg.
Yes, the CK6140 CNC lathe features automatic operation for ease of use.
The CK6140 CNC lathe offers stepless speed change for flexible machining.
The CK6140 CNC lathe is certified with CE and ISO9001.
The swing over the cross slide for the CK6140 CNC lathe is 210 mm.
The X axis travel is 230 mm, and the Z axis travel is 1000 mm.
The repeatability for the X, Y, and Z axes is ±0.002 mm.

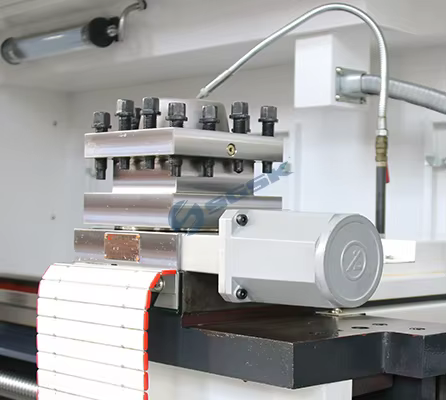

The CK6140 CNC lathe has versatile tool post stations, which can be configured to 8, 6, or 4 positions.
The CK6140 CNC lathe is designed for medium-duty machining tasks, making it suitable for various metalworking applications.
The CK6140 CNC lathe features durable construction designed for long-lasting performance.
The spindle bore for the CK6140 CNC lathe is available in 52 mm, with an optional size of 82 mm.
