The Klip Lok 700 Roll Forming Machine is a fully automated roofing sheet production system designed to manufacture high-quality concealed-fix Klip Lok roofing panels for commercial, industrial, agricultural, and residential construction projects. Engineered for precisio...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

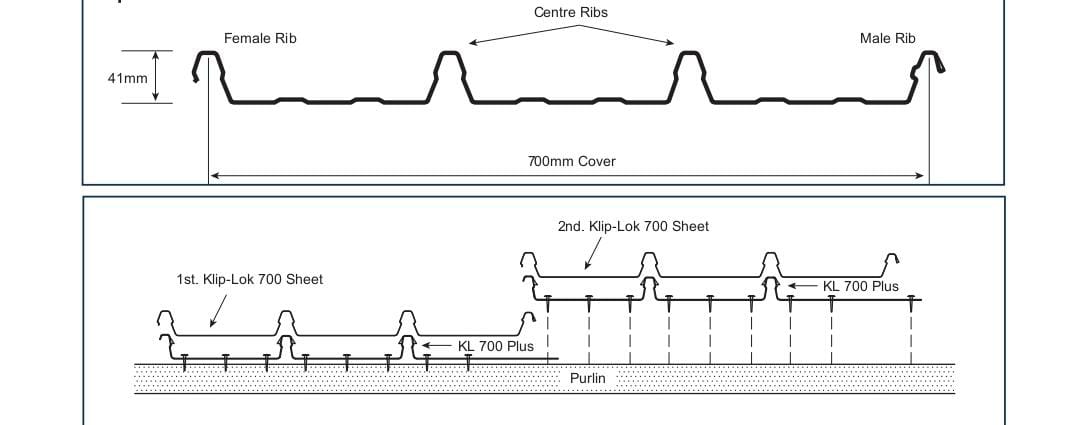

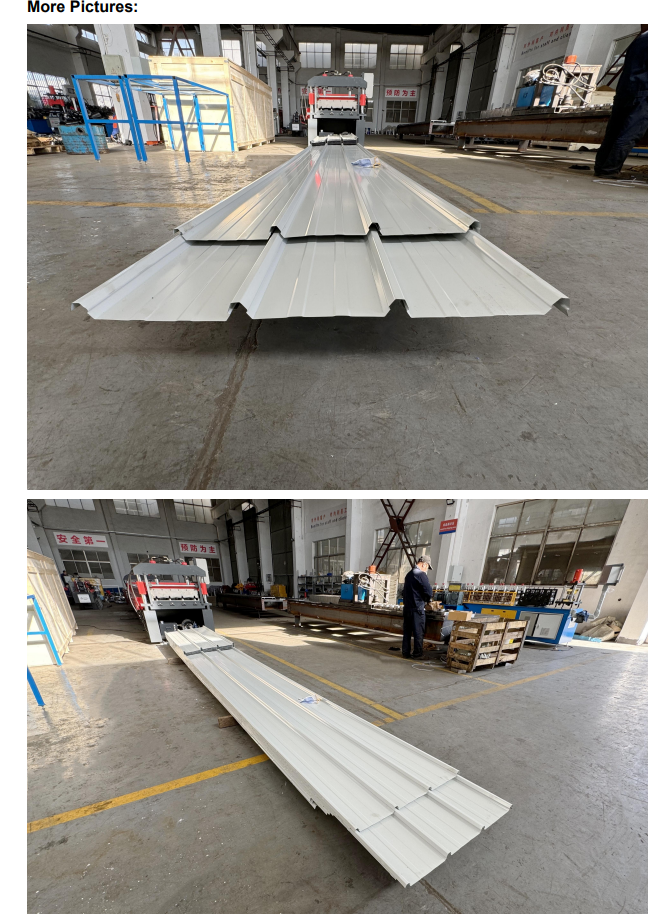

The Klip Lok 700 Roll Forming Machine is a fully automated roofing sheet production system designed to manufacture high-quality concealed-fix Klip Lok roofing panels for commercial, industrial, agricultural, and residential construction projects. Engineered for precision, durability, and high production efficiency, this machine delivers consistent panel profiles with excellent dimensional accuracy and surface finish.

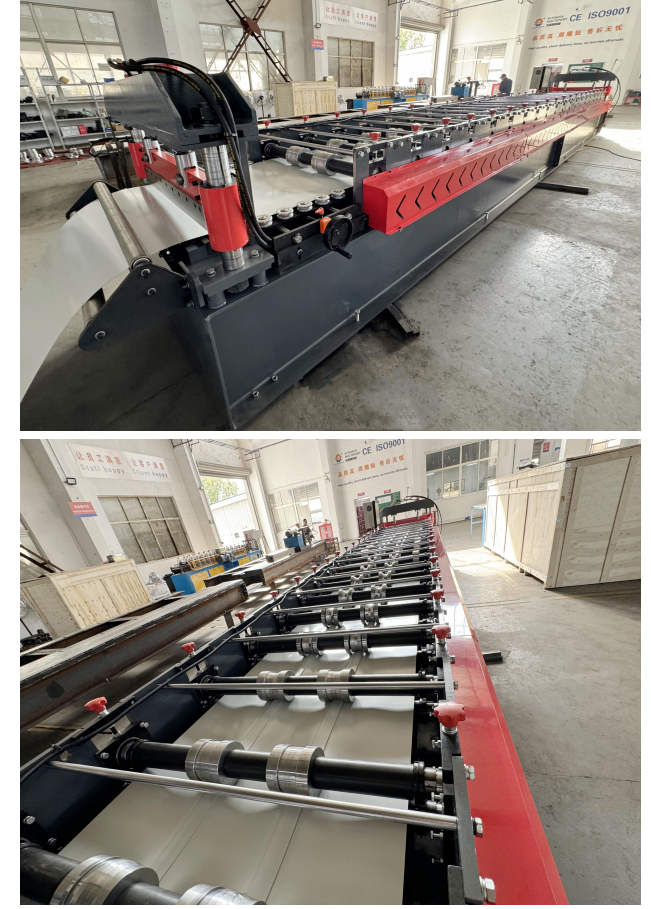

The production line processes pre-painted steel and galvanized steel coils with thicknesses ranging from 0.3mm to 0.7mm, making it suitable for a wide variety of roofing applications. Featuring approximately 24–26 precision roll-forming stations, the machine gradually forms the material into the Klip Lok 700 profile while maintaining structural integrity and minimizing material stress.
Powered by a robust 7.5kW drive motor, the machine achieves production speeds of 10–12 metres per minute, providing reliable output for medium and high-volume manufacturing operations. The roll-forming system utilizes chrome-coated 45# forged steel rollers and hardened steel shafts to ensure long service life, wear resistance, and consistent product quality.

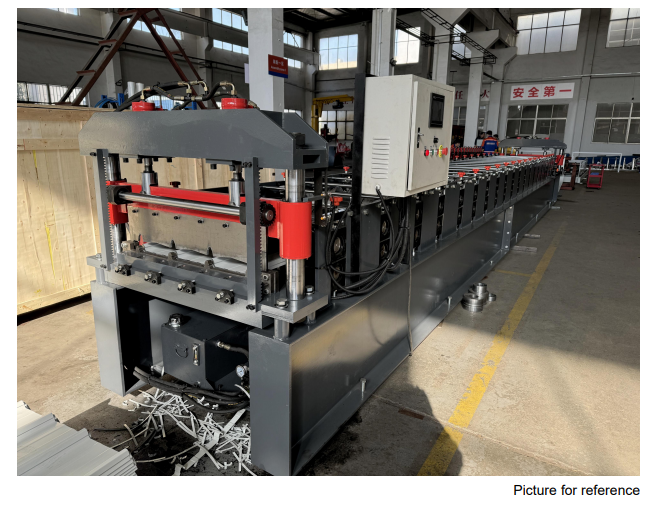

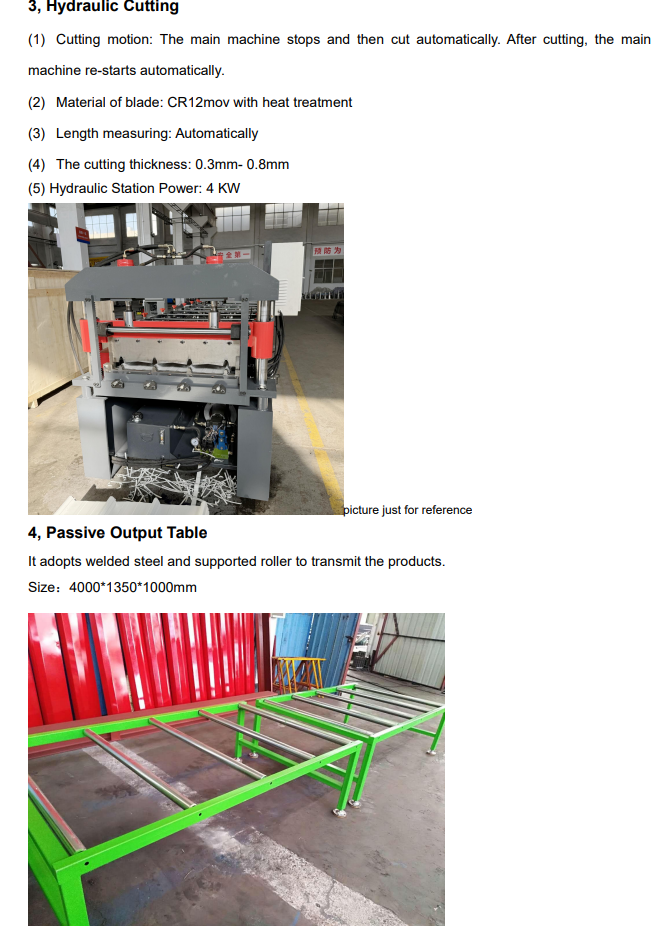

The integrated hydraulic cutting system automatically cuts panels to the required length with high accuracy. Equipped with CR12Mov heat-treated cutting blades, the machine delivers clean, precise cuts while reducing maintenance requirements and extending blade life.

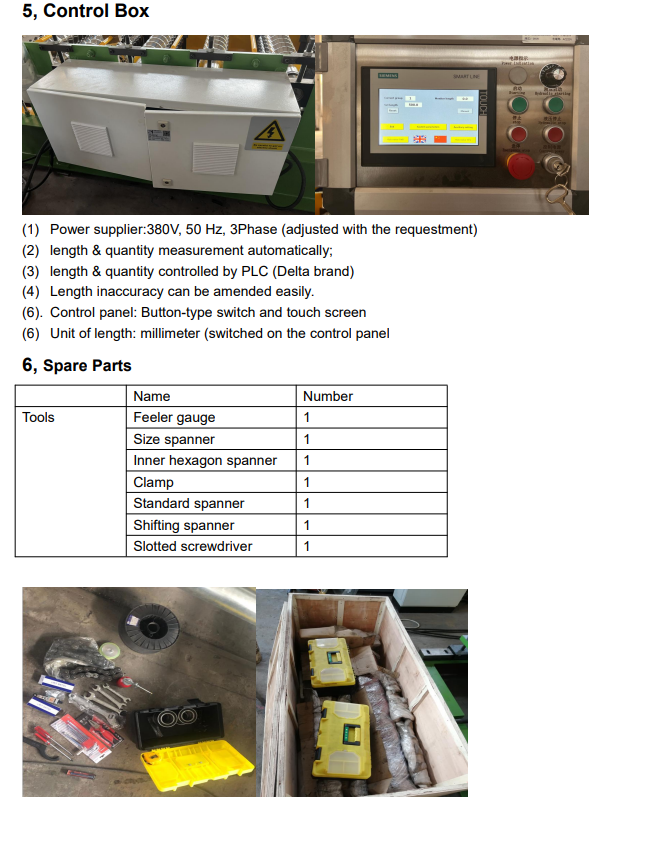

A user-friendly PLC control system with touchscreen interface allows operators to automatically control production length and quantity, ensuring efficient operation and reduced labour requirements. The machine also includes a heavy-duty 5-ton passive decoiler, hydraulic cutting unit, output tables, safety protection cover, and spare parts package for a complete production solution.
Fully automated Klip Lok 700 roofing sheet production line
Suitable for concealed-fix roofing panel manufacturing
Processes PPGI and galvanized steel coils
Material thickness range: 0.3–0.7 mm
Production speed of 10–12 m/min
Approximately 24–26 roll-forming stations
Heavy-duty 5-ton passive decoiler
Automatic hydraulic cutting system
PLC touchscreen control system
Automatic length and quantity control
Chrome-coated forged steel rollers
CR12Mov heat-treated cutting blades
Safety protection cover included
Durable industrial-grade construction
| Specification | Details |
|---|---|
| Product Profile | Klip Lok 700 Roofing Sheet |
| Production Speed | 10–12 m/min |
| Material Thickness | 0.3–0.7 mm |
| Raw Material | PPGI / Galvanized Steel |
| Main Motor Power | 7.5 kW |
| Hydraulic Station Power | 4 kW |
| Hydraulic Pressure | 12 MPa |
| Roller Stations | 24–26 Stations |
| Roller Material | 45# Forged Steel, Chrome Coated |
| Shaft Diameter | 70 mm |
| Shaft Material | 45# Forged Steel, Chrome Treated |
| Drive System | 1-Inch Single Chain |
| Power Supply | 380V / 50Hz / 3 Phase |
| Machine Dimensions | 9000 × 1500 × 1000 mm |
| Machine Weight | Approximately 10 Tons |
| Length Tolerance | ±1.5 mm |

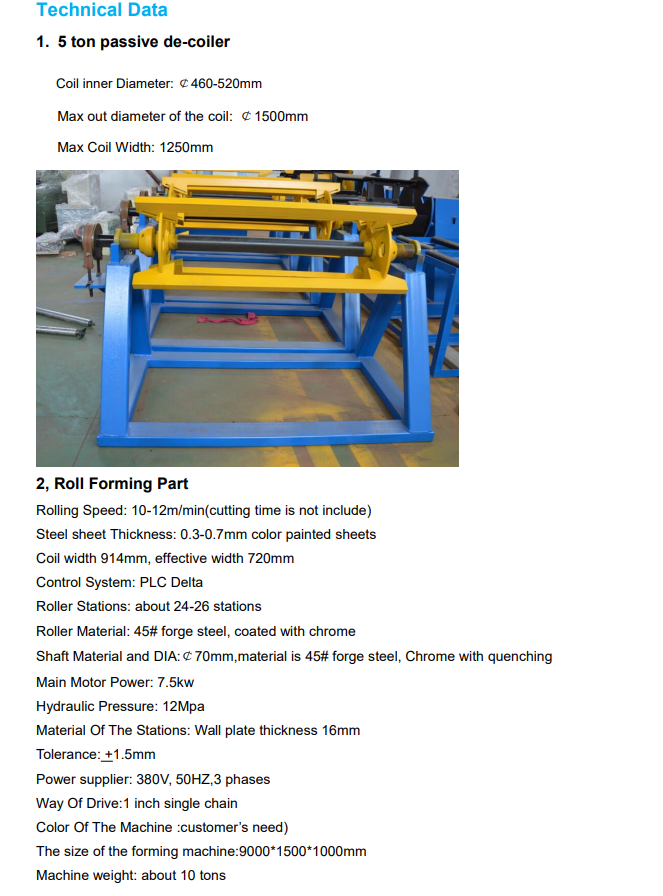

| Specification | Details |
|---|---|
| Type | Passive Decoiler |
| Capacity | 5 Tons |
| Coil Inner Diameter | 460–520 mm |
| Maximum Coil Outer Diameter | 1500 mm |
| Maximum Coil Width | 1250 mm |

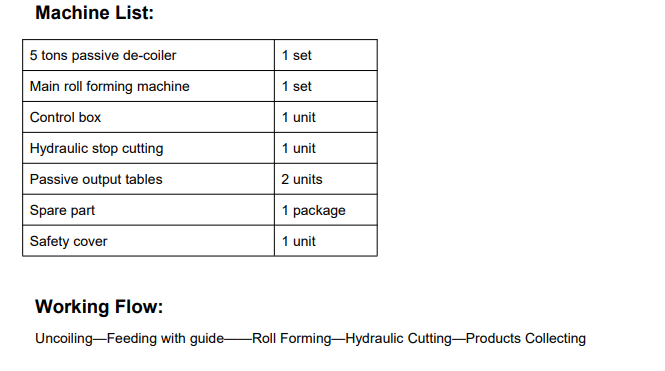

5-Ton Passive Decoiler
Main Roll Forming Machine
PLC Control Cabinet
Hydraulic Cutting Unit
Hydraulic Power Station
Two Passive Output Tables
Safety Cover
Spare Parts and Tool Kit
The Klip Lok 700 Roll Forming Machine provides manufacturers with a dependable, high-performance solution for producing concealed-fix roofing sheets with exceptional accuracy, efficiency, and durability, making it an ideal investment for roofing sheet production businesses and metal fabrication facilities.
| Working voltage | 380 V |
|---|
The Clip Lock Roll Forming Machine SLD is designed for manufacturing clip lock profiles used in roofing and wall cladding applications, providing durable and weather-resistant solutions.
The machine can typically process various materials such as galvanized steel, aluminum, and other metal sheets suitable for roll forming.
Key features include high-speed production, robust construction, easy operation, and adjustable settings for different profile specifications.
The production speed can vary, but it generally operates efficiently at speeds of around 5 to 15 meters per minute, depending on the profile and material.
Yes, we provide comprehensive training for operators to ensure they are familiar with the machine's features, safety protocols, and maintenance procedures.
The power requirement usually ranges between 5 to 15 kW, depending on the specific model and configuration of the machine.
The Clip Lock Roll Forming Machine SLD typically comes with a warranty period of 12 months, covering manufacturing defects and parts replacement.
Yes, the machine can be customized to produce specific clip lock profiles based on customer requirements and design specifications.
The dimensions may vary by model, but the machine generally has a footprint of approximately 5 meters in length, 1.5 meters in width, and 2 meters in height.
Regular maintenance includes lubricating moving parts, checking electrical connections, and ensuring the feeding system is clear of debris. A detailed maintenance schedule will be provided.
Yes, it can be integrated with other machines such as shearing machines, packaging systems, or automated stackers to streamline the production process.
Safety features typically include emergency stop buttons, protective guards, and safety interlocks to prevent accidental operation.
Delivery time usually ranges from 4 to 8 weeks, depending on the customization requirements and production schedule.
Post-purchase support includes technical assistance, spare parts availability, and continued training as needed to ensure optimal machine performance.
You can request a quote by contacting our sales team through our website or by phone, providing details about your requirements and specifications.
