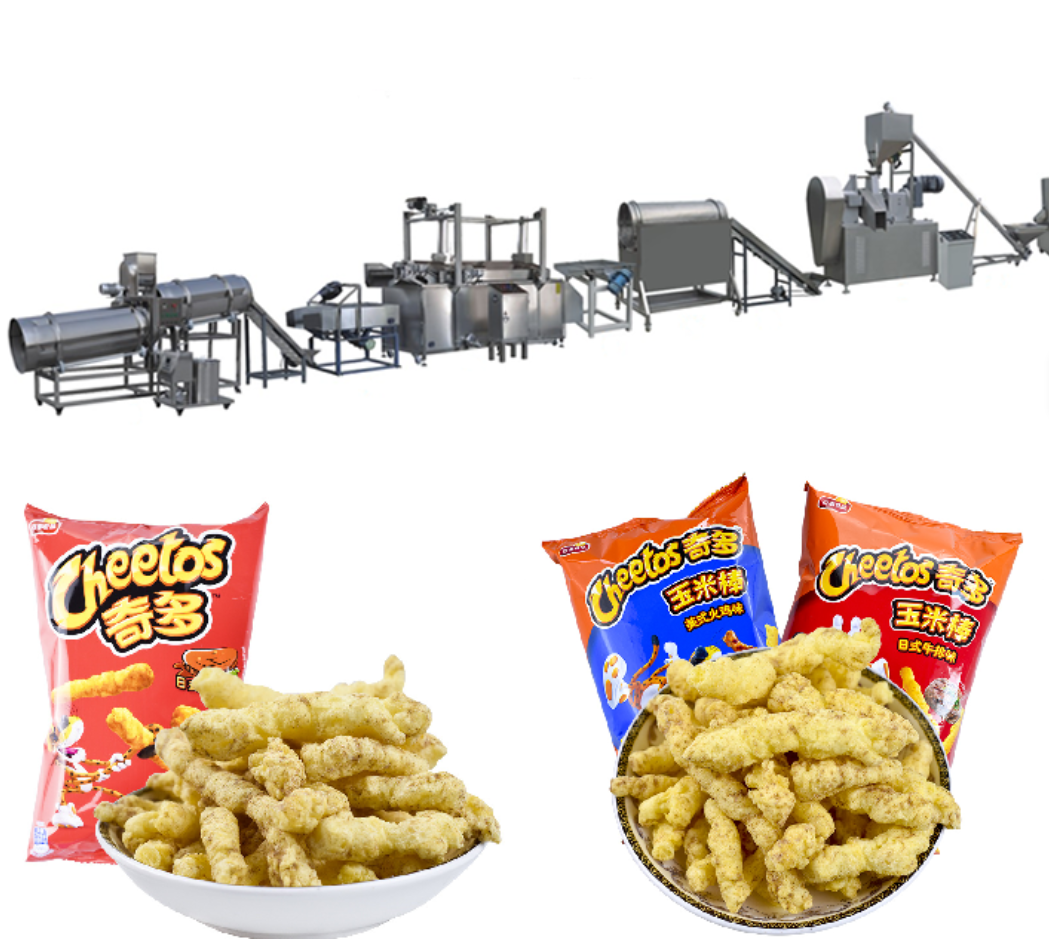

Cheetos Snack Complete Production Line: Food Processing for Cheetos Snacks

Product Description

Specification

Mixer

Vlotage: 50kgs/Time


Power:4kw

Size: 830*530*1040

Material: Outside Stainless Steel

Double discharge port
1. Powder mixer is mainly used for mixing raw materials, can be used for mixing main materials, auxiliary materials, water, trace elements and so on.
2.The maximum production capacity of this mixer is 25-30kg each time, which takes about 5 minutes each time.
3. Manual control is required to switch forward and reverse the equipment

Screw feeding

Output: along with the host machine

Power: 1.5kw
Size： 850X750x2450mm
Material： outside stainless steel
1 Screw feeder is mainly used to lift and transport the raw materials after mixing the powder mixer to the main machine - feeding
machine.
2 Due to the size limitation of the feeder hopper, the conveying capacity of the equipment is greater than that of the feeder, so the machine is generally used in intermittent mode.
3 The control switch can be set separately or arranged directly in the host control panel.

Cheetos host machine

Output: 100-1300kg/h
Power: 22kw
Size: 2.4×1.0×1.8
Material: Outside stainless steel
1 Puffing host miachine is mainly used to process the corn flour, corn grits and other edible powder into similar "small pepper" shape through baking, frying, seasoning and other processes to produce Cheeto food.
3. The main motor uses the brand motor.
No manual intervention is required during normal production.
4. This equipment is a mature product for many years, stable operation, efficient production


Packing & Delivery

Continuous frying equipment

Energy: Electricity, electric heating tube L type, power 60kw, divided into three temperature control, single layer network belt structure. With two layer insert plate filter box, with circulating high temperature oil pump and pipeline valve
Size: 4500*1500*2300
Power: 61.5KW

deoiling machine

Discharging type deoiling machine, automatic feeding, automatic deoiling, automatic discharging, deoiling time is adjustable, with frequency converter
Size: 1100*1100*1250mm
Speed: adjustable 300-500 RPM /min
Power: 1.1KW

Fully automatic seasoning machine


Power: 3.5kw
Size: 3.1*0.9*1.8
High degree of movement, simple operation, a wide range of application, double drum seasoning machine uses hoist automatic feeding, screw quantitative delivery of seasoning, and the design of the sprinkling mechanism, uniform seasoning; The cylinder once presses forming, no dead Angle; The injection part adopts imported oil nozzle, spraying evenly, the injection amount can be controlled and adjusted.
