Cement Mortar Spraying Machine High Efficiency Single Phase 220v For Small Project Construction Work

Spraying Machine

The Spraying Machine is designed for spraying a wide range of materials including cement mortar, putty powder, coatings, emulsion paint, true stone paint, thermal insulation mortar, waterproof materials, fire-resistant materials, heat insulation materials, sound-absorbing materials, and other water-soluble substances. It is a versatile and efficient solution for construction and industrial applications, ensuring high productivity and quality results.

Key Features:

• Motor: Equipped with an all-copper Baoguo standard motor, ensuring stable performance. Avoids non-standard aluminum-coated motors for reliable operation.
• Spray Gun Rotation: The spray gun is connected to the feeding tube with a rotatable feature, providing ease of operation.
• High Construction Efficiency: High output with a small, portable design for easy handling on site.
• Sealant Sleeve: Made of black rubber, resistant to wear and corrosion. Includes a protective umbrella for enhanced durability.
• Material Saving: Easy to use and reduces material wastage. Requires only three people to operate, capable of covering up to 200 square meters per hour (1.5-2cm thickness).
• Labor Saving: Capable of spraying 1,000 square meters per day with just 3 operators, replacing 20 skilled workers. This enhances project timelines and increases profitability.

How to Use:

1. Motor Check: Ensure the spiral rotation direction is correct after powering on. Reverse the power phase if needed.
2. Pre-Cleaning: Add 5L clean water to the hopper to clean the pump and hose before using cement or other materials.
3. Spraying: Add the desired material (cement mortar, paint, etc.) into the hopper and begin spraying after starting the air compressor and opening the air valve.
4. No Dry Running: Never run the machine without material or water in the hopper.
5. Cleaning: After use, drain remaining material and clean the hopper with clean water.

Specifications:

• Model Number: BLM-311
• Motor Power: 4kw
• Machine Weight: 180kg

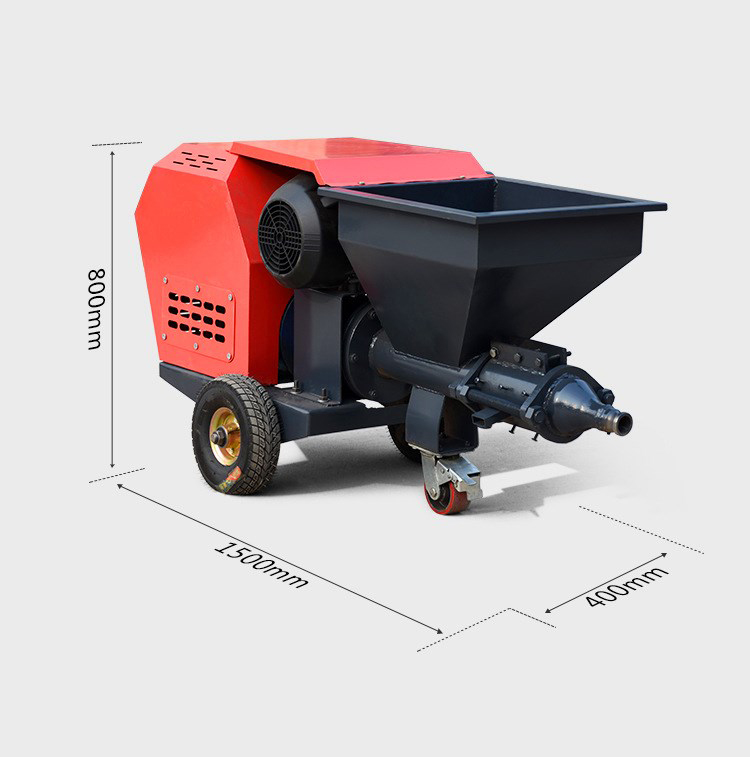

• Overall Dimensions: 1500×400×800mm
• Particle Throughput: 4mm
• Machine Voltage: 220v
• Transport Efficiency: 120-150 square meters/hour
• Vertical Conveying Distance: 10m
• Horizontal Transport Distance: 20m
• Transportation Way: Auger delivery
