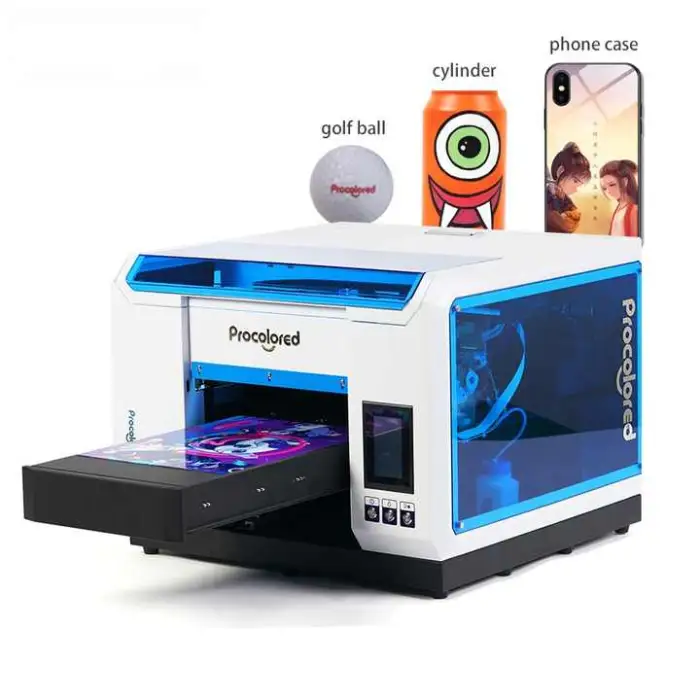

Cell Phone case Embossing Uv Printing Machine A3 Led Flatbed Printer for Pens Wood Plywood

It is an A3-size LED UV flatbed inkjet printer designed for high-resolution (720 x 1440 dpi) multicolor printing on a variety of substrates such as phone cases, wood, plywood, acrylic and similar flat items. Model: A3 PRO-1390 (print head R1390 / TX800).

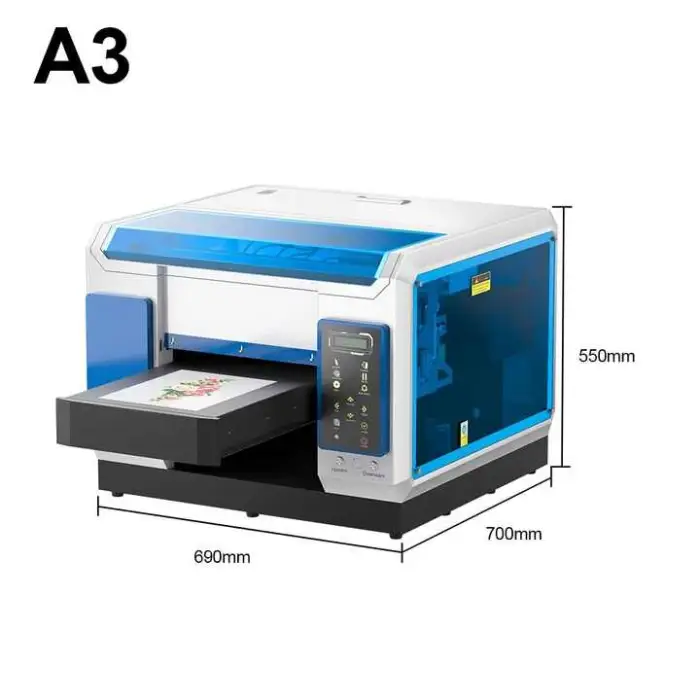

The specified print size is 267 x 420 mm (approx. A3). This is the maximum printable area; actual usable area may vary by jig or fixture used.

It supports many rigid and semi-rigid substrates including wood, plywood, acrylic, plastics used for phone cases, and coated materials. For items like pens or other cylindrical objects, a rotary attachment or special jig is typically required.

The printer cannot mechanically emboss material. It can produce tactile raised or glossy effects by layering clear UV varnish (spot/3D varnish) and using white ink underprints to enhance contrast, creating an embossed-like finish.

The printer uses UV-curable inks (UV ink). Prints are generally very durable, scratch-resistant, and suitable for indoor use; for long-term outdoor exposure, additional coatings or laminates and appropriate ink formulations are recommended to maximize weather resistance.

The printer is rated up to approximately 40 pages per minute (model/spec dependent) and a maximum resolution of 720 x 1440 dpi, delivering high-detail color output for photographic and graphic work.

This model uses R1390 and TX800 print heads. Print heads require routine maintenance (nozzle checks, cleaning cycles). Replacement parts and service availability depend on your supplier; keep spare heads or maintenance kits for production environments.

Control type is Windows and the printer ships with software included. It typically supports common image formats such as JPG, PNG, TIFF and PDF and works with RIP/driver software compatible with Windows. Check with the vendor for exact software package and supported OS versions.

The unit provides USB connectivity for data transfer. The spec lists 'USB Charging'—for a full production flatbed of this size the main power is normally AC mains; confirm exact power requirements and whether USB is used only for certain peripheral functions with your supplier before purchase.

The machine weight is listed at approximately 85 kg. Installation requires a stable, level surface, adequate working space around the printer, proper ventilation for workspace comfort, and appropriate electrical supply per the seller's specifications.

Regular maintenance includes daily or weekly nozzle checks, automated or manual head cleanings, circulating/recirculating white ink (if used), replacing filters and dampers as needed, and keeping the flatbed and media holders clean. Follow the manufacturer's maintenance schedule to avoid clogs and banding.

Yes — opaque white ink can be used as an underbase to print vibrant colors on dark or transparent materials. Proper use of white layers and curing is important for opacity and color accuracy.

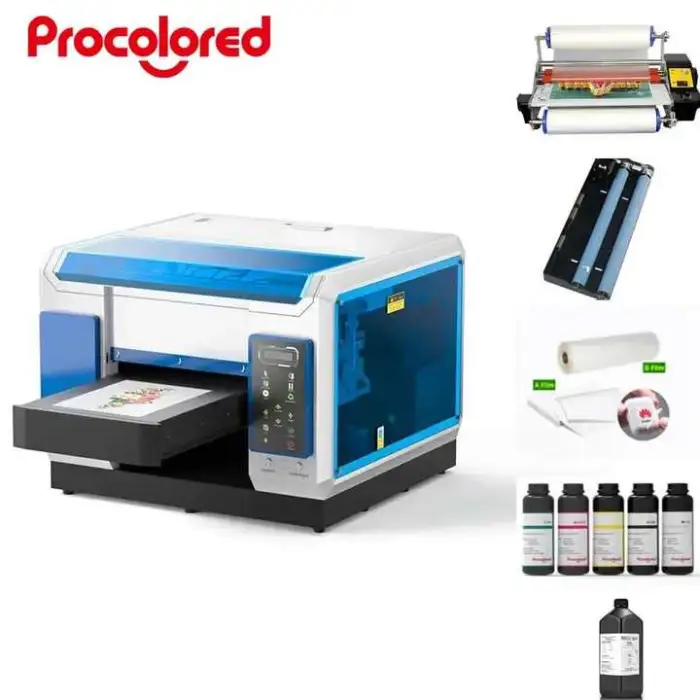

Consumables are generally not included beyond starter ink sets and basic accessories; ongoing costs include replacement UV ink, print heads, cleaning supplies and spare parts. Consumable life and costs vary by usage and print coverage—request a consumables price list from your supplier.

Warranty, training and after-sales support vary by seller or distributor. Many suppliers offer installation, operator training, and a limited warranty; confirm warranty length, what it covers, and available support packages before purchase.
