The Bread Box Shrink Wrapping Packaging Machine is a state-of-the-art solution for efficient packaging. Designed for easy operation, this machine is ideal for various applications, including apparel, beverages, chemicals, commodities, food, machinery and hardware, and t...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The Bread Box Shrink Wrapping Packaging Machine is a state-of-the-art solution for efficient packaging. Designed for easy operation, this machine is ideal for various applications, including apparel, beverages, chemicals, commodities, food, machinery and hardware, and textiles. It ensures that products are securely wrapped and protected during storage and transport.
Automatic Operation: This machine operates automatically, minimizing manual effort and streamlining the packaging process.
Versatile Applications: Suitable for a wide range of products, it can efficiently package bread boxes and other items in various industries.
High-Quality Sealing: It effectively seals and cuts, ensuring a tight wrap that preserves product freshness and safety.
PE Shrink Film Compatibility: Designed to work with PE (polyethylene) shrink film, it provides a durable and protective layer around products.
Compact Dimensions: With dimensions of 2300mm (L) × 1350mm (W) × 2000mm (H), the machine fits well in most production areas.
Durable and Reliable: Built with high-quality components, including a PLC (Programmable Logic Controller), it ensures long-lasting performance.
Customizable Options: The machine can be customized to meet specific packaging requirements, making it adaptable for different products.
After-Sales Support: Comprehensive support includes online assistance, video technical help, and free spare parts, ensuring you’re never alone in your packaging needs.
Quality Assurance: Machinery test reports and video outgoing inspections are provided to guarantee the machine's reliability and effectiveness.
In conclusion, the Bread Box Shrink Wrapping Packaging Machine - CHENGQI is a reliable and efficient solution for packaging needs. Its automatic features and high-quality sealing capabilities make it a perfect fit for various applications, ensuring that your products are protected and ready for distribution.
TFZ6540L is a fully automatic unmanned operation L type sleeve sealer machine which is widely used in mass production packaging line with high efficiency. automatic film feeding, automatic coating, sealing cutting, automatic rewinding waste; Automatic film feeding punching device, waste film automatically rolling, suitable for different width height items. Designed for lighter cartons other packaging design.
Performance Features
1.Sealing knife uses the aluminum knife with DuPont Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking smoking with zero pollution.
2.Built-in PID function. Sealing blade temperature is extremely sensitive accrete can be arbitrarily set.
3.Automatically-feeding: the length can be auto adjusted by the sensor time relay. Matched the reduction motor makes the waste film automatically rolling.
4.The sealing blade itself is also equipped with automatic protection function which effectively prevent from accidental cutting.
5.The entire machine realizes unmanned operation with the production line connecting.
6.Use of imported electrical components, reduce the use of failures to improve system stability.
7.Automatic mode manual mode can be switched at any time.
8.Using OMRON other imported relays, to achieve machine, electricity, gas integration.
Application Range
This machine is mainly applied to the longer products, such as cartons paper trays which contain drink, beer, water, can glass bottles collection single shrink wrapping.
Technical Parameter
| Model | TFZ-6540L |
| Power supply | 380V/50-60Hz |
| Working power | 1.8KW |
| Max. Packing Size | (L)≤450mm;(W)≤300mm;(H)≤380mm |
| Max. Sealing Size | (W)650mm |
| Table height | 800mm |
| Packaging speed | 10-15pcs/min(depend on product size) |
| Air source | 6kgf/cm2 |
| Shrink film | PE single film |
| Max film size | (W)≤550mm;(D)≤250mm;(weight)≤35KG |
| Sealing form | Sleeve type |
| Machine size | L2460×W1230×H2000mm |
| Overall dimension | L2550×W1350×H2150mm |
| G./N. weight | 420/330kg |
| Model | BS6040PE |
| Voltage | 220/380V 3PH 50/60Hz |
| Power | 22KW |
| Table Height | 800±50mm |
| Conveying Load | 40KG |
| Tunnel size | L1500×W600×H400mm |
| Conveyor Speed | 0-15m/min |
| Machine Size | L2500×W850×H1400mm |
| Package Size | L2600×W950×H1550mm |
| G./N. Weight | 460/370Kg |

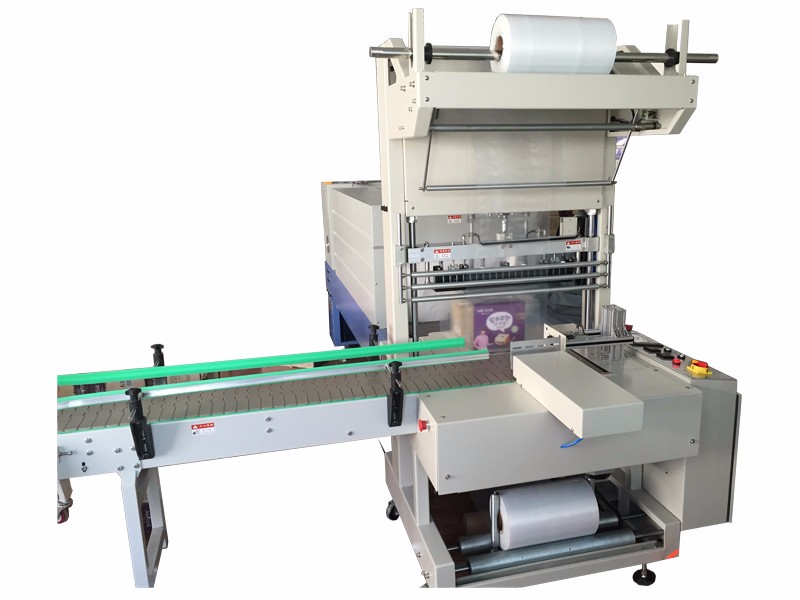

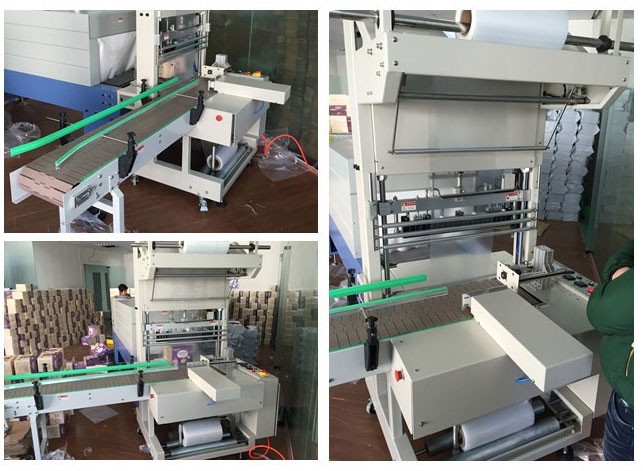

Detailed Images

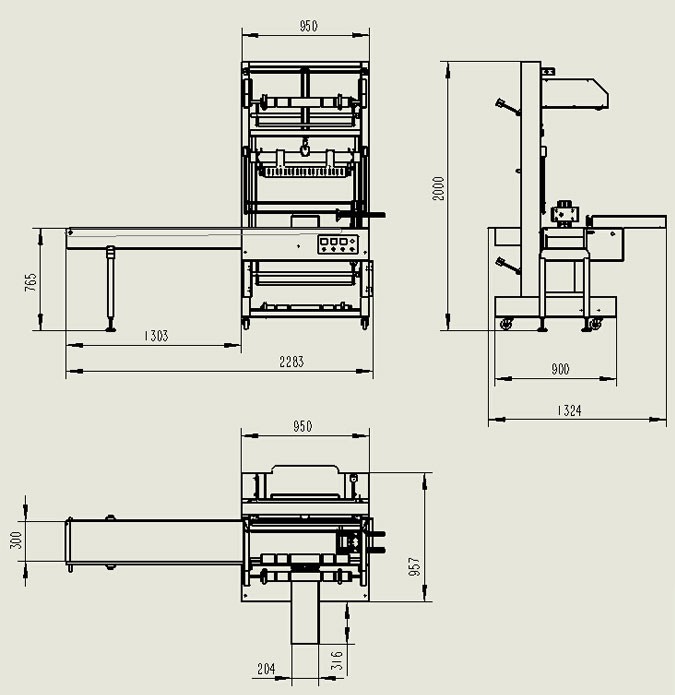

Layout
| Power supply | 380V/50-60Hz |
|---|---|
| Working power | 1.8KW |
| Max. Packing Size | (L)≤450mm;(W)≤300mm;(H)≤380mm |
| Max. Sealing Size | (W)650mm |
| Packaging speed | 10-15pcs/min(depend on product size) |
| Air source | 6kgf/cm2 |
| Shrink film | PE single film |
| Max film size | (W)≤550mm;(D)≤250mm;(weight)≤35KG |
| Sealing form | Sleeve type |
| Overall dimension | L2550×W1350×H2150mm |
| Voltage | 220/380V 3PH 50/60Hz |
| Power | 22KW |
| Conveying Load | 40KG |
| Tunnel size | L1500×W600×H400mm |
| Conveyor Speed | 0-15m/min |
| Package Size | L2600×W950×H1550mm |
| Automatic Operation | This machine operates automatically, minimizing manual effort and streamlining the packaging process. |
| Versatile Applications | Suitable for a wide range of products, it can efficiently package bread boxes and other items in various industries. |
| High-Quality Sealing | It effectively seals and cuts, ensuring a tight wrap that preserves product freshness and safety. |
| PE Shrink Film Compatibility | Designed to work with PE (polyethylene) shrink film, it provides a durable and protective layer around products. |
| Compact Dimensions | With dimensions of 2300mm (L) × 1350mm (W) × 2000mm (H), the machine fits well in most production areas. |
| Durable and Reliable | Built with high-quality components, including a PLC (Programmable Logic Controller), it ensures long-lasting performance. |
| Customizable Options | The machine can be customized to meet specific packaging requirements, making it adaptable for different products. |
| After-Sales Support | Comprehensive support includes online assistance, video technical help, and free spare parts, ensuring you’re never alone in your packaging needs. |
| Quality Assurance | Machinery test reports and video outgoing inspections are provided to guarantee the machine's reliability and effectiveness. |
| 3.Automatically-feeding | the length can be auto adjusted by the sensor time relay. Matched the reduction motor makes the waste film automatically rolling. |
The machine is versatile and suitable for packaging bread boxes and a wide range of items across industries including apparel, beverages, chemicals, commodities, food, machinery and hardware, and textiles. It is especially suited for longer products such as cartons, paper trays, and multi-pack beverage collections.
The primary model is TFZ-6540L (fully automatic L-type sleeve sealer). Key specs: power supply 380V/50–60Hz, working power 1.8 kW, max pack size L≤450mm × W≤300mm × H≤380mm, max sealing width 650mm, packaging speed 10–15 pcs/min (product dependent), table height 800mm. There is also a heavier-duty tunnel variant (BS6040PE) with tunnel size 1500×600×400mm and voltage 220/380V 3-phase.
The machine is designed for PE (polyethylene) single-layer shrink film. Maximum film width ≤550mm, roll diameter (depth) ≤250mm, and max roll weight ≤35kg. For specific film thickness recommendations, consult the supplier based on your product and shrink tunnel settings.
Typical packaging speed is 10–15 pieces per minute. Actual throughput depends on product size and shape, film handling, conveyor speed, and operator setup or production-line integration.
Yes — the TFZ-6540L is designed for fully automatic, unmanned operation and can be connected directly to production lines. It features automatic film feeding, sealing/cutting, and waste-film rewinding.
Key quality/safety features include an aluminum sealing knife with DuPont Teflon anti-stick coating to prevent coking and cracking, built-in PID temperature control for precise sealing, automatic protection for the sealing blade to prevent accidental cuts, and use of imported electrical components (e.g., OMRON relays) to improve stability.
Yes. The machine can be customized to meet specific packaging sizes, production-line needs, or special product handling requirements. Contact the supplier with your product dimensions and throughput goals to discuss options.
CHENGQI offers comprehensive after-sales support including online assistance, video technical help, free spare parts, machinery test reports, and video outgoing inspections to ensure the machine is reliable and ready for use.
For TFZ-6540L: machine size approx. L2460 × W1230 × H2000mm; overall dimension L2550 × W1350 × H2150mm; gross/net weight approximately 420/330 kg. Tunnel and other model dimensions vary (see BS6040PE specs if applicable).
TFZ-6540L typically requires 380V, 50–60Hz electrical supply and an air source around 6 kgf/cm² for pneumatic components. The BS6040PE variant supports 220/380V 3-phase. Confirm electrical and pneumatic requirements with the supplier prior to installation.
Regular maintenance includes keeping the sealing blade and Teflon surfaces clean, checking and tightening mechanical fasteners, inspecting pneumatic lines and fittings, monitoring PID temperature control accuracy, and replacing worn seals or blades as needed. Follow the supplier's maintenance schedule and use genuine spare parts.
The machine is designed for easy operation with automatic and manual modes that can be switched at any time. Built-in PLC control simplifies parameter setup, and PID temperature control allows precise sealing adjustments.
CHENGQI provides machinery test reports and video outgoing inspections showing machine performance and quality checks prior to shipment to ensure the equipment meets specified requirements.
After-sales support includes online assistance and video technical help. Free spare parts are provided as part of the support package. For onsite installation or training, contact your CHENGQI sales representative to arrange available services and any associated costs.
