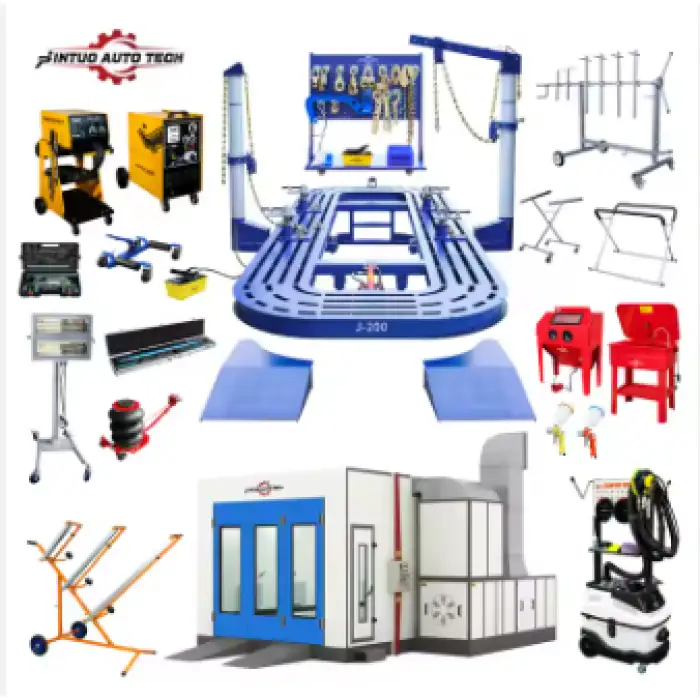

Automotive Combo Car Bench Frame Machine Spray Booths Tools Workshop and Garage Equipment

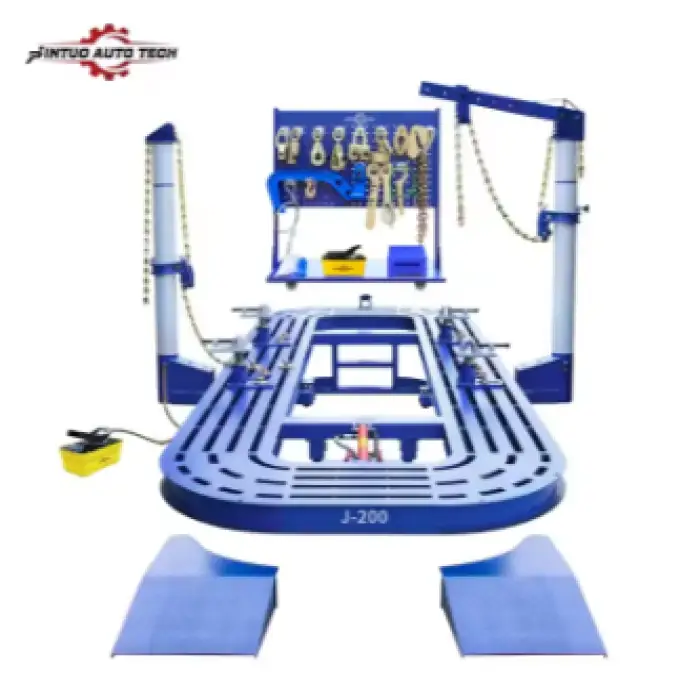

J-200 Car Frame Machine
Specifications
Parameter
Details
Platform Material
I-beam steel
Platform Length
5600 mm / Customized
Platform Width
2200 mm
Lifting Height
520 mm
Lifting Capacity
3500 kgs
Lifting Type
One side lifting
Pulling Power
10 tons
Pulling Range
360 degrees
Pulling Tower Quantity
2 pcs / Customized
Power Unit
Pneumatic-hydraulic
Hydraulic Pressure
70 Mpa
Pneumatic Pressure
0.8 Mpa
Weight
Based on platform length
Accessories
As requested by the customer

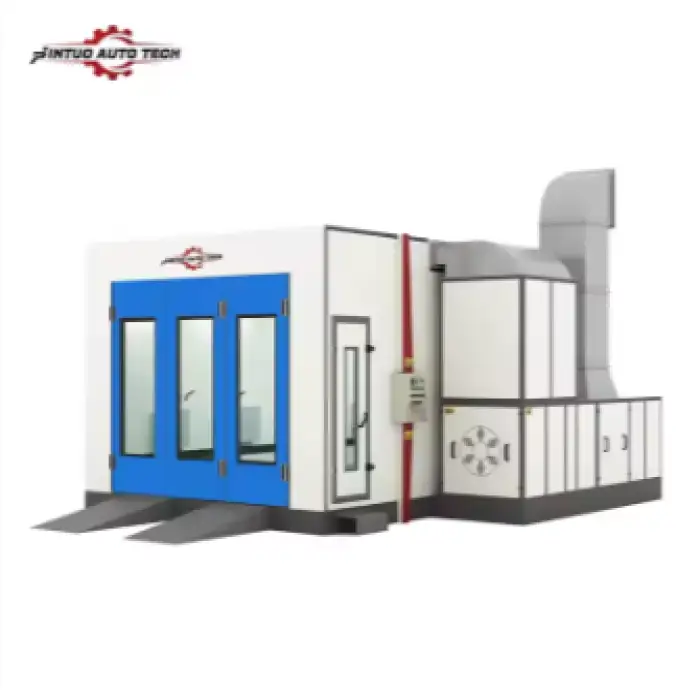

JPB-360E Spray Booth
Parameter
Details
External Dimensions
7000×5350×3400mm
Internal Dimensions
6900×3900×2650mm
Gate Size
3000×2600mm
Side Door Size
650×2000mm
Air-Intake Fan System
2×3KW Centrifugal Fans
Heating System
Infrared Lamp (8 sets, 30KW)
Air Capacity
24,000 m³/h
Max Heating Temperature
80°C
Lumination
≥1000 LUX
Dent Puller
Automatic induction welding technology with Microsoft processor control.
Built-in welding parameter settings for easy operation.
Energy-efficient, consuming 70% less electricity compared to traditional machines.
Compact design for versatile applications.
Specifications
Parameter
Details
Power Supply Voltage
220V/50Hz/1Ph
Max Current
7500A
Output Voltage
50-160V
Welding Thickness
0.8mm + 1.2mm
Input Power
18KVA
Cable Length
3m
Weight
Compact and lightweight

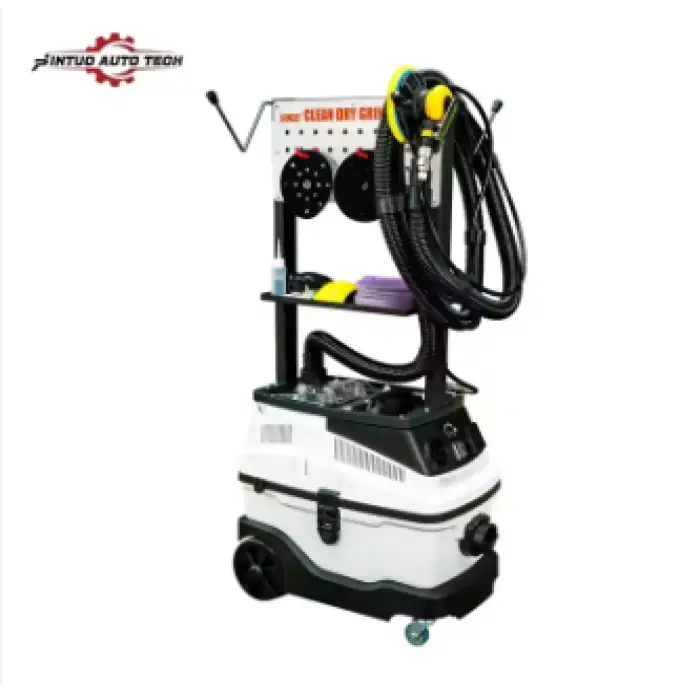

Dust-Free Dry Grinding System
Equipped with pure copper mute motor for strong suction and low noise.
Four-stage filtration system with dust bags, water filters, and HEPA filters.
Specifications
Parameter
Details
Input Voltage
220V
Rated Power
1600W
Filtering Efficiency
99.99%
Vacuum Capacity
30L
Dimensions
600×420×840mm
Weight
41kg

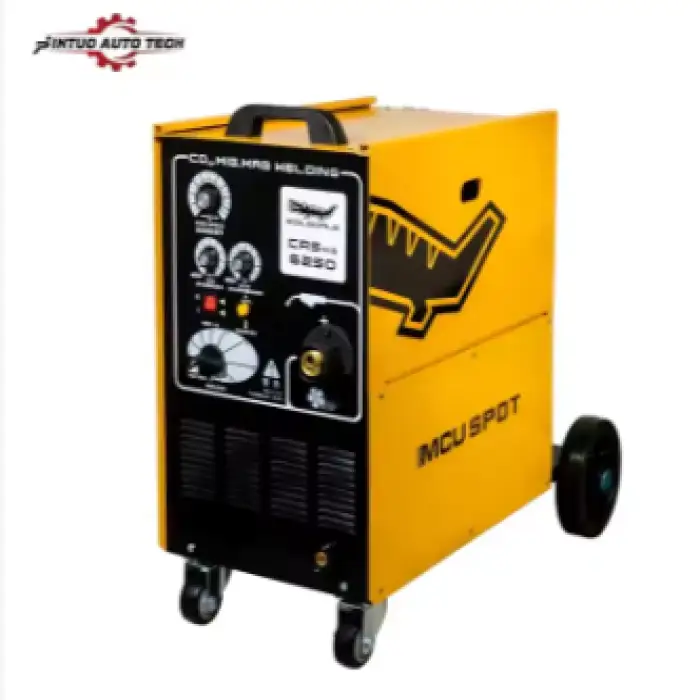

Steel Body Gas Shielded Welding Machine
Four-function versatility, suitable for welding multiple metals.
Features microcomputer digital control with pulse welding technology.
Specifications
Parameter
Details
Input Voltage
3PH/380V 50/60Hz
Max Power
9.1KVA
Cooling Method
Wind cooling
Wire Feeding Method
Built-in dual wheel feeding
Weight
82kgs
Dimensions
480×850×720mm
20-Gallon Parts Washer
Built with rugged welded steel for durability.
Includes removable work shelf and parts basket for convenience.
Specifications
Parameter
Details
Tank Capacity
20 Gallons
Solvent Capacity
12 Gallons
Pump Voltage
110V/60Hz or 240V/50Hz
Dimensions
79×55×32cm
Weight
26kg (G.W.) / 23kg (N.W.)
Jintuo Multi-functional Repair Spray Paint Stand
Sturdy, strong bearing capacity with multiple supporting points.
Rust-proof design for long-term use.
Specifications
Parameter
Details
Stand Size
2200×700×980mm
Weight
27kgs (Net), 28kgs (Gross)
Material
Stainless steel
Color
Silvery
Jintuo Masking Paper Stand
Enables easy paper cutting to protect vehicles during repair.
Specifications
Parameter
Details
Dimensions
107×54×13cm
Weight
15kg (G.W.) / 14kg (N.W.)
Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 11 Mar, 2025, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
