The Siemens System Automatic Tool Change CNC Router Machine is designed for precision cutting and engraving of non-metal materials. This powerful machine is perfect for working with foam, MDF, wood, acrylic, and aluminum. With its advanced Siemens controller and high ri...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

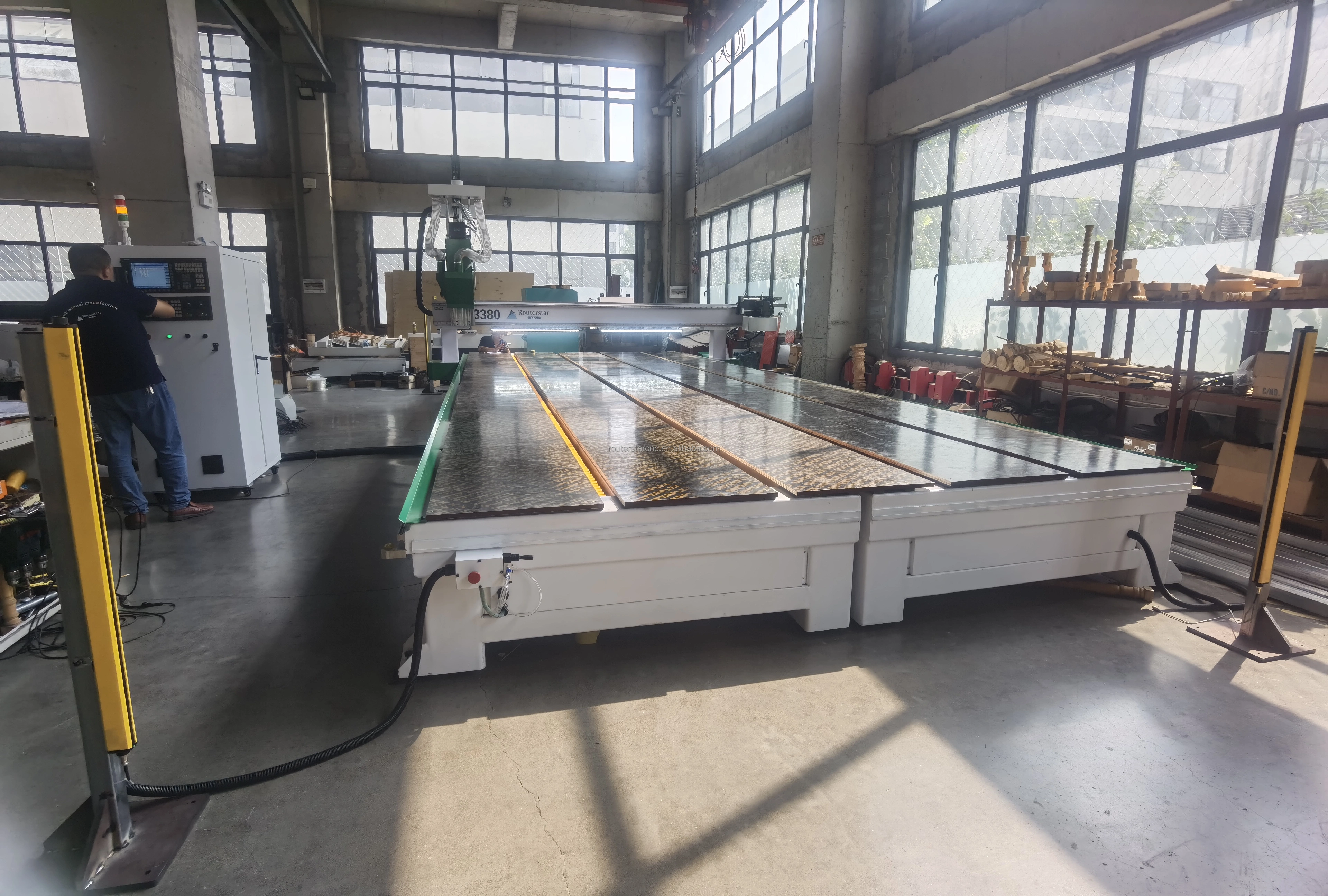

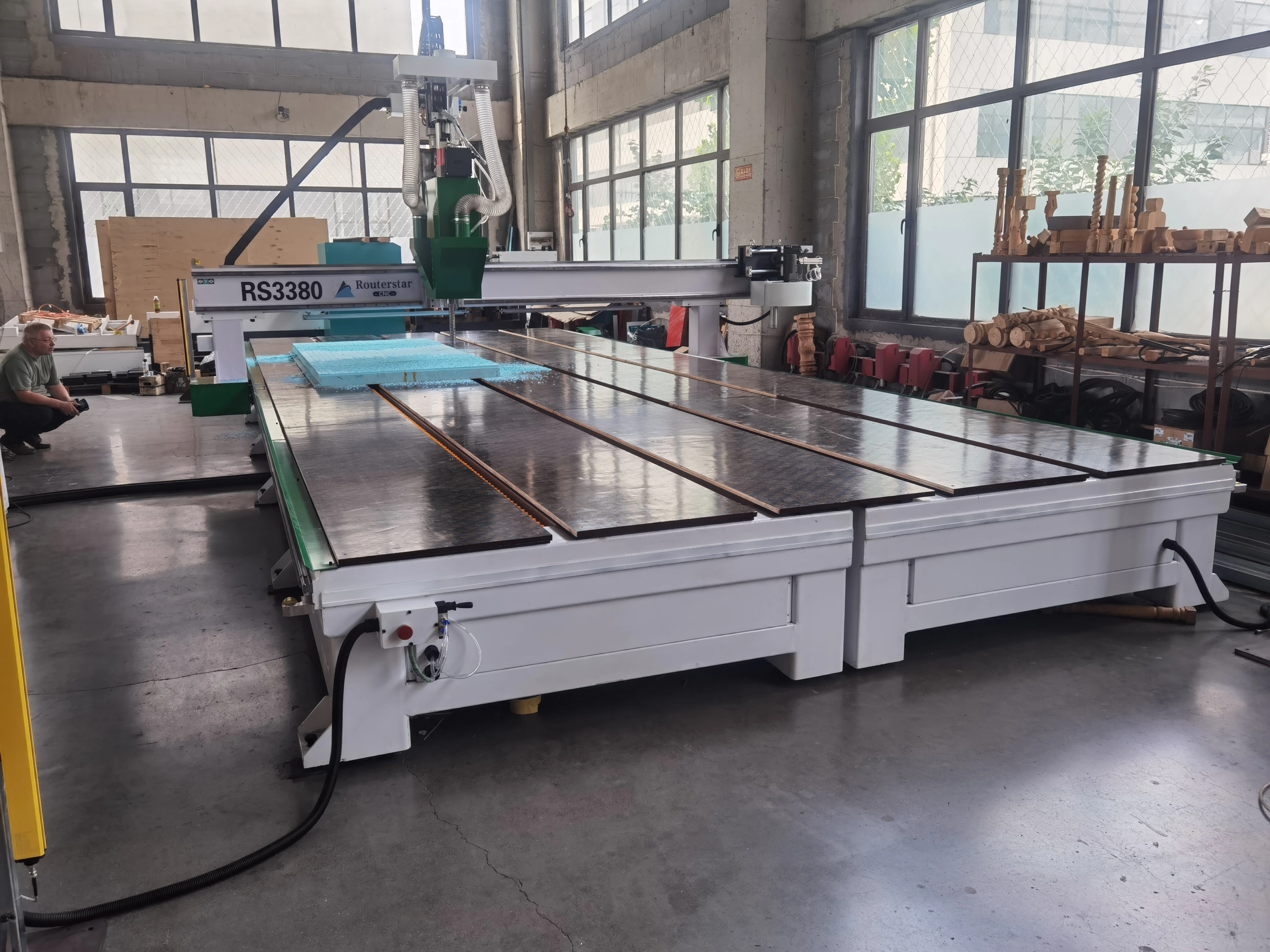

The Siemens System Automatic Tool Change CNC Router Machine is designed for precision cutting and engraving of non-metal materials. This powerful machine is perfect for working with foam, MDF, wood, acrylic, and aluminum. With its advanced Siemens controller and high rigidity, it ensures excellent performance and reliability in various applications.
| Attribute | Details |
|---|---|
| Control System | SIEMENS Controller |
| Motor | SIEMENS Servo Motor |
| Number of Spindles | Single |
| Spindle Power | 7.5 kW Air Cooling ATC |
| Table Surface | T-slot Table |
| Travel (X Axis) | 3300 mm |
| Travel (Y Axis) | 8000 mm |
| Number of Axes | 3 |
| Positioning Accuracy | 0.02 mm |
| Repeatability (X/Y/Z) | 0.02 mm |
| Spindle Speed Range | 1 - 8000 rpm |
| Voltage | 380V 3P |
| Weight | 5000 kg |
| Warranty | 1 Year |
Function | This machine is widely used in all kinds of soft material, foam, EPS, wood, plastic, Composite board, etc And slotting, chamfering, drilling, milling groove and other multi-angle processing can be finished by machine. | ||
Name of Controlling Axis | The component of spindle move around left and right (infeed stroke). Move around left and right: +X | ||
Move forward and backward along working table (Longitudinal stroke). Move forward and backward: +Y | |||
The component of spindle move up and down (vertical stroke). Move up and down: +Z | |||
| The original point of controlling axis | X axis: The original point is on the left side of working table | ||
| Y axis: The original point is in the back of working table | |||
Controlling Stroke | X axis stroke | 3300mm(From the original point, -3300mm) | |
| Y axis stroke | 8000mm(From the original point, -8000mm) | ||
| Z axis stroke | 570mm | ||
| Feeding speed | Rapid Traverse | 30-45m/min | |
| Max. Cutting Speed | 15-25m/min | ||
| Machine type | Gantry type | ||
Spindle | Type | Mechanical spindle BT50 | |
| Motor | 5.5KW | ||
| Spindle rotating speed | 800-8000r/min (rpm/min) | ||
| Repositioning accuracy | ±0.05mm | ||
| Automatic Tool change | 8 tools automatic tool change model, disk type With 8 pcs tool holder | ||
| Frequency Converter | Delta Frequency Converter | ||

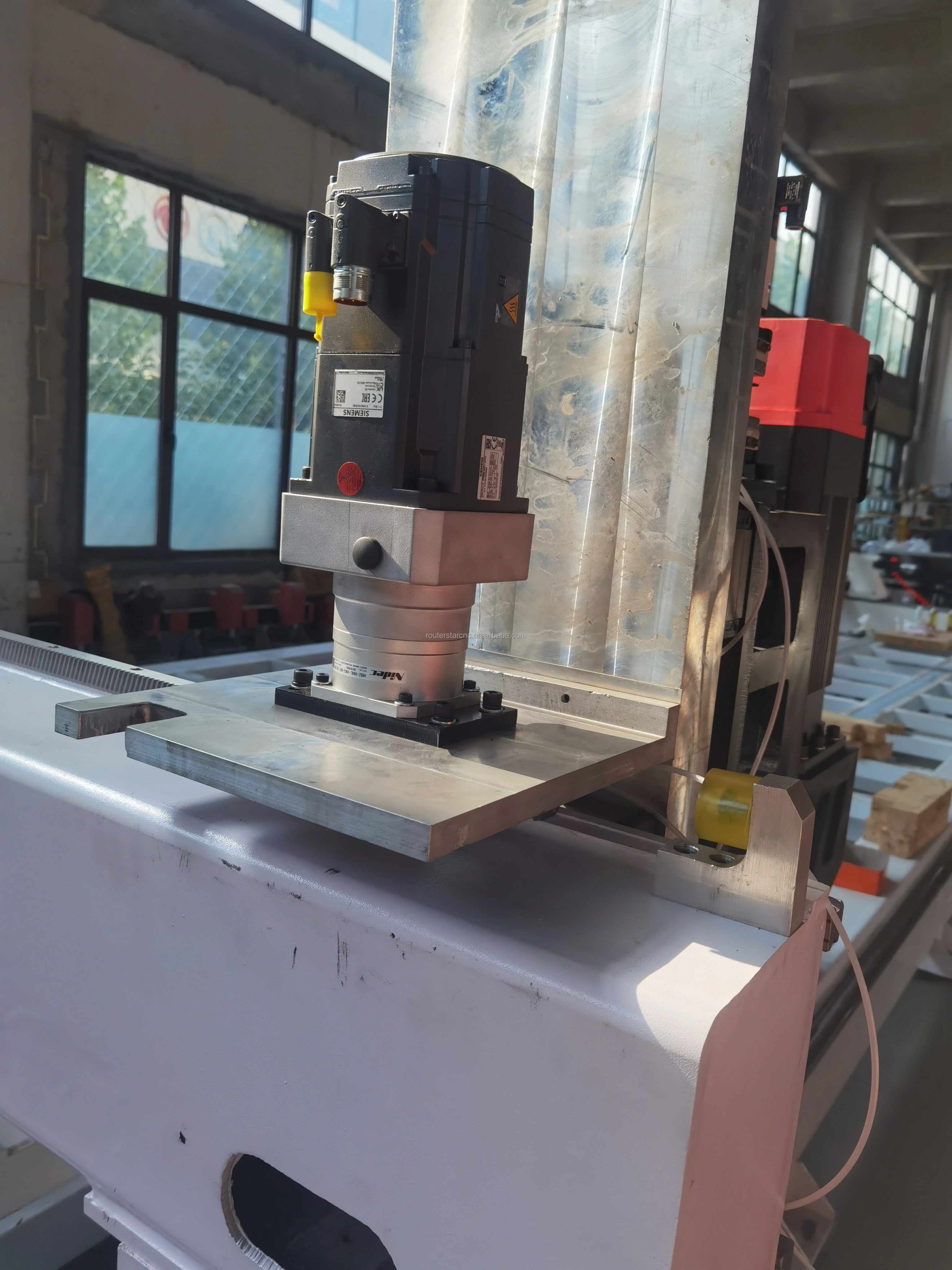

| Motor | Siemens servo motor+ servo driver | ||
| Reducer | Japan SHIMPO reducer | ||
| Electric | French SCHNEIDER Electric | ||
| Controlling system | Type | Siemens control system 828D | |
| Hand Held Control Unit | Yes | ||

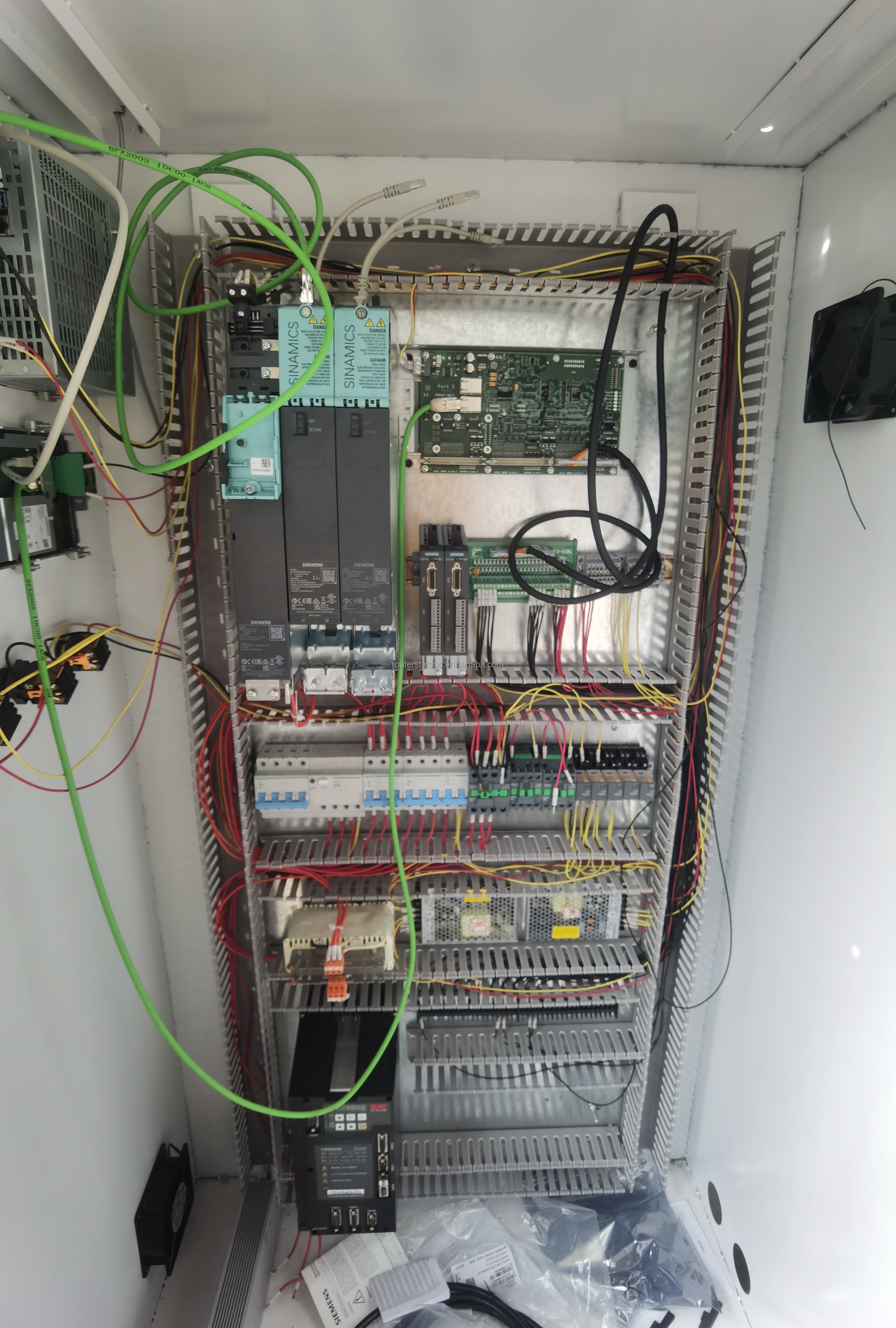

| Control Cabinet | Structure | Control cabinet with universal wheel,with plug for wire | |
Other | Auto lubrication system | ||
| Tool box | |||
| Auto sensor | |||
| Machine structure | Ø The whole machine adopts a stable steel gantry structure and an integral steel structure. Bed gantry annealing aging treatment Ø The bed body 6mm square pipe welded | ||

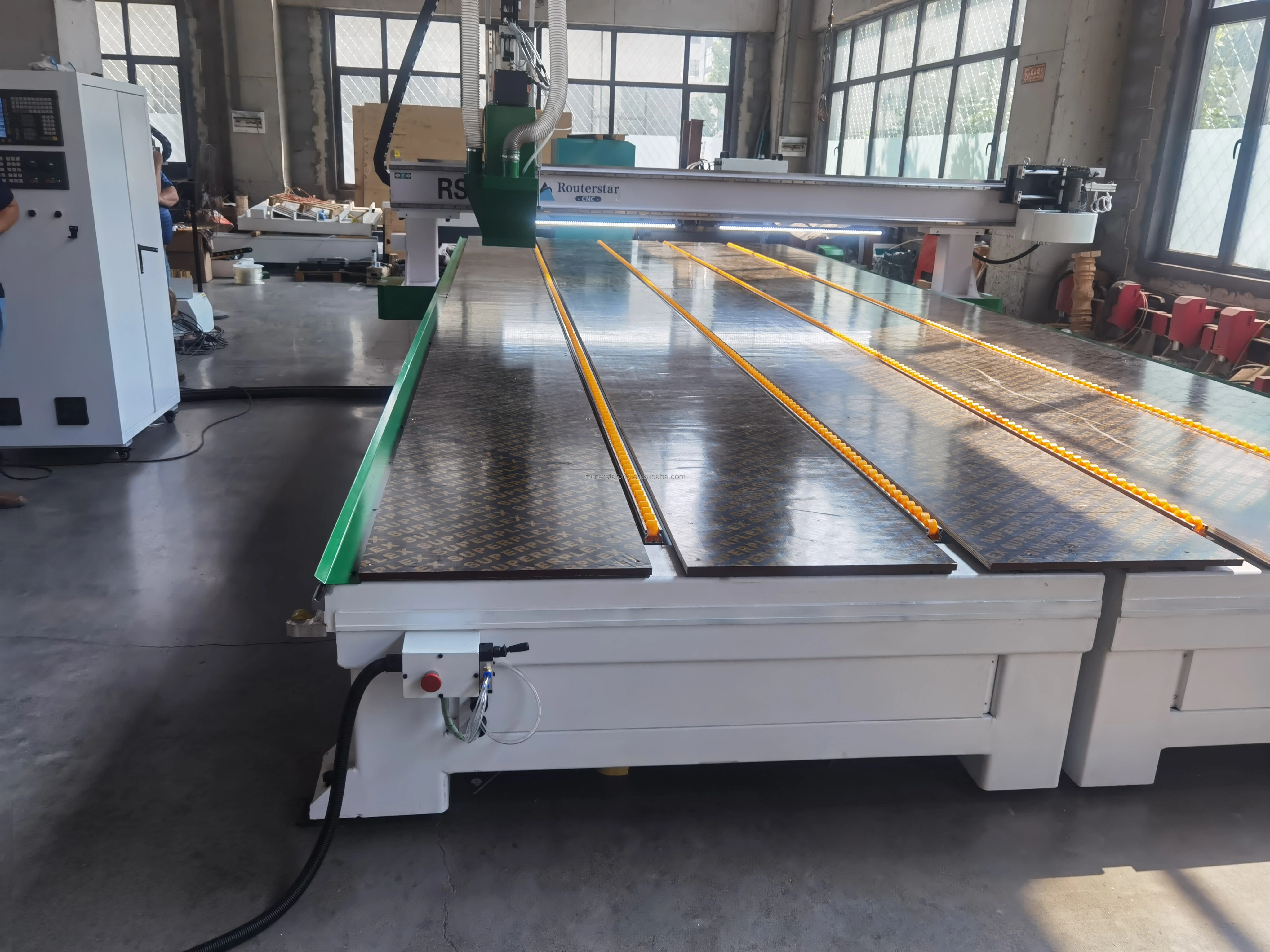

| Table | Ø table height 620mm (from ground) Ø need flat table with four series sliding wheel with up&down function, table surface is playwood 18/21mm thick. | ||
| Protect system | Ø On gantry double side have E-Stop and ON/OFF switch,one E stop with 40m wire to next station. Ø Laser protect system four side, Left and right side of machine. Front and back | ||
| Dust collector | Ø Whole set dust collector 5.5kw | ||
Quality guarantee | Ø Guide rail: Taiwan guide rail Ø Ball screw: from Taiwan TBI Ø Rack: From Taiwan YYC Ø Spindle: Mechanical spindle BT50 5.5kw Ø Drag chain: metal drag chain Ø Servo motor: Siemens servo motor Ø Electric: French SCHNEIDER | ||
| Other details | Ø with adjust height fot body legs Ø with stable metal on table Ø the wire wont on ground Ø spindle can run out and use saw to make side milling, and the saw cant automatic change, only manual install and uninstall Ø saw for side milling | ||
| Power | ≈20kw | ||
| Weight | Net weight is about 3.5 ton | ||
| Certificate | CE with MD+EMC+LVD, Declarations of conformity, test repport. ROHS | ||
| Document | Drawings, Labels,List on standard, Component list, Risk analysis, install instructions, operation manuals | ||
| Control System | SIEMENS Controller |
|---|---|
| Motor | SIEMENS Servo Motor |
| Number of Spindles | Single |
| Spindle Power | 7.5 kW Air Cooling ATC |
| Table Surface | T-slot Table |
| Travel (X Axis) | 3300 mm |
| Travel (Y Axis) | 8000 mm |
| Number of Axes | 3 |
| Positioning Accuracy | 0.02 mm |
| Repeatability (X/Y/Z) | 0.02 mm |
| Spindle Speed Range | 1 - 8000 rpm |
| Voltage | 380V 3P |
| Weight | 5000 kg |
| Warranty | 1 Year |
The machine is designed for precision cutting and engraving of non-metal materials such as foam, MDF, wood, acrylic, and aluminum.
The spindle power is 7.5 kW with air cooling.
The maximum cutting speed is between 15-25 m/min.
The machine features an 8 tools automatic tool change model with a disk type.
The positioning accuracy is 0.02 mm, with a repeatability of 0.02 mm as well.
The machine uses a Siemens control system, specifically the Siemens 828D controller.
The travel distance for the X axis is 3300 mm, and for the Y axis, it is 8000 mm.
Yes, the machine comes with a 1-year warranty.
The machine weighs approximately 5000 kg.
Yes, the machine is suitable for both cutting and engraving applications.
The machine operates on a voltage of 380V 3-phase.
Yes, it includes a laser protection system, emergency stop buttons, and an auto lubrication system.
The machine is equipped with a Siemens servo motor and servo driver.
The spindle speed range is from 1 to 8000 rpm.
Yes, it includes a complete dust collector with a power of 5.5 kW.
