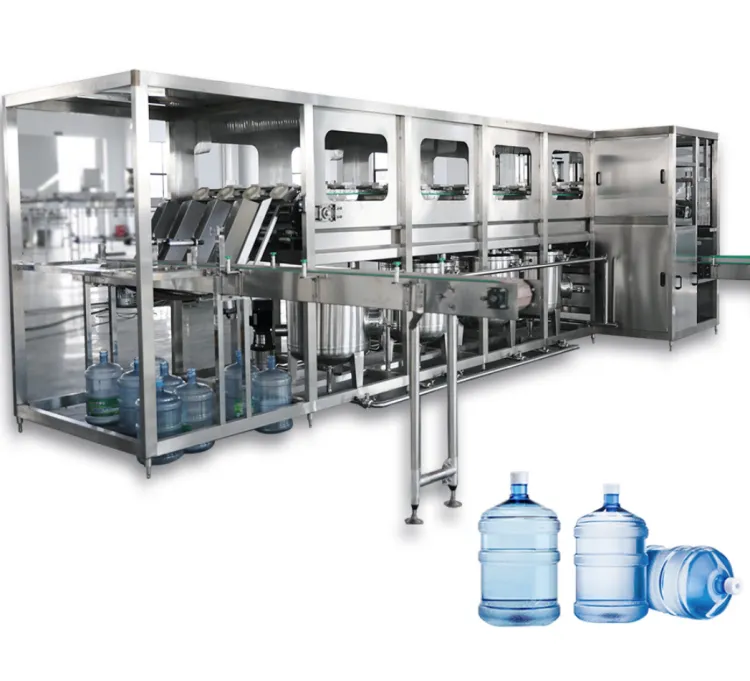

Automatic Pure Mineral Drinking Water 3 to 5 Gallon Bottle Filling Machine Bottling Plant Production Line for 12L 15L 20L
- Section : Machinery
- Category : Other Cleaning Equipment
- SKU : 1600457703488
Product Description
The machine is used for 3 gallon & 5 gallon water filling, which is composed of washer, filling and capper.
1. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
4. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows Automatic 5 gallon bottle washing machine.
Advantages:
- The machine integrates rinser, filler and capper together.
- The machine is of stainless steel, resisting corrosion and easy to clean.
- The main electrical components and gas circuit elements are all of international brand.
- Water pump is Nanfang, Hangzhou (Grundfos is available)
- Nozzle is of America’s Spraying System Company’s technology.
Details
Cap Decapper
This model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps.
This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt
pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth, and
increases cap pulling success greatly. 304 stainless machine frame and machine body.
Outer Brusher
Function: clean the external of 5 gallon bottles with brush and water
1. Rotary style to wash the bottle body.
2. Material of machine frame and body: all 304 Stainless Steel.
3. All 304 stainless steel pipeline , valve and connector, fine polish, no death corner
4. Linear washing style with ø350brush 1pc ø200 brush 3pcs 300*3 brush 20pcs
5. Water pump: with 304 stainless steel pump
6. Washing tank: size 500*300*600*1.2, 304 stainless steel
7. No bottles, no washing
Washing-filling-capping 3-in-1 Monoblock
1. 3-rows 12-washing stops. Everything stop is about 23 seconds
2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
Function: convey the empty and the filled bottles
1. The total length is subject to layout
2. Motor drive
3. SUS304 stainless steel frame and chain plate
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
| Number of filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
| Filling capacity | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size (mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
| Production capacity (b/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
| Gas pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the capacity of the Automatic Pure Mineral Drinking Water Filling Machine?
The machine is designed to fill bottles ranging from 3 to 5 gallons in size, with different models offering varying production capacities.
2. What materials are used in the construction of the machine?
The machine is made of 304 stainless steel, which is resistant to corrosion and easy to clean, ensuring durability and hygiene.
3. How does the filling process work?
The filling process utilizes a high-precision filling nozzle that operates in two stages, allowing for adjustable filling volumes.
4. Is the machine fully automatic?
Yes, the machine features a Mitsubishi PLC controlling system that allows for full automation of the washing, filling, and capping processes.
5. What is the role of the outer brusher in the machine?
The outer brusher is designed to clean the external surface of the 5-gallon bottles using water and brushes, ensuring they are free of contaminants before filling.
6. Can the machine handle different bottle sizes?
Yes, the machine can handle various bottle sizes, specifically designed for 3, 5, 12, 15, and 20-liter bottles.
7. What brands of components are used in the machine?
The machine utilizes high-quality components from international brands, including Schneider, Omron, and AIRTAC for electrical and pneumatic systems.
8. How is the machine controlled?
The machine is controlled via a computer system that allows for easy adjustments to the filling capacity and operational settings.
9. What are the maintenance requirements for this machine?
Regular maintenance includes cleaning the machine, inspecting the stainless steel components for wear, and ensuring that all electric and pneumatic systems are functioning correctly.
10. What is the production capacity of the different models?
Production capacities vary by model, ranging from 100 to 2000 bottles per hour, depending on the specific configuration chosen.
11. Does the machine require special installation?
While the machine is designed for easy setup, it is recommended to have a professional technician assist with installation to ensure optimal performance.
12. Are there any safety features included in the machine?
Yes, the machine is equipped with safety features such as emergency stop buttons and protective covers to ensure safe operation.
13. What is the power requirement for the machine?
The machine operates using standard electrical connections; however, specific power requirements may vary by model and should be checked before installation.
14. Can the machine be customized for specific production needs?
Yes, customization options are available based on specific production requirements, including adjustments in capacity and additional features.
15. What type of water pump is used in the machine?
The machine features a 304 stainless steel water pump, with options for Grundfos as well, ensuring reliable operation and longevity.
