Automatic Pet Food Processing Machine Dog Food Production Line Cat and Dogs Feed Manufacturing Machinery 250kg/hr

SKU: 1601161741174
Category: Processing

Price per item

R1,205,099.99

Quantity

Contact Support

Asset Finance Available

Explore funding with Afrimart's partners. Subject to provider approval.

Check Funding Options

Book a consultation

Section:: Production Lines
Category:: Processing
SKU:: 1601161741174

Sold by Afrimart Online

Afrimart Online

Welcome to Afrimart Online, the premier destination offering an extensive range of products and streamlined services tailored to optimize your cross-border import procurement process. Our comprehensive platform serves as...

B21, China Town Mall, Midrand

011 805 0386

View Store

Plan your purchase

Delivery & Shipping

Estimated delivery

27 Dec, 2026

Delivery timing is confirmed with your order.

1-year warranty

Included with this product

View Shipping Policy

Shop with Confidence

Shipping
Information Returns
Policy Product
Support

Product Description

Twin Screw Extruder

Main Features:
1).Our processing line adopt international advanced technology, the pellets size are very even.
2).we can adjust the cutter speed and the dies to get the different diameter and the length product
3).The Electric heating device system can control the temperature accurately
4).High temperature and high pressure can kill the salmonellosis and bacteria infections.
5).This line can produce high-protein dog food.
6).This line only need three workers

Flow chart diagram:

Our engineer could design the layout drawing according to your dimension of the factory for the dog food machines

Machine parameters

Model	Installed Power (kw)	Power Consumption (kw)	Capacity (kg/h)	Dimension (m)
65 processing line	74	52	120-180	171.22.2
70 processing line	95	70	200-300	201.52.2
75 processing line	110	82	250-400	261.52.2
85 processing line	139	104	400-800	283.54.3
90 processing line	132	75	800-1200	283.54.3
95 processing line	165	90	1500-2000	353.54.3
120 processing line	469	380	2000-2500	452022
135 processing line	712	570	3000-3500	502025

Raw material:

Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.

Sample of pet food pellet:

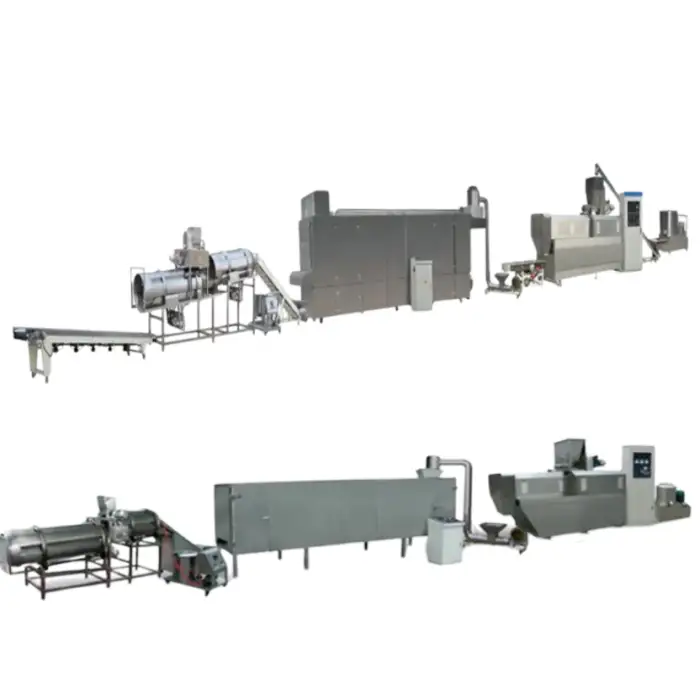

Equipment list in the dog food production line:

mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine

Name	Mixer
Usage	To mix the raw materials evenly, fast speed, no leakage.
Type	including Single axle and double shaft mixer
Motor	3kw, 4kw, 7.5kw etc.
Capacity	20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
Material	stainless steel, carbon steel

Name	Twin screw extruder(wet type/dry type)
Usage	To extrude the raw materials and make them to the required shape and size of the dog food pellets by mould
model	DSE65, 70, 75, 90, 95, 120, 135
Motor	22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc.
Capacity	100kg/h to 10 ton/h
Material	Screw materials 38CrMoAl stainless steel, carbon steel

Name	Dryer (oven)
Usage	the expanded food go through the "s" passage, to be dried to increase the self life.
Type	electrical, steam, gas fired, diesel fired heating type
Motor	KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
Capacity	100kg/h to 10 ton/h
Material	stainless steel, carbon steel

Name	Flavoring machine
Usage	To mix the oil and flavors on the surface of the pet food
Type	single and double flavoring drum
Motor	0.75kw
Capacity	100kg/h to 10 ton/h
Material	stainless steel

Name	Packaging machine
Usage	To pack the dog feed with required weight
Flowing Process	Manual Bag placing Automatic filling Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing
Weight range	1-5kg/bag, 5-25kg/bag, 25-50kg/bag
Material	stainless steel, carbon steel
Type	Automatic

Technical Specifications

Technical specifications for Automatic Pet Food Processing Machine Dog Food Production Line Cat and Dogs Feed Manufacturing Machinery 250kg/hr
model	DSE65, 70, 75, 90, 95, 120, 135
Flowing Process	Manual Bag placing Automatic filling Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing
Weight range	1-5kg/bag, 5-25kg/bag, 25-50kg/bag

Frequently Asked Questions

What type of pet food can this machine produce?

This machine can produce high-protein dog food using various raw materials such as rice flour, corn flour, wheat flour, soya flakes meal, and fish powder.

How many workers are required to operate this production line?

This production line typically requires only three workers to operate efficiently.

What is the capacity of the dog food production line?

The capacity varies by model, ranging from 120 kg/h to 2000 kg/h, depending on the specific processing line selected.

Can the size and shape of the dog food pellets be adjusted?

Yes, the cutter speed and dies can be adjusted to achieve different diameters and lengths of the dog food pellets.

What materials are used in the construction of the machine?

The machine is primarily made from stainless steel and carbon steel, ensuring durability and safety.

How does the machine ensure the safety of the pet food?

The high temperature and high pressure during processing can kill salmonellosis and bacteria, ensuring the safety of the pet food.

Is the machine easy to clean and maintain?

Yes, the stainless steel construction allows for easy cleaning and maintenance to ensure hygiene.

What types of heating systems are available for the dryer?

The dryer can be equipped with electrical, steam, gas-fired, or diesel-fired heating types to suit different operational needs.

Can the layout of the production line be customized?

Yes, our engineers can design a layout drawing according to your factory's dimensions to optimize the production line.

What is included in the equipment list for the dog food production line?

The equipment list includes a mixer, screw conveyor, twin screw extruder, air conveyor, dryer, hoister, flavoring drum, cooling machine, and packaging machine.

What is the role of the flavoring machine in the production line?

The flavoring machine is used to mix oils and flavors onto the surface of the pet food for enhanced taste.

What is the weight range for packaging the dog food?

The packaging machine can handle weights ranging from 1 kg to 50 kg per bag, with automatic filling and sealing.

What are the available models and their power consumption?

Models include 65, 70, 75, 90, 95, 120, and 135, with power consumption ranging from 5 kw to 150 kw, depending on the model.

How long is the warranty period for this machinery?

The warranty period typically lasts for one year, covering manufacturing defects and issues under normal use.

Is training provided for operating the machine?

Yes, training is provided for operators to ensure they are familiar with the machine's operation and maintenance.
