Automatic Injection Molding Machine 120ton 170ton 200ton 300ton Plastic Injection Machine
The Automatic Injection Molding Machine is a strong and reliable tool for making plastic parts. This machine is easy to use and works fast. It helps you make many items, from small parts to bigger pieces. The machine is built to save energy and last a long time. It is a great choice for any factory that needs to make plastic products. The Automatic Injection Molding Machine comes in different sizes, like 120ton, 170ton, 200ton, and 300ton. This means you can pick the one that fits your work best.
This plastic injection machine is simple to operate. It has a clear control system and strong parts inside. You can use it with many types of plastic, such as HDPE, PP, ABS, and PE. The machine is also safe and stable. It will help you make good products every time. The Automatic Injection Molding Machine is a smart investment for your business.
Specifications
| Attribute | Details |
|---|---|
| Machine Type | Hydraulic, Horizontal |
| Injection Weight | 636 g |
| Shot Volume | 707 cm³ |
| Screw Diameter | 60 mm |
| Injection Pressure | 168 g/s |
| Injection Rate | 252 g/s |
| Plasticizing Capacity | 150 g/s |
| Screw Speed | 200 rpm |
| Open Stroke | 550 mm |
| Max Mold Height | 580 mm |
| Min Mold Height | 220 mm |
| Distance Between Tie Bars | 580 x 580 mm |
| Ejector Stroke | 150 mm |
| Ejector Force | 70 kN |
| Power | 21.9 kW |
| Machine Weight | 8300 kg |
| Machine Dimension | 6.2 x 1.65 x 2.25 m |
| Oil Tank Capacity | 400 L |
| Plastics Processed | HDPE/PP, ABS/PP, PE/PP |
| Core Components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |

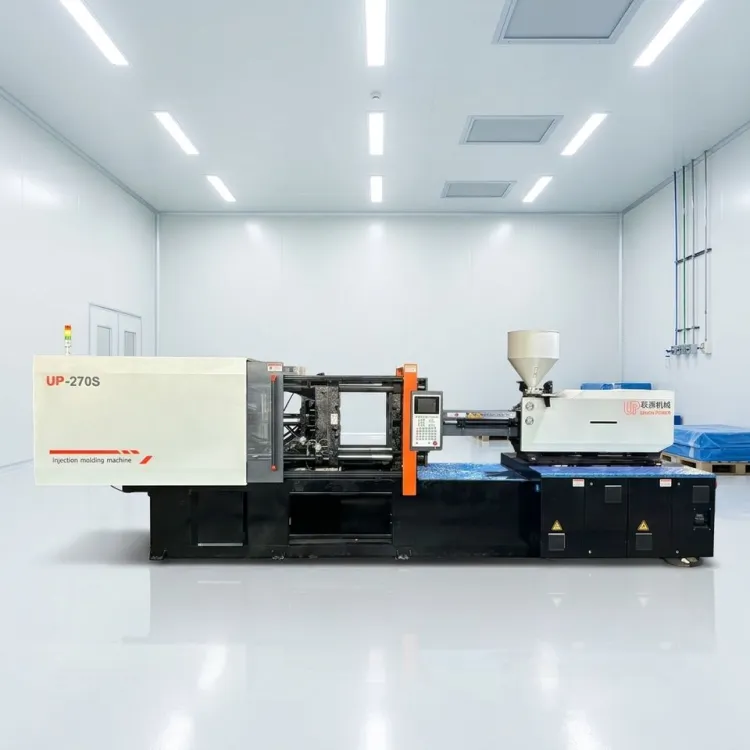

| Model Number | UP-270 |
