Automatic High Precision Single 230mm Turning Length Flat Bed CNC Lathe Machine 6000rpm 0.003mm Accuracy Syntec Control
Asset finance available
Do you want funding for this equipment?
Afrimart can connect you with trusted funding partners who specialise in asset finance for businesses like yours. Compare options and apply in minutes — final approval is subject to provider review.
Check funding options
Secure & no obligation
- Section : Machinery
- Category : Lathe
- SKU : 1601711981171

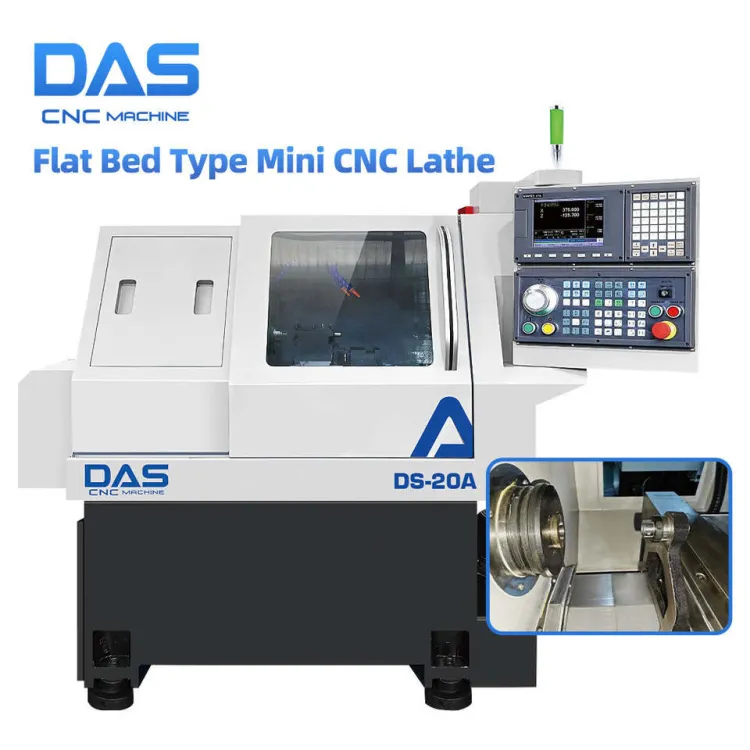

Automatic High Precision Single 230mm Turning Length Flat Bed CNC Lathe Machine 6000rpm 0.003mm Accuracy Syntec Control
The Automatic High Precision Single 230mm Turning Length Flat Bed CNC Lathe Machine 6000rpm 0.003mm Accuracy Syntec Control is a strong and smart machine for cutting metal. It works fast and keeps every cut very exact. This machine is great for light jobs that need high accuracy. It comes with a Syntec control system that makes it easy to use. You can make many kinds of parts with it. The Automatic High Precision Single 230mm Turning Length Flat Bed CNC Lathe Machine 6000rpm 0.003mm Accuracy Syntec Control is a good choice for shops that want speed and precision.
Specifications
| Attribute | Details |
|---|---|
| Type | CNC Lathe |
| Max. Length of Workpiece (mm) | 230 |
| Positioning Accuracy (mm) | ±0.003 |
| Repeatability (X/Y/Z) (mm) | ±0.003 |
| Number of Axes | 2 |

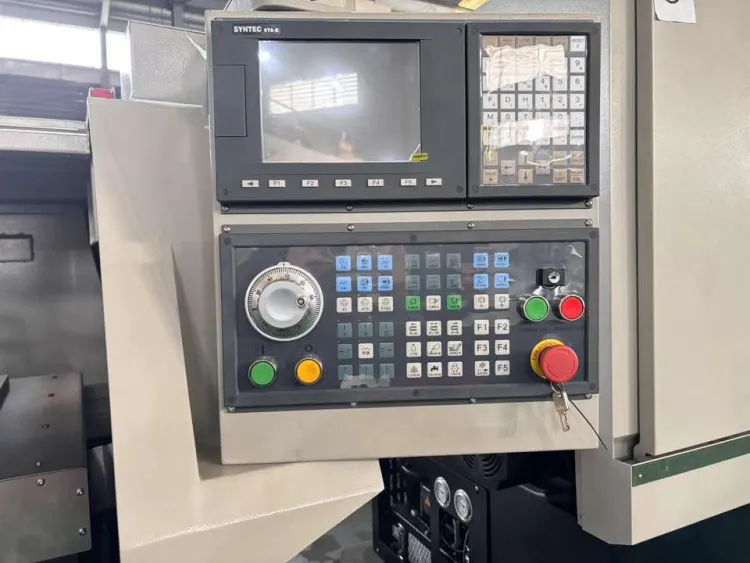

| CNC Control System | Syntec |
| No. of Spindles | Single |

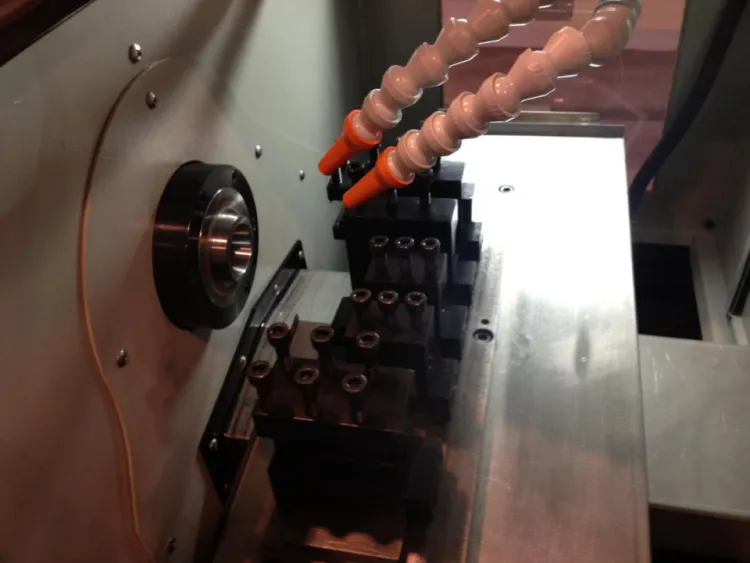

| Tool Post Stations | 8 |
| Machining Capacity | Light Duty |
| Voltage | 380 V, 220 V |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Automatic, Competitive Price, Multifunctional, High-Accuracy |
| Max. Weight of Workpiece (kg) | 50 |
| Travel (X Axis) (mm) | 500 |
| Travel (Z Axis) (mm) | 230 |
| Dimension (L*W*H) | 1730x1230x1540 |
| Brand Name | DAS |
| Model Number | 20A |
| Weight | 1350 |
| Range of Spindle Speed | 0 - 6000 |
| CNC or Not | CNC |
| Spindle Speed | 6000rpm |
| Max Swing Diameter | 360mm |
| Max Process Diameter | 100mm |
| Max Process Length | <
