Animal Feed Pellet Line Standard Farming Feed Production Unit

1.5–2 Ton/Hour Ring Die Feed Pellet Production Line

The 1.5–2 Ton/Hour Ring Die Feed Pellet Production Line is an integrated feed-processing system designed for the production of high-quality livestock and animal feed pellets. The line combines raw material cleaning, crushing, batching, mixing, steam conditioning, pelletising, cooling, screening, conveying and packaging into a coordinated production process.

The system can process raw materials such as corn, soybean meal, bran, straw and various feed additives. Raw materials are cleaned and crushed before being accurately batched and mixed according to the required formulation. The mixture is then steam-conditioned before entering the ring die pellet mill for pellet formation.

Production Process

Raw Material Feeding → Crushing → Mixing → Pre-Granulation → Steam Conditioning → Ring Die Pelletising → Cooling → Screening → Conveying → Weighing & Packaging

Key Features

Production Capacity: 1.5–2 tonnes per hour.

Ring Die Pellet Mill: Equipped with an SZLH304 ring die pellet mill with a 37 kW motor.

Steam Conditioning: Includes a steam generator and stainless-steel single-layer conditioner to heat, moisten and soften the feed mixture before pelletising.

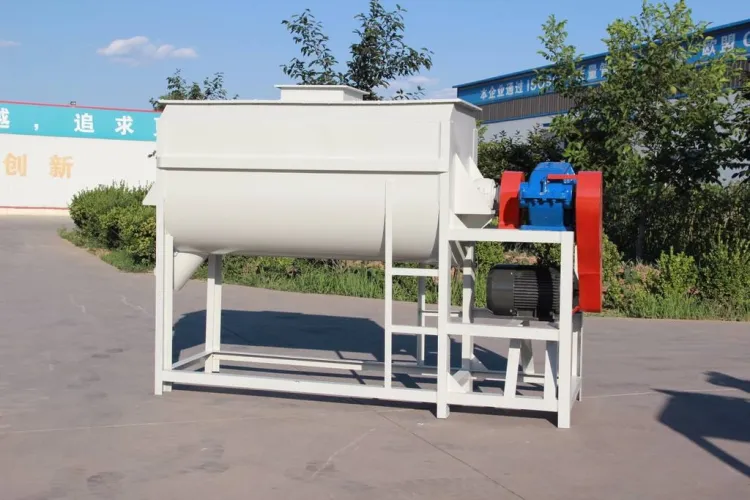

Efficient Mixing: A 1-ton horizontal ribbon mixer provides thorough and uniform blending.

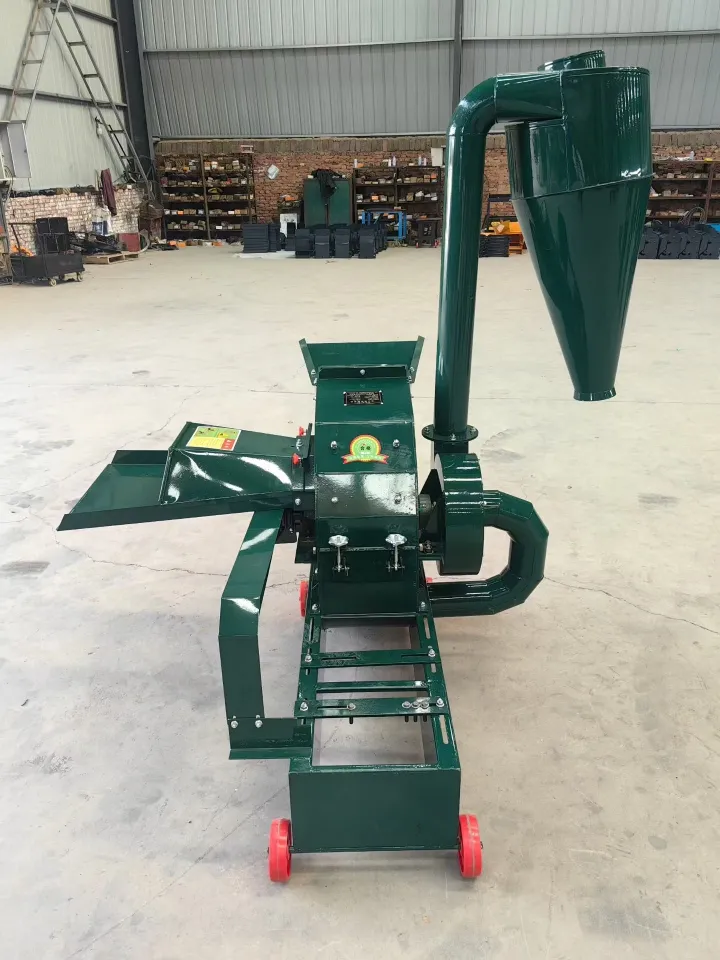

Hammer Mill: Reduces raw materials to a suitable particle size before mixing and pelletising.

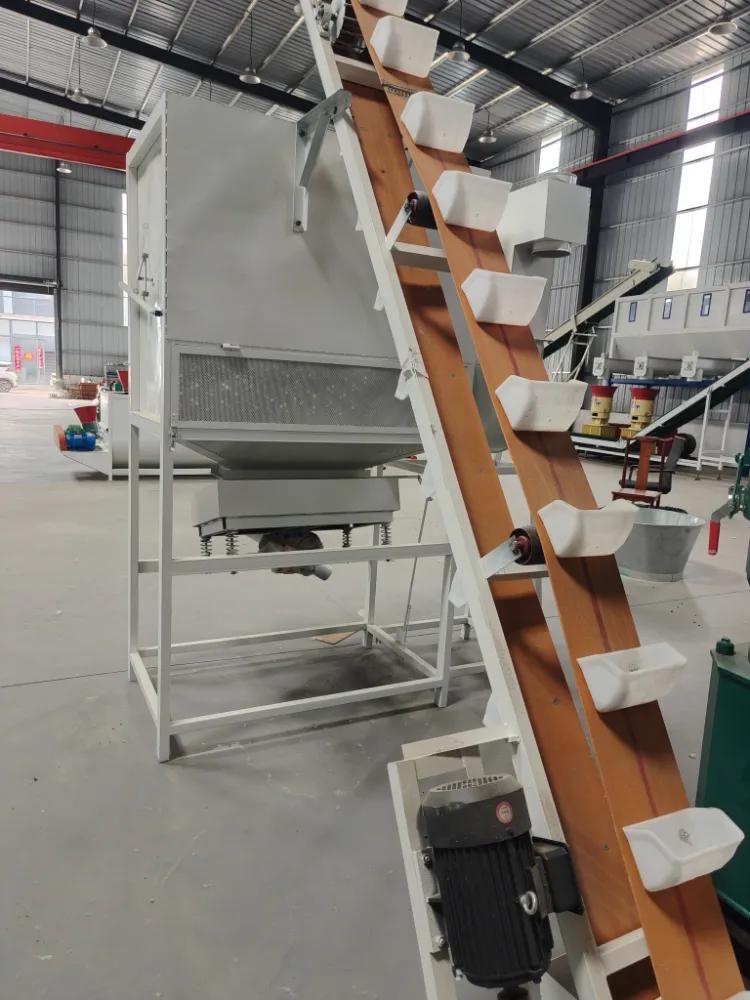

Counterflow Cooling: Cools and dehumidifies freshly produced pellets to help stabilise the finished product.

Vibrating Screening: Separates qualified pellets from fines and oversized or unsuitable material.

Automatic Packaging: Includes an open-mouth packing machine with a 40–50 kg weighing range.

Automatic Sealing: Finished bags can be sealed automatically following filling.

Centralised Control: An electrical control cabinet coordinates the operation of the production equipment.

Main Equipment

Technical Specifications

Suitable Raw Materials

The production line is designed to process a range of feed ingredients, including:

Corn

Soybean meal

Bran

Straw

Various feed additives

The raw materials are cleaned, crushed, accurately batched and mixed before undergoing steam conditioning and pellet formation.

Finished Product Handling

After pelletising, the hot feed pellets enter the counterflow cooling system, where they are cooled and dehumidified. The product then passes through the vibrating screen, which separates the finished pellets from fines and other unsuitable material before the qualified pellets are conveyed to the packaging section.

The packaging system is designed for 40–50 kg bags, with a stated packing accuracy of 0.2%.

Product Summary

The 1.5–2 Ton/Hour Ring Die Feed Pellet Production Line provides a complete solution for businesses requiring an integrated animal feed pellet manufacturing system. With raw material preparation, steam conditioning, ring die pelletising, cooling, screening and automated packaging incorporated into one production workflow, the line is designed for efficient continuous feed pellet production.
