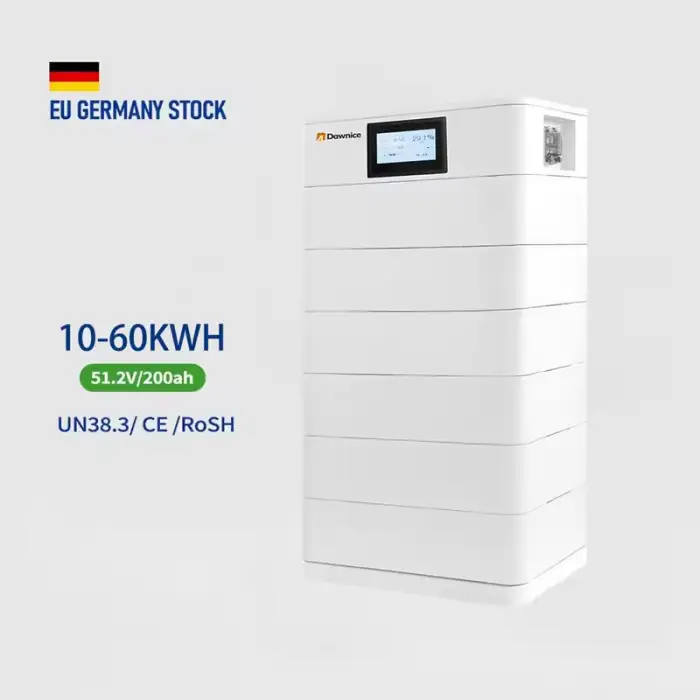

Introducing the All in One Solar Inverter and Lithium Battery Home System, the perfect solution for all your home solar needs. This system combines an inverter, lithium battery, and solar panels into one efficient and compact unit, making it easy to install and use.
| Physical | ||||||
|---|---|---|---|---|---|---|
| Electrical | ||||||
| BMS | ||||||
| Model | SUN-5.0LV | SUN-10.0LV | SUN-15.0LV | SUN-20.0LV | SUN-25.0LV | SUN-30.0LV |
| Battery Type | LiFePO4 (LFP) | |||||
| Nominal Voltage (V) | 51.2V | |||||
| Nominal Capacity (KWH) | 5.42 KWH | 10.85 KWH | 16.28 KWH | 21.7 KWH | 27.13 KWH | 32.56 KWH |
| Usable Capacity (KWH) | 4.87 KWH | 9.76 KWH | 14.65 KWH | 19.53 KWH | 24.41 KWH | 29.30 KWH |
| Design Life | 10+ Years (25℃/77F) | |||||
| Dimension (mm) | 600*400*385 | 600*400*534 | 600*400*683 | 600*400*832 | 600*400*981 | 600*400*1130 |
| Weight (kg) | 80 | 125 | 170 | 215 | 260 | 305 |
| Cycle Life | >8000 25℃ | |||||
| Discharge Voltage (V) | 40-48 | |||||
| Charge Voltage (V) | 56-58.4 | |||||
| Charge/Discharge Current (A) | 83 (Recommended) 100A (MAX) | |||||
| Internal Resistance | <30mΩ | |||||
| Power Consumption | <2W (Work) <100mw (Sleep) | |||||
| Monitoring Parameters | System voltage, current, cell voltage, cell temperature, module temperature | |||||
| SOC | Intelligent algorithm | |||||
| Communication | CAN/RS-485/RS-232 | |||||
| Battery capacity | LiFePO4 (LFP) |
|---|---|
| Dimensions | 600*400*385 |
The All in One Inverter and Lithium Battery Home Solar System is a compact and efficient solution that combines an inverter, lithium battery, and solar panels into a single unit designed for home use.
This system uses LiFePO4 (Lithium Iron Phosphate) batteries, known for their safety, long cycle life, and thermal stability.
The system is available in various nominal capacities: 5.42 KWH, 10.85 KWH, 16.28 KWH, 21.7 KWH, 27.13 KWH, and 32.56 KWH.
The design life of the battery is over 10 years at a temperature of 25°C (77°F), with a cycle life exceeding 8000 cycles.
The weight of the system varies by model: from 80 kg for the 5.42 KWH model to 305 kg for the 32.56 KWH model.
The dimensions vary by model: from 600mm x 400mm x 385mm for the 5.42 KWH model to 600mm x 400mm x 1130mm for the 32.56 KWH model.
The nominal voltage of the system is 51.2V.
The discharge voltage range is between 40-48V, and the charge voltage range is between 56-58.4V.
The system features monitoring capabilities that provide parameters such as system voltage, current, cell voltage, cell temperature, and module temperature, which can be accessed via CAN, RS-485, or RS-232 communication.
The All in One design makes installation straightforward. However, it is recommended to consult a professional for optimal setup and safety.
The system has a power consumption of less than 2W during operation and less than 100mW in sleep mode.
The system can power your home depending on your energy consumption and the model you choose. It's essential to assess your energy needs to determine the suitable capacity.
During a power outage, the system can supply power to your home using the stored energy from the lithium battery, ensuring you have backup power.
Warranty details may vary by manufacturer, so it's best to check with the seller for specific warranty information regarding the All in One Inverter and Lithium Battery Home Solar System.
Yes, the system harnesses solar energy, which is a renewable resource, and produces no emissions during operation, making it an environmentally friendly choice.
