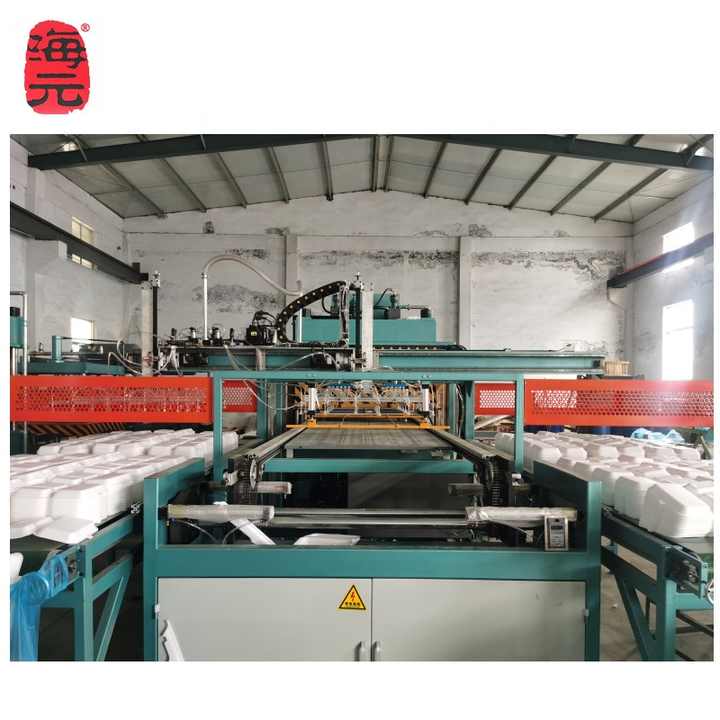

Plastic Vacuum Forming Machine for Disposable Plates and Food Containers — image 1

Plastic Vacuum Forming Machine for Disposable Plates and Food Containers
Plastic & Rubber Processing Machinery

Plastic Vacuum Forming Machine for Disposable Plates and Food Containers

  • SKU: 1600606162888
  • Category: Plastic & Rubber Processing Machinery

The HY-640x900 fully automatic vacuum forming machine is designed to form disposable food boxes and related packaging products from PS foam sheet. It combines forming, cutting and robotic stacking in one automated process, helping reduce manual handling and simplify pro...

R5,452,000

Asset Finance Available

Explore funding with Afrimart's partners. Subject to provider approval.

Check Funding Options
Book a consultation

Section:
Machinery
SKU:
1600606162888
Payment security and privacy badges

Product Description

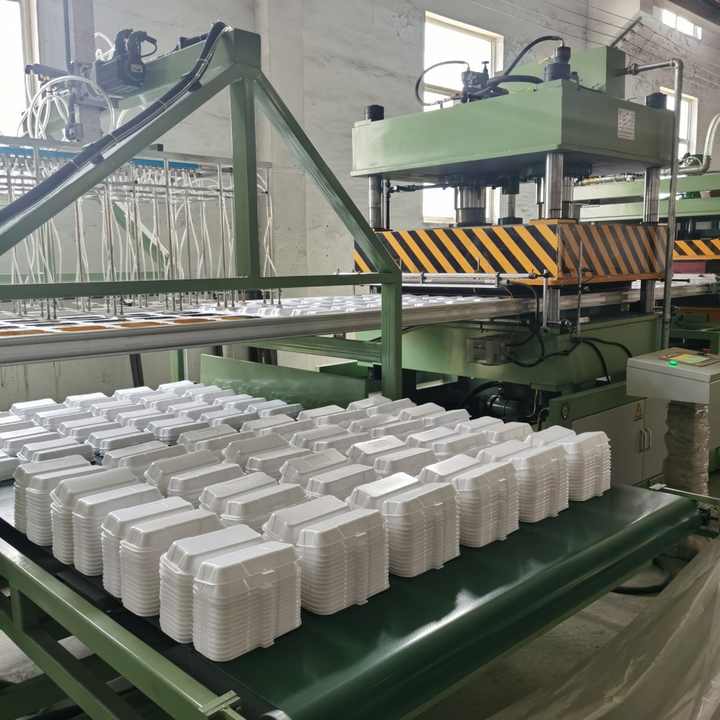

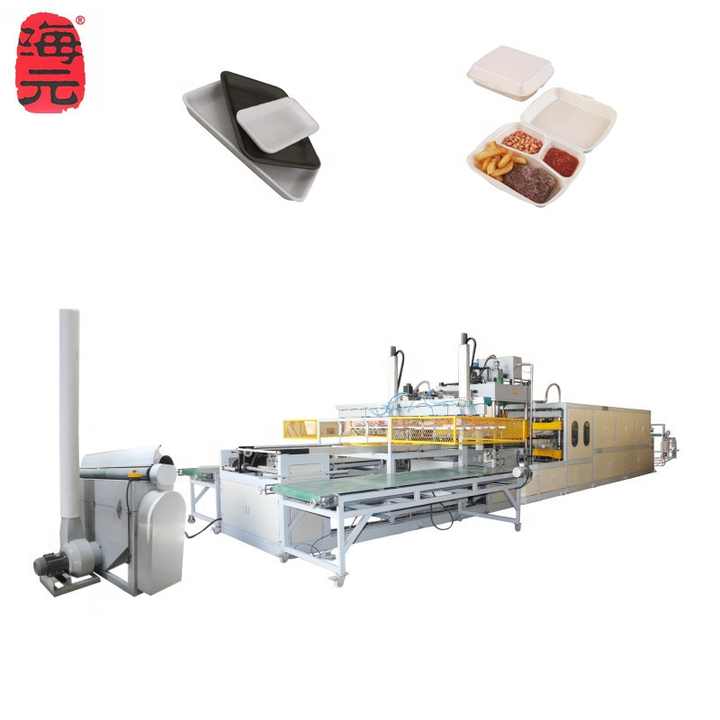

The HY-640x900 fully automatic vacuum forming machine is designed to form disposable food boxes and related packaging products from PS foam sheet. It combines forming, cutting and robotic stacking in one automated process, helping reduce manual handling and simplify production. Finished products are discharged automatically for manual packing.

The production sequence covers sheet unwinding, preheating, feeding, heating, forming, cutting, robotic gripping and stacking. A single robot arm provides automatic gripping and placement, while an adjustable counter enables the conveyor to discharge products when the preset quantity is reached.

- 640 x 900 mm forming area
- 160 mm cutting height
- 3–4 seconds per die forming speed
- Mitsubishi PLC control with Weinview touch screen
- Delta servo-controlled sheet feeding and robot arm
- Cast-aluminium heating tiles with stainless-steel heating tubes
- Hydraulic forming and cutting systems
- Automatic scrap winding device
- One mould set included

The machine has an installed power rating of 80 kW and requires a three-phase 380 V, 50 Hz power supply. Its installation dimensions are 15 x 6 x 3 m. The quoted machine is suitable for integration into the supplier’s PS foam food box production line alongside the HY-75/90 sheet extrusion line and HY-125 recycling granulator.

Key Specifications

ModelHY-640x900
Forming Area640 x 900 mm
Cutting Height160 mm
Forming Speed3–4 s/die
Forming Pressure10 T
Cutting Pressure40 T
Installed Power80 kW
Power Supply3-phase 380 V, 50 Hz
Installation Dimensions15 x 6 x 3 m
PLC ControllerMitsubishi
Touch ScreenWeinview
Included Mould1 set

Frequently Asked Questions

What types of products can be made with this vacuum forming machine?

This vacuum forming machine can produce a variety of products including disposable plates, foam dishes, food containers, egg trays, hamburger boxes, and more.

What is the capacity of the machine in terms of production?

The production capacity varies by model; for instance, some models can produce between 400,000 to 600,000 pieces per day.

What materials are used in the production process?

The primary raw material used is polystyrene granule, which is processed into PS foam sheets for forming various products.

Can this machine handle different thicknesses of foam sheets?

Yes, the machine can produce foam sheets of varying thicknesses, typically from 1mm to 5mm.

What are the power requirements for the vacuum forming machine?

The machine requires a three-phase power supply, available in 380V 50Hz or 220V 60Hz options, depending on the model.

Is there a digital control system for temperature management?

Yes, the machine features a temperature digital system that allows workers to monitor and adjust the temperature of each heating zone easily.

What is the installation dimension of the machine?

Installation dimensions vary by model, with sizes ranging from approximately 19m x 6m x 3m to 24m x 6m x 3m.

Does the machine come with a warranty?

Warranty details may vary; please contact our sales team for specific warranty information on the model you are interested in.

Can I see a demonstration of the machine in operation?

Yes, you are welcome to visit our factory to see the machine running and gain hands-on experience with its operation.

How do I change the molds for different products?

The PLC controller allows for easy storage of more than 10 sets of mold information, enabling quick changes without the need to reset data.

What safety features are included with the machine?

The machine is equipped with multiple safety features, including emergency stop buttons and safety guards to ensure operator safety.

Is training provided for operating the machine?

Yes, we offer training for operators to ensure they are comfortable and knowledgeable about using the machine effectively.

Can this machine recycle materials?

Yes, the complete production line includes a recycling machine that helps recycle materials for further use in production.

What is the foaming rate of the machine?

The foaming rate typically ranges from 10% to 22%, depending on the specific model and settings.

How can I get in touch for further inquiries?

For further inquiries, you can reach out via WhatsApp to Amy at +86 13573511028.
