A4/A3/A2 Size Small Uv Flatbed Printer Machine for Phone Case/Golf Ball/Bottle Printing

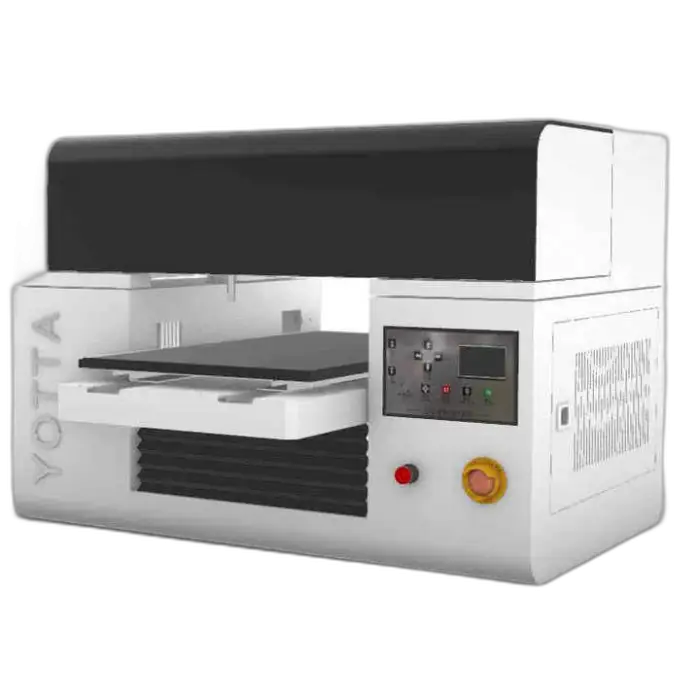

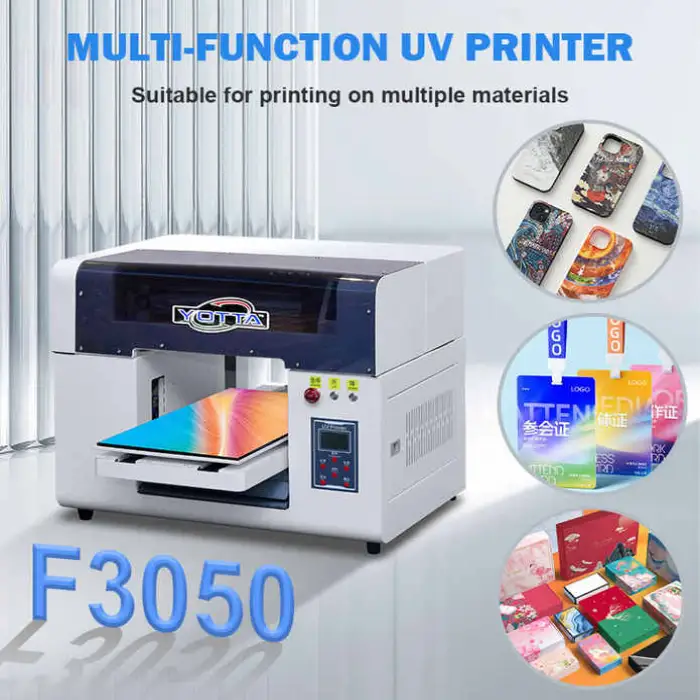

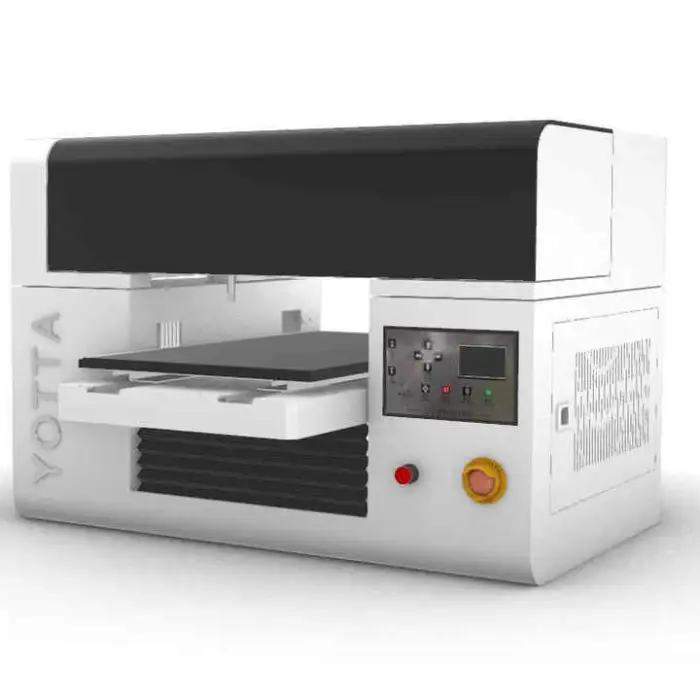

The A4/A3/A2 Size Small UV Flatbed Printer Machine (model YD-F3050) is an inkjet UV flatbed printer designed for small-format printing on items like phone cases, golf balls, bottles and other rigid or flexible substrates.

Maximum printable area is 300 × 500 mm (30 × 50 cm). It supports material thicknesses up to 175 mm (6.9 in).

The printer supports multiple resolutions: 720, 1440 and up to 2880 dpi for high-quality, detailed prints.

It uses eco-friendly UV-curing ink with no VOCs. Ink color set includes C, M, Y, K and White (W), allowing full-color plus white printing on dark and transparent substrates.

Yes — the flatbed design and UV curing ink make it suitable for a variety of rigid and some flexible items. For very small or highly curved objects, proper fixturing or jigs are recommended to maintain distance and registration.

The printer supports both unidirectional and bidirectional print modes to balance print quality and speed.

Unit dimensions are 730 × 760 × 520 mm and weight is about 80 kg. Voltage range is 110V–220V (confirm local electrical compatibility with your supplier).

This model uses the TX800 print head. TX-series heads typically offer reliable droplet control and good detail; for specific head life, replacement policy and maintenance intervals, check the manufacturer documentation.

Most flatbed UV printers use RIP software compatible with standard print workflows. Exact software/drivers included or recommended vary by supplier — confirm with the seller which RIP package and file formats are supported.

UV-cured inks dry instantly under UV lamps, producing durable prints that are resistant to smudging. Durability (scratch, UV and wash resistance) depends on ink formulation and substrate; for outdoor or heavy-wear applications, test samples and consult ink supplier for finishing recommendations.

Supported materials include glass, acrylic, wood, ceramic, metal, PVC, corrugated board and various plastics. Adhesion and finish depend on substrate surface; pretreatment may be required for some materials.

Surface should be clean, dry and free of oil or dust. For low-energy plastics or metals, a primer or plasma/preadhesion treatment may be recommended to improve ink adhesion—follow the manufacturer's guidelines.

Routine maintenance typically includes print head cleaning, nozzle checks, wiping capping stations, and keeping the machine and work area free of dust. Follow the provided maintenance schedule and use recommended cleaning solutions to ensure print quality and head life.

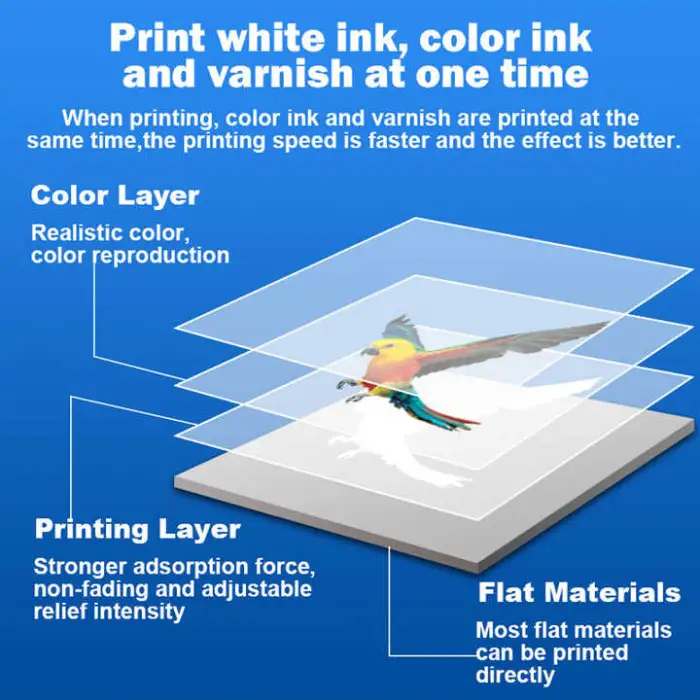

Yes. The printer includes white ink (W), which can be used as an underbase for printing on dark or transparent substrates or as an overprint layer for specific effects. Proper RIP setup and ink circulation routines are required to prevent settling.

Ideal applications include custom phone cases, personalized golf balls, bottle and small-gift printing, decorative prints on wood and glass, and short-run labels or cards where high-quality, full-color UV prints are desired.
