Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

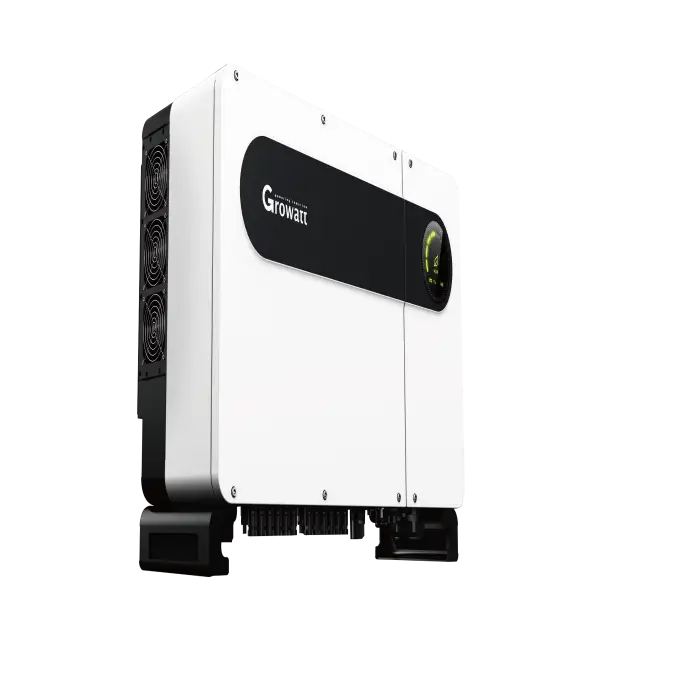

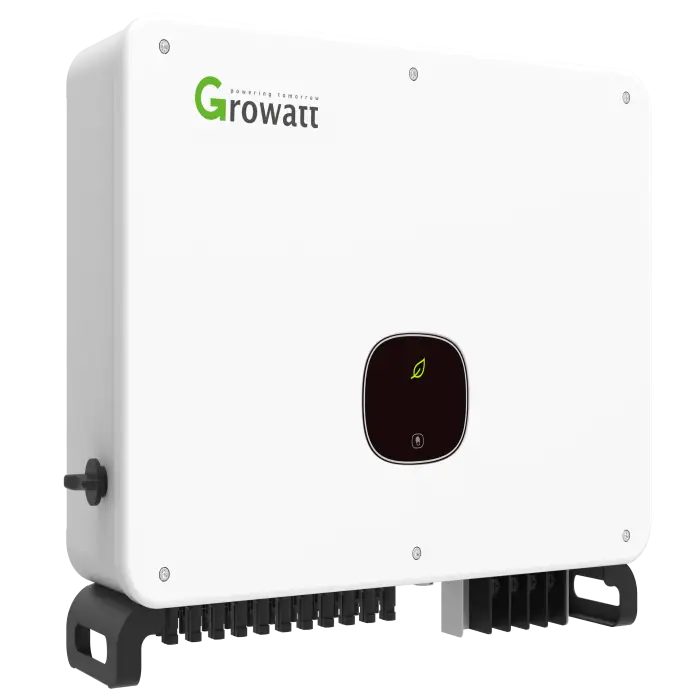

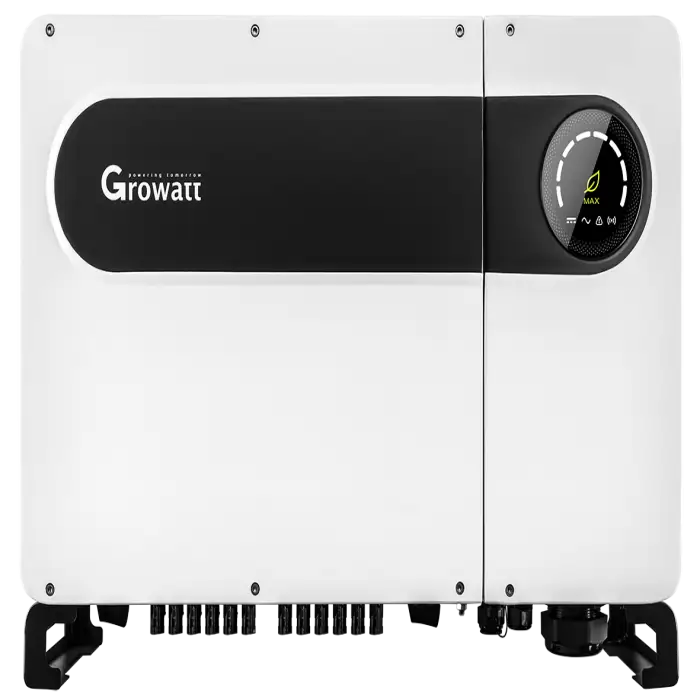

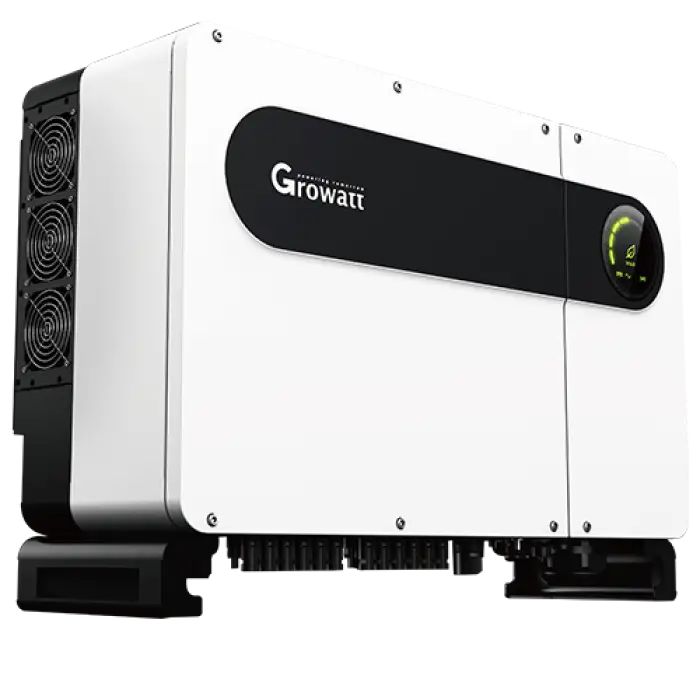

The 80KW/100KW On-Grid Wind Turbine Three-Phase Inverter is a high-performance inverter designed for integration with grid-tied wind turbine and solar power systems. This inverter efficiently converts DC power generated from renewable energy sources into AC power that can be fed into the grid. With a top inverter efficiency of 99%, it ensures maximum energy production for your on-grid system.
| Datasheet | MAX 50KTL3 LV | MAX 60KTL3 LV | MAX 70KTL3 LV | MAX 80KTL3 LV |
| Input Data | ||||
| Max.DC power | 65000W | 78000W | 91000W | 104000W |
| Max.DC voltage | 1100V | 1100V | 1100V | 1100V |
| Start Voltage | 250V | 250V | 250V | 250V |
| MPP work voltage range | 200V-1000V | 200V-1000V | 200V-1000V | 200V-1000V |
| Nominal voltage | 585V | 585V | 600V | 685V |
| Max. input current per MPPT | 25A | 25A | 25A | 25A |
| Number of MPP trackers / strings per MPP tracker | 6/2 | 6/2 | 6/2 | 6/2 |
| Output (AC) | ||||
| Rated AC output power | 50000W | 60000W | 70000W | 80000W |
| Max. AC apparent power | 55500VA | 66600VA | 77700VA | 88800VA |
| Max. output current | 80.5A | 96.6A | 112.7A | 128.8A |
| AC norninal voltage | 230V/400V;340-440V | 230V/400V;340-440V | 230V/400V;340-440V | 277V/480V;422-528V |
| AC grid frequency | 50/60Hz,±5Hz | 50/60Hz,±5Hz | 50/60Hz,±5Hz | 50/60Hz,±5Hz |
| Power factor | 0.8leading - 0.8laging | 0.8leading - 0.8laging | 0.8leading - 0.8laging | 0.8leading - 0.8laging |
| THDi | <3% | <3% | <3% | <3% |
| AC grid connection type | 3W+N+PE | 3W+N+PE | 3W+N+PE | 3W+N+PE |
| Efficiency | ||||
| Max.efficiency | 98.80% | 98.80% | 99.00% | 98.80% |
| Euro - eta | 98.30% | 98.30% | 98.40% | 98.30% |
| MPPT efficiency | 99.90% | 99.90% | 99.90% | 99.90% |
| Protection Devices | ||||
| DC reverse polarity protection | yes | yes | yes | yes |
| DC Switch | yes | yes | yes | yes |
| DC Surge protection | TypeII | TypeII | TypeII | TypeII |
| Ground fault monitoring | yes | yes | yes | yes |
| Output short circuit protection | yes | yes | yes | yes |
| AC Surge protection | TypeII | TypeII | TypeII | TypeII |
| String fault monitoring | yes | yes | yes | yes |
| Anti-PID protection | opt | opt | opt | opt |
| General Data | ||||
| Dimensions (W / H / D) in mm | 860/600/300 | 860/600/300 | 860/600/300 | 860/600/300 |
| Weight | 82kg | 82kg | 82kg | 82kg |
| Operating temperature range | -25 °C ... +60 °C | -25 °C ... +60 °C | -25 °C ... +60 °C | -25 °C ... +60 °C |
| Noise emission (typical) | ≤55dB(A) | ≤55dB(A) | ≤55dB(A) | ≤55dB(A) |
| Altitude | 4000m | 4000m | 4000m | 4000m |
| Self-Consumption | < 1W* | < 1W* | < 1W* | < 1W* |
| Topology | Transformerless | Transformerless | Transformerless | Transformerless |
| Cooling concept | Smart cooling | Smart cooling | Smart cooling | Smart cooling |
| Environmental Protection Rating | IP65 | IP65 | IP65 | IP65 |
| Altitude | 4000m | 4000m | 4000m | 4000m |
| Relative humidity | 0~100% | 0~100% | 0~100% | 0~100% |
| Features | ||||
| Display | LED/WIFI+APP | LED/WIFI+APP | LED/WIFI+APP | LED/WIFI+APP |
| Interfaces:USB/R485/GPRS | yes / yes / opt | yes / yes / opt | yes / yes / opt | yes / yes / opt |
| Warranty:5 years / 10 years | yes / opt | yes / opt | yes / opt | yes / opt |
The 80KW/100KW On-Grid Wind Turbine Three-Phase Inverter is a reliable and efficient choice for connecting your wind turbine or solar power system to the grid. With its high conversion efficiency and robust design, it ensures reliable performance and maximum power output for your renewable energy setup.
| High Efficiency | Features a maximum efficiency of 99.9%, ensuring optimal energy conversion and minimal power loss. |
|---|---|
| Wide Input Voltage Range | Supports a maximum DC voltage of up to 1000V, providing flexibility for various system configurations. |
| Rated Power | Available in two configurations, 80KW and 100KW, to meet different energy requirements. |
| Multiple Output Types | Offers various output types to suit different grid systems and energy needs. |
| Grid Tie Application | Designed specifically for on-grid solar power systems, this inverter enables efficient energy export to the grid. |
| Output Frequency | Supports 50Hz, 60Hz, or a frequency range of 44Hz-55Hz, making it adaptable to various grid standards. |
| Inverter Type | DC/AC inverter, providing seamless conversion from DC to AC power for grid connection. |
| Built-in Safety | Comes with certifications such as CE, IEC, and CEI, ensuring high safety and reliability standards. |
| Lightweight Design | Weighing only 90kg, it offers ease of installation and operation. |
The inverter features a maximum efficiency of 99.9%, ensuring optimal energy conversion and minimal power loss.
The inverter supports a wide input voltage range with a maximum DC voltage of up to 1000V.
The inverter is available in two configurations: 80KW and 100KW, to meet different energy requirements.
Yes, the inverter offers various output types to suit different grid systems and energy needs.
The inverter supports output frequencies of 50Hz, 60Hz, or a frequency range of 44Hz-55Hz, making it adaptable to various grid standards.
The inverter comes with certifications such as CE, IEC, and CEI, ensuring high safety and reliability standards.
The inverter weighs only 90kg, which allows for ease of installation and operation.
The inverter operates within a temperature range of -25 °C to +60 °C.
Yes, the inverter includes features such as DC reverse polarity protection, output short circuit protection, and ground fault monitoring.
The typical noise emission level of the inverter is ≤55dB(A).
The inverter is rated for operation at altitudes up to 4000 meters.
Yes, the inverter is available with a warranty of 5 years, with an option for an extended warranty of 10 years.
The inverter features an LED display and can be monitored via WiFi and an app.
Yes, the 80KW On-Grid Wind Turbine Three-Phase Inverter is suitable for residential use, especially for those looking to connect renewable energy systems to the grid.
The inverter has a self-consumption of less than 1W.
