Product Description

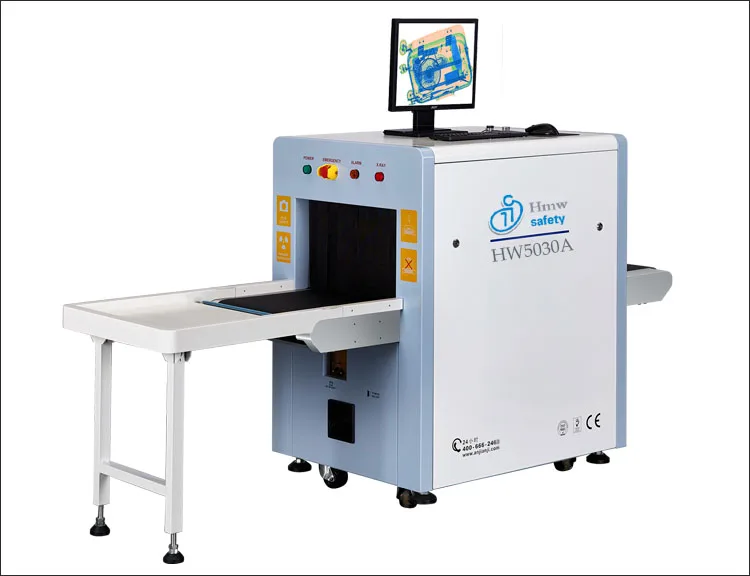

5030A Security Inspection X Ray Baggage Scanner

Technical Specification:

Tunnel Size:500(W)*300(H)mm

Operation Power:220VAC(±10%)50±3Hz

Power Requirement:1.0 KW (max)

Noise: <65db

Conveyor Speed:0.22m/s

Conveyor Max Load:150kg

Sensitivity: 38WG Typical(Resolution: Φ0.0787 mm Metal Wire)

Penetration: 10mm Steel Typical, 8mm Guaranteed

Dose per Inspection: < 0.87μGy/h

X-ray Leakage:0.09μGy/h (at a distance of 5cm From external housing)

Film Safety: Guarantee ISO1600 Film

X-ray Generator:

 Voltage: 80KV.

 Tube Current: 0.4mA to 0.5mA

 Cooling: Sealed Di-Electric Oil Bath with Forced Air.

 Duty Cycle: Rated for 100% Duty Cycle

 Beam Direction: Upward

 Beam anger:60 degree

 Detector: 1024 Channels in an L-Shaped Array

 Image processing system:
X ray sensor: L photoelectric diode array detector(Single energy),12bit depth
Display: High resolution 17 "LCD display
Color image display: 24 bits true color display
Edge enhancement: The object contour edge clearer
Super image enhancement: Image detail more clearly
High penetration show: Improve the image of the bright contrast, make easy penetration area more clearly
Low penetration show: Improve the image of the dark contrast, make difficult to penetrate area more clearly

Magnifier: Local amplification function

Brightening/darken: Increase the brightness of the image/ Reduce the brightness of the image
Image back to pull: Before the show and image, and the image can be any image processing
Image restoration: Image display restore the original state
Image storage: Real-time save any image, and can be arbitrary image

processing,continuous work save.


Use environment :

System temperature/humidity:0℃~45℃/20%~95% (No condensation)
Storage temperature/humidity:-20℃~60℃/20%~95% (No condensation)
System voltage: 220VAC(±10%) 50±3HZ
Power loss: 1.0KW(max)

Noise level : <60dB
