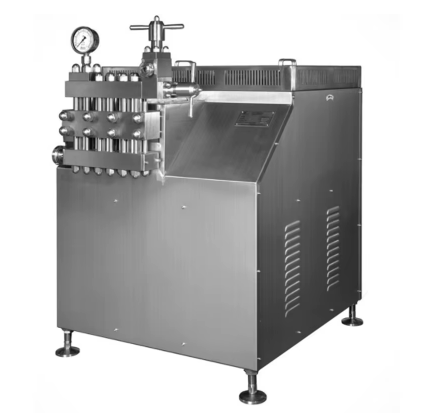

500LPH 2 stage high pressure Homogenizer

500LPH 2 stage high pressure Homogenizer

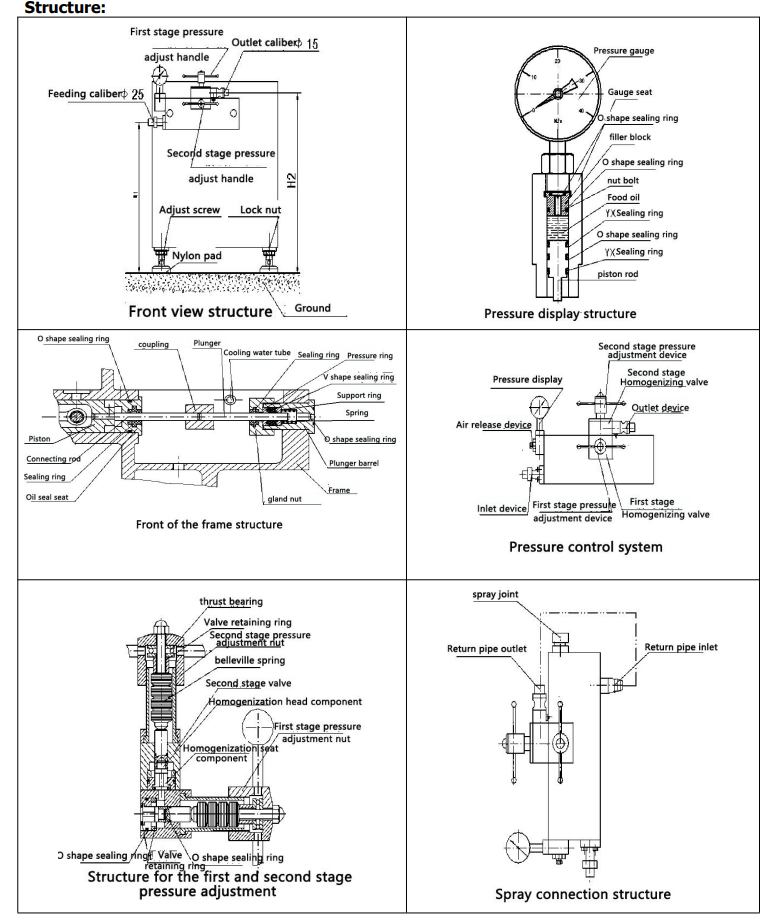

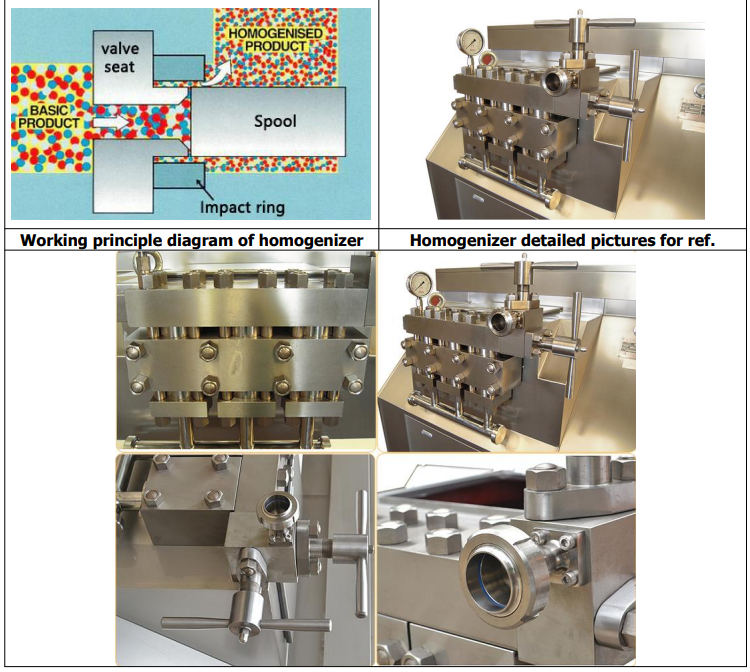

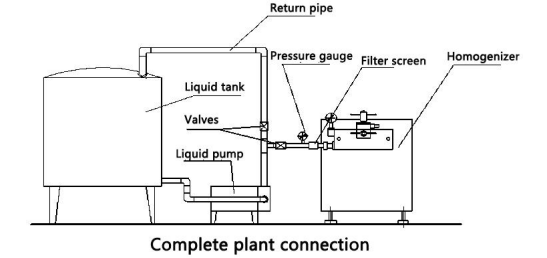

The machine consists of homogenization system, transmission system, lubrication cooling system and frame. in working, through the reciprocating motion of the plunger, the single-valve core and valve seat of the pump opens and closes, and form high pressure liquid flow inside. when passing through the tiny gap between the homogenization valve, the high pressure liquid flow receive the action of composite force of high speed impact, grinding, shear, hole and turbulence flow, etc. and realize the fine emulsification and crushing efficacy.

Key Features

1. The machine has graceful exterior, it adopts stainless steel wiredrawing plate technology for shell building, which has reached pharmaceutical GMP authentication standard.

2. Pressure control adopts two-stage mechanical pressure regulating. easy to regulate, safe and reliable.

3. Drive system The machine consists of horizontal type and vertical type. The drive system is composed of one-stage belt type and two-stage type with special speed reduction driving adopted three-plunger and multi-plunger respectively. Dynamic lubrication device consists of pressure oil pump lubricating system and auto-splash lubrication. Driving system cranked axle is made of antifriction ball alloy cast iron under precision work, at the same time ,on the surface of cranked axle adopts international advances laser external quenching process, the surface hardness is HRC55-60,due to netting thread formed, good lubricating status shall be improved enormously and kept, thus, useful life shall be extended

4. Made of high-quality stainless steel forged, the pump adopts straight type tee joint structure, which can prevent internal stress from being accumulated, as well as avoid crazing.

5. Homogenization Valve and plunger seals To satisfy the demands of customers, through improving design of homogenization, not only homogeneous efficiency is improved enormously, but also the products homogenized become more stable

Special ceramic material homogenization valve

the materials are composed of various pottery and porcelain, which suit for rubbing rigid products, cobalt chromium tungsten alloy and tungsten rigid is also optional.

W-type cobalt chromium tungsten alloy homogenization valve

prolonged rotating space of homogenization liquid can reduce energy consumption and produce high efficiency and homogenization efficiency. the two-stage w-type valve is widely used for processing of emulsification separate and suspended matter

Waviness type special cobalt chromium tungsten alloy valve assembly

according to flux design needed ,it adopts waviness to make cobalt chromium tungsten alloy assembly ,adjusted the gap of homogeneous via moving valve cone and fixed valve seats, it appears radial throttle function between two kinds of fluid, and gets homogeneous fluid. the materials processed are fully homogenous and emulsified.

special material plunger

It adopts cobalt chromium tungsten alloy plunger of anti-corrosion and antifriction surface welding and surface coated ceramic plunger, the useful life of seal assembly and seal ring is prolonged.

Specification

Materials:

Main Frame: cast iron

power supply box: cast iron

Outer covering:1cr17ni2

Parts touching liquid:

A, pump chamber and inner turnbuckle: SUS 304

B ,the parts except pump chamber and inner turnbuckle: 1cr17ni2 (for durability)
