3-meter Vertical Wheelchair Lift

3-meter Vertical Wheelchair Lift

The 3-meter Vertical Wheelchair Lift is a reliable and efficient accessibility solution designed to help individuals with limited mobility move safely between different floor levels. Built with a durable hydraulic drive system, this lift ensures smooth and stable vertical travel up to 3 meters.

Featuring a spacious anti-skid platform and a robust 350 kg load capacity, it comfortably accommodates wheelchairs and users. The lift supports flexible entry and exit configurations (0°, 90°, or 180°), making it adaptable to various installation environments.

Designed for indoor use, the lift is constructed with powder-coated steel for long-lasting durability and corrosion resistance. It operates on a standard single-phase 220V power supply and includes both button and remote control options for convenient operation. Safety is prioritized with built-in overload protection and an emergency stop function.

With no pit required, installation is straightforward—simply fix the unit directly onto a concrete floor (minimum thickness ≥200 mm). This makes it an ideal accessibility solution for homes, public buildings, and commercial spaces.

Specifications

Key Features

• 3-Meter Vertical Travel
  Provides smooth and stable lifting up to 3000 mm, ideal for low-rise accessibility needs.
• High Load Capacity (350 kg)
  Safely accommodates wheelchairs, users, and caregivers when needed.
• Spacious & सुरक्षित Platform
  1430 × 1000 mm anti-skid platform ensures stability and user confidence during operation.
• Flexible Entry/Exit Design
  Configurable access angles (0°, 90°, 180°) to suit different building layouts.
• Hydraulic Drive System
  Delivers reliable, quiet, and smooth lifting performance.
• Dual Control Operation
  Equipped with both manual button control and remote control for ease of use.
• Enhanced Safety Features
  Includes overload protection (over-current relay) and an emergency stop button.
• Durable Construction
  Powder-coated steel structure for long-term use and corrosion resistance.
• Simple Installation
  No pit required—can be directly installed on a concrete floor (≥200 mm thick).
• Wide Temperature Range
  Operates effectively in environments from -20°C to 60°C.

Applications

• Residential Buildings
  Ideal for private homes to provide wheelchair access between floors or porch levels.
• Public Facilities
  Suitable for schools, hospitals, libraries, and community centers to ensure accessibility compliance.
• Commercial Spaces
  Perfect for offices, shopping centers, restaurants, and retail stores.
• Outdoor-to-Indoor Access Points
  Helps bridge height differences at entrances, garages, or raised platforms (when installed in protected indoor-like environments).
• Elderly Care Facilities
  Enhances mobility and independence for seniors in assisted living or nursing homes.
• Barrier-Free Renovation Projects
  A practical solution for upgrading existing buildings without major structural changes.

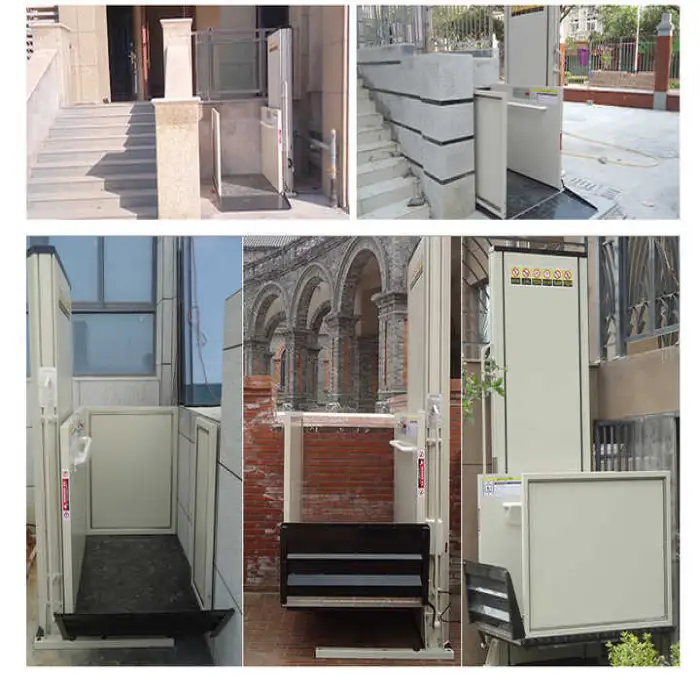

Product Info Gallery
