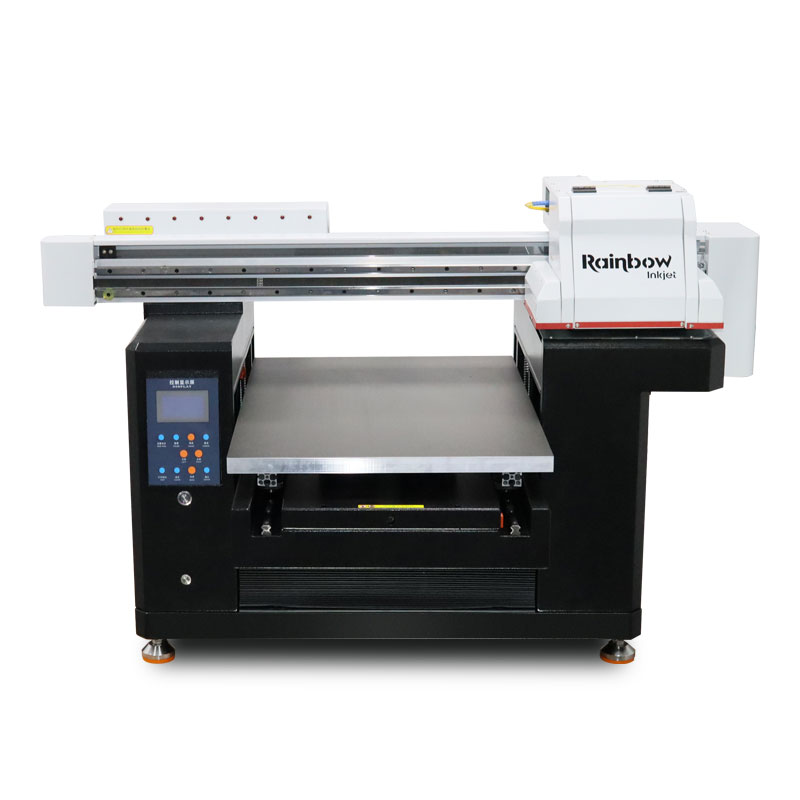

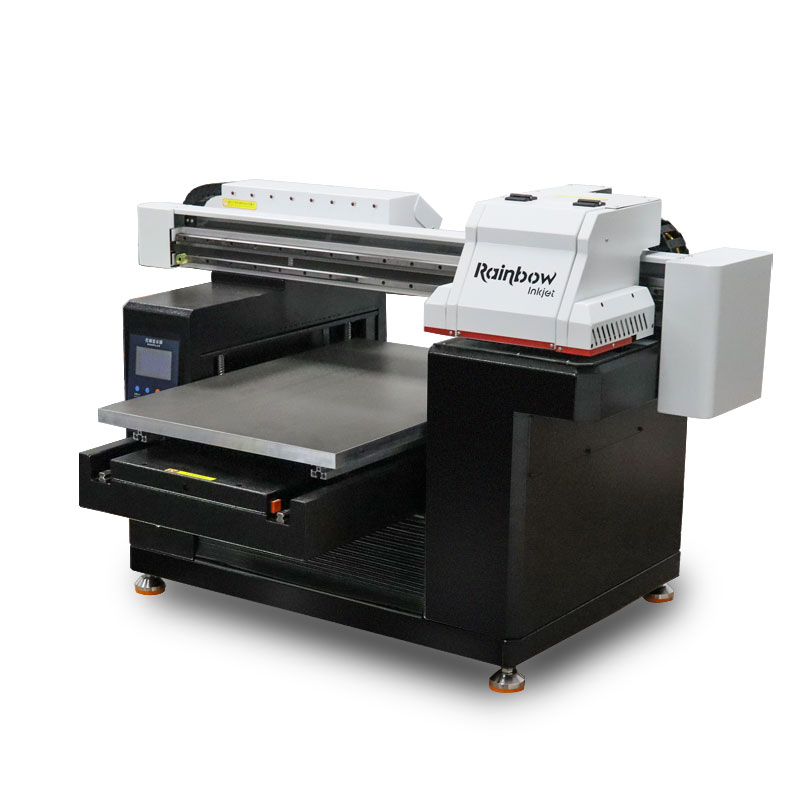

 Nano 7 A2 UV Printer

The Nano 7 A2 UV Printer is an advanced digital printing machine equipped with numerous high-quality features that provide superior print resolution and flexibility. Designed for printing on various materials such as metal, plastic, glass, wood, and more, it excels in both functionality and durability. With its advanced ink system, robust hardware, and support for embossing, varnish, and other special UV effects, this printer is a versatile solution for high-end printing applications.

Key Features:

Dual Hiwin Linear Guideways:

• Stability & Precision: Nano 7 features two Hiwin linear guideways on both the X and Y axes, ensuring better stability, enhanced printing accuracy, and a longer machine lifespan.

Four Thick Ball Screws:

• Smooth & Fast Movement: The four ball screws on the Z-axis ensure stable, fast, and smooth platform movements, allowing for a stunning 24 cm (9.4 inches) of print height, which helps maintain high printing resolution.

Thick Aluminum Suction Table:

• Enhanced Grip: The full aluminum suction platform is equipped with strong air fans and treated to be corrosion- and scratch-resistant, ensuring the stability of media during printing.

German Igus Cable Carrier:

• Durable & Quiet Operation: The imported Igus cable carrier ensures smooth, quiet operation while protecting ink tubes and cables, enhancing the printer's longevity.

Printhead Lock Sliding Lever:

• Drying & Clogging Prevention: This mechanism locks the printheads and seals them from drying or clogging when not in use, ensuring the longevity and efficiency of the printheads.

Low Ink Alarm System:

• Real-time Monitoring: With 8 indicators for each ink type, this system alerts the user to any ink shortage with precise monitoring through an ink level sensor inside the ink bottles.

6 Colors + White + Varnish Ink System:

• Improved Color Accuracy: The inclusion of LC and LM (light cyan and light magenta) colors, alongside the basic CMYK and white, ensures sharper, more accurate color reproduction.

User-Friendly Front Panel:

• Control Functions: The front panel provides easy access to essential functions like the on/off switch, platform adjustments, carriage movement, and test printing.

Carriage Plate Temperature Controller:

• Real-Time Monitoring: This device controls and displays the temperature of the carriage's bottom plate, improving printing quality and preventing heat-related issues.

Waste Ink Bottle:

• Visible Ink Level: The semi-transparent waste ink bottle allows easy monitoring of ink levels, making it easy to clean when necessary.

UV LED Lamp Power Knobs:

• Adjustable Wattage: Two separate UV LED lamps for color + white and varnish, with adjustable wattage control to suit different materials, especially heat-sensitive ones like films.

Aluminum Rotary Device:

• Rotary Printing Support: The printer supports rotary printing for items like mugs, water bottles, and tumblers. The device is easily installed with magnetic fixtures for convenience.

Embossing/Varnish Supported:

• Special Prints: Capable of creating various effects like embossing, varnish/glossy finishes, glitter golden powder, fluorescent, anti-counterfeiting, and metallic golden foil effects.

Special UV Results:

• Unique Effects: The printer supports unique UV effects, adding special value to printed works.

Specifications:

Additional Information:

• Embossing, Varnish, and Special UV Effects: Offers unique and customizable effects for premium print jobs, such as metallic and fluorescent finishes.
• Rotary Printing: Ideal for printing on cylindrical objects like mugs and bottles.
• Durability: Built to handle continuous operation with durable components that ensure long-lasting performance.

The Nano 7 A2 UV Printer is an ideal choice for businesses looking for high-quality printing on a wide range of materials, offering exceptional accuracy, flexibility, and the ability to create unique print effects.

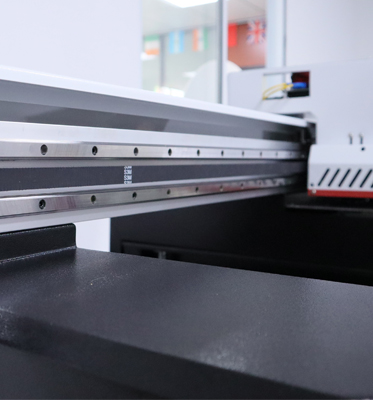

1. Double Hiwin linear guideways

Nano 7 has 2pcs of Hiwin linear guideways on its X-axis and 2pcs on Y-axs.(Most other A2 uv printers has only 1pcs of guideway on X-axis).

This brings better stability in printer running, thus better printing accuracy, and longer machine lifespan.

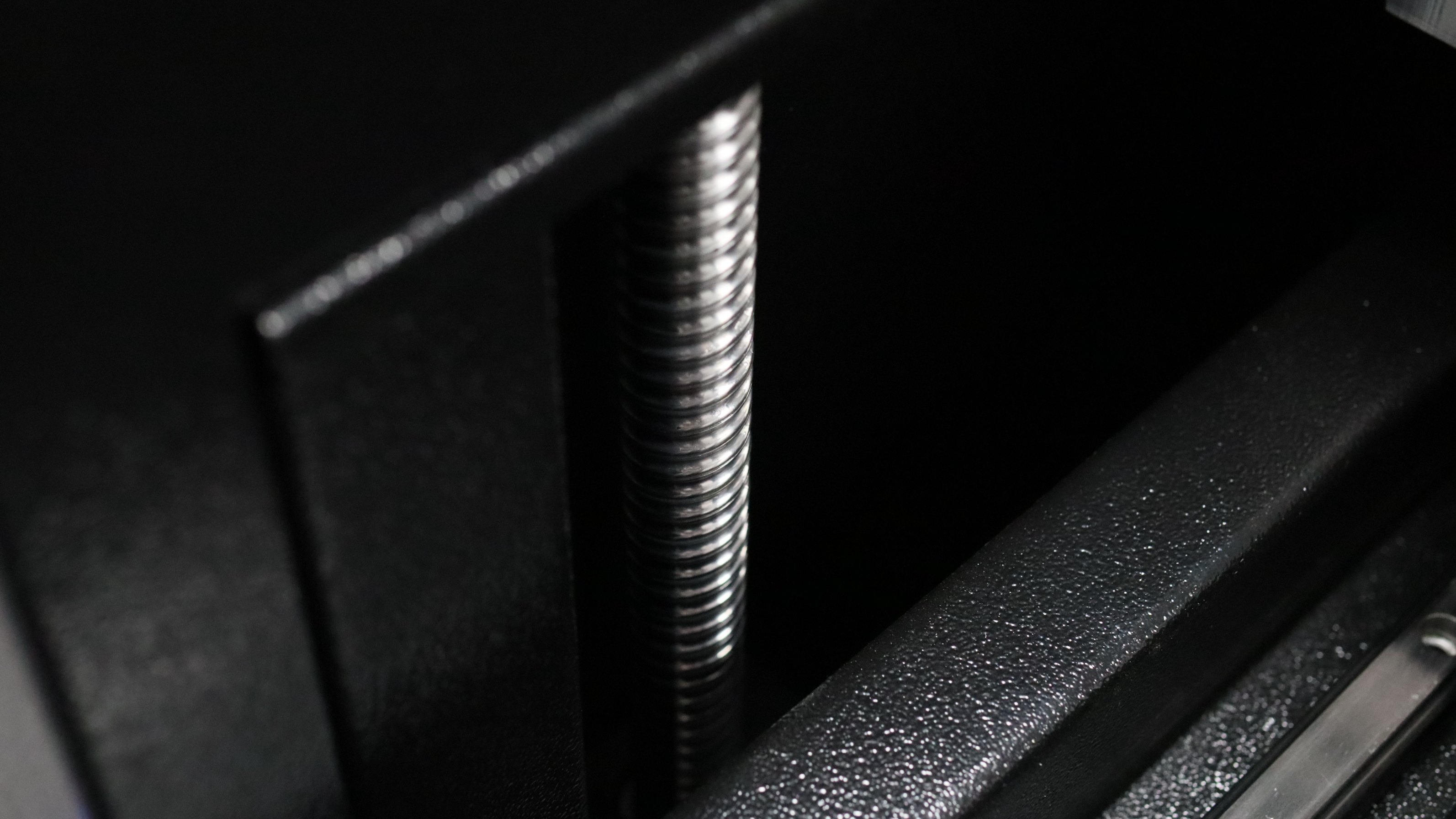

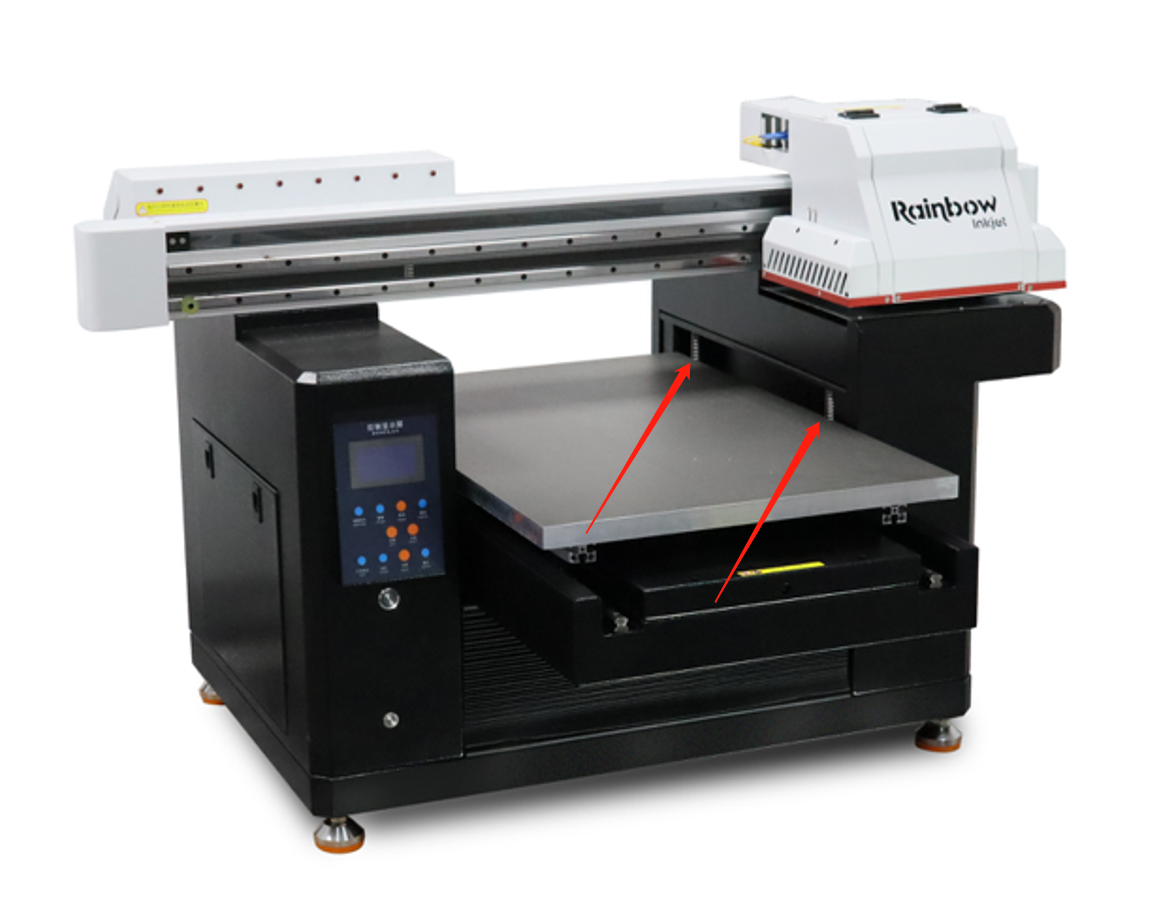

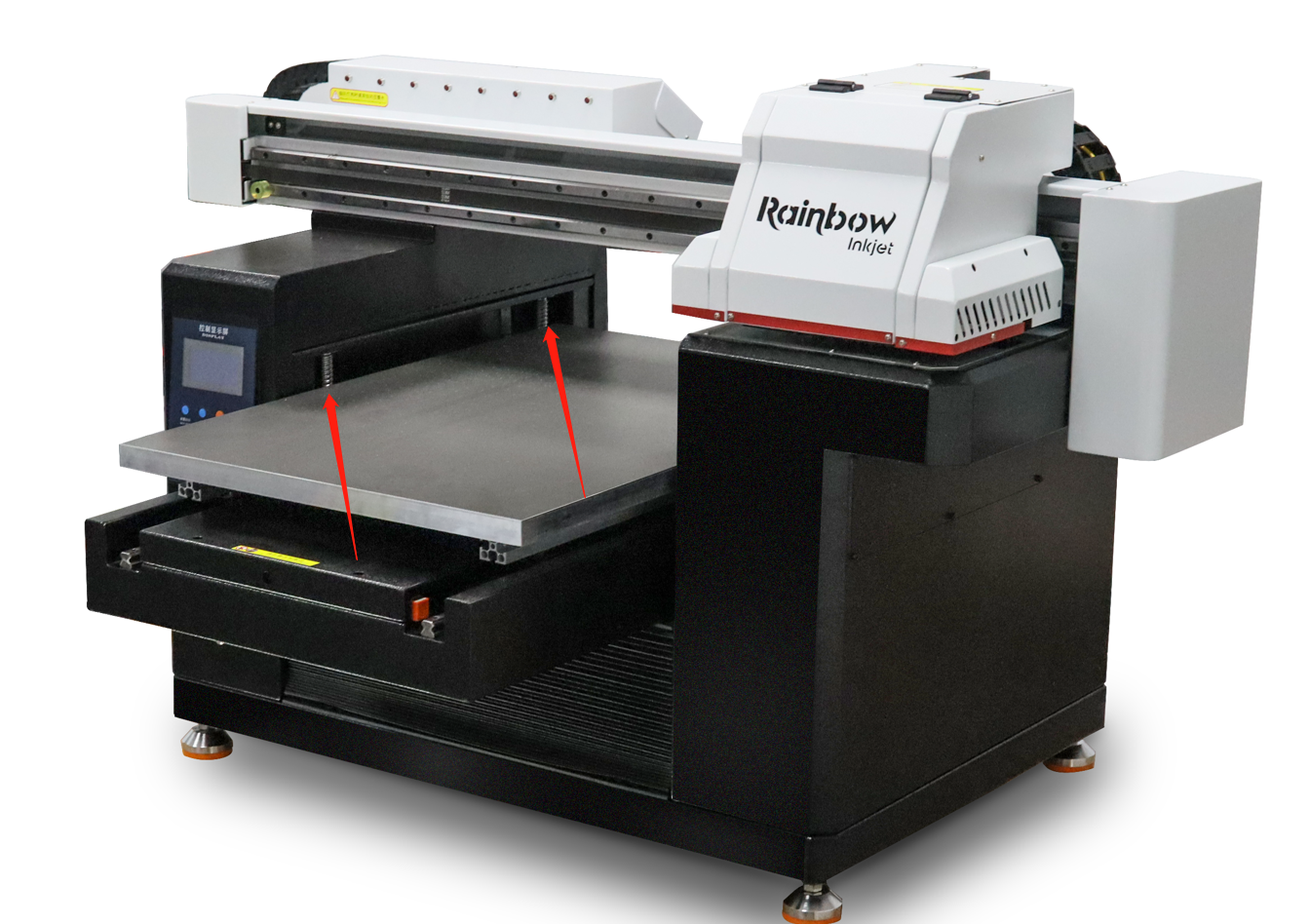

2. 4pcs of thick ball screws

Nano 7 A2 UV printer has 4pcs on the Z-axis, making the movement of the platform smooth and fast, giving the printer a stunning 24cm(9.4in) print height.

The 4pcs of ball screw also makes sure that the platform is stable and level, which helps secure the printing resolution.

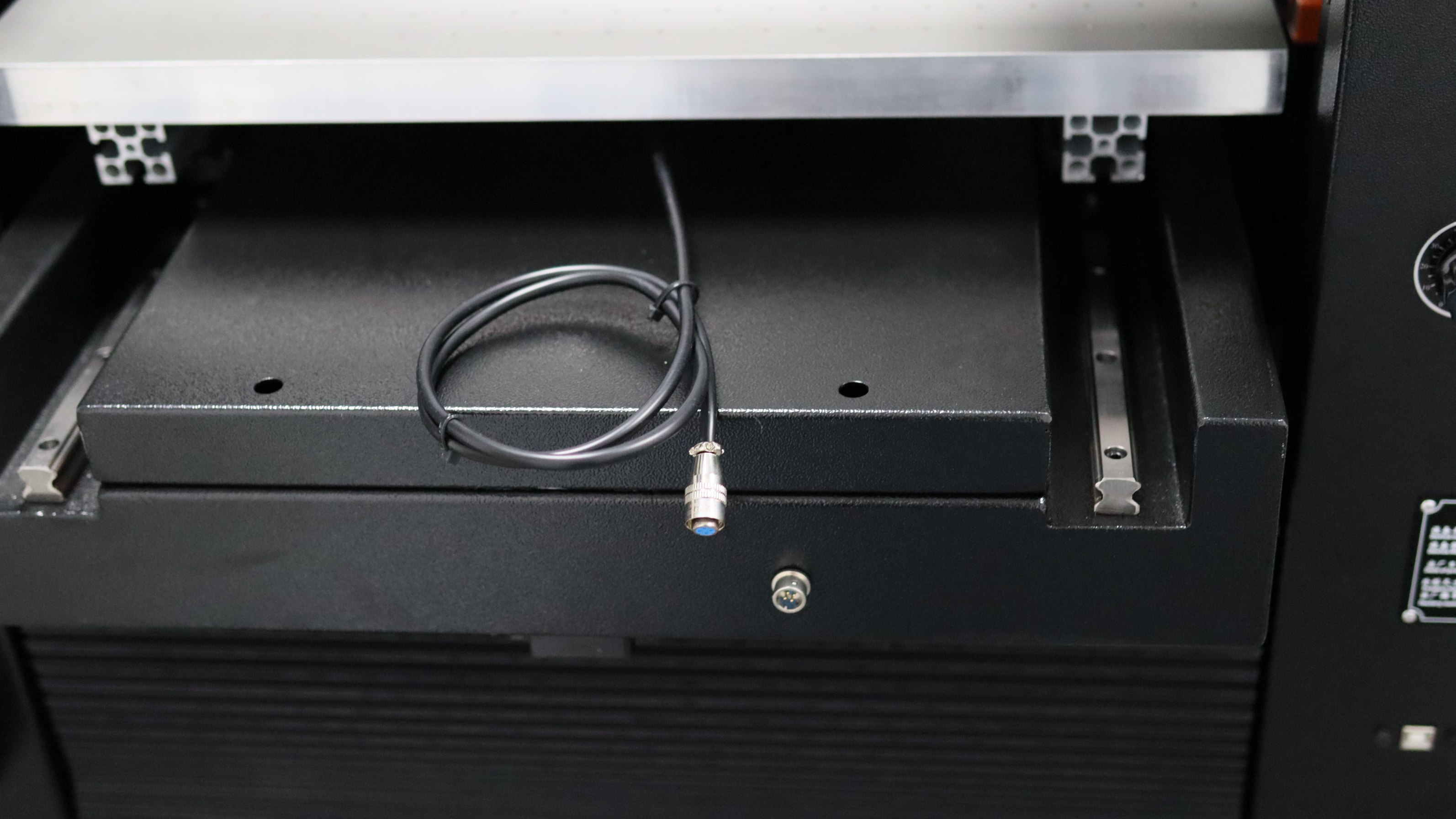

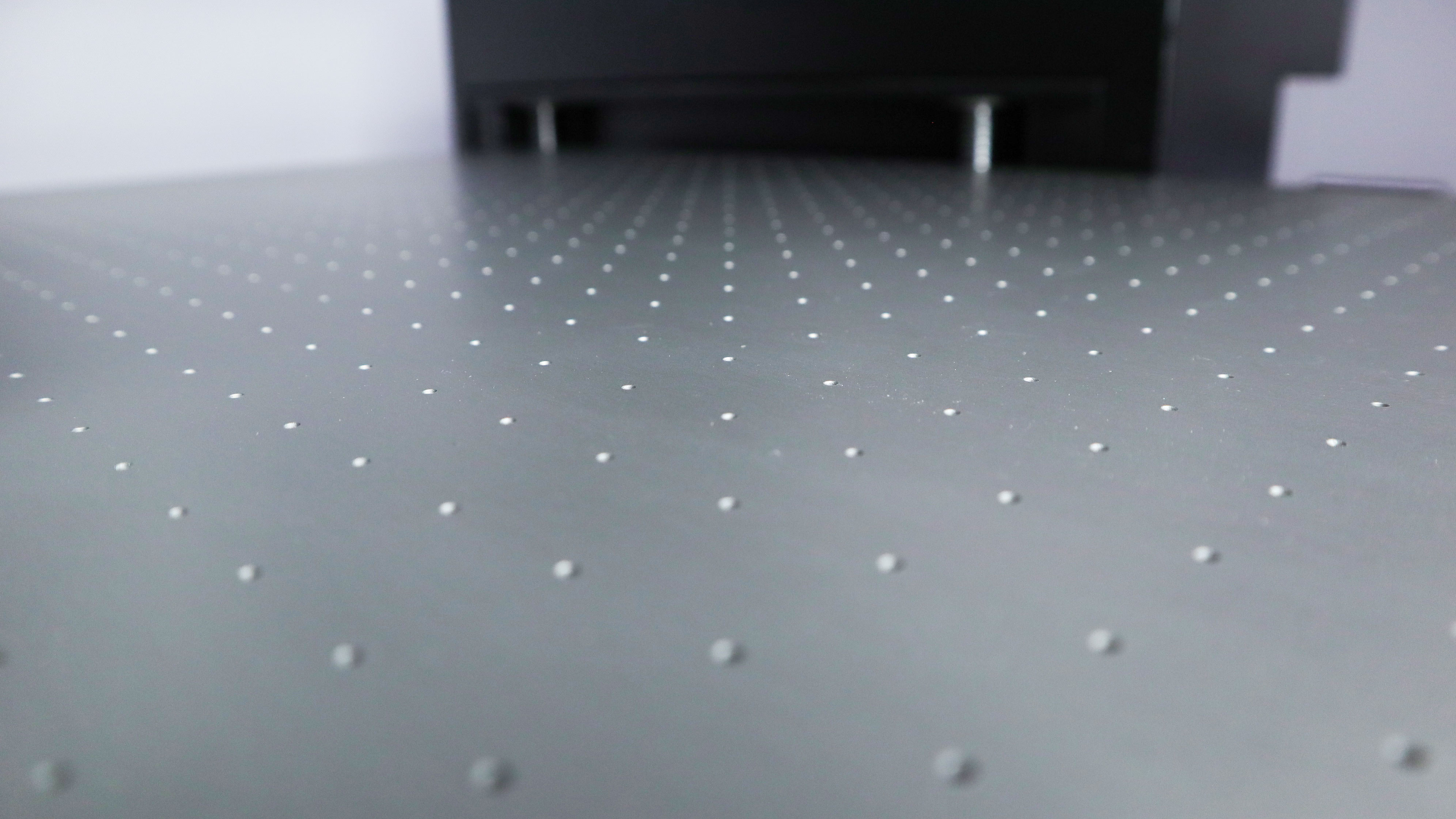

3. Thick aluminum suction table

Full aluminum suction platform has equipped with strong air fans, the surface is specially treated to be anti-corrosion and anti-scratch.

The suction table plug is at the back of the printer, you can also find the on/off switch in the front panel.

4. German Igus cable carrier

Imported from German, the cable carrier runs smoothly and quietly, it protects the ink tubes and cables during the printer carriage movement, and it has long lifespan.

5. Printhead lock sliding lever

The newly invented device is a mechanical structure for locking the printheads and sealing them tightly from drying and clogging.

When the carriage returns to the cap station, it hits the lever which pulls up the printhead caps. By the time the carriage brings the lever to the right limit, the printheads will also be fully sealed by the caps.

6. Low Ink alarm system

8 lights for 8 kinds of ink make sure you will notice the ink shortage when it does, the ink level sensor is placed inside the bottle so it can detect accurately.

7. 6 colors+White+Varnish

CMYKLcLm+W+V ink system now has Lc and Lm 2 extra colors to improve the color accuracy, making the printed result even sharper.

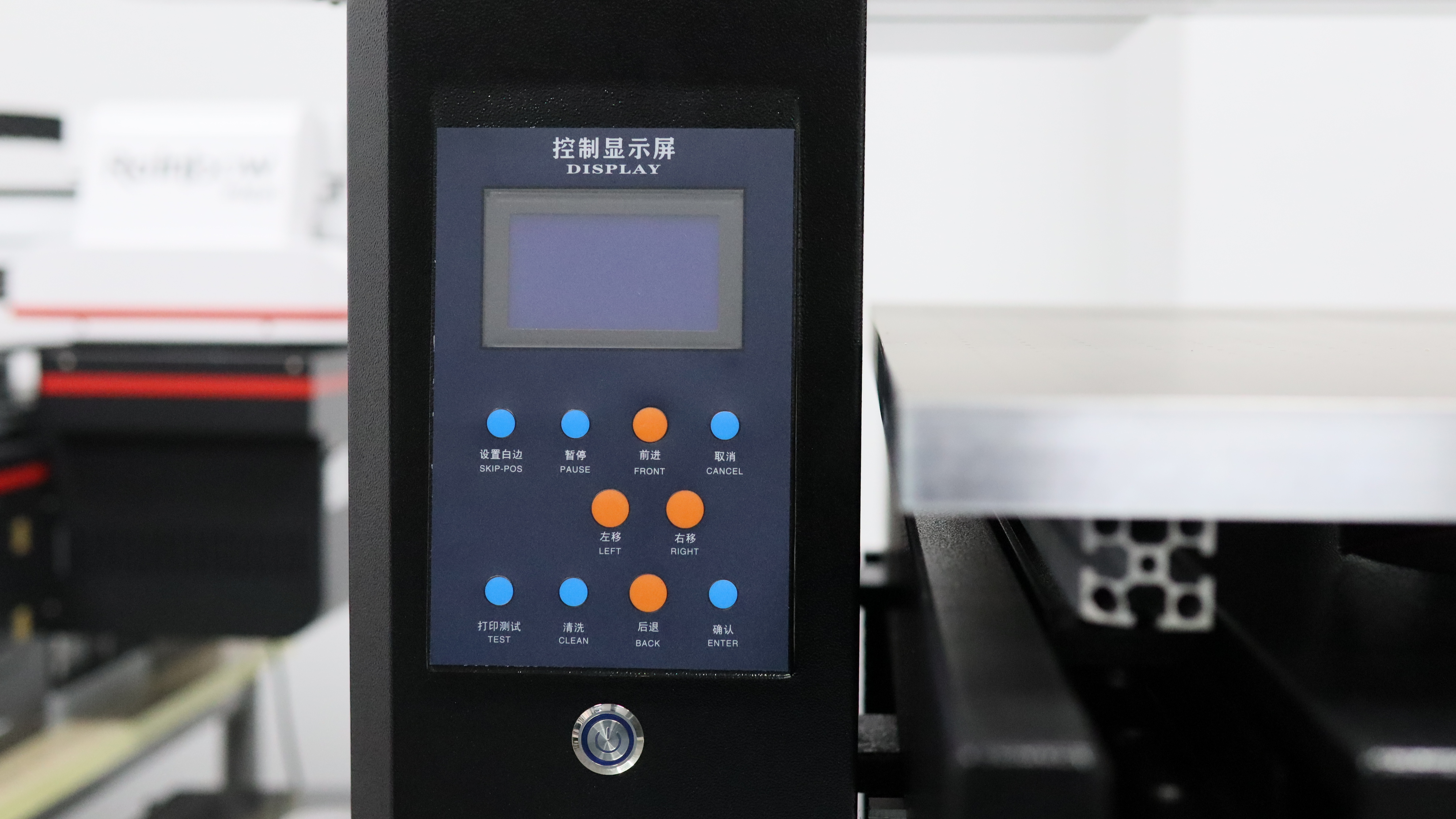

8. Front panel

The front panel has the basic control functions, like on/off switch, making the platform up and down, moving the carriage right and left and doing test print, etc.

9. Carraige plate temperature controler

It's a compact device inside the printer carriage that serves to 1)heat the metal carriage bottom plate and 2)display the real time temperature of the carriage bottom plate.

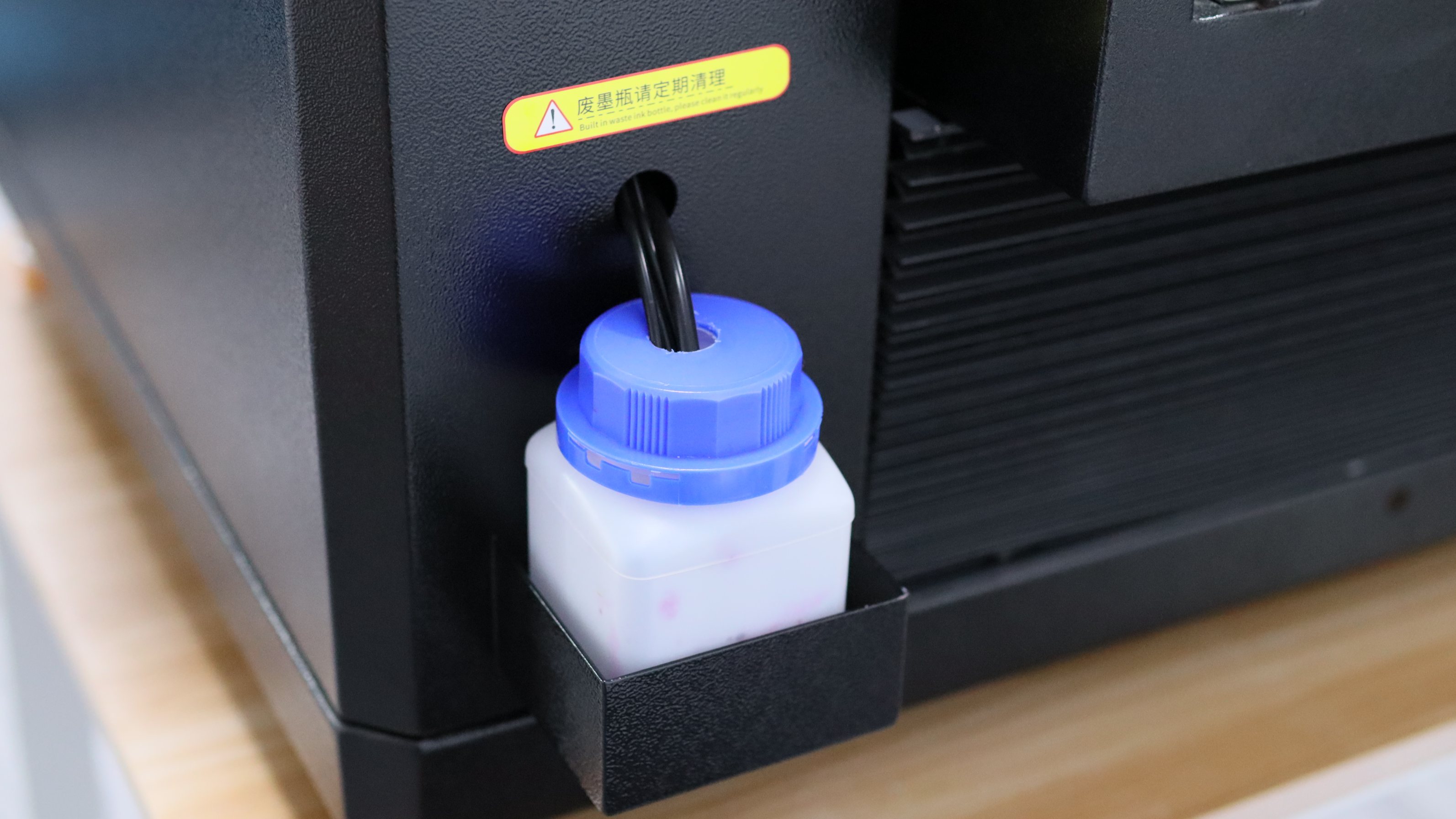

10. Waste ink bottle

The waste ink bottle is simi-transparent, so you can see the liquid level of the waste ink and clean it when necessary.

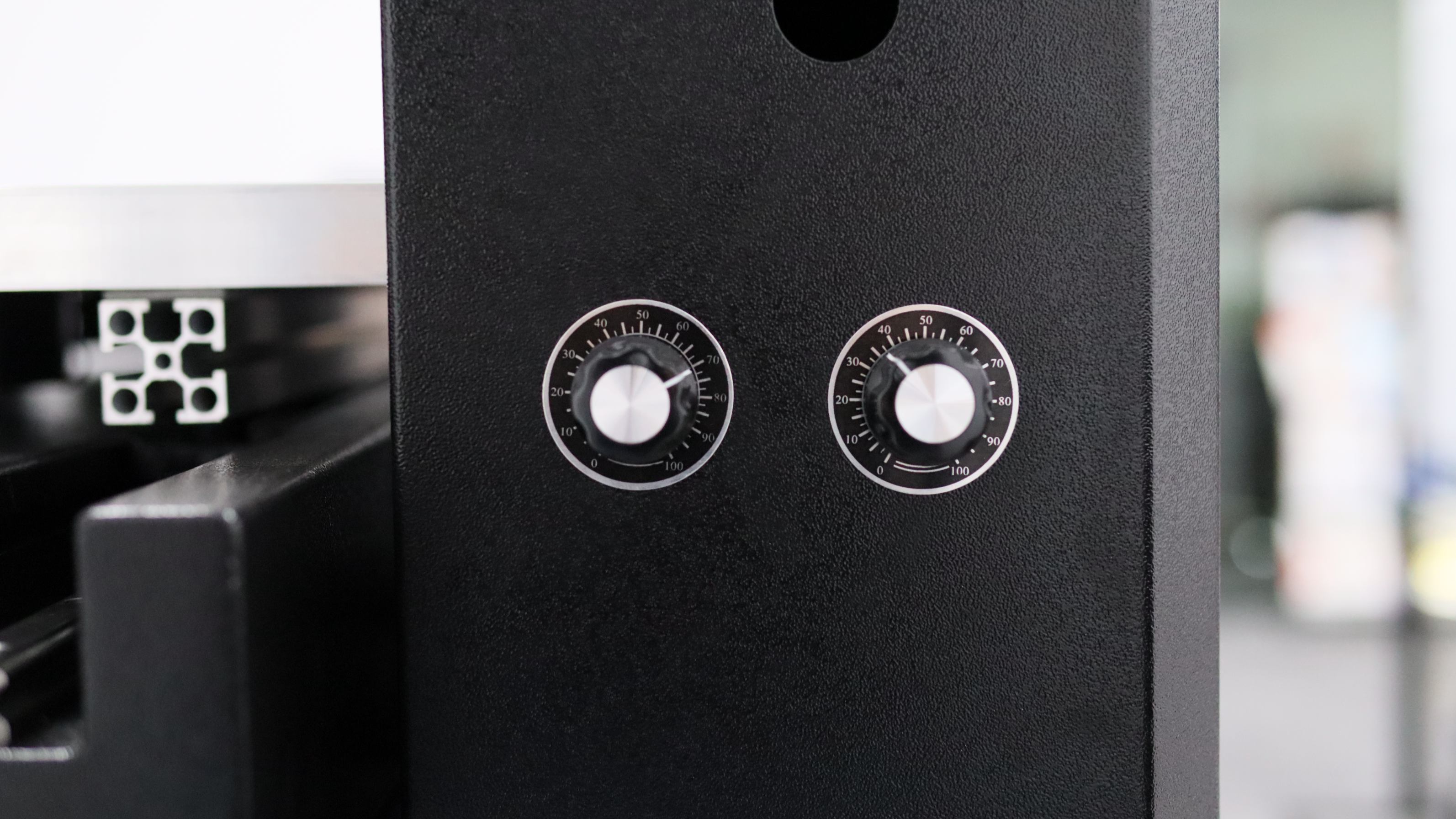

11. UV LED lamp power knobs

There are two UV LED lamps in Nano 7 for color+white and varnish respectively. Thus we designed two UV lamp wattage controlers. With them, you can adjust the wattage of the lamps according to your jobs' requirement.

For example, if you need to print heat-sensitive materials like film A&B(for stickers), you might want to turn down the lamp wattage to prevent it from altering its shape because of the heat.

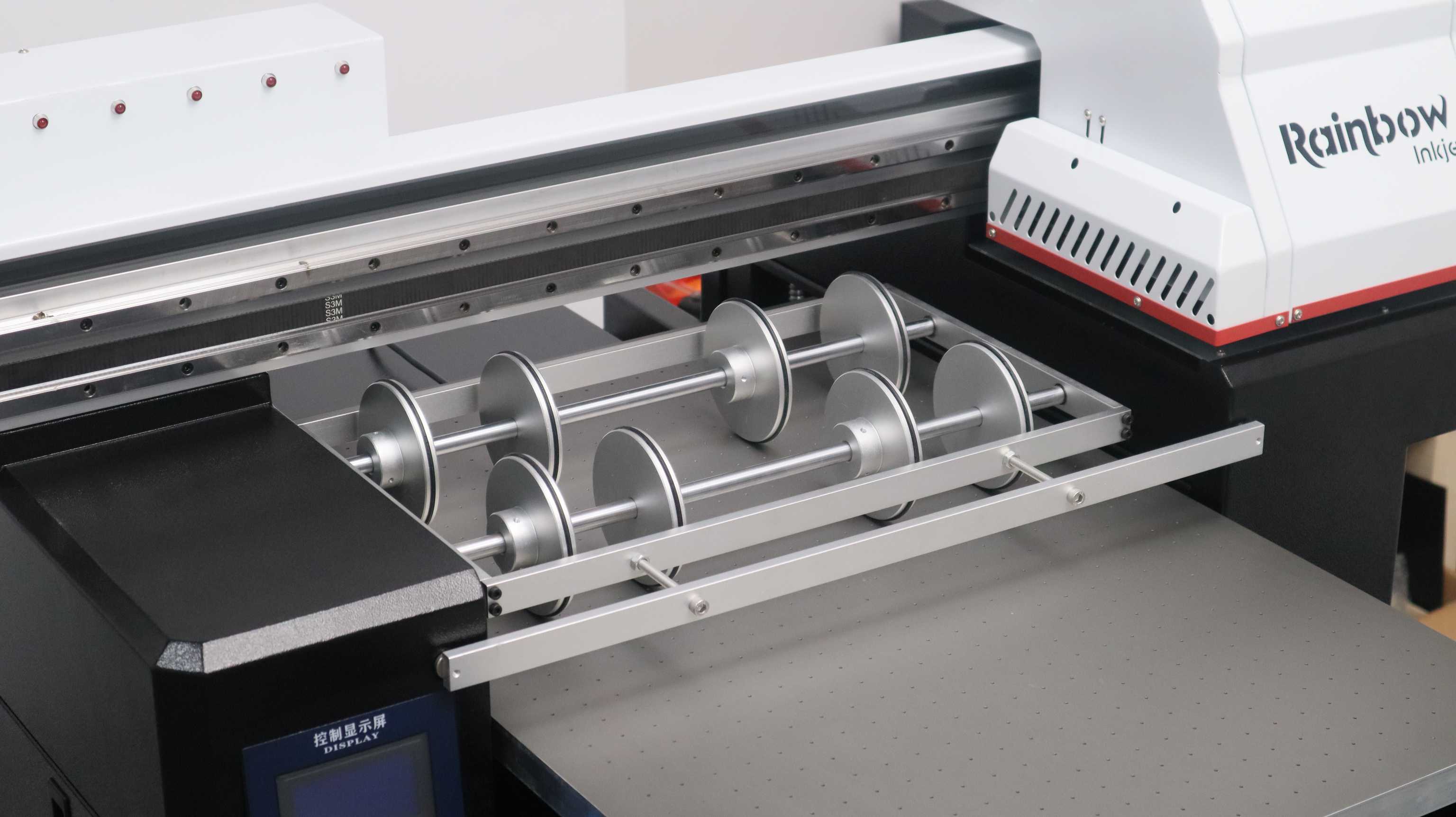

12. Aluminum Rotary device

Nano 7 also supports rotary printing with the help of the rotary device. It can handle three kinds of rotary products: the bottle with a handle like mug, the bottle without a handle like normal water bottle, and the tapered bottle like tumbler(need an extra small gadget).

It's convenient to install and uninstall the device, just need to put it on the platform and the magnet will fix the device in place. Then we need to switch the print mode to rotary and we'd be able to do the print just as usual.

12. Embossing/Varnish supported

Nano 7 is capable of realizing the above special prints: embossing, varnish/glossy. And we have the respective video tutorials to show you step by step.

Glitter Golden Powder Effect

Fluorescent Effect

Anti-counterfeiting Effect
