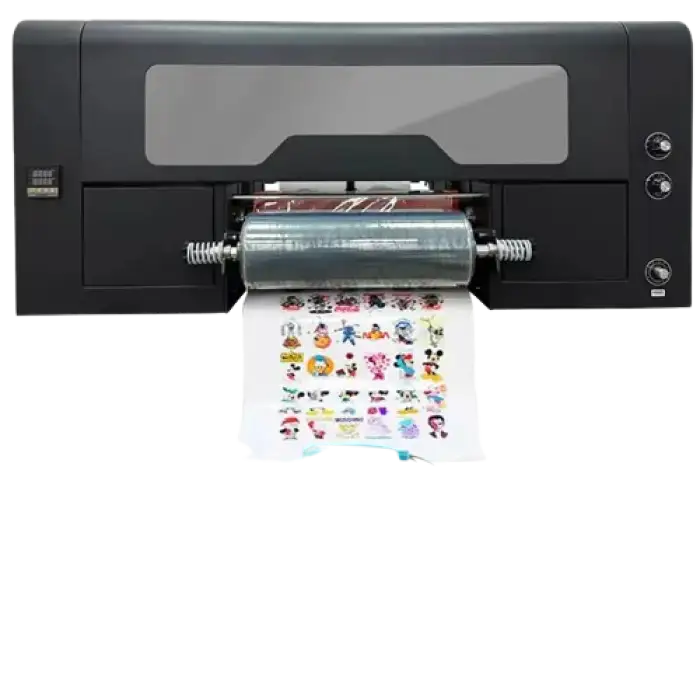

30CM All in One UV DTF Printer Laminator Sticker Roll A3 Label Sticker Printing Machine

It's an all-in-one roll-to-roll UV DTF printer with an integrated laminator designed for producing high-quality labels, stickers, decals and DTF transfers for items like phone cases, bottles, wood, glass and other materials up to A3/300 mm wide.

The standard model prints up to 300 mm (30 cm / A3 width). Some configurations or models may also be available in a 600 mm width — check the specific SKU before purchasing.

The machine ships with Epson-style XP600 printheads (configurations with TX800 may be available). It uses 2–3 printheads depending on the model/option to achieve high throughput and precision.

It uses UV-curable DTF inks in CMYK + White + Varnish. The UV inks cure for durable, scratch- and fade-resistant prints; white ink and varnish channels are available for opacity and spot gloss/matte finishing.

Maximum resolution is up to 1440 DPI. Speed depends on pass mode and media: typical throughput varies by setting (examples include 6-pass and 8-pass modes). In practice you can expect a range (e.g., ~1–5 m²/h depending on pass mode, RIP settings and media).

Yes — it includes an integrated laminating unit so printed rolls can be laminated inline for immediate finishing and improved durability.

It's designed for AB UV DTF film (roll-to-roll) and is suitable for transfers to many surfaces including textiles, plastic, metal, glass, wood, bottles, cards and other irregular items when used with the correct film and transfer process. Direct printing on rigid/irregular objects may require fixtures or optional accessories.

Load the DTF film roll on the unwinder, print with the integrated UV system, then the output goes through the integrated laminator and is rewound — allowing continuous, high-volume sticker and label production without manual handling between steps.

The product is compatible with common RIPs; listed software includes Maintop 6.1 and PhotoPrint. The RIP is required to manage white and varnish channels, color separation and print queues. It also accepts standard image formats (TIFF/JPG/PDF/PSD/AI) via RIP.

Primary data transfer is via Gigabit Ethernet for stable, high-speed file transfer. Some vendors may also provide USB or other options depending on configuration.

Consumables include UV DTF inks (CMYK+White+Varnish), AB DTF film rolls, cleaning solution, maintenance kits (capping station, wipers), replacement dampers and potentially replacement printheads over the long term. White ink circulation and CISS maintenance are important for reliability.

Yes — it features a continuous ink supply system to support long uninterrupted runs, reduce refill frequency and lower operating costs. Proper setup and periodic maintenance of the CISS and white-ink circulation are important.

The unit supports AC110V or AC220V (50/60 Hz) depending on configuration. Recommended operating environment: temperature 20°C–35°C and relative humidity 35%–65% RH for optimal print quality and ink stability.

Printer dimensions are approximately 1030 × 780 × 450 mm (L × W × H); packed dimensions ~1130 × 880 × 600 mm. Net weight is about 70 kg and gross weight about 80 kg. The product includes a 1-year warranty; check the seller for warranty scope and local support details.

Perform daily or regular printhead checks and nozzle tests, use the built-in cleaning/capping routines, circulate and purge white ink as recommended, keep the capping station and wipers clean, replace consumables per schedule, and follow the user manual for periodic deeper maintenance. Regularly update RIP settings and firmware as provided by the supplier.
