Product Description

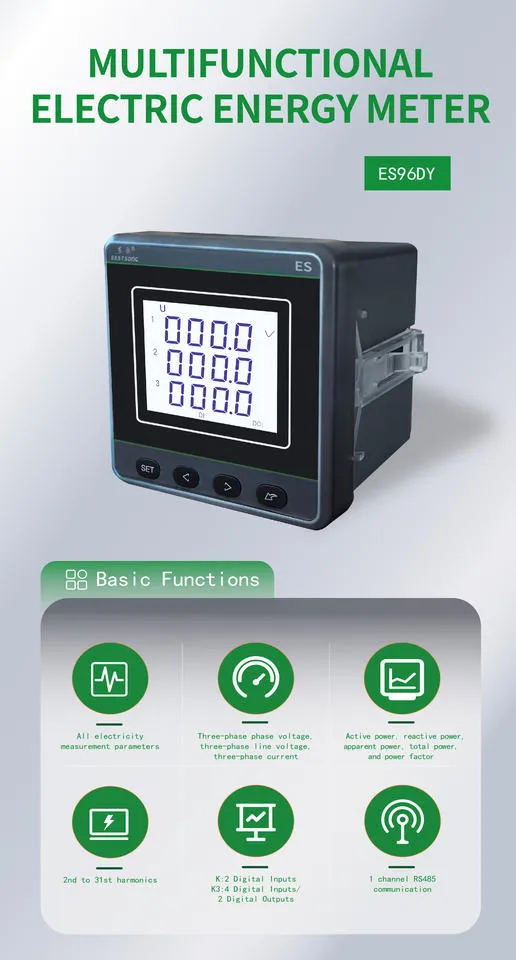

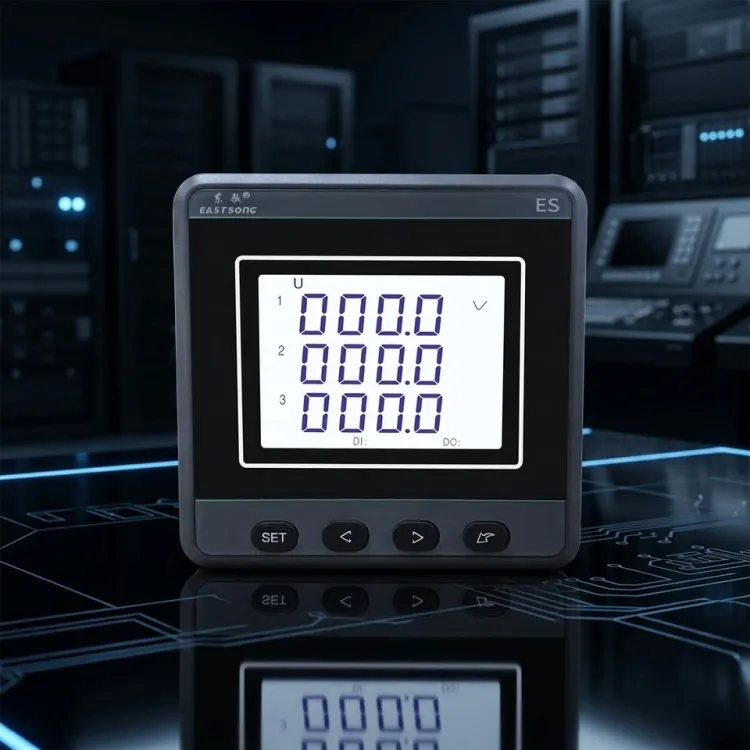

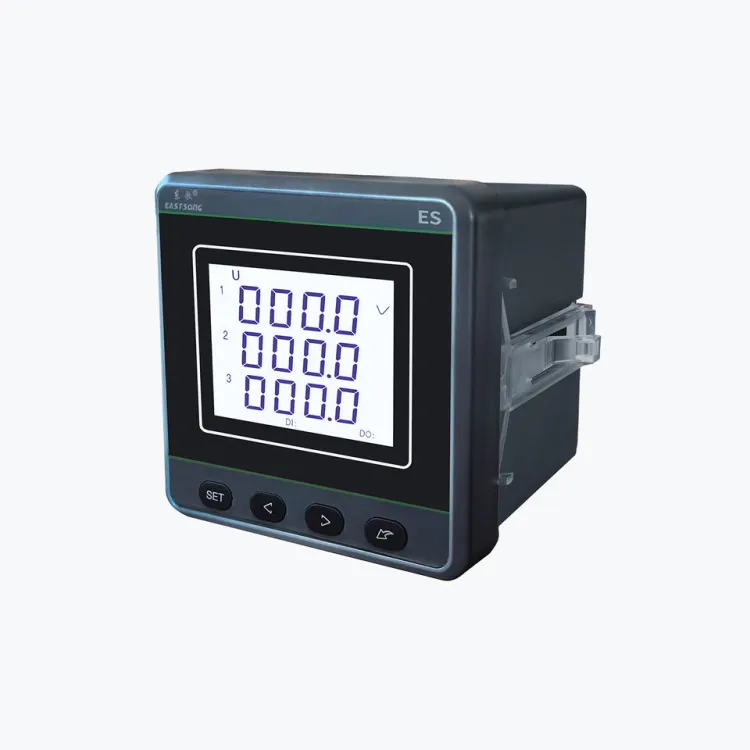

### EastSong ES96DY-E4(E3)/K 3 Phase Multifunction Power Quality Analyzer Panel Meter 96x96 RS485 Modbus Harmonic THD LCD Display Class 0.5 Accuracy IP65 The EastSong ES96DY-E4(E3)/K is a smart and reliable power meter. It helps you watch and control your three-phase electrical system with ease. This 3 Phase Multifunction Power Quality Analyzer is built to give you clear and accurate information. You can see voltage, current, power, and even harmonics on its bright LCD screen. It is simple to use and fits perfectly into standard 96x96mm panel cutouts. This meter is a great choice for factories, buildings, and power distribution units. It communicates using RS485 Modbus, so you can connect it to a computer or PLC for remote monitoring. The front panel is IP65 protected, meaning it is safe from dust and water sprays. With Class 0.5 accuracy, you get precise readings every time.

Specifications

Attribute	Details
Input Type	AC, Three Phase
Accuracy Class	Class 0.5
Input Voltage	AC100V / 220V / 380V / 400V / 690V / 800V / 1000V
Input Current	1A / 5A
Supply Voltage	85~265 AC/DC
Display Type	LCD
Material	ABS
Digits Displayed	8 Digits
Dimensions	96x96mm (Panel), 91x91mm (Cutout), 59mm (Depth)
Operating Temperature	-20°C ~ +65°C
Communication Interface	RS485 (Modbus-RTU Protocol)
Harmonic Measurement	2nd ~ 31st Harmonics
Protection Class	Front Panel IP65 / Case IP20
Wiring Method	3P3W / 3P4W (Programmable)
Digital I/O Options	2DI
Installation Mode	Panel Mounted / Flush Mount
Insulation Strength	≥ 100MΩ (Power/Input/Output)
Frequency Range	45 - 65Hz / 47 - 440Hz
Power Consumption	< 0.2VA per phase (Input)
Storage Conditions	-40°C ~ +85°C; Humidity < 93%

Key Features

High accuracy of Class 0.5 for reliable measurements.
Measures harmonics
Product Info Gallery

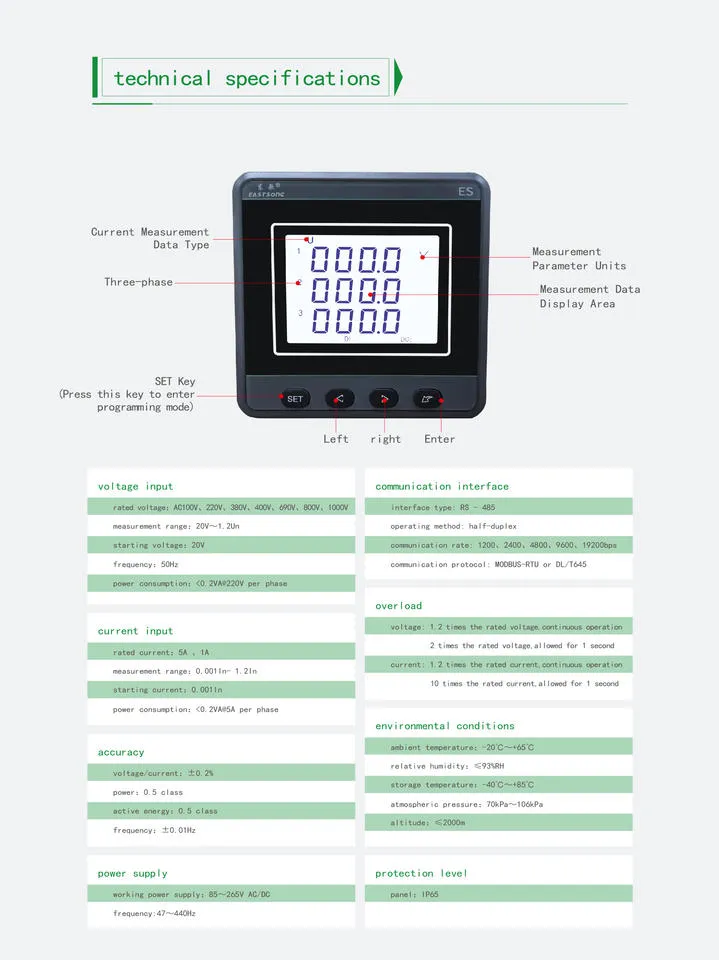

Technical Specifications

Technical specifications for 3 Phase Multifunction Power Quality Analyzer Panel Meter 96x96 RS485 Modbus Harmonic THD LCD Display Class 0.5 Accuracy IP65
Input Type	AC, Three Phase
Accuracy Class	Class 0.5
Input Voltage	AC100V / 220V / 380V / 400V / 690V / 800V / 1000V
Input Current	1A / 5A
Supply Voltage	85~265 AC/DC
Display Type	LCD
Material	ABS
Digits Displayed	8 Digits
Dimensions	96x96mm (Panel), 91x91mm (Cutout), 59mm (Depth)
Operating Temperature	-20°C ~ +65°C
Communication Interface	RS485 (Modbus-RTU Protocol)
Harmonic Measurement	2nd ~ 31st Harmonics
Protection Class	Front Panel IP65 / Case IP20
Wiring Method	3P3W / 3P4W (Programmable)
Digital I/O Options	2DI
Installation Mode	Panel Mounted / Flush Mount
Insulation Strength	≥ 100MΩ (Power/Input/Output)
Frequency Range	45 - 65Hz / 47 - 440Hz
Power Consumption	< 0.2VA per phase (Input)
Storage Conditions	-40°C ~ +85°C; Humidity < 93%
