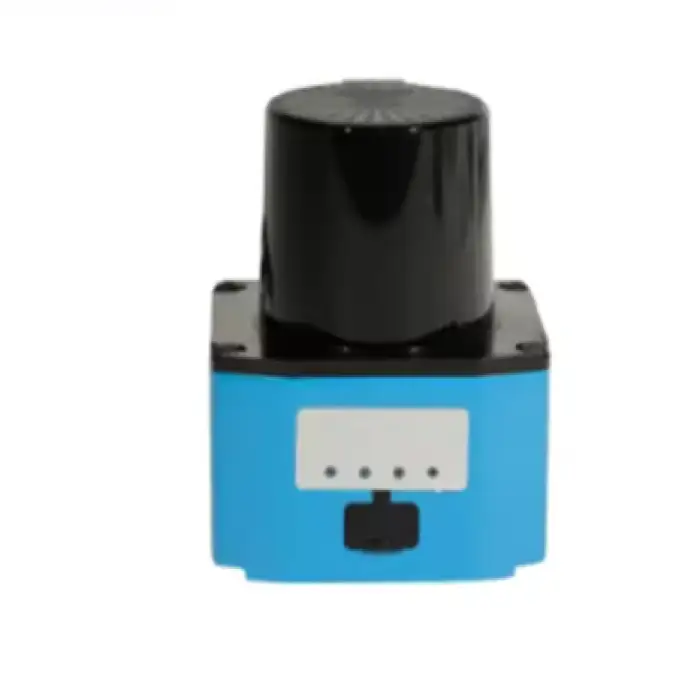

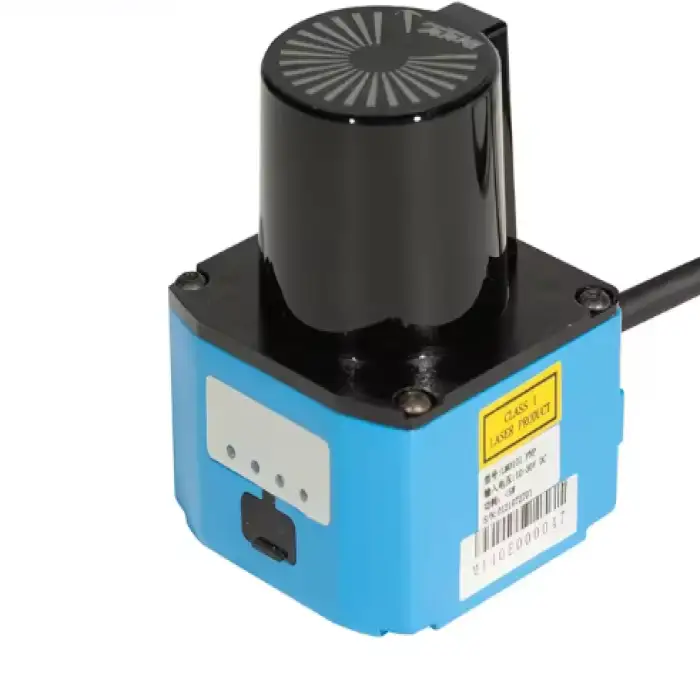

The 20m Laser Radar Detector for Automobile Inspection is a high-performance safety sensor designed to enhance vehicle operating safety. With its advanced laser radar technology, this sensor offers precise obstacle detection and navigation support, ensuring the safety and efficiency of vehicles in various environments.
| Parameter | ||||
| Laser Radar Sensor | BHX series | |||
| Supply voltage | DC24V±20% | |||
| Measurement resolution | 5mm | |||
| Repeatability | ±15mm | |||
| Laser wavelength | 905nm | |||
| Laser class | I (safe to people's eyes) | |||
| Data interface | Ethernet 10/100MBd,TCP/IP | |||
| Protection rating | IP67 | |||
| Work Temperature | -30ºC to +60ºC | |||
| Storage Temperature | -40ºC to +85ºC | |||
| Light interference | 50000Lux | |||
| Shape | 90mm×90mm×105mm | |||

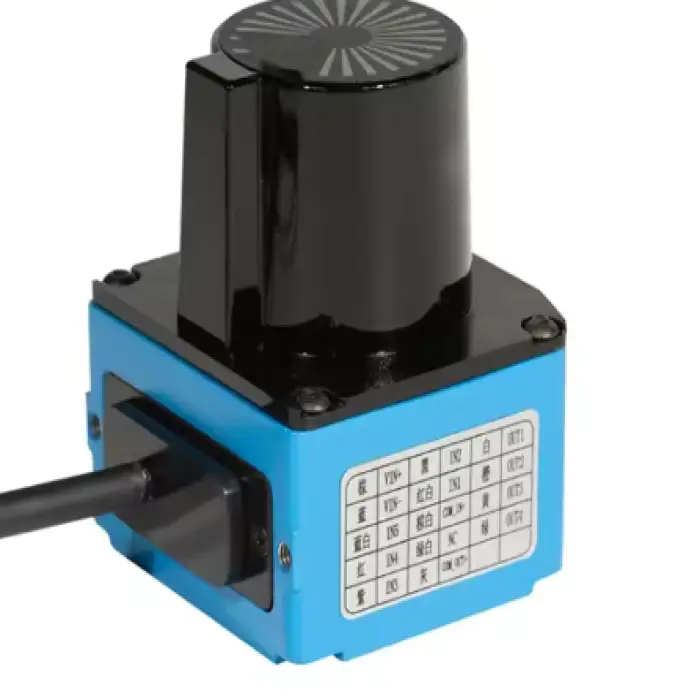

| Electrical connection | ||||
| Power wire | ||||
| Terminal number | Color | Signal Definition | Function Description | |
| One | Brown | 24V | Power supply positive input | |
| Two | Red | NC | Reserved | |
| Three | Grey | COM | Switch output COM terminal | |
| Four | Yellow | OUT2 | Relay output | |
| Five | Green | OUT3 | Relay output | |
| Six | Blue | 24v- | Power supply negative input | |
| Seven | White | OUT1 | Relay output | |
| Eight | Black | NC | Reserved | |
| Communication wire | |||||||||
| Terminal number | Color | Signal Definition | Function Description | ||||||
| One | Orange white | TX+E | Ethernet data transmission | ||||||
| Two | Green white | RX+E | Ethernet data transmission | ||||||
| Three | Orange | TX-E | Ethernet data transmission | ||||||
| Four | Green | RX-E | Ethernet data transmission | ||||||
| Model Number | |||||||||
| Product Name | Product Model | Detection Distance | Scanning Angle | Angle Resolution | Digital Input | Output | |||
BHX Laser Radar | BHX211A | 0.3-2m | 0°-140° | 0.25° | - | - | |||
| BHX221A | 0-25m | 0°-180° | 0.25° | - | 3(Solid state relay) | ||||

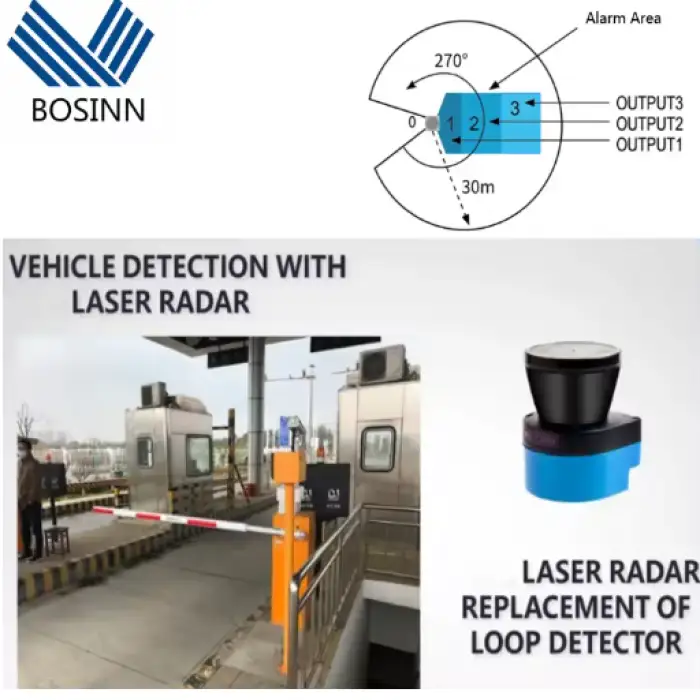

| BHX231B | 0-10m | 0°-270° | 0.5° | 5 | 4(3XRegional output+1XSynchronous output) | ||||
| BHX241A | 0-25m | 10°-130° | 0.25° | - | 3(Solid state relay) | ||||
The 20m Laser Radar Detector for Automobile Inspection is a reliable and precise sensor, ideal for enhancing vehicle safety and navigation. Its advanced laser radar technology ensures that it can detect obstacles and support accurate positioning, making it essential for vehicle operating safety.
| Laser Radar Sensor | BHX series |
|---|---|
| Supply voltage | DC24V±20% |
| Measurement resolution | 5mm |
| Repeatability | ±15mm |
| Laser wavelength | 905nm |
| Laser class | I (safe to people's eyes) |
| Data interface | Ethernet 10/100MBd,TCP/IP |
| Protection rating | IP67 |
| Work Temperature | -30ºC to +60ºC |
| Storage Temperature | -40ºC to +85ºC |
| Light interference | 50000Lux |
| Shape | 90mm×90mm×105mm |
| 20m Detection Range | Provides a 20-meter range for accurate obstacle detection and navigation. |
| Laser Radar Technology | Utilizes advanced laser radar technology for precise measurement and detection. |
| 2mW Output | Ensures strong signal transmission for reliable performance. |
| Wide Application | Suitable for industrial automation, artificial intelligence, and IoT-based systems. |
| Position Sensor | Effectively detects and measures position, contributing to accurate navigation and obstacle avoidance. |
| High Durability | Built for long-lasting performance in industrial and vehicle safety applications. |
| Easy Integration | Can be easily integrated into automated systems for vehicle operation and safety. |
The 20m Laser Radar Detector has a detection range of up to 20 meters, allowing for accurate obstacle detection and navigation.
It utilizes advanced laser radar technology for precise measurement and detection of obstacles.
Yes, the device is classified as Laser Class I, which means it is safe for people's eyes.
The operating temperature range is from -30ºC to +60ºC, making it suitable for various environmental conditions.
Yes, it can be easily integrated into automated systems for vehicle operation and safety applications.
It is suitable for industrial automation, artificial intelligence, and IoT-based systems.
The measurement resolution of the sensor is 5mm.
The protection rating is IP67, indicating it is dust-tight and can withstand temporary immersion in water.
The dimensions of the sensor are 90mm x 90mm x 105mm.
It uses a terminal connection for power and communication, with designated wire colors for specific functions.
The storage temperature range is from -40ºC to +85ºC.
The detector provides relay output signals and supports Ethernet data transmission.
Yes, it can operate in light interference conditions of up to 50000 Lux.
The laser wavelength of the sensor is 905nm.
Key benefits include enhanced vehicle safety, precise obstacle detection, easy integration, and high durability for long-lasting performance.
