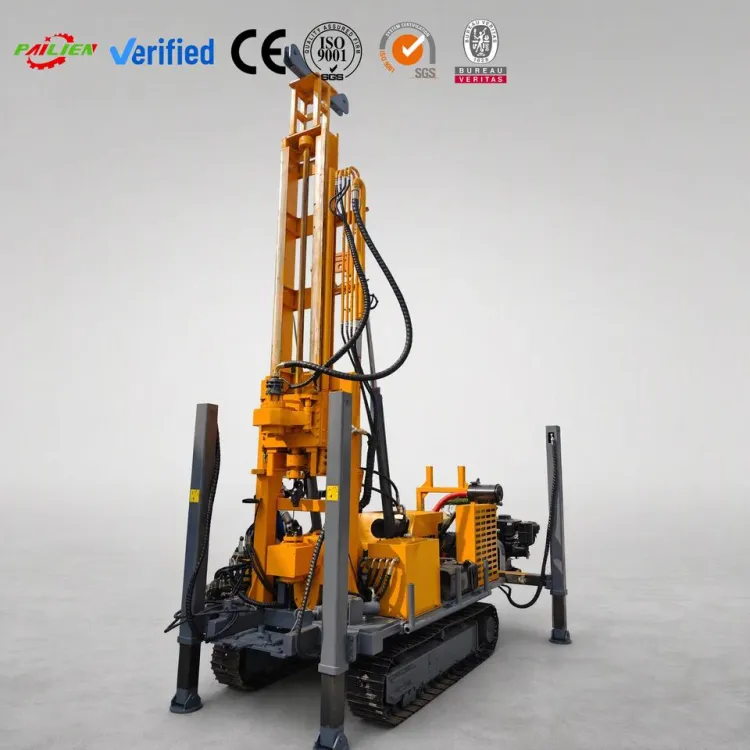

2026 Pailien 200m 300m Drilling Depth Pneumatic DTH Crawler Drilling Rig for Water Well Drilling Machine with Diesel Engine

The 2026 Pailien 200m 300m Drilling Depth Pneumatic DTH Crawler Drilling Rig is a powerful machine for drilling water wells. It runs on a diesel engine and moves on crawler tracks. This rig can drill deep holes from 200 meters up to 600 meters. It works well in many places and is easy to operate. The Pailien drilling rig comes with a strong pump, engine, bearing, and gear. You also get a machinery test report and a video inspection before it ships. This machine is a great choice for your water well projects.

Specifications

Attribute	Details
Product Name	Water Well Drilling Rig
Brand Name	Pailien
Usage	Water Well
Type	Water Well Drilling Rig
Drilling Depth	200m, 260m, 350m, 600m
Drilling Diameter	75–220mm
Power Type	Diesel
Voltage	380 V, 220 V
Engine Type	Diesel Engine
Core Components	Pump, Engine, Bearing, Gear
Mobility	Crawler
Crawler Type	Rubber tracks / Steel tracks
Drill Pipe Diameter	76/89/102/114
Drill Head Lift Force	160/180/260/300kN
Drill Head Feed Stroke	3300/6600 mm
Air Consumption	1.7–2.5Mpa
Mud Pump Flow Rate	160m³/h, 250m³/h
Dimension (LWH)	360017002300mm
Weight	4000 KG
Certification	CE/ISO9001
Warranty	1.5 years
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
After-Sales Service	24/7 online video guidance
