2024 CA6150 Heavy-Duty Manual Lathe for Cylinder Block Machining Latest on Horizontal Lathe
Asset finance available
Do you want funding for this equipment?
Afrimart can connect you with trusted funding partners who specialise in asset finance for businesses like yours. Compare options and apply in minutes — final approval is subject to provider review.
Check funding options
Secure & no obligation
- Section : Machinery
- Category : Lathe
- SKU : 1601031707304

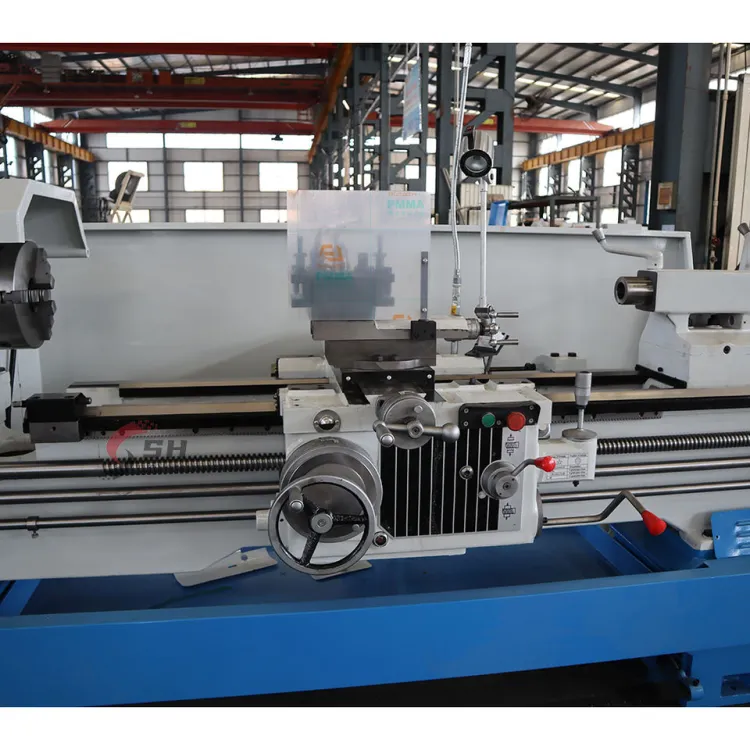

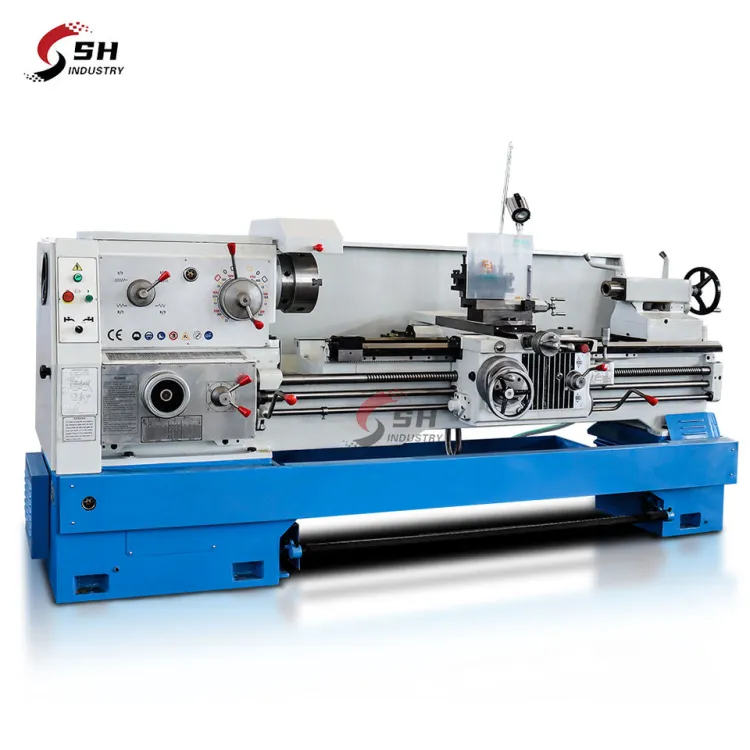

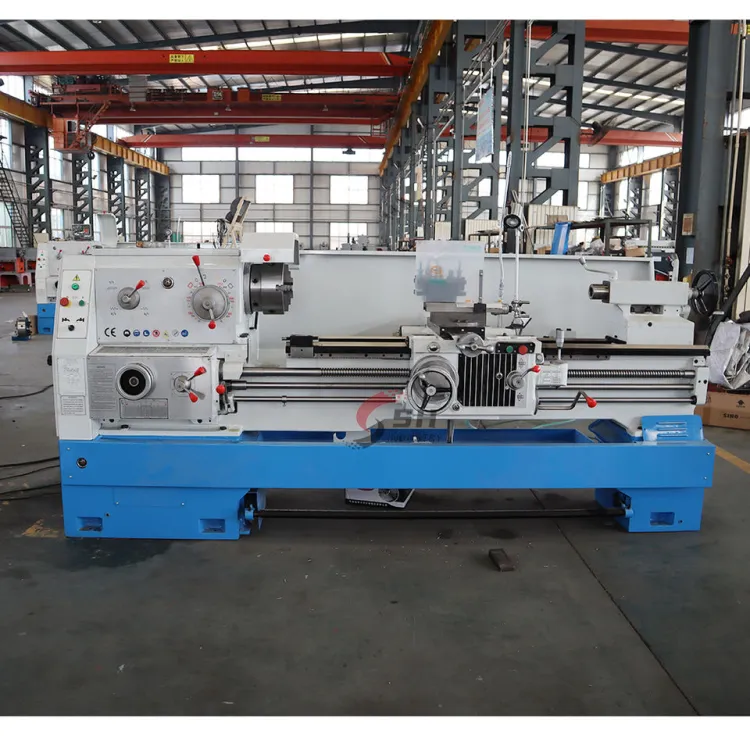

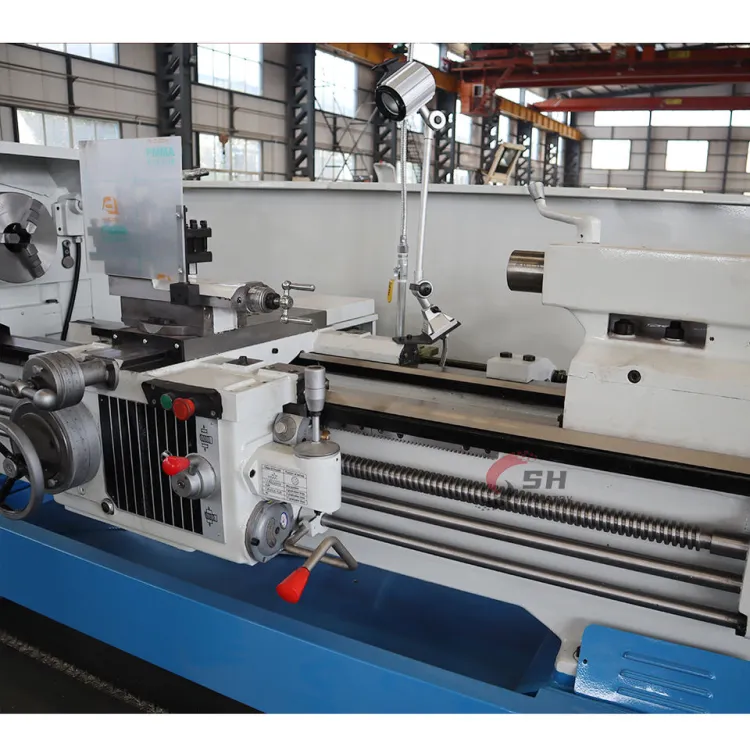

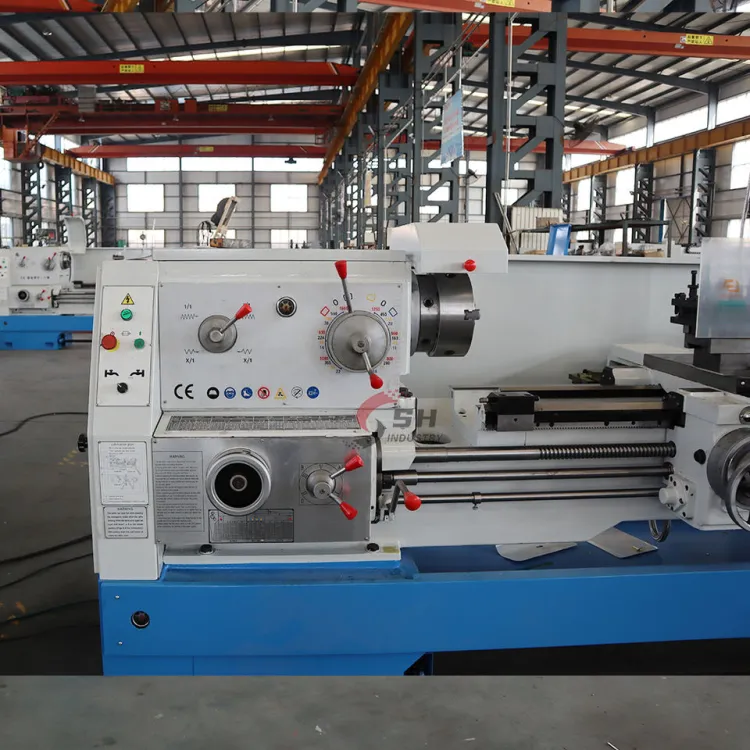

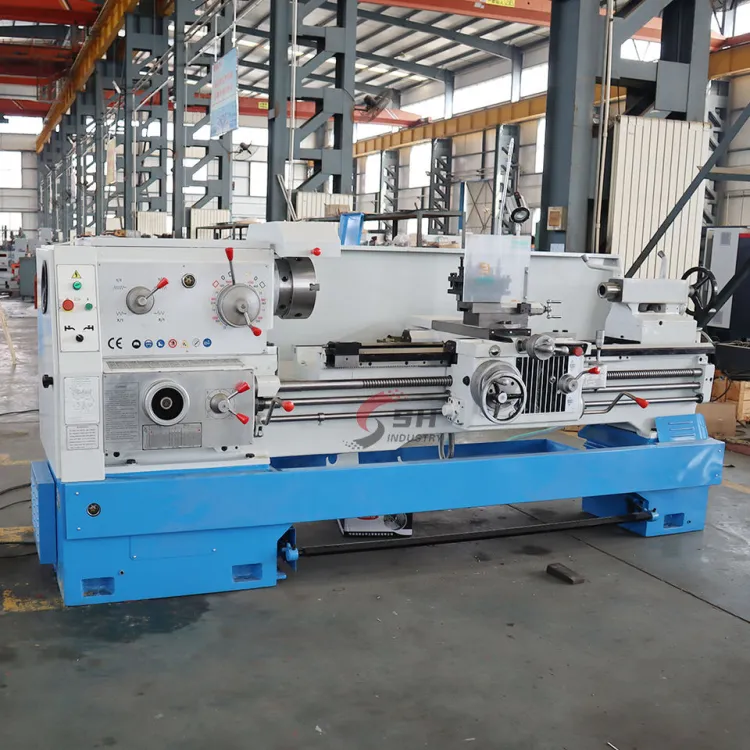

2024 CA6150 Heavy-Duty Manual Lathe for Cylinder Block Machining – Latest Horizontal Lathe
The 2024 CA6150 Heavy-Duty Manual Lathe is a strong machine for big jobs. It works well for machining cylinder blocks and other large parts. This horizontal lathe gives you power and control for everyday work. It comes with a 1-year warranty and free replacement parts. You also get online technical support. The CA6150 Manual Lathe is made for shops that need a reliable machine at a competitive price.
Specifications
| Attribute | Details |
|---|---|
| Product Name | Manual Lathe CA6150 Cylinder Block Machining Horizontal Lathe |
| Model Number | CD6150 |
| Type | Horizontal |
| Machining Capacity | Heavy Duty |
| Max. Length of Workpiece | 2000 mm |
| Max. Weight of Workpiece | 500 kg |
| Spindle Speed Range | 40 – 1400 r.p.m |
| Spindle Taper | ISO40 |
| Spindle Taper Hole | MT5 |
| Spindle Diameter | 52/80 mm |
| Spindle Nose | ISO-C6 |
| Center Distance | 750, 1000, 1500, 2000 mm |
| Tailstock Sleeve Diameter | 65 mm |
| Tailstock Sleeve Stroke | 140 mm |
| Tailstock Quill Travel | 130 mm |
| Tool Post Stations | 6 |
| Cutting Torque | 10 |
| Main Motor | 5.5 kW |
| Voltage | 220V / 380V / 440V |
| Dimensions (L×W×H) | 2970 × 1150 × 1590 mm |
| Weight | 2050 kg |
| Brand Name | Shenghuan |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price |
| Single Package Size | 320 × 150 × 180 cm | Product Info Gallery
