Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
System Block Diagram
Components Included
Half Cut Solar Panel
*Highest conversion efficiency of 21.5%
*0~+5W positive power tolerance
*PID Protection
*Higher performance under low light.
*MBB cell technology.
*Maximum system voltage:1500V*Junction box:IP68
*Frame:Aluminum alloy
*Cell amount:72*2pcs
Application level:Class A
*12Years product warranty,25 Years power output guarantee.
PV Combiner Box
*Lightning protection
*Optional string monitoring function
*IP65 environment compatibility
*Flexible design, 8,16 inputs optional
*RS485 communication interface
*Input fuse for over current protection*PV combiner box is an accessory for multiple PV string connection, it is with smart controller inbuilt for monitoring, along with comprehensive protections including fuse and SPD
PBD/PCS/Bypass
*PBD250:Solar Charge Controller
*PCS50/100/250/500/630:
Bi-directional battery inverter
*Bypass50/100/250/500:
bypass cabinet is designed to be used together with bidirectional battery inverter and PV inverter to realize seamless transfer between on and off grid mode automatically.
ShineMaster Monitoring
*Up to 32 inverters connection
*Multi-function and high performance*Local webserver for easy configuration*Support external sensor to realize zero-export function.
*Datalogger for overall system monitoring, collect operation data from different units via Modbus RS485 and communicate with the server via internet
Lithium-ion Battery
*Easy installation and maintenance
*LFP high-capacity Li-Ion battery with aluminum shell,over 130wh/kg
*Self-developed 3-level BMS, complex protection, safe and reliable
*Long cycle life, 6000 cycles*Outdoor battery cabinet with IP54 protection level, indoor battery rack with IP20 protection level,inbuild lithium-ion battery and BMS.
*Standard 5Years Warranty.
Solar Accessories
*Black/Red color 4/6/10 mm2 PV cable
*Universal compatible PV connectors
*With CE TUV certificate
*15Years Warranty
PV Mounting System
*Customized for roof&ground etc.*Adjustable angle from 0~65 degree
*Compatible with all type solar panel
*Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Moount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25Years Warranty
| Micro-grid 250-5000KW/KWH Complete ESS Container Configuration | ||||||
| System Model | LS250KW/KWH-ESS | LS500KW/KWH-ESS | LS1MW/MWH-ESS | |||
| Half Cut 550W Solar Panel | 480pieces | 960pieces | 1920pieces | |||
| PV Combiner Box | 5pieces 8 input 1output | 10pieces 8 input 1output | 20pieces 8 input 1output | |||
| Solar Charge Controller | 1Piece PBD250 | 2Piece PBD250 | 4Pieces PBD250 | |||
| Bi-directional Battery Inverter | 1piece PCS 250 | 1piece PCS 500 | 2pieces PCS 500 | |||
| Bypass cabinet | 1piece Bypass 250 | 1piece Bypass 500 | 1piece Bypass 1000 | |||
| LFP Battery Bank | 250KWH | 500KWH | 1MWH | |||
| PV Cables | 4000m | 8000m | 12000m | |||
| MC4 Connector | 240pairs | 480pairs | 960pairs | |||
| Mounting System | Customized based on your installation site | |||||

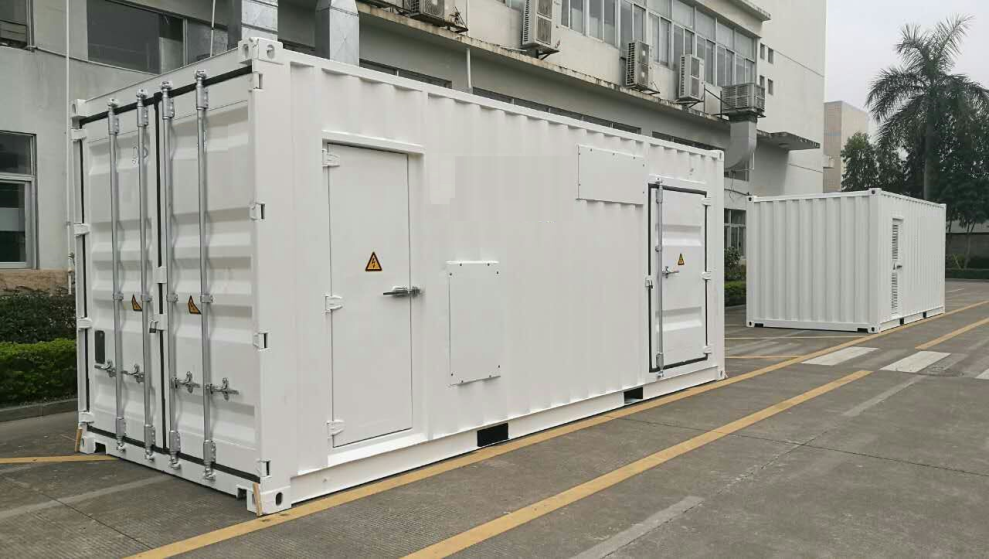

| Container Size | 10/20/40ft | |||||
| System Model | LS2MW/MWH-ESS | LS3MW/MWH-ESS | LS5MW/MWH-ESS | ||
| Half Cut 550W Solar Panel | 3840pieces | 5760pieces | 9600pieces | ||
| PV Combiner Box | 40pieces 8 input 1output | 60pieces 8 input 1output | 100pieces 8 input 1output | ||
| Solar Charge Controller | 8Piece PBD250 | 12Piece PBD250 | 20Piece PBD250 | ||
| Bi-directional Battery Inverter | 4pieces PCS 500 | 6pieces PCS 500 | 10pieces PCS 500 | ||
| Bypass cabinet | 2pieces Bypass 1000 | 3pieces Bypass 1000 | 5pieces Bypass 1000 | ||
| LFP Battery Bank | 2MWH | 3MWH | 5MWH | ||
| PV Cables | 24000m | 36000m | 60000m | ||
| MC4 Connector | 1920pairs | 2880pairs | 4800pairs | ||
| Mounting System | Customized based on your installation site | ||||
| Container Size | 10/20/40ft | ||||
Packing&Shipping
Our Projects
| Battery type | LFP high-capacity Li-Ion battery |
|---|---|
| Container size | 10/20/40ft |
The Lithium battery has a capacity of 200kWh, making it suitable for significant solar power storage needs.
The system includes Half Cut Solar Panels with a maximum conversion efficiency of 21.5% and a positive power tolerance of 0~+5W.
The Lithium-ion battery has a long cycle life of approximately 6000 cycles, ensuring durability and longevity.
Yes, the outdoor battery cabinet is designed with an IP54 protection level, making it suitable for outdoor installation.
The system comes with a 12-year product warranty and a 25-year power output guarantee for the solar panels.
The ShineMaster Monitoring system supports RS485 communication and allows connection of up to 32 inverters for comprehensive system monitoring.
Yes, the system includes a bypass cabinet that enables seamless transfer between on-grid and off-grid modes automatically.
The PV combiner box includes lightning protection, input fuse for overcurrent protection, and is compatible with an optional string monitoring function.
The system supports a maximum voltage of 1500V, making it suitable for various solar applications.
The installation process is designed to be easy, with clear guidance provided, and the components are customizable based on your installation site.
The Lithium-ion battery features an aluminum shell for durability and is equipped with a self-developed 3-level Battery Management System (BMS) for safety.
The system includes black/red color 4/6/10 mm2 PV cables that are universally compatible and CE TUV certified.
The system can accommodate various configurations, with up to 480 pieces of Half Cut 550W solar panels based on your chosen model.
The system is available in multiple container sizes, including 10ft, 20ft, and 40ft options.
Yes, the system includes various solar accessories such as mounting systems, connectors, and cables tailored for your installation needs.
