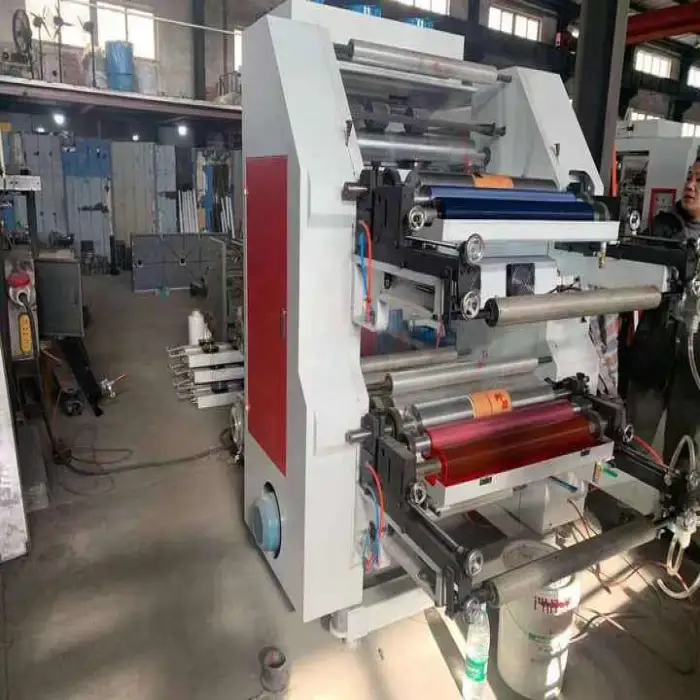

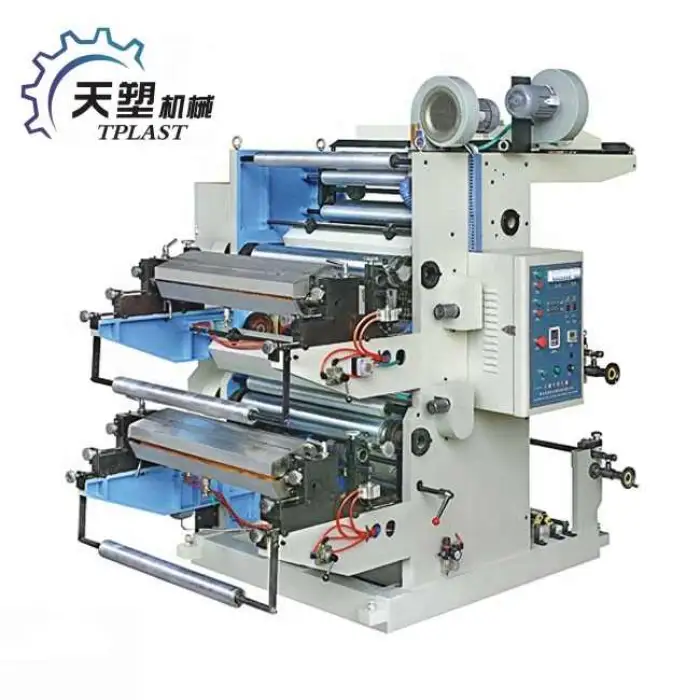

2 Colors Vest Bag Flexographic Printerprinting Machine

It can print on a variety of substrates including paper, labels, cards, bills and plastic films commonly used for packaging and labeling applications.

This is a 2-color model by default (listed as 'Two colors'), but the platform supports configurations ranging from 1 up to 8 colors depending on your production needs and selected options.

Maximum effective printing width is between 560 mm and 1166 mm; maximum web width ranges from 600 mm to 1200 mm. Exact values depend on the configuration chosen.

Maximum effective printing speed is 60 m/min, with a maximum mechanical speed of up to 70 m/min.

The machine provides registration accuracy of approximately ±0.25 mm under normal operating conditions.

Overall dimensions are approximately 2.5 m (L) × 1.7 m (W) × 2.2 m (H) and the machine weight is around 1800 kg.

Maximum diameter of roll material is 450 mm and the internal diameter of the roll core is 76 mm.

The repeat (repeat printing length) range is from 191 mm up to 1200 mm, allowing flexible job lengths.

The machine uses letterpress-type plates suitable for flexographic printing setups.

Yes — the machine is specified as automatic grade and includes features intended to simplify operation and improve production efficiency.

The standard specification lists a 220 V supply. If you require a different voltage or phase, please contact sales for custom electrical configuration options.

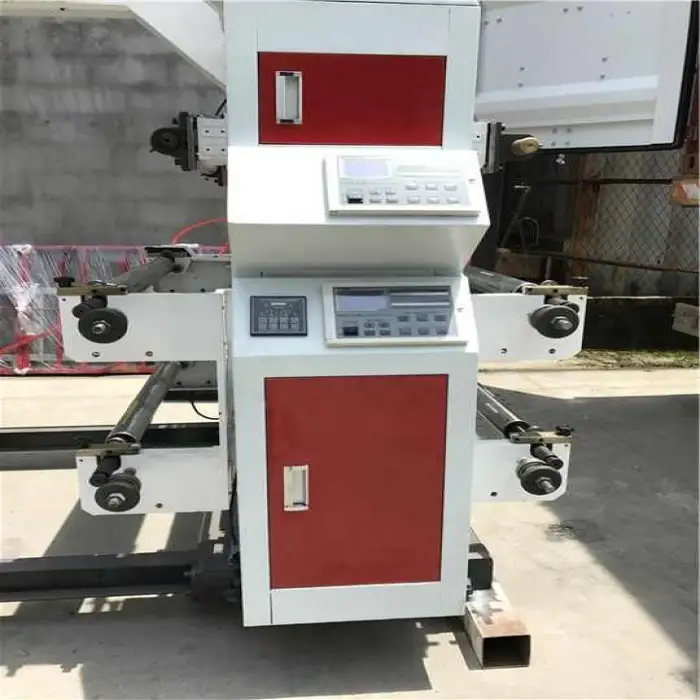

Control type is listed as 'Customized' — the machine can be supplied with different control packages (e.g., PLC, touchscreen HMI and other automation options) based on your requirements. Discuss desired features with the supplier to specify controls.

Engineers are available to service the machinery overseas. Typical support includes installation assistance, commissioning, operator training and technical service; confirm the specifics and any associated costs with the supplier.

Common consumables include printing plates, inks, anilox or metering components and doctor blades. Routine maintenance includes cleaning, lubrication, inspection of rollers and drive components, and timely replacement of wear parts. The supplier can provide a recommended maintenance schedule and spare parts list.

Contact the vendor or sales representative with your production requirements (substrates, web width, number of colors, speed targets, voltage and any special features). They will advise on available configurations, lead times, pricing and installation/service options.
