Product Description:

This 1000L double-planetary cooking mixer is engineered for industrial-scale production of sauces, jams, pastes, fillings, and a wide range of other food products. It combines electromagnetic induction heating with a robust double-planetary mixing system to deliver consistent, high-quality results at scale.

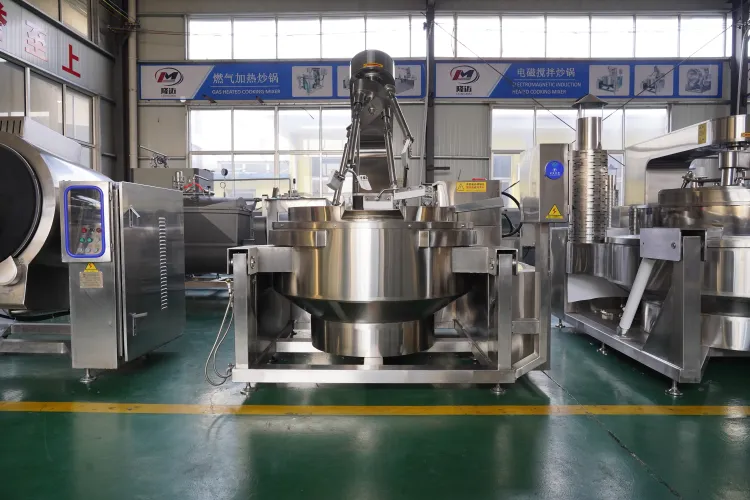

The 1400mm diameter pot is made from pure stainless steel 304 with an ellipsoidal bottom and 12mm wall thickness — a stronger, more hygienic choice than composite carbon-steel-and-stainless construction. A heat insulation jacket with aluminium silicate cladding minimizes heat loss and protects operators from scalding. The induction heating system uses double waterproof full-copper induction wire with a high-efficiency liquid chiller for stable performance and long service life, offering 8 adjustable heating levels for precise control.

Mixing is handled by a double planetary system fitted with 7 Teflon scrapers (including a side scraper) that maintain constant contact with the pot surface via high-tension springs, preventing burning or product buildup even as the scrapers wear. Mixing speed is VFD-adjustable up to 33RPM, with a strengthened shaft and gearing built for thick, heavy materials. Sealed mixing shafts and a sealed mixing head keep vapor and moisture out, reducing maintenance needs.

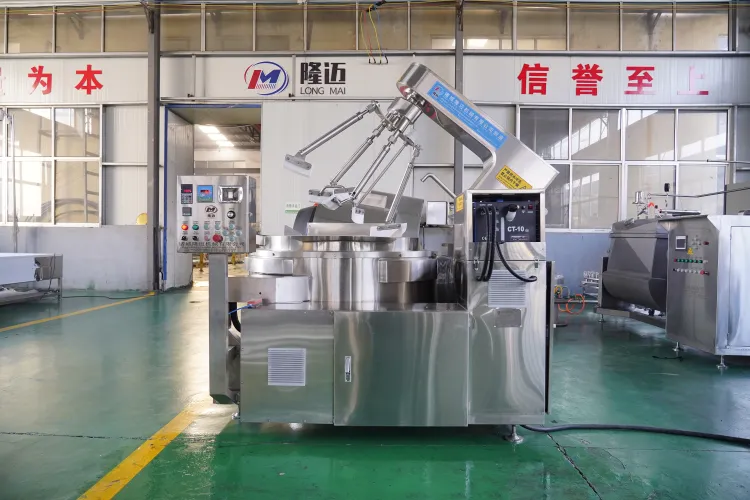

For discharge, the mixing arm tilts backward hydraulically via two hydraulic cylinders, tilting the pot a full 90° for fast, complete unloading of cooked product. An accurate wireless temperature sensor maintains direct contact with the material being processed for precise temperature control, and the machine features a user-friendly control panel with wireless remote operation.

An optional upgraded HMI package is available, featuring a 10" touchscreen PLC control system with 16+ programmable menus and 8 processing stages per menu — each stage independently adjustable for heating level, time, temperature, and mixing speed, with automatic alarms when it's time to add materials.

Key Specifications:

• Pot Capacity: 1000L (1400mm dia., 12mm thickness)
• Voltage: 380V/3P (customizable)
• Power: 3.7kW (2.2kW mixing motor + 1.5kW hydraulic motor)
• Mixing Speed: Up to 33RPM (VFD adjustable)
• Heating: Electromagnetic induction, 8-level control
• Scrapers: 7x Teflon (DAIKIN), spring-pressed
• Discharge: Hydraulic tilt, 90°
• Material: Stainless steel 304 throughout

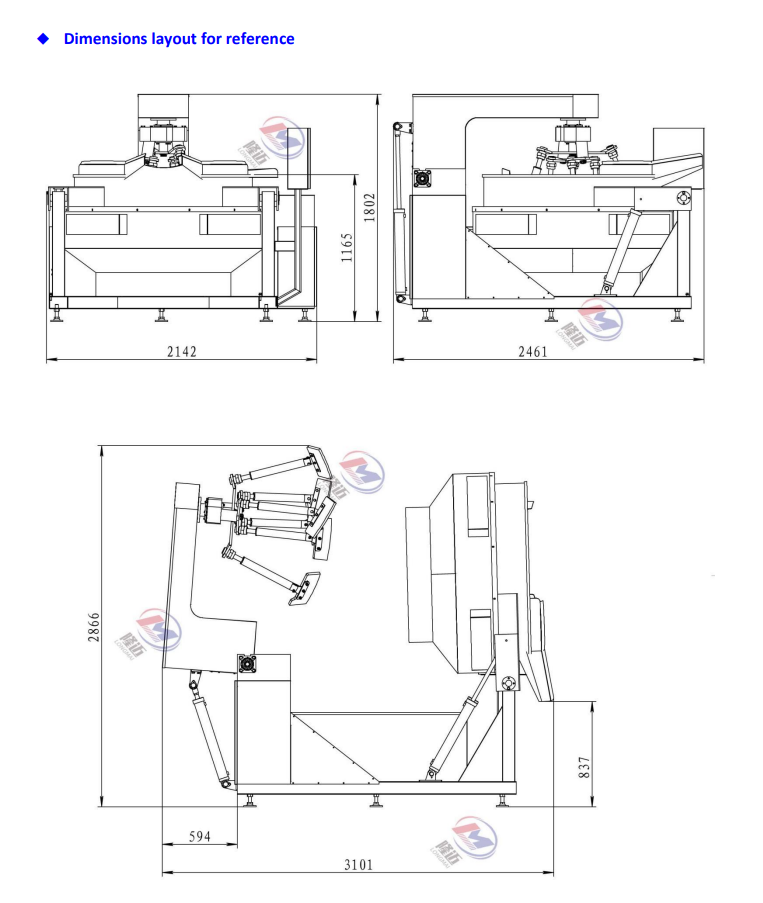

• Dimensions: 235726031924mm | Weight: 1620kg
• Optional: 10" touchscreen PLC with 16+ menu programs

Applications: Sauces, jams, pastes, fillings, seasonings, caramel, nuts, vegetables, meat, and other food products requiring precise heating and thorough mixing.
