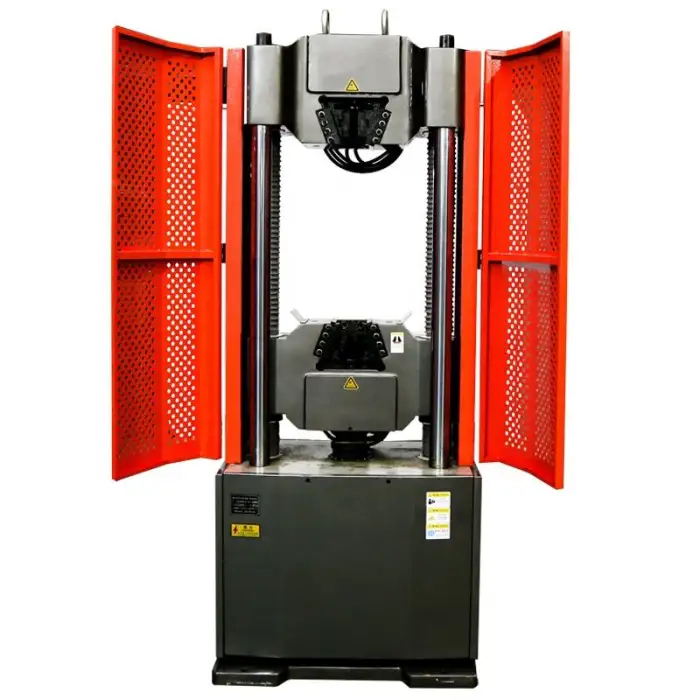

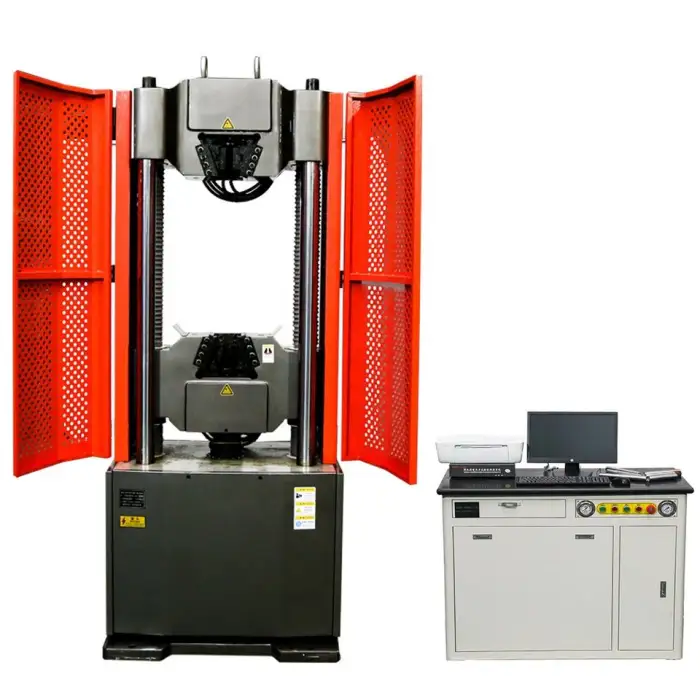

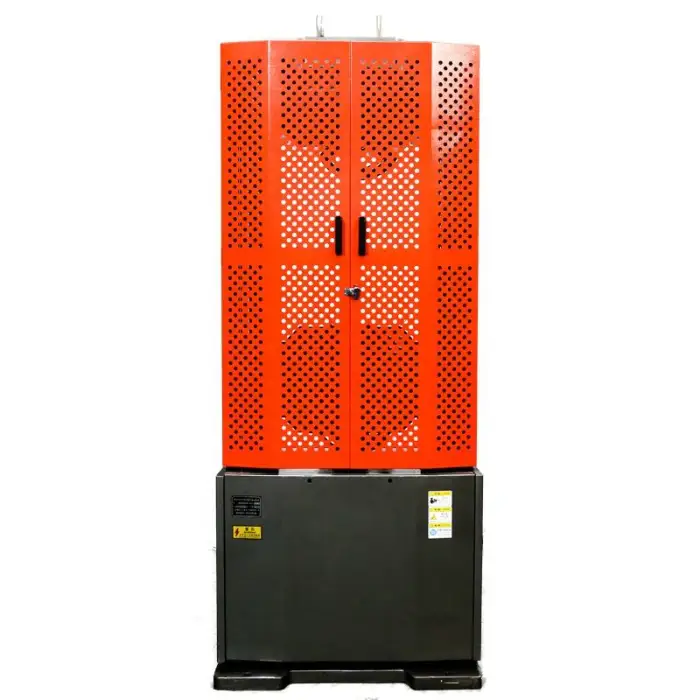

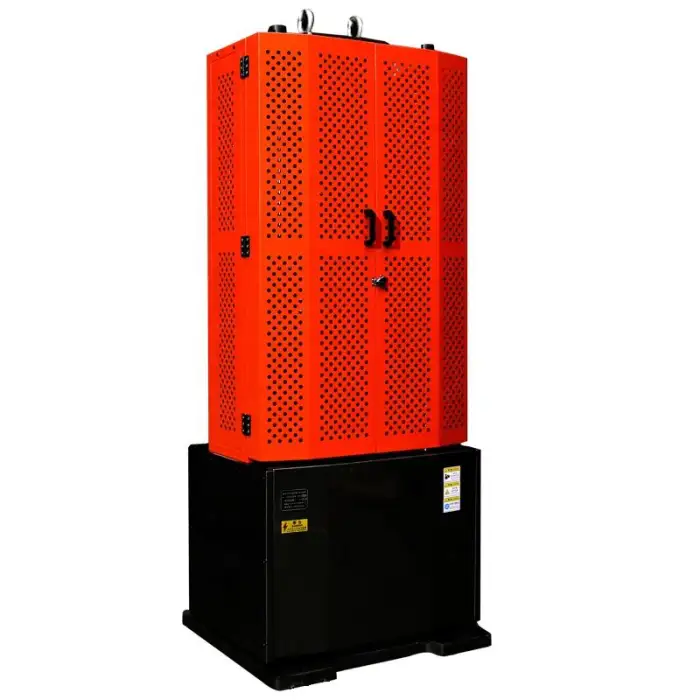

The 100 Ton Computer Servo Control Hydraulic Universal Tensile Testing Machine is an advanced tool designed for testing the tensile strength of rebar and other materials. With a maximum load capacity of 1000 KN, this machine ensures precise and accurate results. Perfect...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The 100 Ton Computer Servo Control Hydraulic Universal Tensile Testing Machine is an advanced tool designed for testing the tensile strength of rebar and other materials. With a maximum load capacity of 1000 KN, this machine ensures precise and accurate results. Perfect for laboratories and industrial settings, it combines reliability with state-of-the-art technology.
| Attribute | Details |
|---|---|
| Max Load | 1000 KN |
| Accuracy Class | 1.0 (0.5 optional) |
| Effective Test Space | 700 mm |
| Effective Test Width | 500 mm |
| Piston Stroke | 200 mm |
| Clamping Diameter Range | up to 60 mm |
| Clamping Method | Cone solid block filled into steel pipe, hydraulic fixture + jaws clamp |
| Test Standard | ASTM, ISO, EN |
| Supply Ability | 1000 sets per month |
| Certification | CE |
| Model | WAW-1000D |
| Maximum test force | 1000 kN |
| Test force measurement range | 2%-100% FS (0.4%-100%FS optional) |
| Test force indication accuracy | Class 1.0 (Class 0.5 optional) |
| Displacement measurement resolution | 0.01 mm |
| Test space adjustment speed | 150mm/min; |
| Maximum moving speed of piston | 50 mm/min |
| Piston stroke | 200mm |
| Maximum tensile test space | 700mm |
| Maximum compression space | 60mm |
| Net Distance between columns | 500 mm |
| Clamping method | Hydraulic automatic clamping |
| Clamping diameter of round specimen jaws | Φ26mm-Φ60mm |
| Clamping thickness of flat specimen jaws | 20-40mm |
| Maximum clamping width of flat specimen | 100mm |
| Compression Platen size | 160×160 mm |
| Maximum distance between bending support rollers | 350mm |
| Host net weight | 3500kg |
| Host machine dimension | 800*650*2100 mm |
| Machine power | 3 Phases, 380V, 50HZ, 5KW |
| Max Load | 1000 KN |
|---|---|
| Accuracy Class | 1.0 (0.5 optional) |
| Effective Test Space | 700 mm |
| Effective Test Width | 500 mm |
| Clamping Diameter Range | up to 60 mm |
| Test Standard | ASTM, ISO, EN |
| Supply Ability | 1000 sets per month |
| Certification | CE |
| Model | WAW-1000D |
| Maximum test force | 1000 kN |
| Test force measurement range | 2%-100% FS (0.4%-100%FS optional) |
| Test force indication accuracy | Class 1.0 (Class 0.5 optional) |
| Displacement measurement resolution | 0.01 mm |
| Test space adjustment speed | 150mm/min; |
| Maximum moving speed of piston | 50 mm/min |
| Maximum tensile test space | 700mm |
| Maximum compression space | 60mm |
| Net Distance between columns | 500 mm |
| Clamping diameter of round specimen jaws | Φ26mm-Φ60mm |
| Clamping thickness of flat specimen jaws | 20-40mm |
| Maximum clamping width of flat specimen | 100mm |
| Compression Platen size | 160×160 mm |
| Maximum distance between bending support rollers | 350mm |
| Host net weight | 3500kg |
| Host machine dimension | 800*650*2100 mm |
| Machine power | 3 Phases, 380V, 50HZ, 5KW |
The machine has a maximum load capacity of 1000 KN.
This machine can test a variety of materials, including rebar and other construction materials.
The machine has an accuracy class rating of 1.0, with an optional accuracy of 0.5.
The effective test space is 700 mm in height and 500 mm in width.
The piston stroke length is 200 mm.
The clamping diameter range can accommodate up to 60 mm.
The machine uses a cone solid block filled into a steel pipe, along with a hydraulic fixture and jaws clamp.
The machine complies with ASTM, ISO, and EN testing standards.
We can supply up to 1000 sets of the machine per month.
Yes, the machine has CE certification.
Key features include high accuracy, the ability to test various materials, easy operation with computer servo control, durable construction, and quick setup.
It is suitable for testing tensile strength of construction materials, quality control in manufacturing, research and development in material science, compliance testing, and educational purposes.
The machine is designed for easy operation with its computer servo control system.
The machine comes with a standard exporting plywood package case for safe transport.
Yes, it is suitable for educational purposes in engineering labs.
