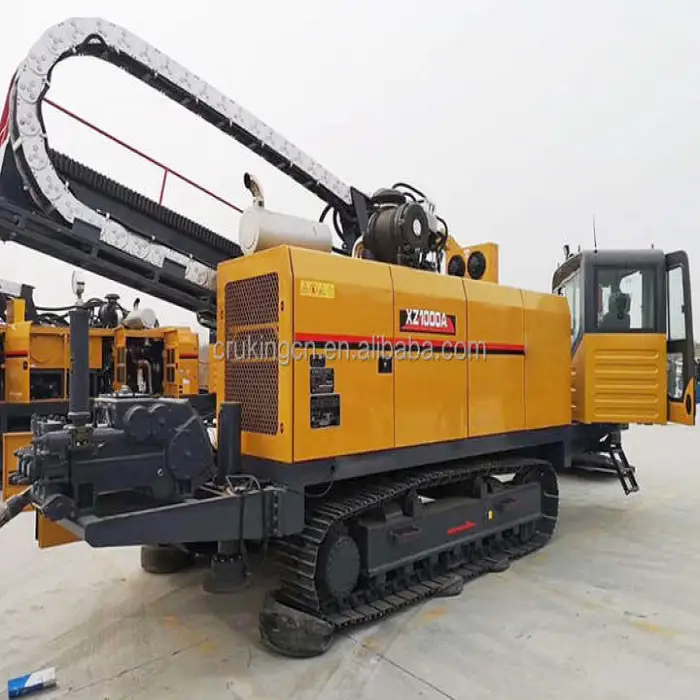

The XZ1000 weighs 11,500 KG.
The XZ1000 has a maximum capacity of 100 tons (1000KN).
The core components include a PLC, engine, bearing, motor, pressure vessel, gear, and pump.
The maximum backreamer diameter is 600 mm.
The XZ1000 operates on a voltage of 380V.
The maximum pressure for the XZ1000 is 8 MPa.
The maximum flow rate of the XZ1000 is 250 liters per minute.
The maximum spindle speed of the XZ1000 is 150 r/min.
The dimensions of the XZ1000 are 6500 mm (length) x 2270 mm (width) x 2340 mm (height).
Yes, the XZ1000 is suitable for telecommunication projects as well as laying underground pipes and cables.
Yes, an outgoing inspection video is provided with the XZ1000.
A machinery test report is provided to ensure the quality and performance of the XZ1000.
The applications include utility installation, construction of new infrastructure, and environmental investigations.
The XZ1000 has a compact design that allows for easy transport and setup.
The maximum inclination angle for drilling with the XZ1000 is 22°.
