Non Woven Textile Fabrics Tear Resistance Force Testing Machine Tensile Strength And Elongation Testing Machine CMT-5L
R184,026 Excl VAT
Pay over 3 EQUAL zero-interest
instalments of R61,342 with PayJustNow.
Find out how...
PayJustNow is a simple, easy-to-use payment system.
Here’s how it works:
PayJustNow allows you to pay for your purchase over 3 equal, zero interest instalments. You’ll pay one instalment at the time of purchase, the next at the beginning of the following month and the last one a month thereafter.
#zerointerest
Step 1:
Browse your favourite online stores and proceed to check-out.
Step 2:
Choose PayJustNow as your payment method.
Step 3:
Create your account as easily as if your eyes were shut (though we’d recommend you keep them open).
Step 4:
Complete your purchase and whoop for joy!
Here’s what you’ll need:
A valid RSA ID document
To be over 18 years old
An email address
A SA Bank issued debit or credit card
Product Description
*Usage and Characteristics*
CMT series electronic universal testing machine is used for metal and nonmetal(including composite materials) for the normal and high,low temperature tensile, compression, bending, shear, striping, tear, load, relaxation, reciprocating and other static mechanical property test and analitycal investigation,which can calculate the test parameters automatically like ReH,ReL,Rp0.2,Fm,Rt0.5,Rt0.6,Rt0.65,Rt0.7,Rm,E and so on,and can test and provide data according to GB,ISO,DIN,ASTM,JIS and other international standard.

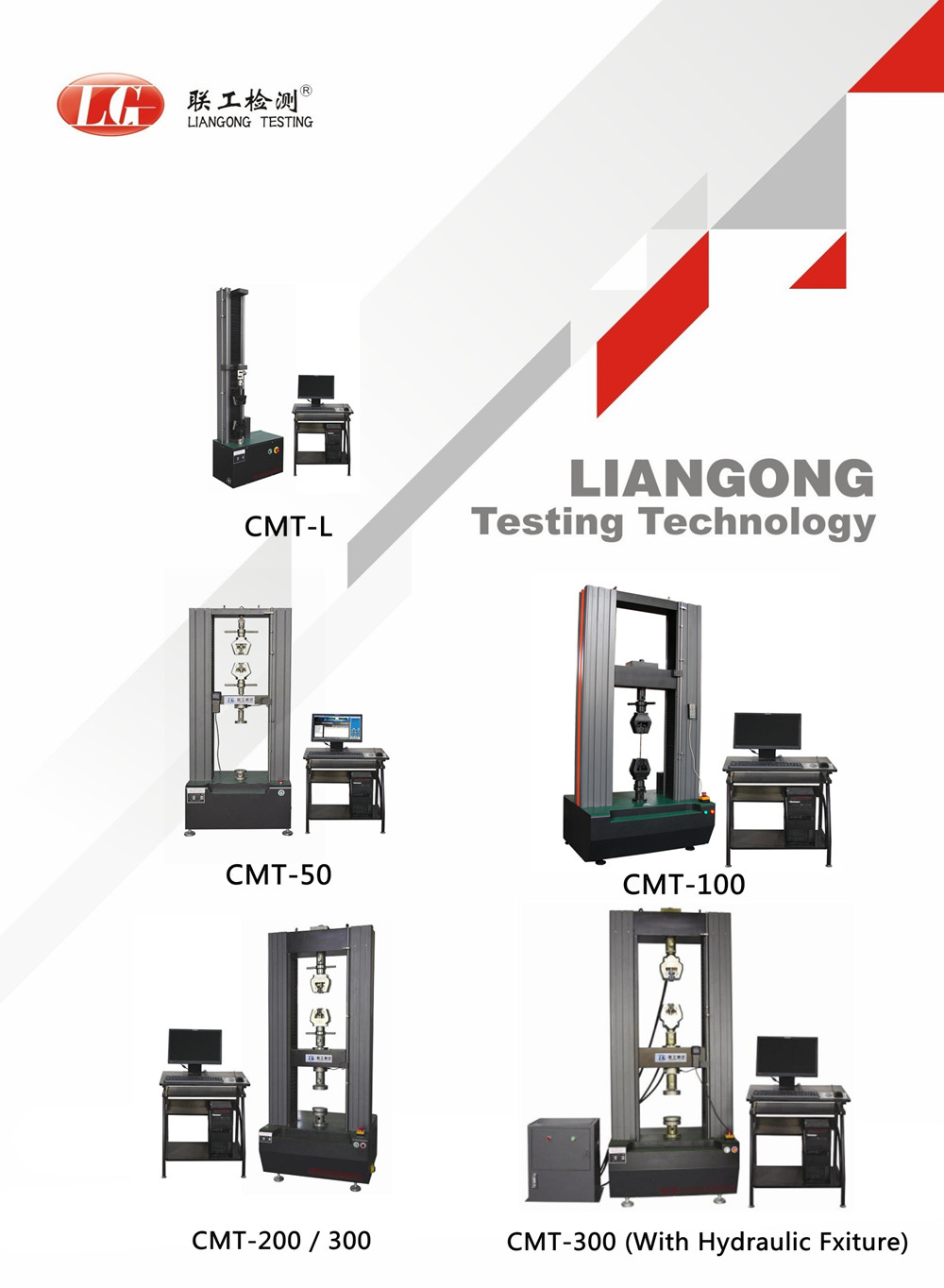

Regarding the electronic tensile testing machine: The single column series electronic universal testing machine is composed of base, three columns and one light bar; the portal frame electronic universal testing machine is composed of base, two fixed crossbeam, one movable crossbeam, four columns and two light bar.
This series machines is with good appearance and stable performance, high stiffness, high control precision, high work efficiency, low noise, and energy saving. It provides a perfect security for from load nonmetallic biomaterials to big load high strength metal building materials test. It can realize repeated high precision testing, especially in the low speed control high speed returns performance.
*Advantages*
1.DSC Controller, connect with the computer through USB, with stable performance, safety and easy maintain and update.
2.Controller independent acquisition and control testing machine, it can realize three loop and polynuclear control, which can easily control tensile stress, deformation and displacement, synchronous realize high resolution and high acquisition frequency. It can realize the collection of load and deformation at the same time,to ensure the high frequency acquisition speed, even the any change in the material testing.
3. Easily use control handle to adjust space and test
4. It can show the real-time data of force value, displacement and deformation, the total data zero, test starting, the fast and slow movements of beam up and down. Free your time and improve your efficiency.
5. Multiple layer protection, let test zero accident In addition to set overload limit, over-current, overvoltage scram protection, and also increased the sensor’s anti-shock protection, and to make sure that the sensor data can be monitored timely in order to make adjustment in advance. Another suggestion with customers with sample splash guard.
6. Multi-channel expansion, meet the rich extension test range, also it can equip with more force value sensor. In addition to the commonly used analog quantity acquisition channel outside, according to the customer need, acquisition channel can be extended to more than 10, meet all kinds of harsh test requirements
*Main Technical Parameters*
|
Model
|
CMT-01L. 02L. 05L. 1L. 2L. 5L
|
CMT-10. 20. 30. 50
|
CMT-100
|
CMT-200. 300
|
|
Measurement parameters
|
||||
|
Max.Test force (kN)
|
0.1 0.2 0.5 1 2 5
|
10. 20. 30. 50
|
100
|
200. 300
|
|
Accuracy class
|
0.5 Class
|
|||
|
Measuring range of test force
|
0.2%~100%FS (full scale)
|
|||
|
Indicating error of test force
|
within ±0.5% of indicating value
|
|||
|
Resolution of test force
|
±1/300000 of maximum test force, grade unchanged and resolution unchanged in whole process
|
|||
|
Deformation measuring range
|
0.2%~100%FS
|
|||
|
Deformation indicating error
|
within ±0.5% of indicating value
|
|||
|
Resolution of deformation
|
1/200000 of maximum deformation, up to 1/300000
|
|||
|
Large deformation measurement range
|
10-800mm
|
|||
|
Large deformation indicating error
|
within ±1% of indicating value
|
|||
|
Large deformation Resolution
|
0.008mm
|
|||
|
Displacement indicating error
|
within ±0.5% of indicating value
|
|||
|
Resolution of displacement
|
0.025μm
|
|||
|
Control parameters
|
||||
|
Tuning range of force control rate
|
0.005~5%FS/s
|
|||
|
Control accuracy of force control rate
|
When rate is less than 0.05%FS/s, within ±2% of setting value
|
|||
|
When rate is no less than 0.05%FS/s, within ±0.5% of setting value
|
||||
|
Tuning range of resolution rate
|
0.2~100%FS
|
|||
|
Control accuracy of resolution rate
|
When rate is less than 0.05%FS/s, within ±2% of setting value
|
|||
|
When rate is no less than 0.05%FS/s, within ±0.5% of setting value
|
||||
|
Tuning range of replacement rate
|
0.001~500mm/min
|
|||
|
Control accuracy of movement rate
|
When rate is less than 0.5mm/min, within ±1% of setting value
|
|||
|
When rate is no less than 0.5mm/min, within ±0.2% of setting value
|
||||
|
Constant force,constant strain (deformation),constant displacement control range
|
0.2~100%FS
|
|||
|
Other parameters
|
||||
|
Crosshead stroke (customizable)
|
1120mm
|
970mm
|
1250mm
|
1000mm
|
|
Effective compression stroke
|
800mm
|
700mm
|
700mm
|
600mm
|
|
Effective width space
|
/
|
440mm
|
600mm
|
550mm
|
|
Power supply
|
220V, 50Hz, 0.4kW ~1kW
|
380V, 50Hz, 2kW ~5kW
|
||
|
Work environment
|
Room temperature ~ +35°C Relative humidity less than 80%
|
|||
|
Host size (mm)
|
650*330*1730
|
820*620*1900
|
1050*855*2180
|
1070*920*2550
|
|
Weight
|
150kg
|
350kg
|
1000kg
|
1500kg
|
|
Remark
|
1.Equipped fixture can be based on users needs or customer made
2.Alternative transducer is available to extend the measuring range 3.The tensile space can be heighten on users requirement |
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer for making testing machine, charpy testing machine,broaching machine, temperature , etc for many years.
2. What is your payment terms?
We accept TT, West Union, L/C, and other payment terms.
3. What is your delivery time?
Generally is about 10 days for standard testing machine, but for non-standard machines, it needs to be customized.
4. Can you accept customers’ inspection or third party inspection?
Yes, we totally accept inspection before shipment. Welcome to our factory.
5. Why choose your company?
We are manufacturing testing machines for more than 10 years, and our products have exported all the world. We constantly study and research new projects, and some of our products have won patents. We also get the CE, ISO certificates. High quality products and service are our main center.
