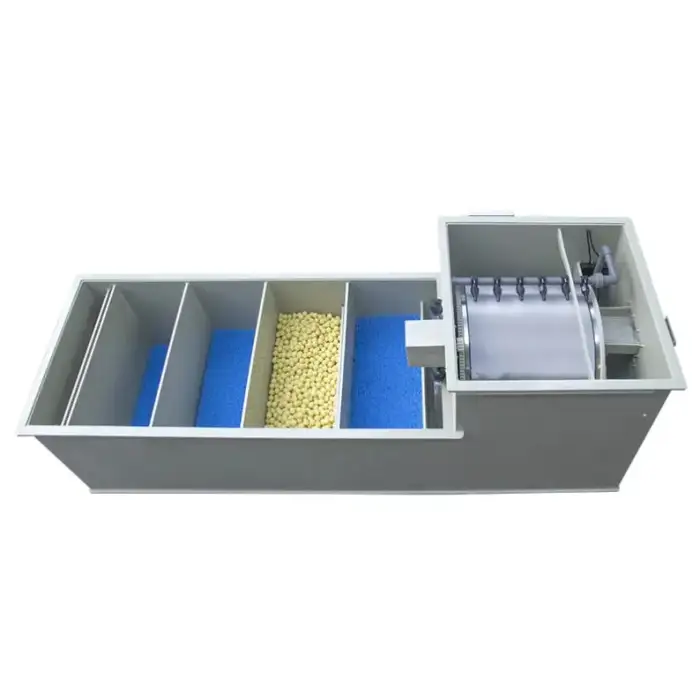

Landscape fish pool filtration equipment bio uv drum filter multiple chamber filter systems for koi fish ponds
- SKU : 1601091364255
Product Overview
Product Overview
landscape fish pool filtration equipment bio uv drum filter multiple chamber filter systems for koi fish ponds

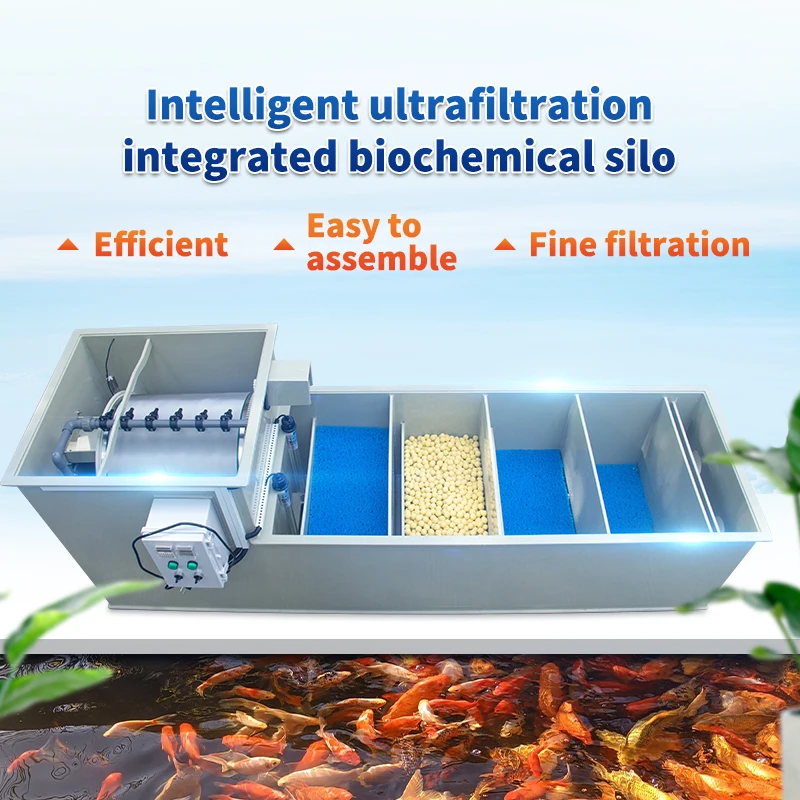

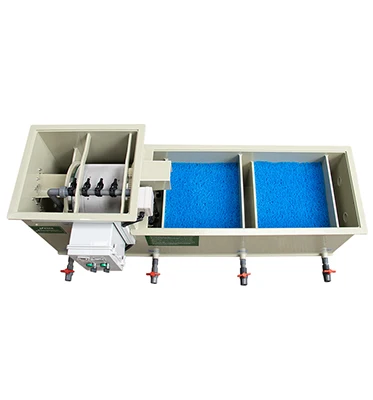

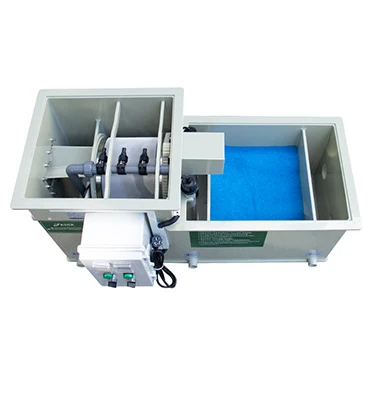

YCM-B Combi Filter: A Comprehensive Solution for Pond Water Filtration
FEATURES AT A GLANCE
FEATURES AT A GLANCE

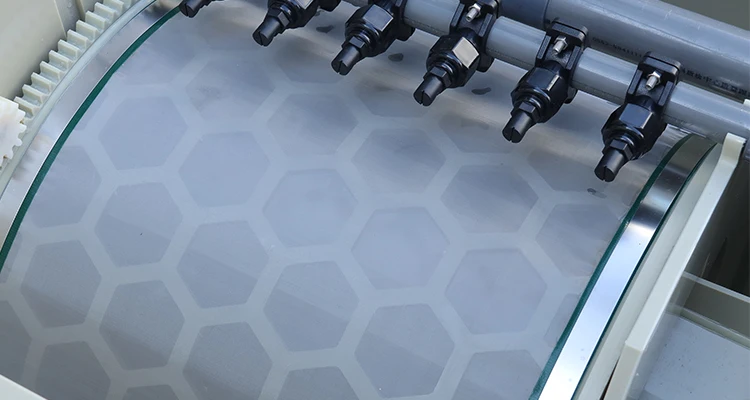

75um 316L Stainless Steel Precision Sieve Mesh
316L stainless steel screen drum that filters contaminants largelthan 75 micron impurities (e.g., fish, bait, algae, pellets, etc.) fromthe water stream.

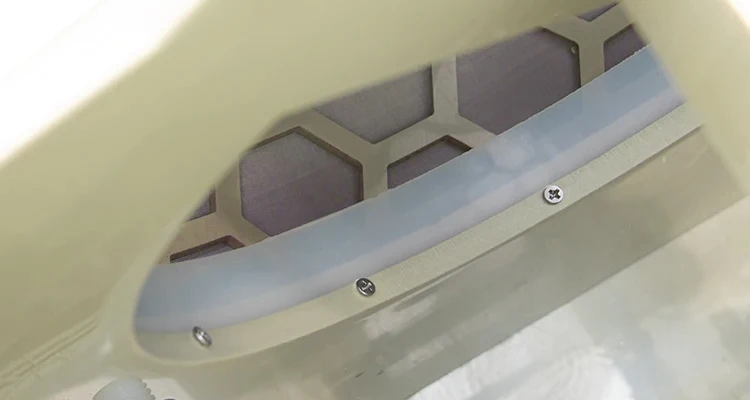

Upgraded andimproved seals
Upgraded sealing performance to effectively eliminate overflow areas

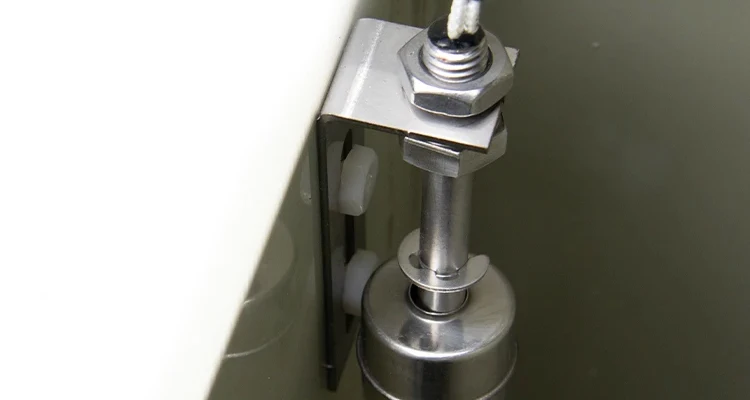

Automatically sensesclogging and flushes
Save Time - Save Effort - Save HeartAs soon as a clogged cartridge is detected, thelevel sensor is activated and the backwashprogram is carried out automatically.

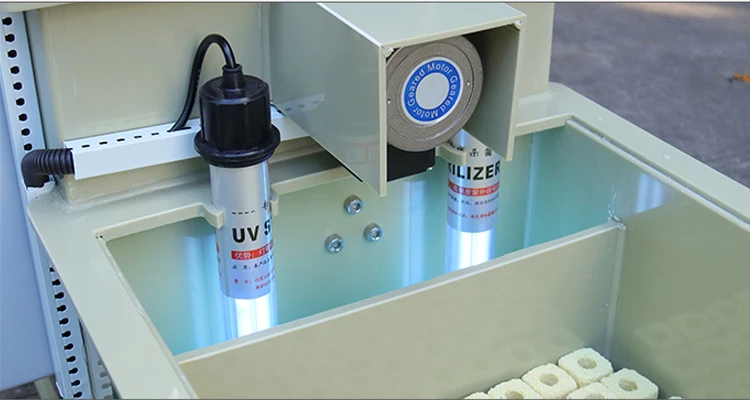

UV germicidal lamp
Inhibit algae growth, sterilize and disinfect

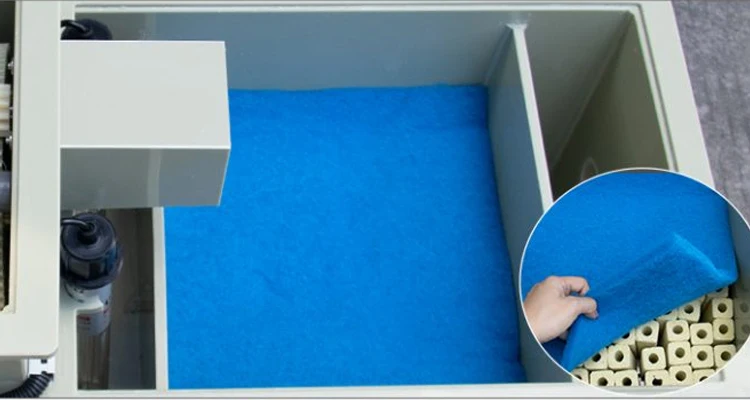

Bacteria House + Multi-density Combined Filter Biochemical Wool
Biological filtration. effectively cultivate nitrifving bacteria and otherbeneficial bacteria, adsorb impurities and harmful substances in the water.increase the amount of dissolved oxygen in the water, improve the filtrationeffect, so as to achieve the effect of living water and water.

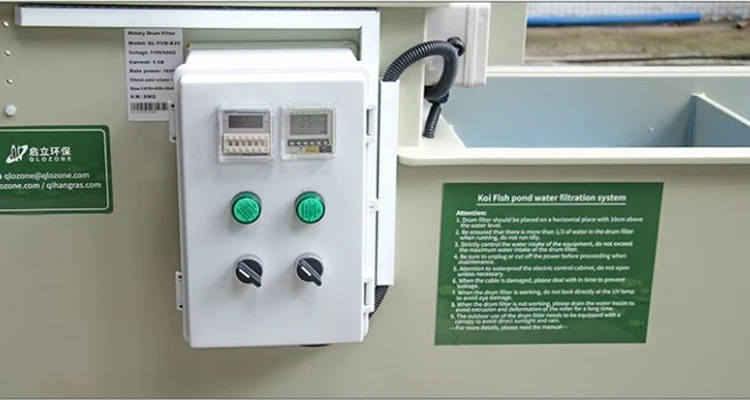

Integrated control panel box
Controlling each part through the panel box, and with microcomputertimer switch, reasonable and efficient cleaning of the fish pool.
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
|
Model number
|
HSW-YCM-B1C
|
HSW-YCM-B2C
|
HSW-YCM-B3C
|
HSW-YCM-B4C
|
|
Size
|
1000×396×524mm
|
1520×430×584mm
|
2220×610×714mm
|
3050×680×804mm
|
|
Suitable
|
0-20m3
|
10m3-40m3
|
30m3-60m3
|
50m3-100m3
|
|
Water flow
|
5m3/H
|
10m3/H
|
30m3/H
|
50m3/H
|
|
UV
|
220V-30W*2110V-11W*3
|
220V-30W*2110V-11W*3
|
220V-40W*2110V-40W*2
|
220V-60W*2110V-40W*3
|
|
Cleaning pump
|
24V 80W
|
24V 80W
|
48V 370W
|
48V 370W
|
|
Roller motor
|
25W
|
25W
|
40W
|
40W
|
|
Drum size
|
∅260×245
|
∅300×290
|
∅380×385
|
∅450×485
|
|
Water inlet
|
DN40×250mm×2
|
DN40×2
50mm×2 |
DN50×263mm×2
|
DN65×2 75mm×2
|
|
Water outlet
|
DN50×2 63mm×2
|
DN50×263mm×2
|
DN65×275mm×2
|
DN80×290mm×2
|
|
Sewage outlet
|
DN20×3 25mm×3
|
DN20×425mm×4
|
DN20×525mm×5
|
DN20×625mm×6
|
YCM-B1C
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 12 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the filtration capacity of the YCM-B Combi Filter?
The YCM-B Combi Filter comes in multiple models suitable for pond sizes ranging from 0 to 100m3, with water flow capacities ranging from 5m3/H to 50m3/H.
2. What materials are used in the construction of the filter?
The filter features a 316L stainless steel screen drum that provides excellent durability and filtration performance.
3. How does the automatic backwashing feature work?
The filter automatically senses when clogging occurs and activates the backwash program, saving you time and effort in maintaining the system.
4. What is the purpose of the UV germicidal lamp?
The UV germicidal lamp is designed to inhibit algae growth and disinfect the water, ensuring a healthier environment for your koi fish.
5. Can this filter system handle both solid and biological filtration?
Yes, the YCM-B Combi Filter integrates a precision sieve mesh for solid filtration and a multi-density combined filter for biological filtration.
6. What are the dimensions of the largest model?
The largest model, HSW-YCM-B4C, measures 3050×680×804mm.
7. Is the control panel user-friendly?
Yes, the integrated control panel box allows for easy operation of each part of the filtration system and includes a microcomputer timer switch for efficient cleaning.
8. How often should I clean the filter?
Cleaning frequency depends on usage and water quality. The automatic backwashing feature helps maintain cleanliness, but regular manual checks are recommended.
9. What types of impurities can the filter remove?
The filter can effectively remove contaminants larger than 75 microns, including fish, bait, algae, and other debris.
10. Do I need to install additional components for the filter to work?
The YCM-B Combi Filter is a comprehensive system that includes essential components, but you may need additional plumbing or pumps depending on your pond setup.
11. Is this filter suitable for both indoor and outdoor ponds?
Yes, the YCM-B Combi Filter is suitable for both indoor and outdoor koi fish ponds.
12. What power supply is required for the UV lamp?
The UV lamp operates on a 220V power supply, with different wattages depending on the model.
13. How does the filter help improve water quality?
The combination of mechanical, biological, and UV filtration helps remove impurities, cultivate beneficial bacteria, and inhibit algae growth, resulting in improved water quality.
14. What are the available models and their capacities?
The available models are HSW-YCM-B1C (0-20m3), HSW-YCM-B2C (10m3-40m3), HSW-YCM-B3C (30m3-60m3), and HSW-YCM-B4C (50m3-100m3).
15. Can I use this filter with other types of fish?
While designed for koi ponds, the filtration system can also be used with other types of fish, provided the pond size is appropriate.
