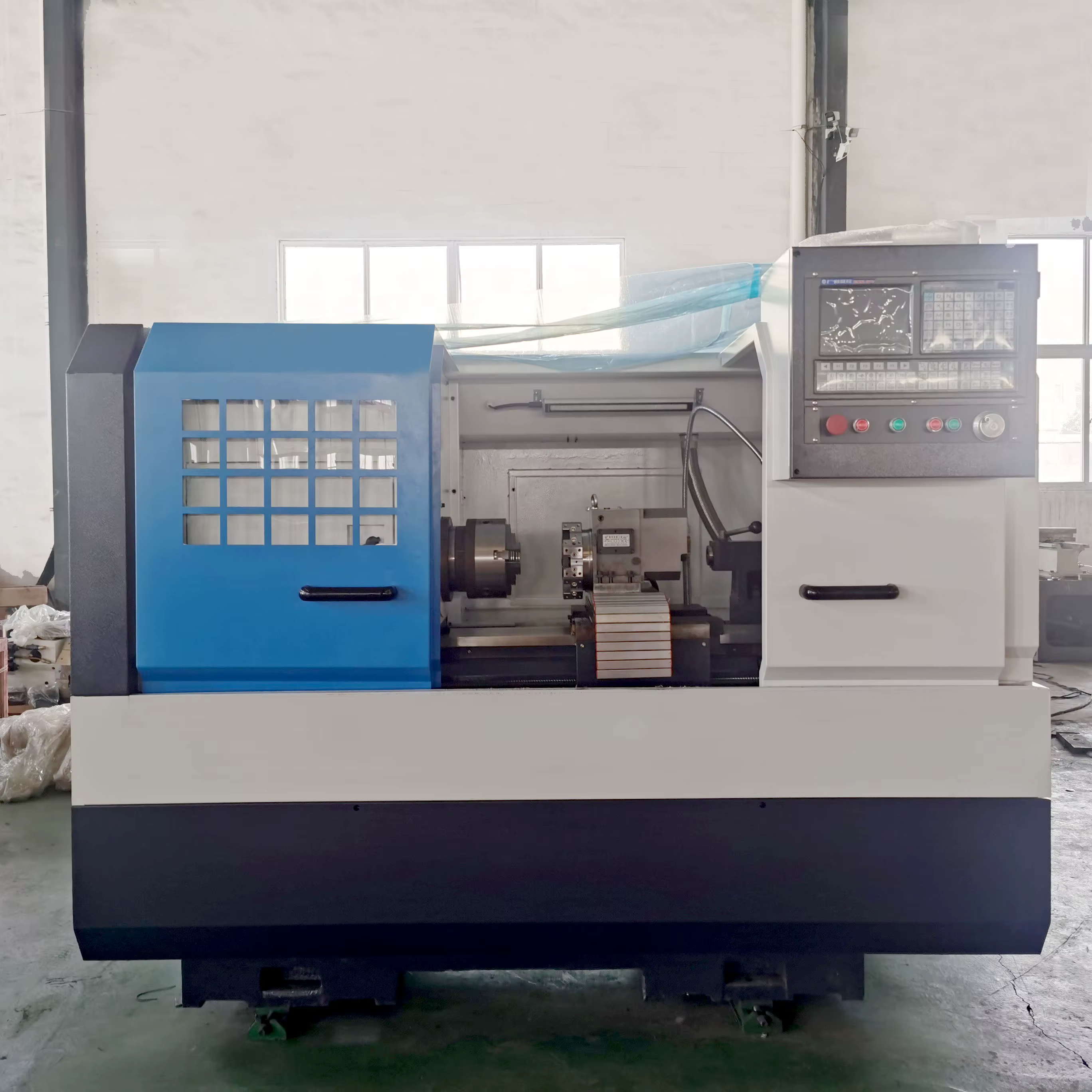

The maximum swing over the bed for the CK6132 is 320 mm.
The distance between centers for the CK6132 is 500 mm.
The spindle speed range of the CK6132 is 100 to 2000 RPM.
The CK6132 weighs 1400 kg.
The travel for the X axis is 200 mm, and the travel for the Z axis is 1000 mm.
The cutting torque of the CK6132 is 100 Nm.
The maximum length of the workpiece is 550 mm, and the maximum weight is 100 kg.
The CK6132 has 2 axes.
The repeatability for X/Y/Z is ±0.005 mm.
The positioning accuracy of the CK6132 is ±0.008 mm.
The CK6132 has 6 tool post stations with 4 positions.
The CK6132 can work with various metals and is suitable for prototyping and fabrication of precision parts.
Key features include high precision for detailed metalwork, stepless spindle speed, multifunctional capabilities, and a robust design for medium duty applications.
The CK6132 is suitable for manufacturing precision parts for machinery, creating custom components for the automotive industry, fabricating metal tools and fixtures, and producing high-quality workpieces for industrial use.
Yes, the CK6132 is a new machine.
