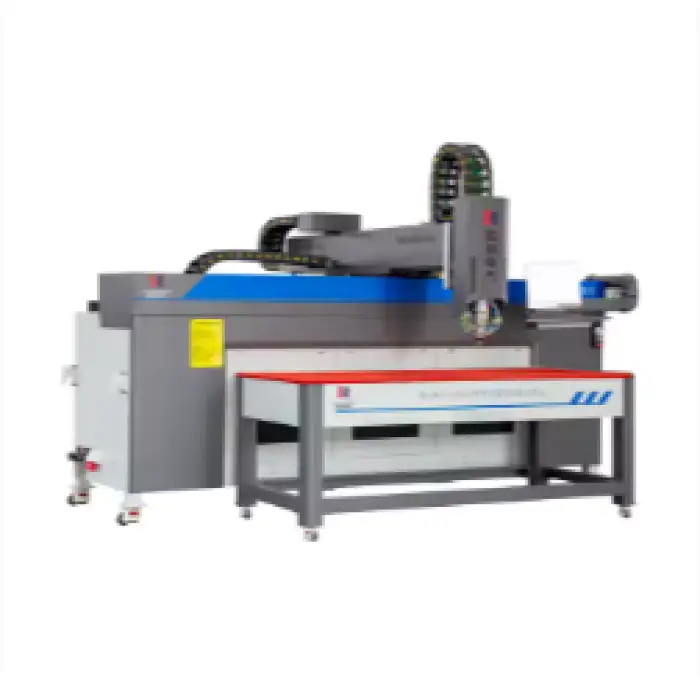

The Polyurethane Automatic Dispensing Machine is a powerful tool designed for precise and efficient dispensing of polyurethane materials. This machine is perfect for creating gaskets and foams in various industries. With its advanced features and user-friendly design, it ensures high performance and reliability in every operation.
| Attribute | Details |
|---|---|
| Model No. | RC-D-7-2-B/G |
| Power | 4KW |
| Working Stroke | X*Y*Z=2300*1250*300mm |
| Voltage/Frequency | 3*380V/50-60HZ |
| Rack Body Size | L*W*H=4100*1150*2450mm |
| Gasket Width | 5-30mm |
| Workbench Size | L*W*H=2300*1000*1000mm |
| Mixing Ratio | 1:1-10:1 |
| Working Speed | 0~30m/min |
| Material Tanks | 40L both for glue A & B tank |
| Control System | Industrial motion control computer system, multi-language |
| Cleaning Method | Automatic high pressure water cleaning |
| Output | 1.0-7.2g/s |
| Filter Precision | 40~50 μm |
| Working Pressure Limits | ≥0.6MPA |
| Re-Positioning | ±0.05mm |
Frame structure
Integrated gantry frame structure, fully surrounded constant temperature system, all the pipelines glue tanks are covered inside, tidy, clean and safe, with wheels, easy to move, no need installation.
Control system
Smart control system, can support CAD, Teaching and Template functions, much more convenient for operation.
Thermostatic system
Thermostat water circulation device, heating and cooling all in one, -15℃ to 35℃ environment can still work normally.
Metering pump
Increase the secondary pump, no need to adjust the pressure, the operation is more convenient, and the performance is more stable.
Machine working area
Machine working area 2400 * 1250 * 300 (mm), the largest working range in China, can be dispensed on the largest and highest products.
