Automatic Finger Joint Press Machine
- Section : Machinery
- Category : Woodworking Machinery
- SKU : 1601293101966

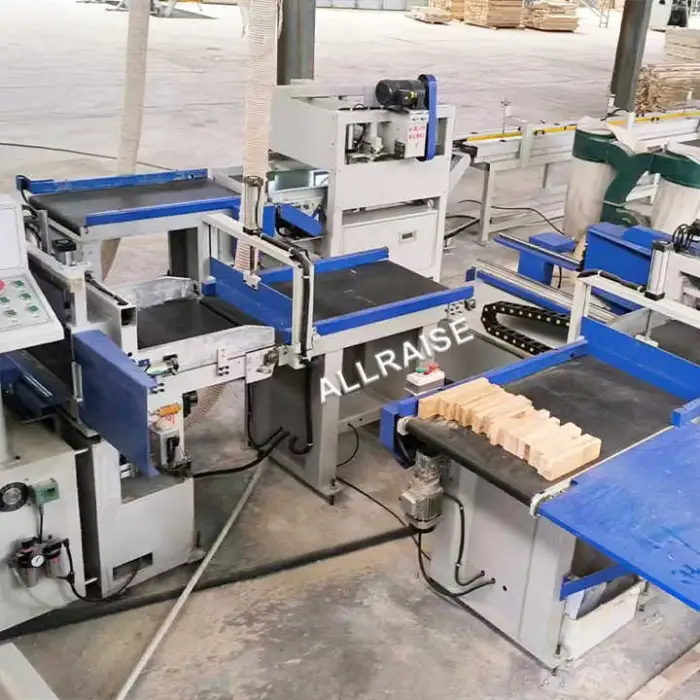

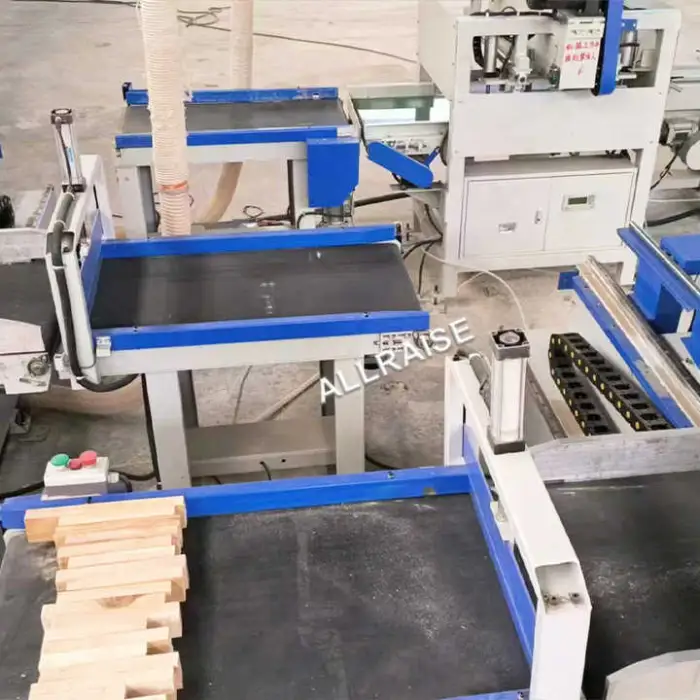

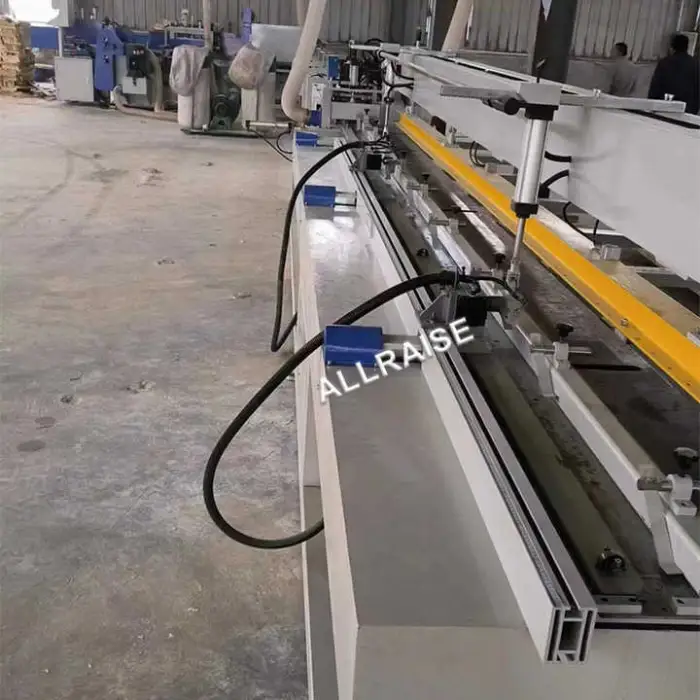

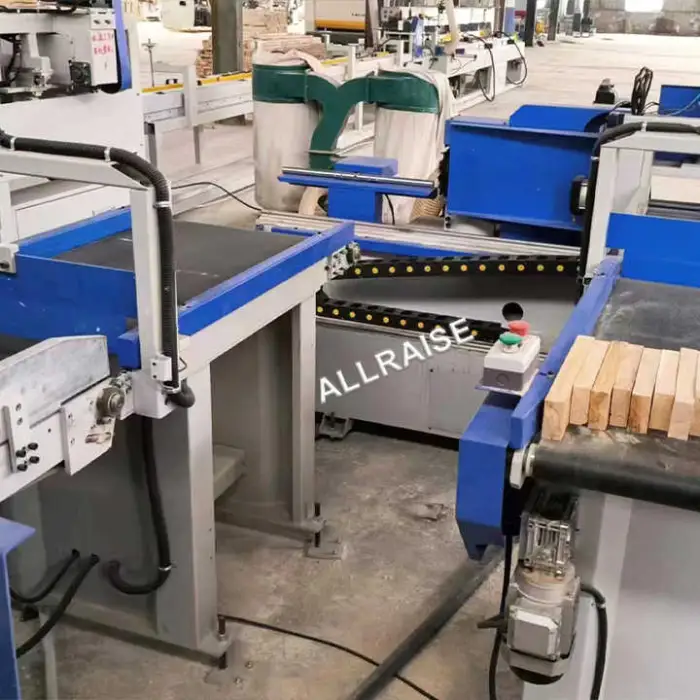

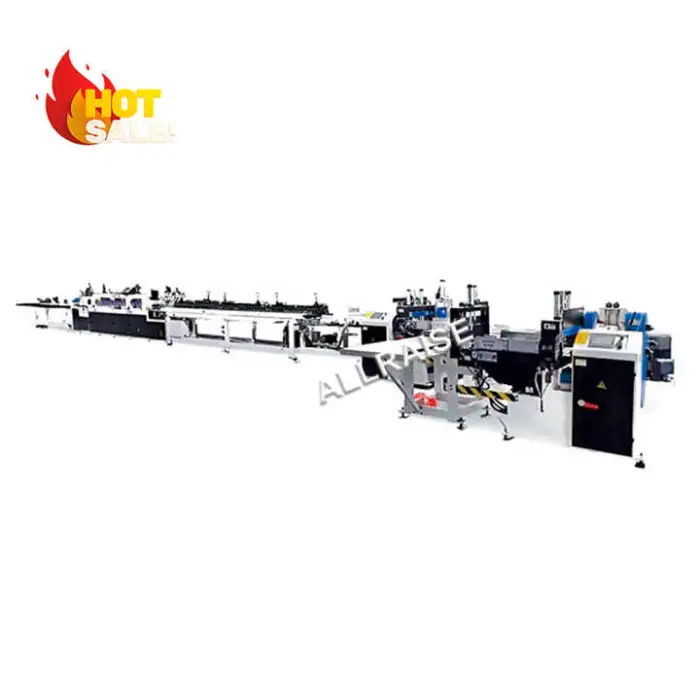

Automatic Finger Joint Press Machine
The Automatic Finger Joint Press Machine is a powerful tool for woodworking. It is designed to create strong finger joints in wood. This machine is easy to operate and helps you craft high-quality finger joint boards. With its advanced features, it makes woodworking more efficient and precise.
Specifications
| Attribute | Details |
|---|---|
| Power Source | Electrical |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear |
| Voltage | 380V |
| Weight | 10,000 KG |
| Power | 62 kW |
| Conveyor Belt Motor Power | 400W |
| Working Air Pressure | 0.8-0.6 MPa |
| Saw Blade Diameter | 355 mm |
| Saw Shaft Speed | 3700 RPM |
| Maximum Machining Length | 850 mm |
| Minimum Machining Length | 150 mm |
| Maximum Machining Width | 580 mm |
| Minimum Machining Width | 450 mm |
| Maximum Machining Height | 150 mm |
| Minimum Machining Height | 22 mm |
| Selling Units | Single Item |
| Single Package Size | 610 x 190 x 190 cm |
| Single Gross Weight | 1000.000 KG |
Key Features
- Easy to operate with user-friendly controls.
- High-quality construction for durability.
- Powerful motor for efficient performance.
- Automatic finger jointing for perfect joints.
- Suitable for various wood types.
Applications
- Making finger joint boards for furniture.
- Creating strong joints in wooden beams.
- Used in cabinet making and woodworking shops.
- Ideal for large-scale woodworking production.
- Perfect for both commercial and DIY projects.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is an Automatic Finger Joint Press Machine and what does it do?
The Automatic Finger Joint Press Machine is an automated woodworking machine that cuts and presses interlocking "finger" profiles on board ends to form long, strong finger-jointed boards. It automates cutting, gluing and pressing steps to deliver consistent, high-strength joints for furniture, beams, cabinets and panel production.
2. What are the key technical specifications of this machine?
Core specs: electrical power source, rated voltage 380 V, total power 62 kW, machine weight approx. 10,000 kg, conveyor belt motor 400 W, working air pressure 0.6–0.8 MPa (6–8 bar), saw blade diameter 355 mm, saw shaft speed 3,700 RPM. PLC control with components including engine, bearings, gearbox, motor and pressure vessel.
3. What maximum and minimum workpiece dimensions can it handle?
Maximum machining length 850 mm and minimum length 150 mm. Width range: 450–580 mm. Height (thickness) range: 22–150 mm. Pieces must fall within these ranges for reliable jointing.
4. Which wood types and conditions can the machine process?
It is suitable for a wide range of solid woods and engineered wood products commonly used in furniture and construction. For best results use material with stable moisture content and consistent density. Highly resinous, very wet or contaminated material may require pre-treatment—confirm with supplier for specific species.
5. What are the electrical and air supply requirements for installation?
Electrical: three-phase 380 V supply and sufficient service capacity for 62 kW rated power. Compressed air: 0.6–0.8 MPa (6–8 bar) stable supply for pneumatic actuators and pressure vessel. Local electrical protection and compliant pneumatic filtration/regulation are recommended.
6. How is the machine controlled and how easy is it to operate?
The machine uses PLC-based controls with user-friendly HMI (operator interface). It is designed for straightforward operation—program setup for joint parameters, automated feed and pressing. Operators should be trained on the HMI, safety procedures and routine adjustments.
7. What safety features should I expect and what training is recommended?
Expected safety features include guarded saw areas, emergency stop buttons, interlocks on access panels and safe control zoning. Operators should receive training on safe startup/shutdown, lockout/tagout, blade handling and routine maintenance procedures before use.
8. What routine maintenance is required?
Daily: clean dust and glue residues, inspect guards, check air/oil leaks and conveyor operation. Weekly/monthly: check and lubricate bearings, gearbox and moving parts, inspect saw blade condition and tension, verify PLC/controls. Replace consumables (blades, belts, seals) as needed and schedule periodic professional servicing.
9. What are the saw blade specifications and replacement recommendations?
The machine uses a 355 mm diameter saw blade running at 3,700 RPM. Use blades specified for finger-joint cutting with recommended tooth geometry and material. Replace blades when dull or damaged to maintain cut quality and reduce stress on the drive system. Always follow safety procedures when changing blades.
10. What production capacity or throughput can I expect?
Throughput depends on piece length, glue cure time, joint profile and line configuration. The machine is designed for high-volume, continuous production suitable for commercial operations. For accurate throughput estimates and cycle times for your product, provide sample dimensions and production requirements to the supplier for calculation.
11. What is required for installation and what is the machine footprint?
Machine shipment package size is listed as 610 x 190 x 190 cm. Machine weight is approximately 10,000 kg—installation will typically require a solid floor or foundation, forklift/crane for placement, and professional electrical and pneumatic hookups. Allow extra clearance around the machine for maintenance and material handling.
12. Are spare parts and consumables readily available?
Yes. Common spare parts include saw blades, bearings, seals, belts and electrical components. The PLC and major components (gearbox, motor) are standard industrial parts. It is recommended to keep critical consumables and wear parts in stock and confirm lead times with the supplier.
13. Is the machine customizable or available with additional options?
Yes. Typical customizations include different joint profiles, extended length handling, additional automation (infeed/outfeed conveyors), glue systems, and upgraded PLC/HMI packages. Discuss your production needs with the manufacturer to configure the correct options.
14. What warranty, after-sales support and training are available?
Warranty and support vary by manufacturer and seller. Most suppliers offer a warranty period covering defects, spare parts availability and optional installation/commissioning and operator training packages. Confirm warranty length, service contracts and training options before purchase.
15. How is the machine shipped and what should I check on delivery?
The machine is sold as a single item and shipped in packaged/crated form (package size listed 610 x 190 x 190 cm). Check delivered crates for damage, verify component list against packing documents, note gross/package weights with the carrier and coordinate with the supplier for assembly, on-site commissioning and any missing parts. Confirm logistics due to heavy weight and size.
