Underground Mini Mine Drilling Rig GLKD-500 for Coal Mine Exploration
Underground Mini Mine Drilling Rig GLKD-500 for Coal Mine Exploration
Underground Mini Mine Drilling Rig GLKD-500 for Coal Mine Exploration

R1,272,188

0 Customer Reviews

Add To Wishlist Share to Social

GLKD-500 Wireline Underground Core Drilling Rig

Product Description

ABOUT GLKD-500 Wireline Underground Core Drilling Rig：

1. The underground drilling rig is suitable for indoor use with a 2000*2000mm roof without breaking, quicksand and support. 360-degree all-round drilling and coring.

2. Drilling forward (horizontal), the size of the chamber is required to be 2000mm high * 2000mm wide.

3. Drilling transverse (horizontal), the size of the chamber is required to be 2000mm high *2700mm wide.

4. Drilling vertical up and down angles, the size of the chamber is required to be 2700mm high * 2000mm wide

Features

1. Small size, light weight and easy installation.2. It consists of three major parts, the main machine, the pump station, and the operation console.3.It can be put into production in the original transportation and exploration roadway, which plays a role in protecting the overall structure of the mine. It can also be used for surface 0-90 degree drilling.4.The drilling rig is arranged flexibly, and the drill pipe can be twisted and unloaded mechanized, which reduces the labor intensity of workers and improves work efficiency.

Main Specification of GLKD-500 Wireline Underground Core Drilling Rig：

GLKD-500 Full Hydraulic Underground Core Drilling Rig
Drilling angle:(Tunnel) 0-360 degrees, surface 0-90 degrees
Drilling depth:Drill pipe: Φ43mm- 500m
 Drill pipe: Φ55.5（BQ）mm- 480m (horizontal), 500m (vertical)
 Drill pipe: Φ71 (NQ) mm -360m (horizontal), 420m (vertical)
Spindle speed:290-900RPM (manual continuously variable transmission)
Spindle output torque:296-1100 N.m (torque platform test)
Rated feeding force:80 kn (torque platform test)
Feeding stroke750mm
Inner diameter of oil cylinder80mm
Chrome plated piston rod45m
Oil pump motor:380V, 45KW
Motor1pc
Hydraulic system:The maximum volume of the oil tank is 150 L, 46# anti-wear hydraulic oil, and the system pressure is 160 bar
Drill Rig Weight:523kg (decomposable)
Dimension:1850mm*450mm*550mm(L*W*H)
Console weight:60kg
Dimension:610mm*530mm* 1050mm
Power unit weight:550kg (decomposable)
Dimension:1280mm*800mm*1200mm



  • Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 16 Jun, 2025, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
  • Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
  • Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
  • Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.

0

0 Overall Rating
  • 5
    0%
    0
  • 4
    0%
    0
  • 3
    0%
    0
  • 2
    0%
    0
  • 1
    0%
    0

Review this product

For you to write a review, you need to login first

Login

Related Products

Product

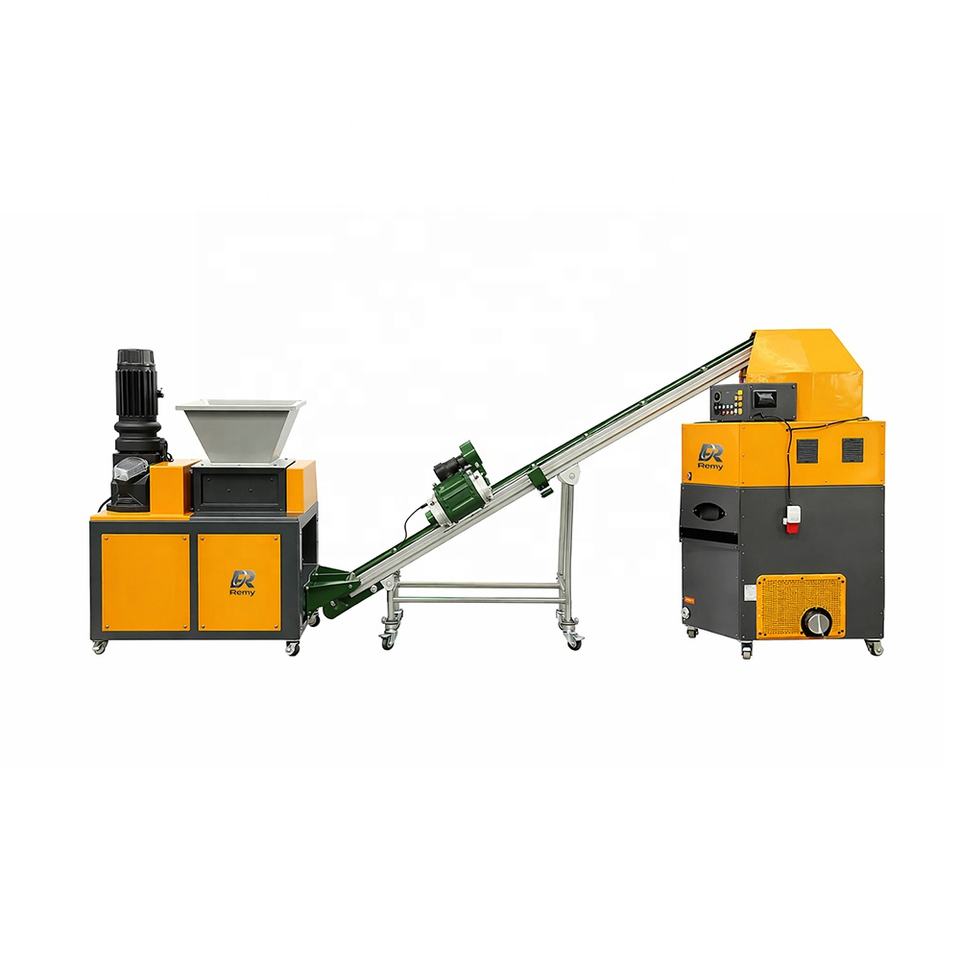

Custom Industrial Waste Car Body Shredding Machine and Multipurpose Shredder
