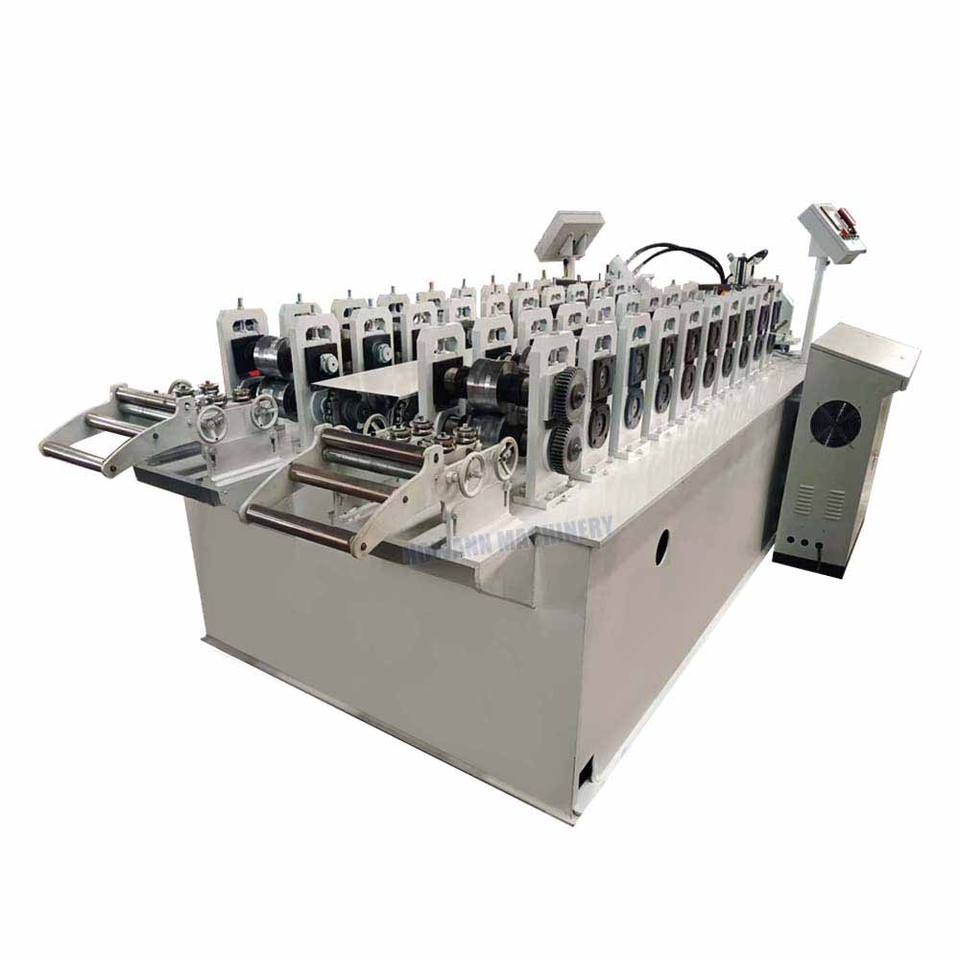

The Top Hat Shape Making Roll Former is primarily used for producing ceiling metal profiles and furring channels, making it ideal for construction and framing applications.
This machine is designed to work with various metal materials, particularly suitable for steel used in ceiling profiles and furring channels.
The quick change feature allows for fast adjustments between different profile shapes, enabling users to switch setups in a minimal amount of time, enhancing productivity.
The dimensions of the Top Hat Shape Making Roll Former are 5500mm in length, 1100mm in width, and 1200mm in height.
The machine weighs approximately 3500 kg, ensuring stability during operation.
The Top Hat Shape Making Roll Former comes with a 1-year warranty, covering manufacturing defects and ensuring customer satisfaction.

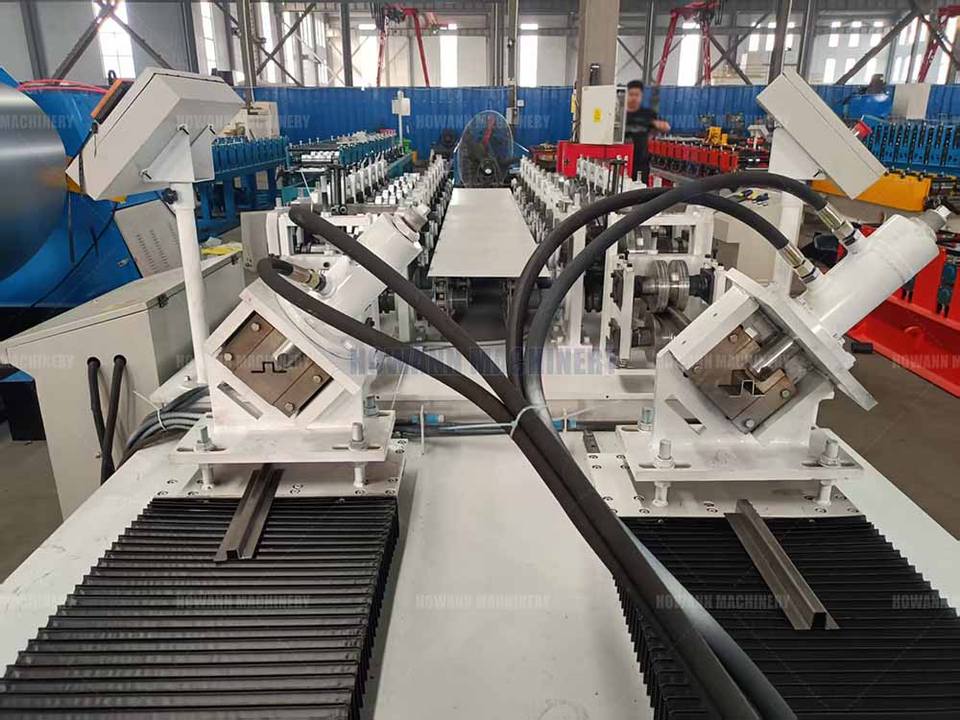

The machine features a hydraulic cutting system, which provides smooth and precise cuts for the finished profiles.
The main engine power is 4 KW, and it operates on a 380V 50 Hz 3 Phase electric tension, or as per specific customer requirements.
Yes, the Top Hat Shape Making Roll Former is designed with user-friendly controls and PLC components, making it easy to operate even for those with minimal experience.
The core components include a PLC, engine, bearings, and a gearbox, all designed to ensure high performance and reliability.
Yes, it is suitable for both residential and commercial projects, effectively producing metal framing and profiles needed for construction.
The frame is constructed from 350H steel, providing durability and stability for long-term use.
The forming shaft has a diameter of 80mm, designed to handle the forming process effectively.

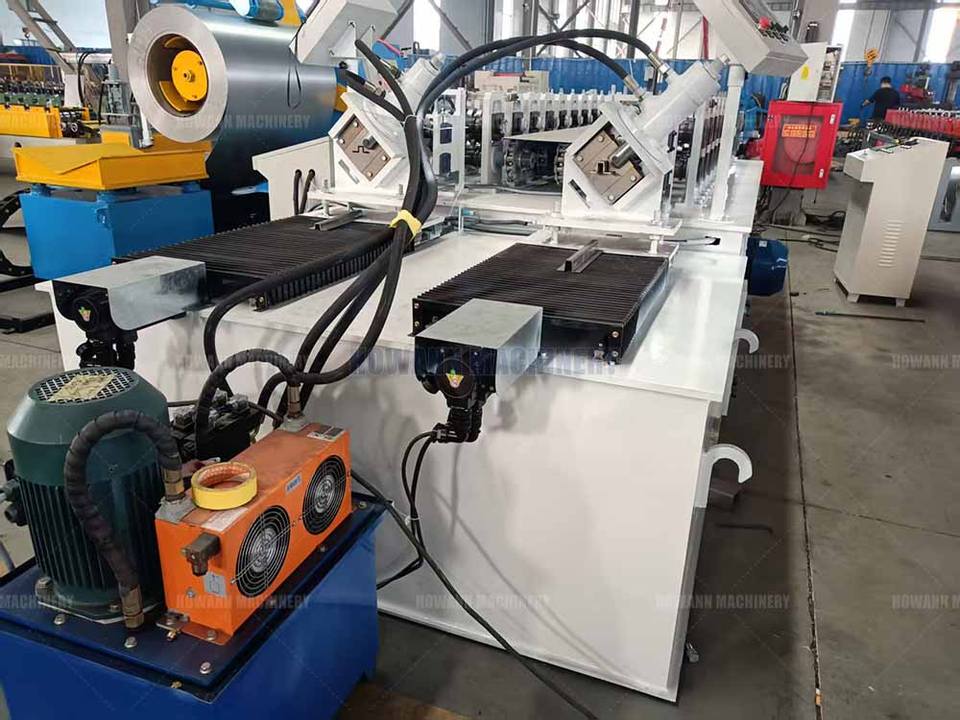

The recommended hydraulic oil for operation is 40# hydraulic oil, ensuring optimal performance of the hydraulic system.
The Top Hat Shape Making Roll Former is certified with CE and ISO, ensuring compliance with international safety and quality standards.
