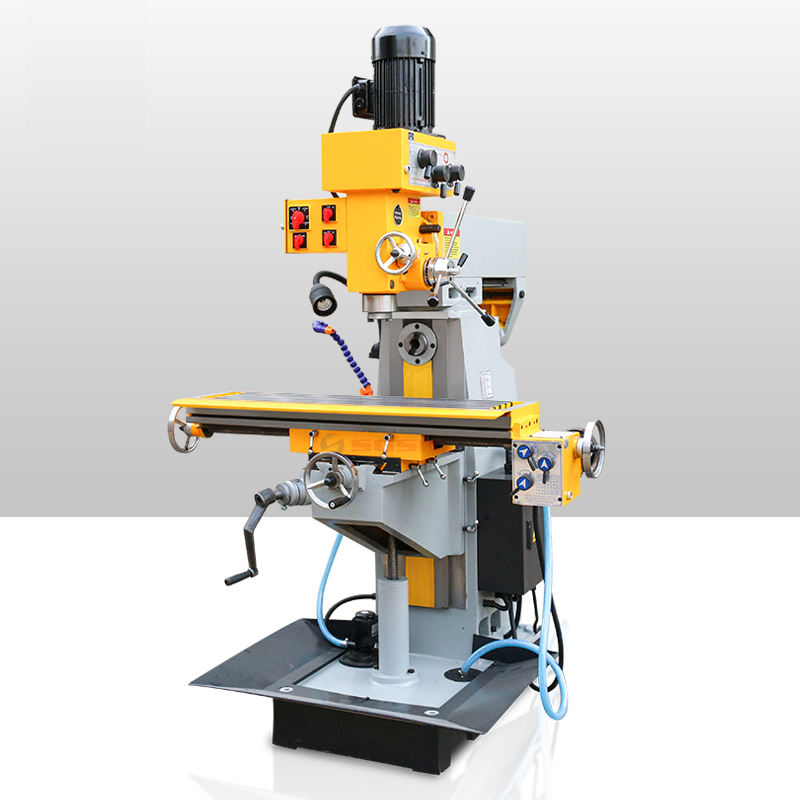

The ZX7550CW features a powerful 1.5 kW motor, a maximum drilling capacity of 50 mm, spindle speed range of 40 to 1400 r.p.m., and universal milling and drilling capabilities.
The maximum drilling capacity of the ZX7550CW is 50 mm.
The ZX7550CW has a weight of 1000 kg, providing stability during operation.
The ZX7550CW operates on voltages of 110V, 220V, 380V, and 415V.
The spindle travel distance on the ZX7550CW is 120 mm.
Yes, the ZX7550CW is designed for both drilling and milling applications, making it a versatile tool for various machining tasks.
The maximum end mill capacity of the ZX7550CW is 100 mm.
The ZX7550CW comes with a 1-year warranty.
The ZX7550CW is perfect for hobbyists working on DIY projects, small workshops, educational institutions, prototyping, and light to medium duty machining tasks.

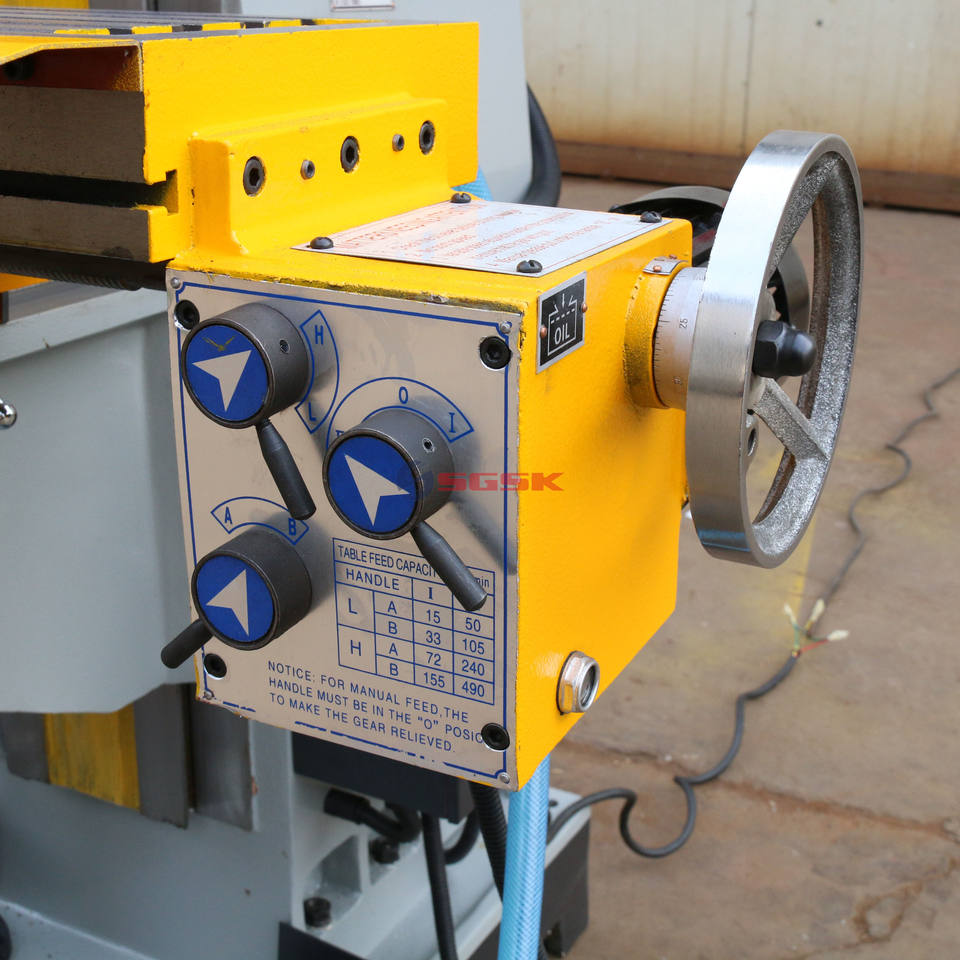

The table travel distance for the ZX7550CW is 600 mm in the X direction, 240 mm in the Y direction, and 120 mm in the Z direction.
The spindle taper type used in the ZX7550CW is MT4.
The spindle speed range of 40 to 1400 r.p.m. allows for flexibility in machining various materials and achieving different finishes.
The maximum table load for the ZX7550CW is 200 kg.
Yes, the ZX7550CW is ideal for educational institutions teaching machining skills due to its ease of use and versatility.
The packing dimensions for the ZX7550CW are 1400 mm x 1300 mm x 2080 mm.
